KEYS AND DOORS
23
Locking with inside lock button
 1Lock 2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.
If the vehicle is subjected to a severe frontal, rear or side
impact with the ignition switch turned to the “ON” position, all
doors will unlock automatically after a few seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

KEYS AND DOORS
24
Locking with power door lock switch
 1Lock 2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
The same switch is also located on the front passenger’s side. If you do any of the following, no door can be unlocked with the
power door lock switch.

Lock all the doors with the key or wireless remote control
when all the doors are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
 Turn the ignition key to the “ON” position.
 Unlock all the doors with the key or wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.

Finish
INTERIOR EQUIPMENT
71
GARAGE DOOR OPENER
The garage door opener (HomeLink
Universal
Transceiver) is manufactured under license from
HomeLink
 and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
(a) Programming the HomeLink
 1 Indicator light 2 Buttons
The HomeLink
 in your vehicle has 3 buttons and you can
store one program for each button.
To ensure correct programming into the HomeLink
, install a
new battery in the hand −held transmitter prior to programming. The battery side of the hand
−held transmitter must be pointed
away from the HomeLink
 during the programming process.
For Canadian users, follow the procedure in “Programming an
entrance gate/Programming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
 buttons you want to program.
2. Place your hand− held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Simultaneously press and hold the hand −held garage
transmitter button along with the selected HomeLink
 button.
4. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
 by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.

Finish
INTERIOR EQUIPMENT
72If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink
 button. The garage door has the
rolling code feature if the indicator light (on the HomeLink)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”.
6. Repeat steps 2 through 5 for each remaining HomeLink

button to program another device.
Programming a rolling code system
If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink
” before proceeding with
the steps listed below.
1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.
2. Press the “training” button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below. 3. Press and release the vehicle’s programmed HomeLink

button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize
the HomeLink
 unit and be able activate the garage
door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink

button to program another rolling code system.
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand −held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Press and hold the selected HomeLink
 button.
4. Continuously press and release (cycle) the hand−held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.

Finish
INTERIOR EQUIPMENT
73
6. Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink

button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink
buttons cannot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink memory
(all three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
 memory.
CAUTION
 When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
 Do not use this HomeLink
 Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door
opener without these features increases risk of
serious injury or death.

COMFORT ADJUSTMENT
11 3

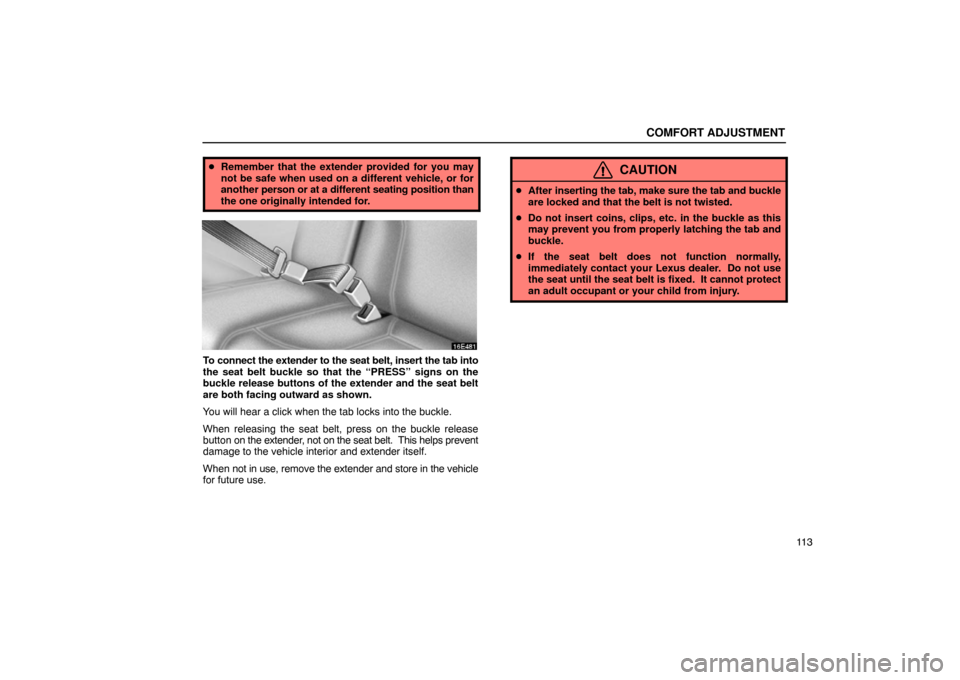

Remember that the extender provided for you may
not be safe when used on a different vehicle, or for
another person or at a different seating position than
the one originally intended for.
To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the “PRESS” signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle
for future use.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.

AIR CONDITIONING
163
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity, switching of the diffusers, on−off of the air
conditioning and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while
operating in automatic mode, the operation corresponding to
the button depressed is set. Other conditions continue to be
adjusted automatically.
Push the “OFF” button to turn the air conditioning system off.
2. Use the “TEMP” or “PASSENGER TEMP” button to set
the desired temperature.
The “TEMP” or “P ASSENGER TEMP” button is used to set the
desired temperatu re. The temperatur e will be controlled on the
driver and passenger sides simultaneously or individually.
“TEMP” button—Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
“PASSENGER TEMP” button—Changes the temperature on
the passenger side only.
“DUAL” button— Changes the mode of the temperature
setting.
The indicator on the “DUAL” button has two modes:
 With the indicator on— For individual temperature setting
 With the indicator off— For simultaneous temperature
setting

AIR CONDITIONING
164
20E396
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can be selected
manually by
pushing the button. The function of each mode is
as follows:
1 Panel − Air flows mainly from the instrument panel vents.
2
Bilevel − Air flows from both the floor vents and the
instrument panel vents.
3 Floor − Air flows mainly from the floor vents.
4
Floor/Windshield − Air flows mainly from the floor vents
and windshield vents.

AUDIO
175
1Ejecting a compact disc
(See page 185 for details.)
2Function buttons
1 6: Station selector buttons
(See page 181 for details.)
SCAN: Scan tuning
(See page 182 for details.)
P.SCAN: Preset scan tuning
(See page 182 for details.)
3
Display of functions in TAPE or CD mode
:DOLBY NR
(See page 183 for details.)
 :Rewinding or reversing
(See page 183 or 188 for details.)
 :Fast forwarding
(See page 183 or 188 for details.)
RPT: Automatic repeat
(See page 184 or 189 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 184 for details.)
:Disc selection
(See page 187 for details.)
RAND: Random access
(See page 189 for details.)
SCAN: Scan selection
(See page 188 for details.)
4
Compact disc slot
(See page 185 for details.)
5Automatic sound levelizer/Mute
(See page 177 or 179 for details.)
6TUNE/AUDIO CONTROL knob
(See page 178 for details.)
7:
Side change
(See page 183 for details.)
8 Mode selectors
(See page 177 for details.)
9Stopping and ejecting a cassette tape
(See page 182 for details.)
10Turning the system on and adjusting the volume
(See page 176 for details.)
11Cassette tape slot
(See page 182 for details.)
12Radio mode: Seek tuning
(See page 181 for details.)
TAPE mode: Direct access to a desired program
(See page 184 for details.)
CD mode: Direct access to a desired program
(See page 188 for details.)

AUDIO
177
Push the “MUTE” button to decrease the volume
momentarily.
To return to its original volume, push the same button again.
When the audio system is turned on, the mute is always off
regardless of the previous mode.Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off the cassette player by ejecting the cassette
tape. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape. If another function was previously playing, it will come on
again.
