SWITCHES
29
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed
with the ignition key turned to the “ACC” or “LOCK” position\
.*
If you want to turn off the lights immediately, push the “LOCK”
button on the wireless remote control key twice. The lights also
can be turned off immediately by pushing the “LOCK” button
on the wireless remote control key with all the doors locked and
the trunk lid closed.NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details. To turn on the lights again, turn the ignition key to the “ON”
position, or twist the knob on the end of lever to the “AUTO”
position and then twist the k
nob until the first or second
clickstop.
If you are going to park for over one week, make sure the knob
is in the “AUTO” or “DRL OFF” position.
Daytime Running Light (DRL) System
When the knob is set in the “AUTO” position, the headlights
turn on at reduced intensity when the parking brake is released
with the engine started. They will not go off until the ignition
switch is turned off.
The headlights will automatically adjust to full intensity and/or
turn on the other lights dependi ng on the darkness of the
surroundings.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
To cancel the DRL system, twist the knob to the “DRL OFF”
position.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

THEFT DETERRENT
156

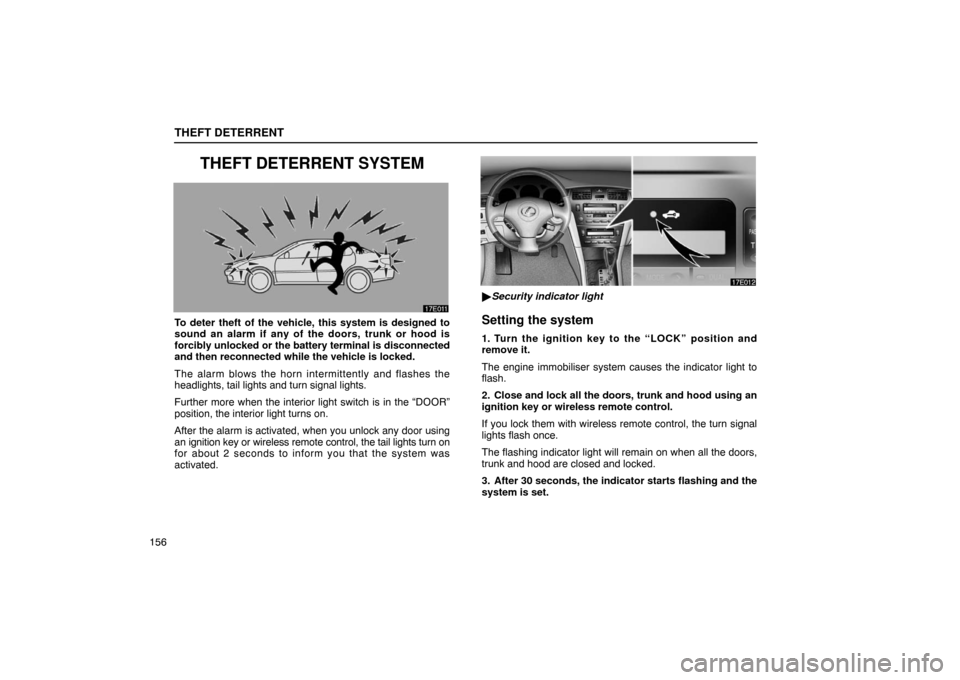

THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
After the alarm is activated, when you unlock any door using
an ignition key or wireless remote control, the tail lights turn on
for about 2 seconds to inform you that the system was
activated.
 Security indicator light
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobiliser system causes the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
If you lock them with wireless remote control, the turn signal
lights flash once.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.

THEFT DETERRENT
157
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the
turn signal lights flash twice.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using an ignition key or
wireless remote control
 Opening the hood forcibly
 Reconnecting the battery
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

IN CASE OF AN EMERGENCY
285
3Push down the shift lock override button. You can shift out
of “P” position only while pushing the button.
4 Shift into “N” position.
Insert the cover . Start the engine. For your safety, keep
the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.
IF YOU LOSE YOUR KEYS OR LOCK YOURSELF OUT
You can purchase a new key at your Lexus dealer if you
can give them the key number and master key, because
your vehicle is equipped with the engine immobiliser
system.
Even if you lose only one key, contact your Lexus dealer to
make a new key. However, if you lose all your master keys, the
dealer cannot duplicate key but only replace the whole system.
See the suggestion given in “Keys” on page 10.
You can use the wireless remote control system with the new
key. Contact your Lexus dealer for detailed information.
If your keys are locked in the vehicle and you cannot get a
duplicate, many Lexus dealers can still open the door for you,
using their special tools. If you must break a window to get in,
we suggest breaking the smallest side window because it is the
least expensive to replace. Be extremely cautious to avoid
cuts from the glass.

ELECTRICAL COMPONENTS
337
No.FUSEAMPERECIRCUIT
1 ABS NO.47.5
Anti−lock brake system,
vehicle skid control system,
traction control system, brake
assist system
2 A/F25Multiport fuel injection
system/sequential multiport
fuel injection system
3 DOOR125
Multiplex communication
system (power door lock
system, auto −door locking
system, wireless remote
control system)
4 TEL5No circuit
5 AM230All components in “IGN” and
“IG2” fuses and starting system
6 EFI20Multiport fuel injection
system/sequential multiport
fuel injection system
7 ALTS5Charging system
8 HEAD LH
UPR10Left −hand headlight (high
beam)
No.FUSEAMPERECIRCUIT
9 ETCS10Multiport fuel injection
system/sequential multiport
fuel injection system
10 HORN10Horns
11 IGN15Starting system
12 HEAD RH
UPR10Right −hand headlight (high
beam)
13 HAZ15Emergency flashers
14 D.C.C30All components in “ECU− B”,
“RAD NO.1” and “DOME” fuses
15 IG210
Multiport fuel injection
system/sequential multiport
fuel injection system, SRS
airbag system, front seat belt
pretensioners, cruise control
system
16 ST5Starting system
17 ADJ PDL30Power adjustable pedals
18 CDS30Electric cooling fan

ELECTRICAL COMPONENTS
340
No.FUSEAMPERECIRCUIT
45 AM15Starting system
46 FOG15Front fog lights
47 SUN
SHADE15Rear sunshade
48 GAUGE210
Auto anti −glare inside rear
view mirror, compass, back −up
lights, automatic light control
system, automatic headlight
leveling system, cruise control
system, seat belt reminder
lights
49 PANEL10
Glove box light, console box
light, clock, outside
temperature gauge,
multi− information display,
instrument cluster lights,
instrument panel lights,
overdrive −off indicator light
50 TAIL10Tail lights, parking lights,
license plate lights
51 PWR NO.420Rear passenger’s power
window (left side)
No.FUSEAMPERECIRCUIT
52 PWR NO.220Front passenger’s door lock
system, front passenger’s
power window
53 OBD7.5On −board diagnosis system
54 SEAT
HTR20Seat heaters
55 WASHER15Windshield washer
56 FA NRLY10Electric cooling fans
57 STOP15Stop lights, high mounted stop-
light
58 FUEL
OPEN5Fuel filler door opener
59 DOOR NO.225
Multiplex communication
system (power door lock
system, auto −door locking
system, wireless remote
control system)
60 AMP25Car audio system
61 PWR NO.320Rear passenger’s power
window (right side)
