ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Brake system warning buzzer (hybrid vehicles): When there is a possible problem that could affect braking performance, the
warning light will come on an d a warning buzzer will sound.
Parking brake engaged warning buzzer:
 P. 76 8
■Brake system warning light operation (hybrid vehicles)
Although depressing the brake pedal repeatedly may cause the red brake system
warning light to turn on and the buzzer to sound, this does not indicate a malfunction.
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by your Lexus dealer.
Stop the vehicle immediately. Cont inuing to drive the vehicle may
be dangerous.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer)*
•Low brake fluid
• Malfunction in the brake booster system
This light also comes on when the parking brake is not released.
If the light turns off after the parking brake is fully released the
system is operating normally.

7527-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
The following warning indicates the possibility of damage to the vehicle
that may lead to an acc ident. Immediately stop th e vehicle in a safe place
and contact your Lexus dealer.
Failure to investigate the cause of th e following warnings may lead to the
system operating abnormally and possib ly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Stop the vehicl e immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system (hybrid vehicles);
• The electronic engine control system;
• The electronic throttle control system;
• The electronic automatic transmission control system (gaso- line vehicles); or
• The electronic hybrid transmission control system (hybrid vehicles)
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system

7537-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises

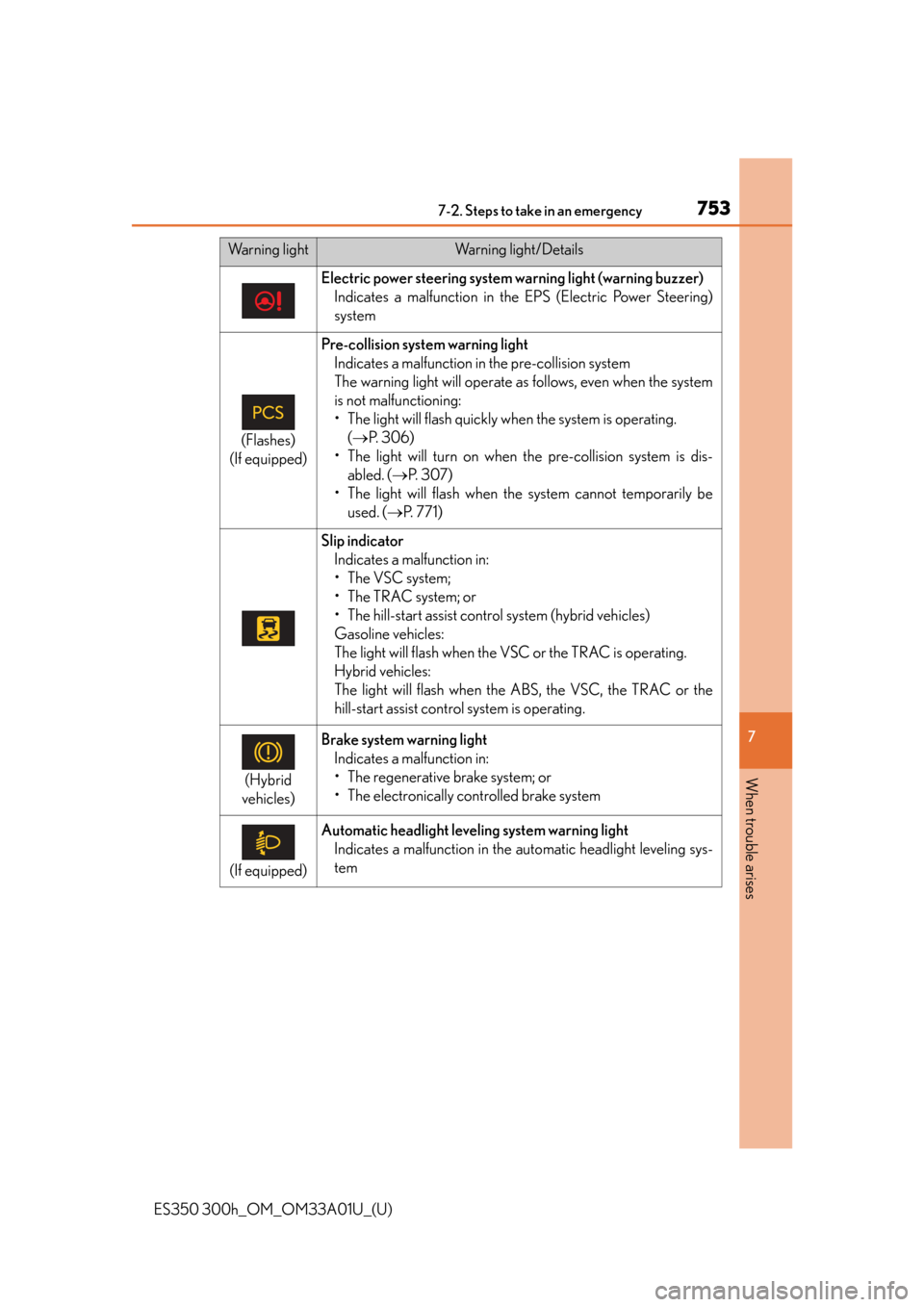

Electric power steering system warning light (warning buzzer)Indicates a malfunction in the EPS (Electric Power Steering)
system
(Flashes)
(If equipped)
Pre-collision system warning light Indicates a malfunction in the pre-collision system
The warning light will operate as follows, even when the system
is not malfunctioning:
• The light will flash quickly when the system is operating. ( P. 3 0 6 )
• The light will turn on when the pre-collision system is dis- abled. ( P. 3 0 7 )
• The light will flash when the system cannot temporarily be used. ( P. 771)
Slip indicator
Indicates a malfunction in:
• The VSC system;
•The TRAC system; or
• The hill-start assist control system (hybrid vehicles)
Gasoline vehicles:
The light will flash when the VSC or the TRAC is operating.
Hybrid vehicles:
The light will flash when the ABS, the VSC, the TRAC or the
hill-start assist control system is operating.
(Hybrid
vehicles)
Brake system warning light Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
(If equipped)
Automatic headlight leveli ng system warning light
Indicates a malfunction in the automatic headlight leveling sys-
tem
Warning lightWarning light/Details

7547-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.

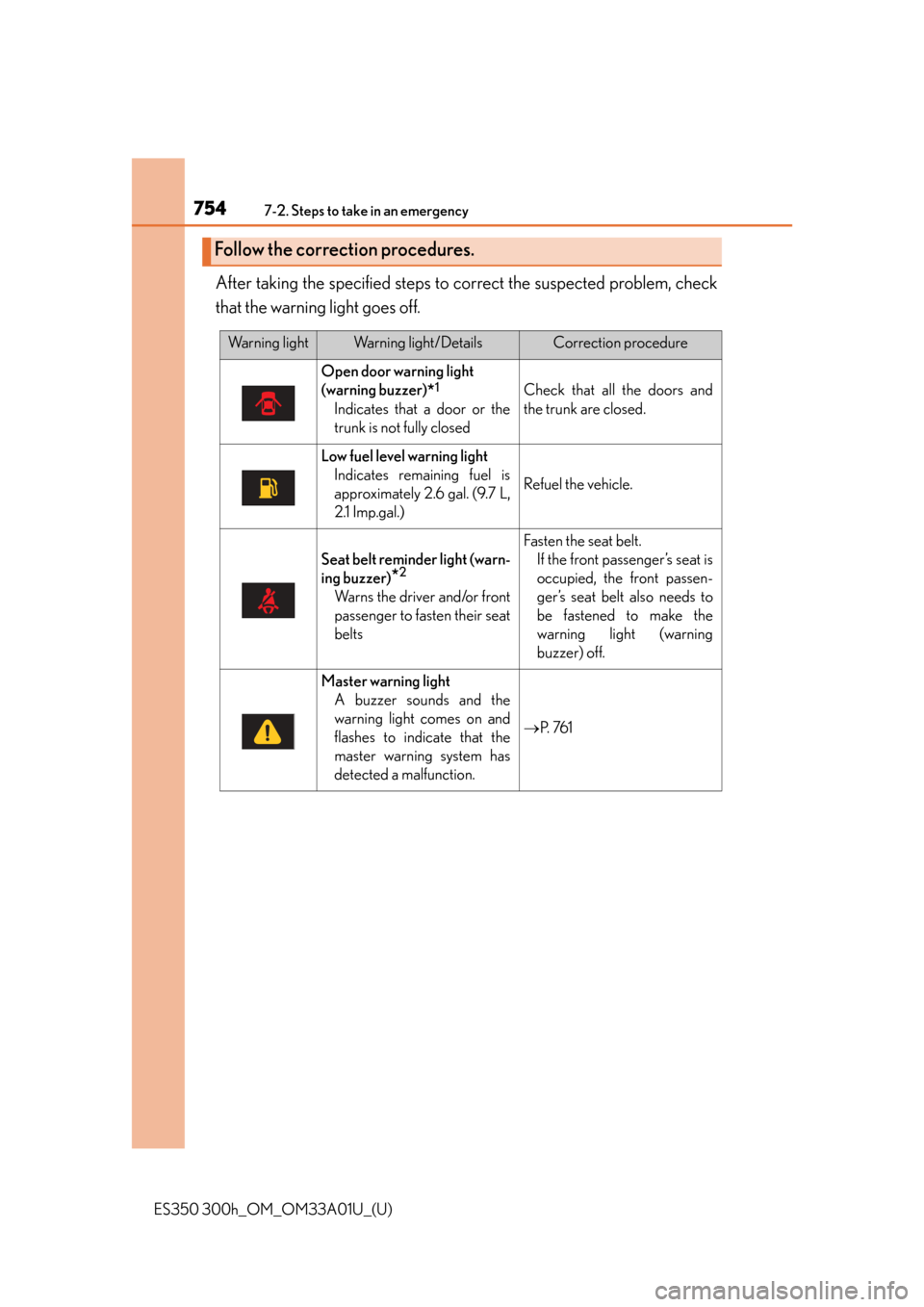

Follow the correction procedures.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed
Check that all the doors and
the trunk are closed.
Low fuel level warning light Indicates remaining fuel is
approximately 2.6 gal. (9.7 L,
2.1 Imp.gal.)
Refuel the vehicle.
Seat belt reminder light (warn-
ing buzzer)
*2
Warns the driver and/or front
passenger to fasten their seat
belts
Fasten the seat belt. If the front passenger’s seat is
occupied, the front passen-
ger’s seat belt also needs to
be fastened to make the
warning light (warning
buzzer) off.
Master warning lightA buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
 P. 76 1

7557-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
*1: Open door warning buzzer: P. 76 6
*2: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to al ert the driver that his or her seat belt is
not fastened. Once the “START STOP EN GINE” <“POWER”> switch is turned to
IGNITION ON mode, the buzzer sounds for 6 seconds. If the vehicle
reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If the seat belt is
still unfastened after 30 seconds, the buzz er will sound intermittently for 10 sec-
onds. Then, if the seat belt is still unfast ened, the buzzer will sound in a different
tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer soun ds to alert the front passenger that his
or her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a
speed of 12 mph (20 km/h). If the seat be lt is still unfastened after 30 seconds,
the buzzer will sound intermittently for 10 seconds. Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 20 more seconds.

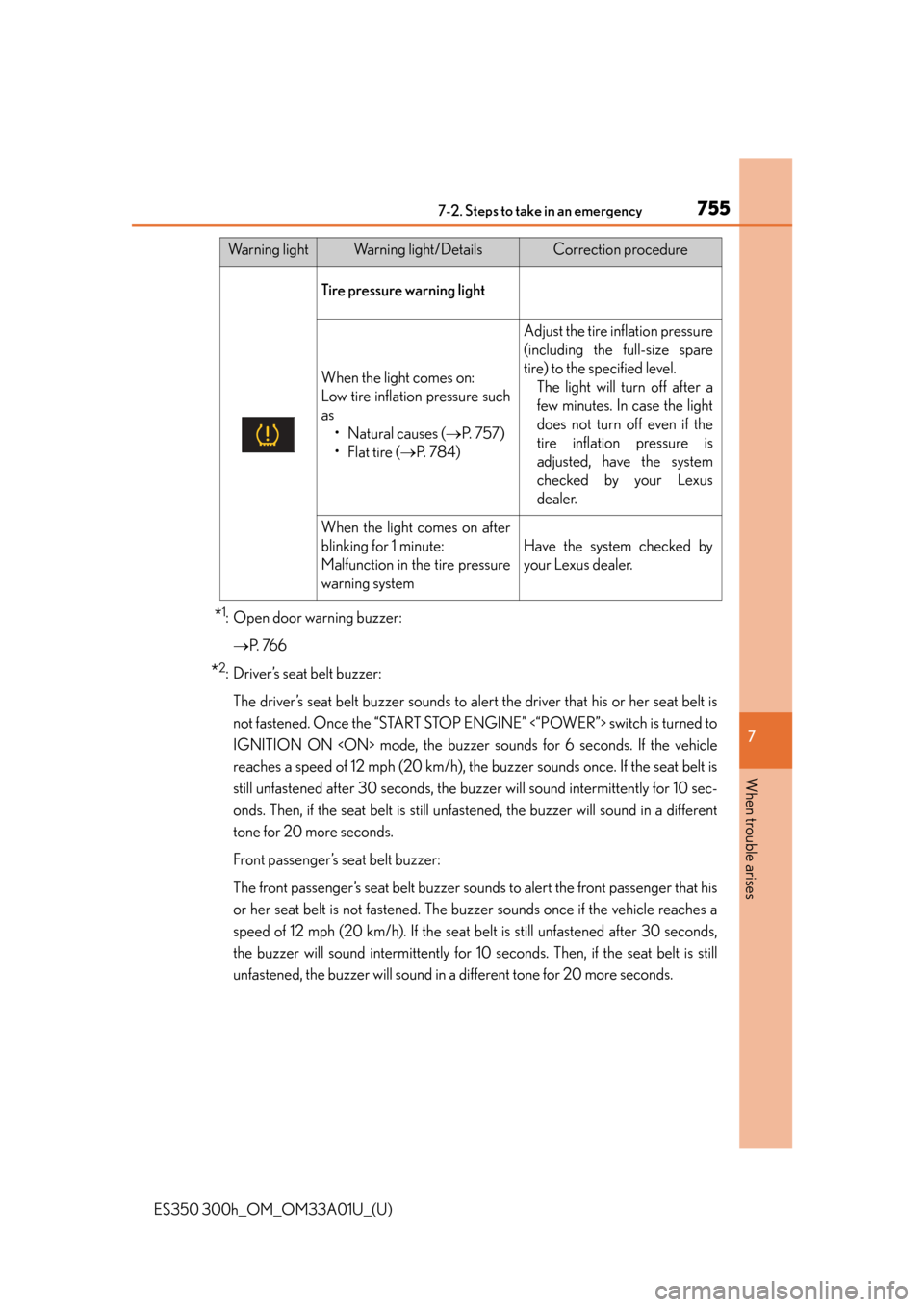

Tire pressure warning light
When the light comes on:
Low tire inflation pressure such
as
• Natural causes ( P. 7 5 7 )
• Flat tire ( P. 7 8 4 )
Adjust the tire inflation pressure
(including the full-size spare
tire) to the specified level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by your Lexus
dealer.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pressure
warning system
Have the system checked by
your Lexus dealer.
Warning lightWarning light/DetailsCorrection procedure

7567-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors,
side impact sensors (front door), side impact sensors (front), side impact sensors
(rear), driver’s seat position sensor, driver’s seat belt buckle switch, front passenger
occupant classification system (ECU and sensors), “AIR BAG ON” indicator light,
“AIR BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat belt
pretensioner assemblies, airbags, inte rconnecting wiring and power sources.
(  P. 4 0 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sen-
sor may cause the warning light to flash an d the warning buzzer to sound even if a
passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.

7577-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire: The compact spare tire is not equipped with a tire
pressure warning valve and transmitter. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
Vehicles with a full-size spare tire: The spare tire is also equipped with a tire pressure
warning valve and transmitter. The tire pressure warning light will turn on if the tire
inflation pressure of the spare tire is low. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
P. 6 9 9
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the “START STOP ENGINE” <“POWER”> switch is turned to IGNITION ON
mode, have it checked by your Lexus dealer.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■Warning buzzer
In some cases, the buzzer may not be he ard because of noisy place or an audio
sound.

7587-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

7597-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressu re label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [t ire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure wa rning system) that illuminates a low tire
pressure telltale (tire pressure warning light ) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not re ached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.

7607-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
CAUTION
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.
NOTICE
■Precaution when installing a different tire
When differently constructed tires or tires of different makers, models or tread pat-
terns are installed, the tire pressure warning system may not operate properly.
