ES350 300h_OM_OM33A01U_(U)
9
4-1. Before drivingDriving the vehicle ..................... 180
Cargo and luggage...................... 191
Vehicle load limits ........................194
Trailer towing .................................195
Dinghy towing ...............................196
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles) .................... 197
Power (ignition) switch (hybrid vehicles) ...................... 204
EV drive mode (hybrid vehicles) ......................... 211
Automatic transmission (gasoline vehicles) ....................214
Hybrid transmission (hybrid vehicles) ........................ 217
Turn signal lever ............................ 221
Parking brake .............................. 222
Horn ................................................ 223
4-3. Operating the lights and wipers
Headlight switch .........................224
Automatic High Beam............. 228
Fog light switch ........................... 234
Windshield wipers and washer ................................ 235
4-4. Refueling Opening the fuel tank cap ..... 239 4-5. Using the driving support
systems
Cruise control ..............................244
Dynamic radar cruise control............................ 248
LDA (Lane Departure Alert)........ 263
Intuitive parking assist ................ 271
Rear view monitor system ..... 284
Driving mode select switch ........................................... 296
Driving assist systems .............. 298
Hill-start assist control (hybrid vehicles) ...................... 304
PCS (Pre-Collision System) ......... 306
BSM (Blind Spot Monitor).......313 •Blind Spot Monitor function ...................................... 317
• Rear Cross Traffic Alert function .................................... 320
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) ..................... 323
Winter driving tips ..................... 326
4Driving

179
ES350 300h_OM_OM33A01U_(U)
4Driving
4-1. Before drivingDriving the vehicle ......................180
Cargo and luggage ..................... 191
Vehicle load limits ....................... 194
Trailer towing ................................. 195
Dinghy towing............................... 196
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles) ....................197
Power (ignition) switch (hybrid vehicles) ......................204
EV drive mode (hybrid vehicles) .........................211
Automatic transmission (gasoline vehicles) ................... 214
Hybrid transmission (hybrid vehicles) ....................... 217
Turn signal lever ........................... 221
Parking brake ............................... 222
Horn.................................................223 4-3. Operating the lights
and wipers
Headlight switch......................... 224
Automatic High Beam ............. 228
Fog light switch ........................... 234
Windshield wipers and washer................................. 235
4-4. Refueling Opening the fuel tank cap ..... 239
4-5. Using the driving support systems
Cruise control ............................. 244
Dynamic radar cruise control ............................ 248
LDA (Lane Departure Alert) ........ 263
Intuitive parking assist ................ 271
Rear view monitor system ..... 284
Driving mode select switch ........................................... 296
Driving assist systems...............298
Hill-start assist control (hybrid vehicles) ......................304
PCS (Pre-Collision System)..........306
BSM (Blind Spot Monitor) ...... 313
• Blind Spot Monitor function ......................................317
• Rear Cross Traffic Alert function ....................................320
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) ..................... 323
Winter driving tips ..................... 326

ES350 300h_OM_OM33A01U_(U)
1854-1. Before driving
4
Driving
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steeri ng may cause tire slippage and reduce
your ability to control the vehicle.
●Sudden acceleration, engine braking due to shift changing, or changes in engine
speed could cause the vehicle to, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected.
■When shifting the shift lever
●Do not let the vehicle roll backward while the shift lever is in a driving position, or
roll forward while the shift lever is in R.
Gasoline vehicles: Doing so may cause the engine to stall or lead to poor brake
and steering performance, resulting in an accident or damage to the vehicle.
Hybrid vehicles: Doing so may result in an accident or damage to the vehicle.
●Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to R wh ile the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Gasoline vehicles: Moving the shift lever to N while the vehicle is moving will dis-
engage the engine from the transmission. Engine braking is not available when N
is selected.
Hybrid vehicles: Moving the shift lever to N while the vehicle is moving will disen-
gage the hybrid system. Engine braking is not available when N is selected.
●Be careful not to shift the shift lever with the accelerator pedal depressed. Shift-
ing the shift lever to a gear other than P or N may lead to unexpected rapid accel-
eration of the vehicle that may cause an accident and result in death or serious
injury.

214
ES350 300h_OM_OM33A01U_(U)
4-2. Driving procedures
Automatic transmission (gasoline vehicles)
While the “START STOP ENGINE” switch is in IGNITION ON
mode, move the shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: Shifting the shift lever to D allows the system to select a gear suitable for the driv- ing conditions.
Setting the shift lever to D is recommended for normal driving.
*2: Selecting shift ranges using S mode rest ricts the upper limit of the possible gear
ranges, controls engine braking force, and prevents unnecessary upshifting.
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 ( P. 2 1 5 )

216
ES350 300h_OM_OM33A01U_(U)
4-2. Driving procedures
■S mode
●When the shift range is S4 or lower, holding the shift lever toward “+” sets the shift
range to S6.
●To prevent the engine from over-revving, upshifting may automatically occur.
●To protect the automatic transmission, a function is adopted that automatically
shifts to the top range when the temperature is too hot.
■When driving with cruise control activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate while driving in S mode and downshifting to 5 or
4 because cruise control will not be canceled. ( P. 2 4 4 )
■Downshifting restrictions warning buzzer
To help ensure safety and driving perfor mance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (A buzzer will sound twice.)
■If the S indicator does not come on or the D indicator is displayed even after shift-
ing the shift lever to S
This may indicate a malfunction in the auto matic transmission system. Have the vehi-
cle inspected by your Lexus dealer immediately.
(In this situation, the transmission will operate in the same manner as when the shift
lever is in D.)
■If the shift lever cannot be shifted from P
 P. 8 0 1
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in D. (Shifting the shift
lever to S cancels the function.)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid, resulting
in an accident.

217
ES350 300h_OM_OM33A01U_(U)
4-2. Driving procedures
4
Driving

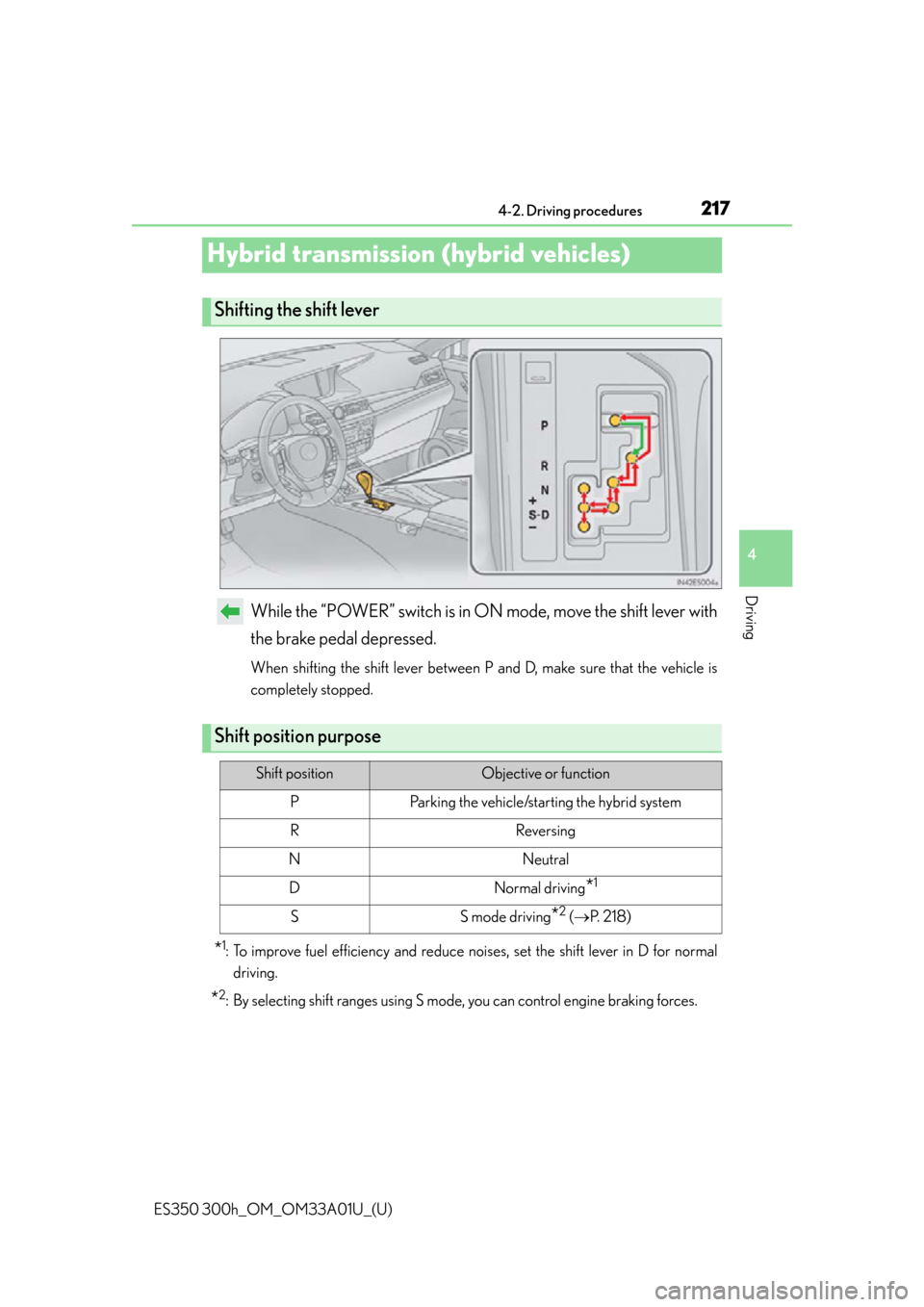

Hybrid transmission (hybrid vehicles)
While the “POWER” switch is in ON mode, move the shift lever with
the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for normal driving.
*2: By selecting shift ranges using S mode, you can control engine braking forces.
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 (  P. 2 1 8 )

ES350 300h_OM_OM33A01U_(U)
2194-2. Driving procedures
4
Driving
■S mode
●When the shift range is S4 or lower, holding the shift lever toward “+” sets the shift
range to S6.
●To prevent the engine from over-revving, upshifting may automatically occur.
■When driving with cruise control activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate while driving in S mode and downshifting to S5
or S4 because cruise control will not be canceled. (P. 2 4 4 )
■Downshifting restrictions warning buzzer
To help ensure safety and driving perfor mance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (A buzzer will sound twice.)
■If the S indicator does not come on or the D indicator is displayed even after shift-
ing the shift lever to S
This may indicate a malfunction in the auto matic transmission system. Have the vehi-
cle inspected by your Lexus dealer immediately.
(In this situation, the transmission will operate in the same manner as when the shift
lever is in D.)
■If the shift lever cannot be shifted from P
 P. 8 0 1
■AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver performance
and driving conditions.
AI-SHIFT automatically operates when the sh ift lever is in the D position. (Shifting
the shift lever to the S position cancels the function.)

ES350 300h_OM_OM33A01U_(U)
6616-2. Maintenance
6
Maintenance and care
Ve h i c l e i n t e r i o r
ItemsCheck points
Accelerator pedal
• The accelerator pedal should movesmoothly (without uneven pedal
effort or catching).
Automatic transmission “Park” mecha-
nism (gasoline vehicles)/Hybrid trans-
mission “Park” mechanism (hybrid
vehicles)• When parked on a slope and the shiftlever is in P, is the vehicle securely
stopped?
Brake pedal
• Does the brake pedal movesmoothly?
• Does the brake pedal have appropri- ate clearance from the floor? ( P. 8 3 4 )
• Does the brake pedal have the cor- rect amount of free play? ( P. 8 3 4 )
Brakes
• The vehicle should not pull to one
side when the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the brakes are
applied.

716
ES350 300h_OM_OM33A01U_(U)
6-3. Do-it-yourself maintenance

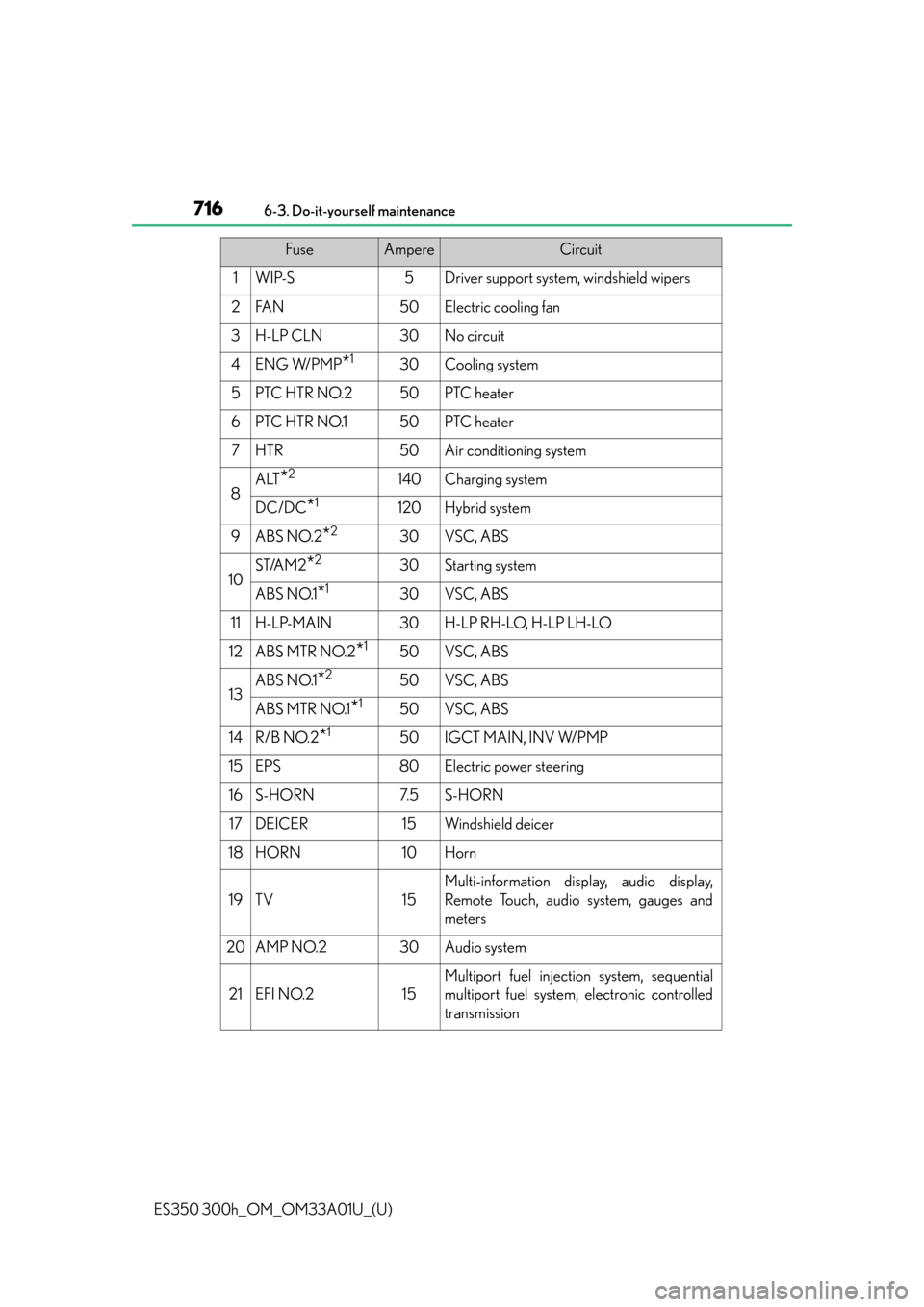

FuseAmpereCircuit
1WIP-S5Driver support system, windshield wipers
2FA N50Electric cooling fan
3H-LP CLN30No circuit
4ENG W/PMP*130Cooling system
5PTC HTR NO.250PTC heater
6PTC HTR NO.150PTC heater
7HTR50Air conditioning system
8ALT*2140Charging system
DC/DC*1120Hybrid system
9ABS NO.2*230VSC, ABS
10ST/AM2*230Starting system
ABS NO.1*130VSC, ABS
11H-LP-MAIN30H-LP RH-LO, H-LP LH-LO
12ABS MTR NO.2*150VSC, ABS
13ABS NO.1*250VSC, ABS
ABS MTR NO.1*150VSC, ABS
14R/B NO.2*150IGCT MAIN, INV W/PMP
15EPS80Electric power steering
16S-HORN7. 5S-HORN
17DEICER15Windshield deicer
18HORN10Horn
19TV15
Multi-information display, audio display,
Remote Touch, audio system, gauges and
meters
20AMP NO.230Audio system
21EFI NO.215
Multiport fuel injection system, sequential
multiport fuel system, electronic controlled
transmission

ES350 300h_OM_OM33A01U_(U)
7176-3. Do-it-yourself maintenance
6
Maintenance and care

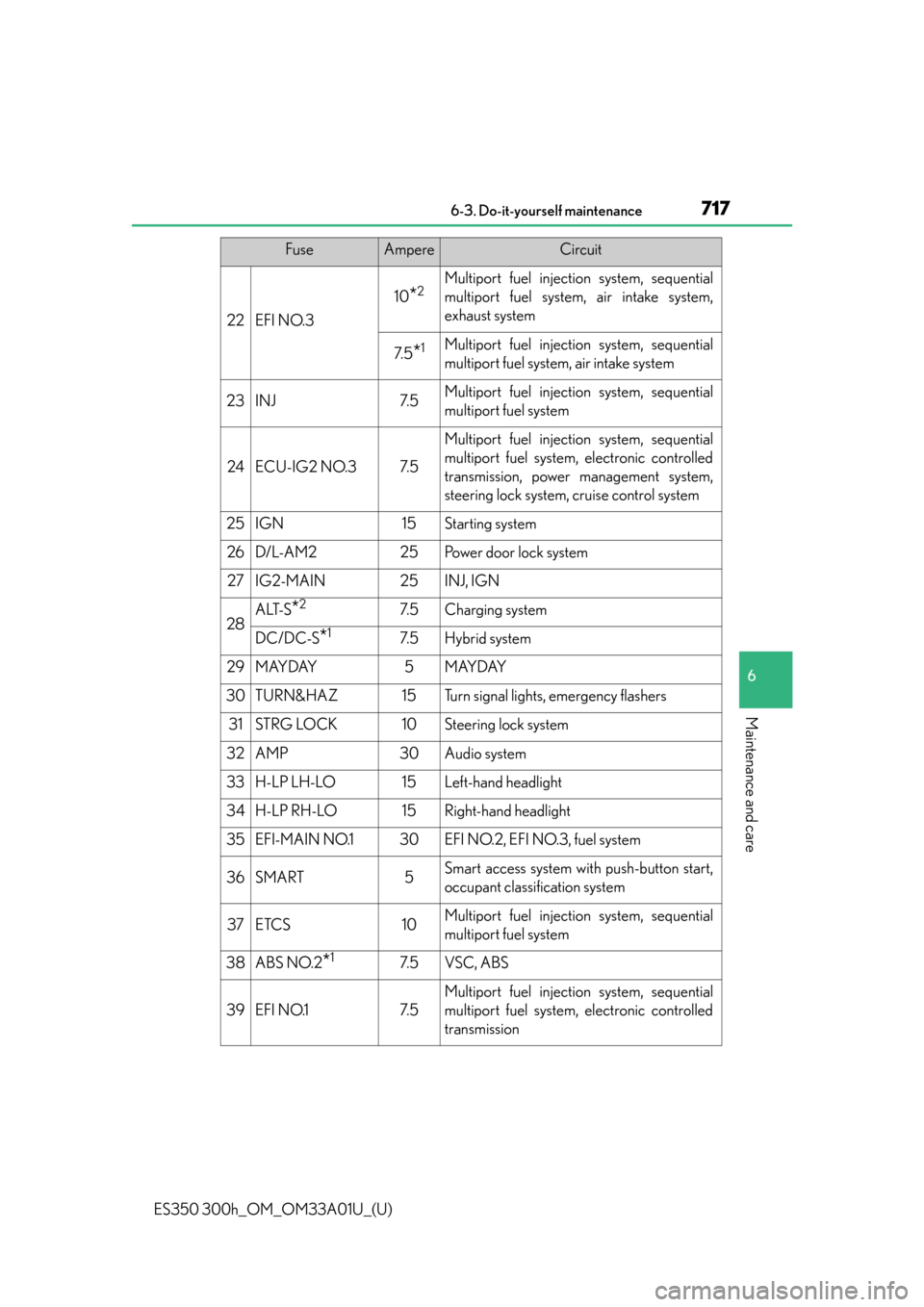

22EFI NO.3
10*2Multiport fuel injection system, sequential
multiport fuel system, air intake system,
exhaust system
7. 5*1Multiport fuel injection system, sequential
multiport fuel system, air intake system
23INJ7. 5Multiport fuel injection system, sequential
multiport fuel system
24ECU-IG2 NO.37. 5
Multiport fuel injection system, sequential
multiport fuel system, electronic controlled
transmission, power management system,
steering lock system, cruise control system
25IGN15Starting system
26D/L-AM225Power door lock system
27IG2-MAIN25INJ, IGN
28ALT-S*27. 5Charging system
DC/DC-S*17. 5Hybrid system
29MAYDAY5MAYDAY
30TURN&HAZ15Turn signal lights, emergency flashers
31STRG LOCK10Steering lock system
32AMP30Audio system
33H-LP LH-LO15Left-hand headlight
34H-LP RH-LO15Right-hand headlight
35EFI-MAIN NO.130EFI NO.2, EFI NO.3, fuel system
36SMART5Smart access system with push-button start,
occupant classification system
37ETCS10Multiport fuel injection system, sequential
multiport fuel system
38ABS NO.2*17. 5VSC, ABS
39EFI NO.17. 5
Multiport fuel injection system, sequential
multiport fuel system, electronic controlled
transmission
FuseAmpereCircuit
