specifications Lexus ES300h 2013 Do-it-yourself maintenance / (OM33A01U) Owner's Guide

ES350 300h_OM_OM33A01U_(U)
8478-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

848
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle’s designated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by
distributing to each axle its share of the maximum
loaded vehicle weight, and dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is determined by
distributing to each axle its share of curb weight,
accessory weight, and normal occupant weight (dis-
tributed in accordance with Table 1
* below), and
dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between components in
the bead
Bias ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at alternate angles substantially
less than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber com-
pounds
CrackingAny parting within the tread, sidewall, or innerliner of
the tire extending to cord material
Tire related termMeaning

ES350 300h_OM_OM33A01U_(U)
8498-1. Specifications
8
Vehicle specifications
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit
on the underside of the rim in a manner that encloses
the rim flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always
face outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightw eight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning

850
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fab-
ric and steel or other mate rials, that, when mounted
on an automotive wheel, provides the traction and
contains the gas or flui d that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction test
as described in ASTM F-1805-00, Standard Test
Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( ) on
at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tire related termMeaning

ES350 300h_OM_OM33A01U_(U)
8518-1. Specifications
8
Vehicle specifications
*:Table 1  Occupant loading and distribution for vehicle normal load for variousdesignated seating capacities
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a
tire
Tr e a d s e p a r a t i o nPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat

ES350 300h_OM_OM33A01U_(U)
8538-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Vehicles with a Lexus Display Au dio system: Settings that can be
changed using the Lexus Display Audio system
Vehicles with a Lexus Display Au dio system: Settings that can be
changed using the “DISP” button
Vehicles with a navigation system: Settings that can be changed using
the screen of the navigation system
Vehicles with a navigation system: Settings that can be changed using
the “DISP” button
Vehicles without a Lexus Display Audio system and navigation system:
Settings that can be changed using the “DISP” button
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
4
5
6

ES350 300h_OM_OM33A01U_(U)
8558-2. Customization
8
Vehicle specifications
*: The default setting varies according to countries.

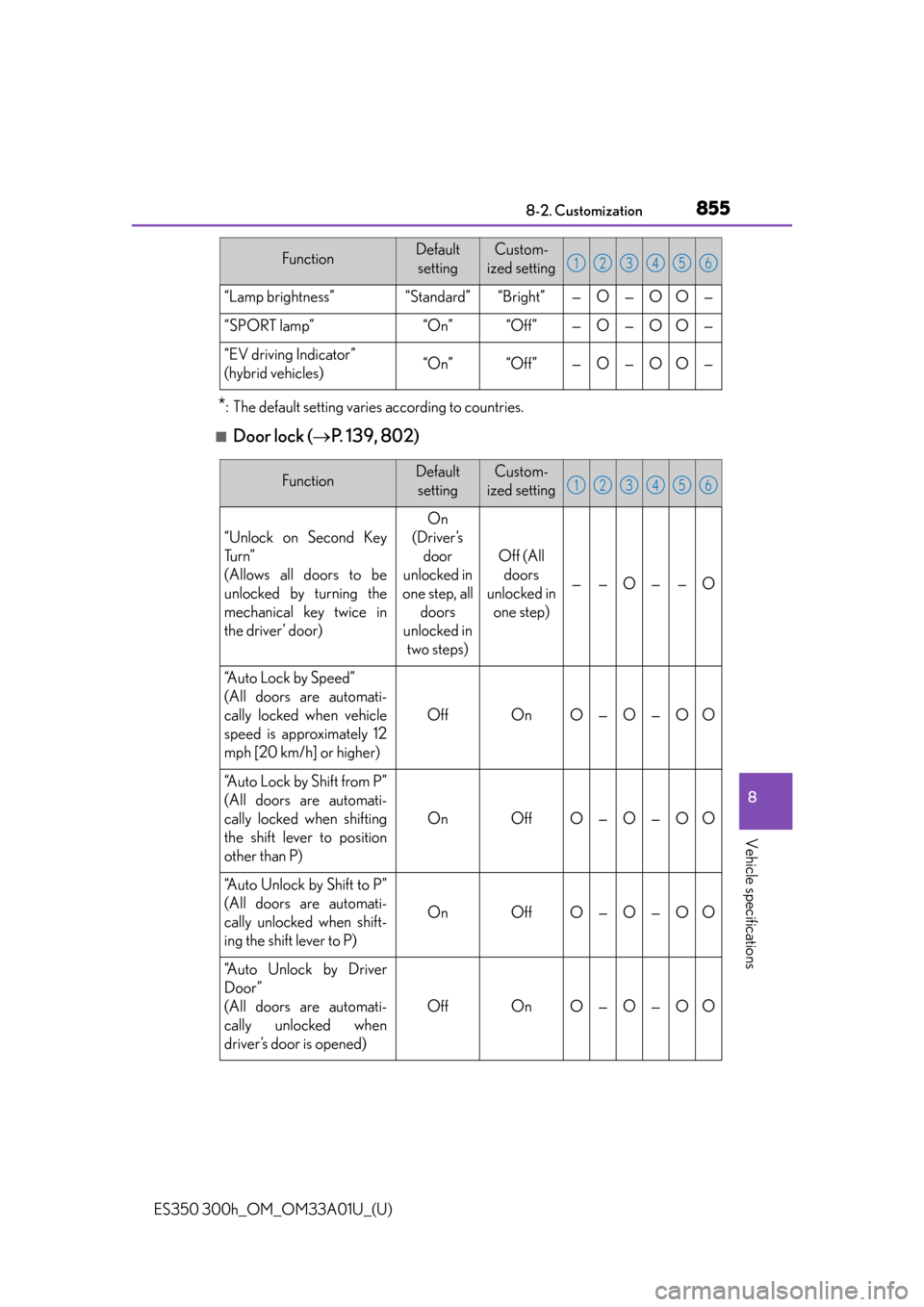

■Door lock (P. 139, 802)
“Lamp brightness”“Standard”“Bright”—O—OO—
“SPORT lamp”“On”“Off”—O—OO—
“EV driving Indicator”
(hybrid vehicles)“On”“Off”—O—OO—
FunctionDefault
settingCustom-
ized setting123456
FunctionDefault settingCustom-
ized setting
“Unlock on Second Key
Tu r n ”
(Allows all doors to be
unlocked by turning the
mechanical key twice in
the driver’ door)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off (All doors
unlocked in one step)
——O——O
“A u t o L o c k b y S p e e d ”
(All doors are automati-
cally locked when vehicle
speed is approximately 12
mph [20 km/h] or higher)
OffOnO—O—OO
“Auto Lock by Shift from P”
(All doors are automati-
cally locked when shifting
the shift lever to position
other than P)
OnOffO—O—OO
“Auto Unlock by Shift to P”
(All doors are automati-
cally unlocked when shift-
ing the shift lever to P)
OnOffO—O—OO
“Auto Unlock by Driver
Door”
(All doors are automati-
cally unlocked when
driver’s door is opened)
OffOnO—O—OO
123456

ES350 300h_OM_OM33A01U_(U)
8578-2. Customization
8
Vehicle specifications

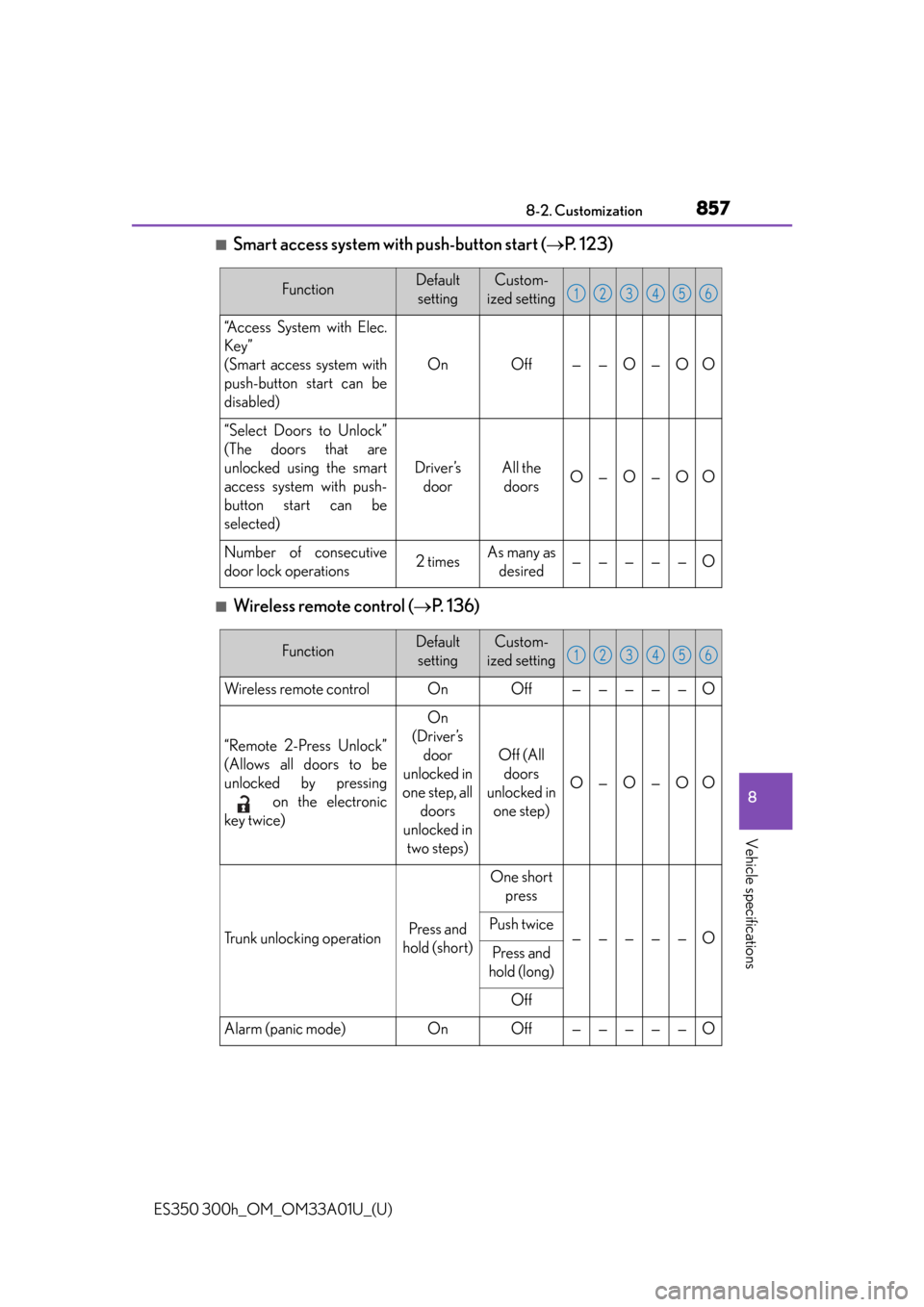

■Smart access system with push-button start (P. 1 2 3 )
■Wireless remote control (P. 136)
FunctionDefault
settingCustom-
ized setting
“Access System with Elec.
Key”
(Smart access system with
push-button start can be
disabled)
OnOff——O—OO
“Select Doors to Unlock”
(The doors that are
unlocked using the smart
access system with push-
button start can be
selected)
Driver’s doorAll the doorsO—O—OO
Number of consecutive
door lock operations2 timesAs many as desired—————O
123456
FunctionDefaultsettingCustom-
ized setting
Wireless remote controlOnOff—————O
“Remote 2-Press Unlock”
(Allows all doors to be
unlocked by pressing on the electronic
key twice)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off (All doors
unlocked in one step)
O—O—OO
Trunk unlocking operationPress and
hold (short)
One short press
—————OPush twice
Press and
hold (long)
Off
Alarm (panic mode)OnOff—————O
123456

ES350 300h_OM_OM33A01U_(U)
8598-2. Customization
8
Vehicle specifications

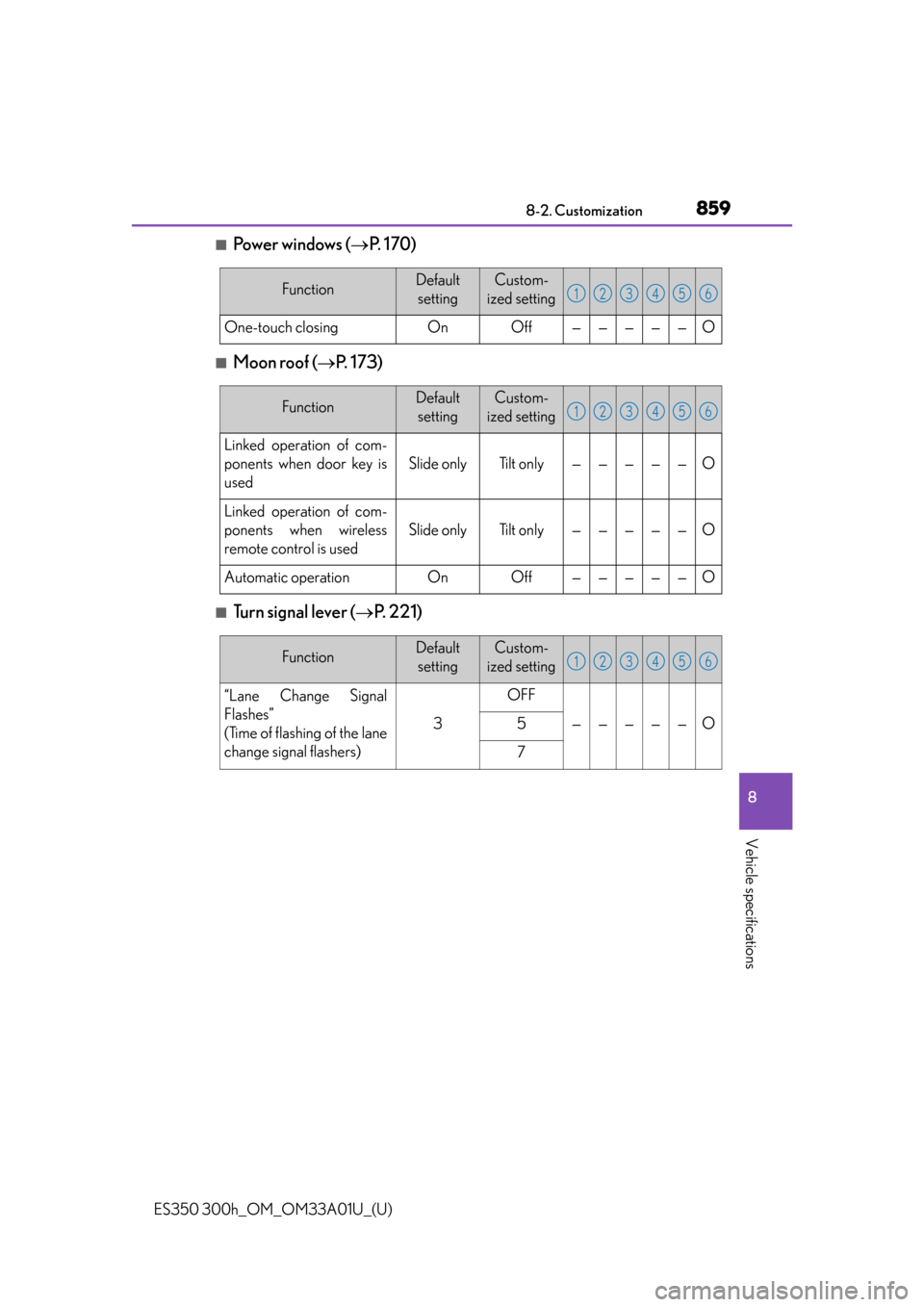

■Power windows (P. 1 7 0 )
■Moon roof ( P. 1 7 3 )
■Turn signal lever ( P. 221)
FunctionDefault
settingCustom-
ized setting
One-touch closingOnOff—————O
123456
FunctionDefault settingCustom-
ized setting
Linked operation of com-
ponents when door key is
used
Slide only Ti l t o n l y —————O
Linked operation of com-
ponents when wireless
remote control is used
Slide only Ti l t o n l y —————O
Automatic operationOnOff—————O
123456
FunctionDefault settingCustom-
ized setting
“Lane Change Signal
Flashes”
(Time of flashing of the lane
change signal flashers)
3
OFF
—————O5
7
123456

ES350 300h_OM_OM33A01U_(U)
8618-2. Customization
8
Vehicle specifications
■Intuitive parking assist* ( P. 2 7 1 )
*:If equipped
■Automatic air conditioning system ( P. 3 4 7 , 3 5 9 )
FunctionDefault
settingCustom-
ized setting
“Distance (Front)”
(Detection distance of the
front center sensor)
FarNearO—O——O
“Distance (Rear)”
(Detection distance of the
rear center sensor)
FarNearO—O——O
“Alert Volume”
(Alert volume can be
adjusted)
31 to 5O—O——O
“Display”
(when intuitive parking
assist is operating)All sensors displayedDisplay offO—O——O
123456
FunctionDefaultsettingCustom-
ized setting
“Efficient Ventilation
Mode”
(Switching between out-
side air and recirculated air
mode linked to “AUTO”
switch operation)
OnOff——O——O
“A u t o A / C M o d e ”
(A/C Auto switch opera-
tion)
OnOffO—O——O
“Smog Sensor Sensitivity”
(Exhaust gas sensor sensi-
tivity)
Standard-3 to 3O—O——O
123456
