1032. Instrument cluster
2
Instrument cluster
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Vehicles without Lexus Display
Audio system or a navigation sys-
tem: Press and hold the “DISP”
button after selecting the desired
setting item (“Meter”, “Vehicle”
or “Ambient illumin.” [if
equipped]) by pressing the
“DISP” button.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Setting up the displays
1
2
3

108
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

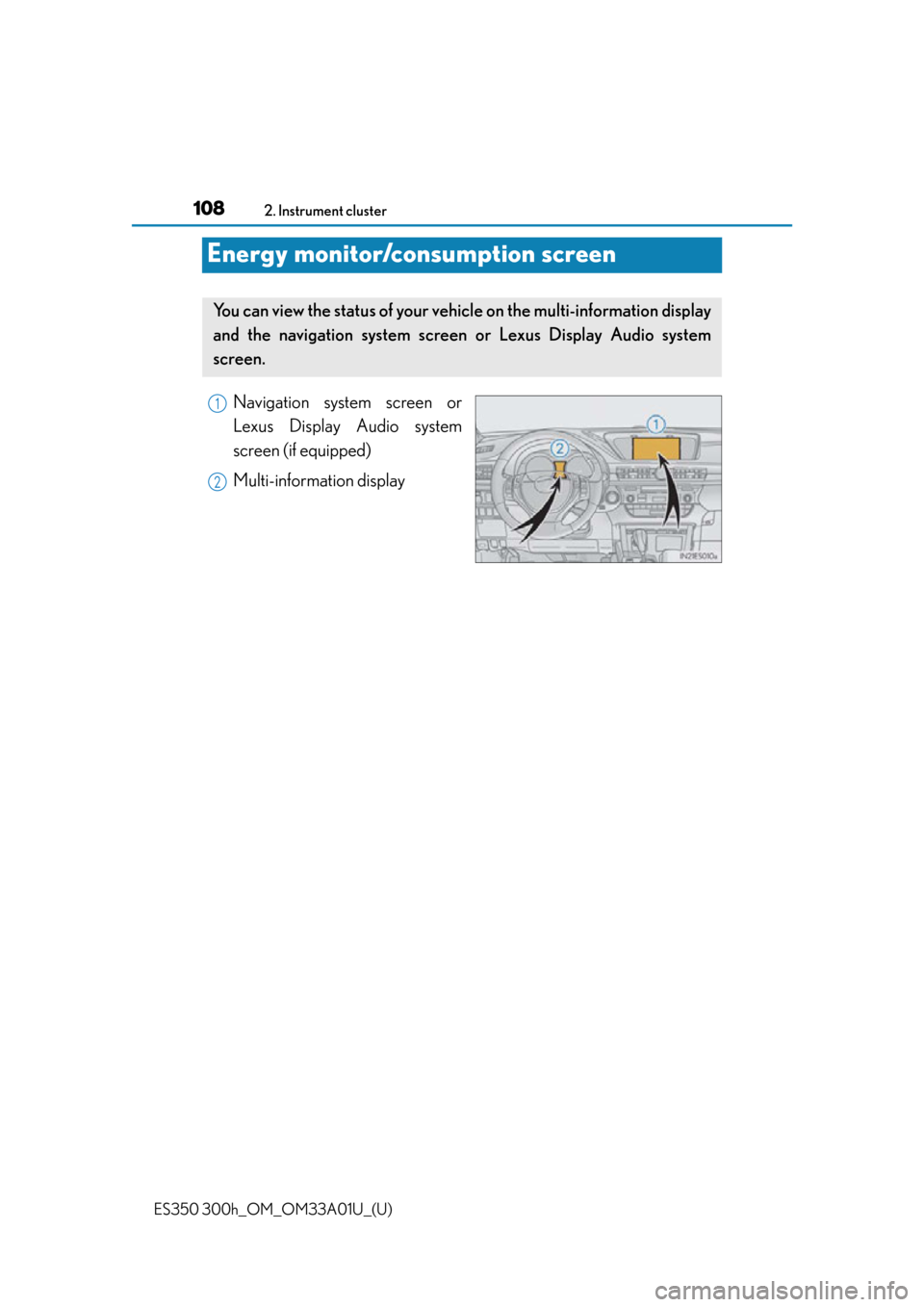

Energy monitor/consumption screen
Navigation system screen or
Lexus Display Audio system
screen (if equipped)
Multi-information display
You can view the status of your vehicle on the multi-information display
and the navigation system screen or Lexus Display Audio system
screen.
1
2

ES350 300h_OM_OM33A01U_(U)
1092. Instrument cluster
2
Instrument cluster
Navigation system
Remote Touch
*
“MENU” button
Remote Touch knob
*: For use of the Remote Touch, refer to the “Navigation System Owner’s
Manual”.
Lexus Display Audio system
Lexus Display Audio controller
( P. 3 3 4 )
“MENU” button
Displaying the “MENU” screen
Lexus Display Audio controller
Turn or move the controller in the four
direction to select a function, number
and screen button.
Push the controller to enter the
selected function, number and screen
button.

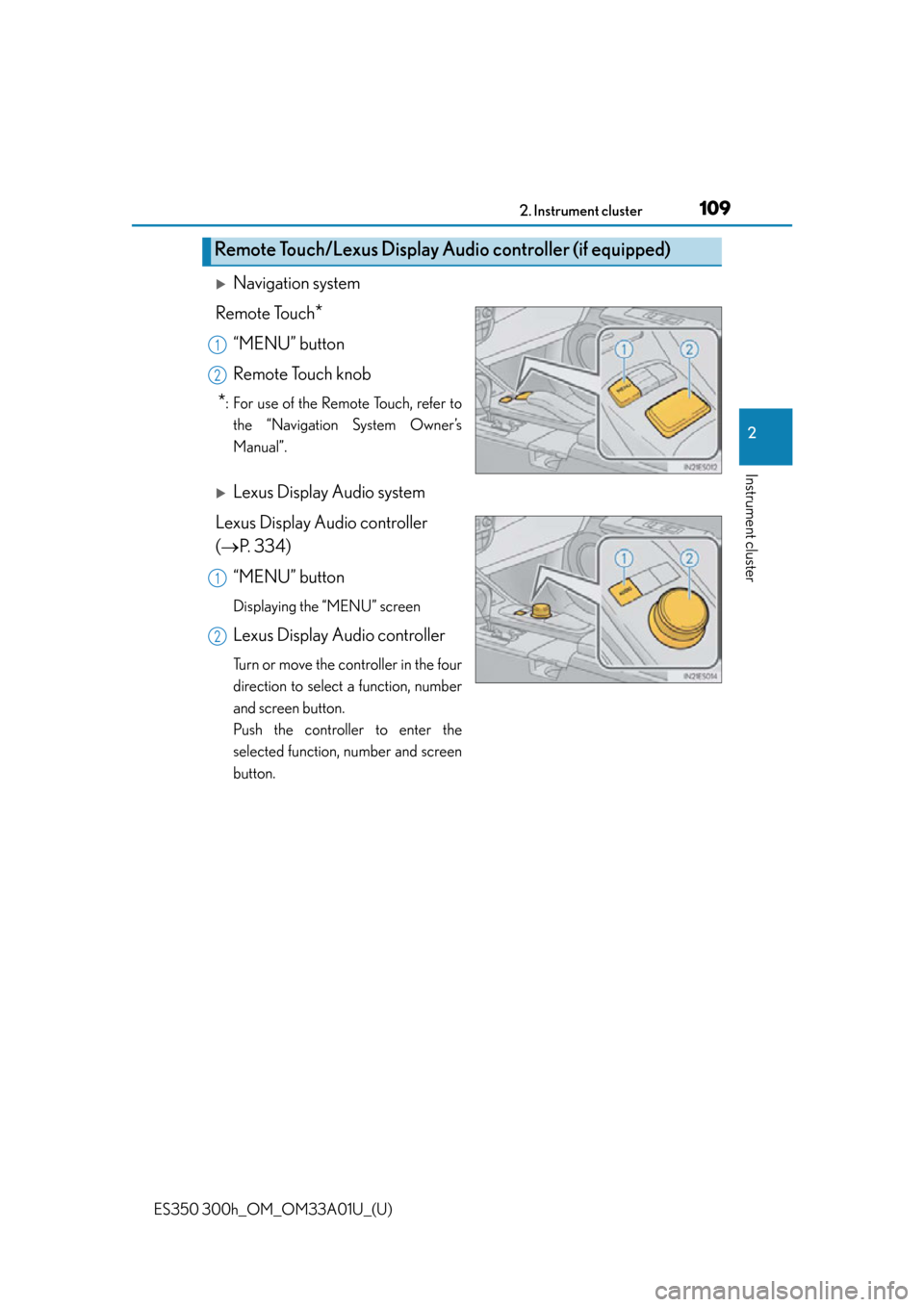

Remote Touch/Lexus Display Au dio controller (if equipped)
1
2
1
2

110
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
■Navigation system screen or Lexus Display Audio system screen (if
equipped)
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select “Info/Apps” on the
“Menu” screen.
Select “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Vehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Car” on the “Menu”
screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Energy monitor (hybrid vehicles)
1
2
3
1
2

112
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
Navigation system
Lexus Display Audio
system
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
Navigation system
Lexus Display Audio
system
When the vehicle is pow-
ered by the gasoline engine
Navigation system
Lexus Display Audio
system

ES350 300h_OM_OM33A01U_(U)
1132. Instrument cluster
2
Instrument cluster
When the vehicle is charg-
ing the hybrid battery
(traction battery)
Navigation system
Lexus Display Audio
system
Navigation system
Lexus Display Audio
system
When there is no energy
flow
Navigation system
Lexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
