8278-1. Specifications
8
Vehicle specifications
Gasoline vehicles
Hybrid vehicles
Engine
Model3.5L 6-cylinder (2GR-FE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Va l v e c l e a r a n c e
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model2.5L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54  3.86 in. (90.0  98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Va l v e c l e a r a n c e
(engine cold)Automatic adjustment

828
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp.gal.)
Electric motor (Traction motor) (hybrid vehicles)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Hybrid battery (Traction battery) (hybrid vehicles)
Ty p eNickel-metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V

ES350 300h_OM_OM33A01U_(U)
8318-1. Specifications
8
Vehicle specifications
Gasoline vehicles
Hybrid vehicles
Cooling system
Capacity9.7 qt. (9.2 L, 8.1 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Capacity
Gasoline
engine 7.6 qt. (7.2 L, 6.3 Imp.qt.)
Po w e r
control unit3.4 qt. (3.2 L, 2.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.

ES350 300h_OM_OM33A01U_(U)
8338-1. Specifications
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
Automatic transaxle (gasoline vehicles)
Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of yo ur transmission accompanied by vibration,
and ultimately damage the tr ansmission of your vehicle.
Hybrid transaxle (hybrid vehicles)
Fluid capacity*3.9 qt. (3.7 L, 3.3 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of yo ur transmission accompanied by vibration,
and ultimately damage the tr ansmission of your vehicle.

834
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,51.0 kgf) while the engine is running .
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,
30.6 kgf).

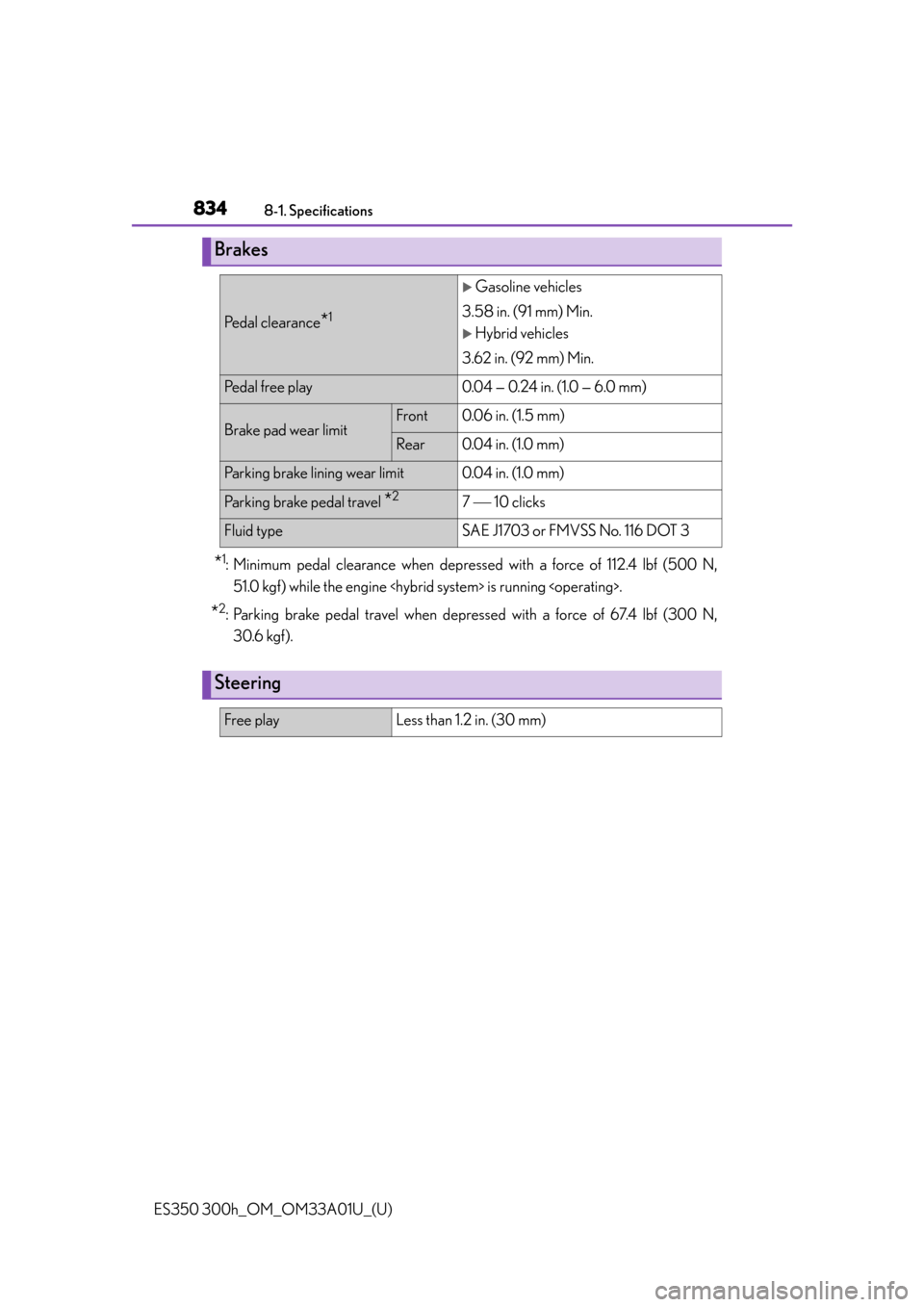

Brakes
Pe d a l c l e a r a n c e*1
Gasoline vehicles
3.58 in. (91 mm) Min.
Hybrid vehicles
3.62 in. (92 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limitFront0.06 in. (1.5 mm)
Rear0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

838
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid
the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/
or keep clean intake systems, per EPA’ s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tire Detergent Gasoline. For more
information on Top Tire Detergent Gasoline and a list of marketers, please go to the
official website www.toptiregas.com
.
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformul ated gasoline that contains oxygenates
such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many areas.
Lexus recommends the use of cleaner burn ing gasoline and appropriately blended
reformulated gasoline. These types of ga soline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no lower than
87.
●Lexus does not recommend the use of gasoline containing methanol.
●Use only gasoline containing a maximum of
10% ethanol.
DO NOT use any flex-fuel or gasoline that
could contain more than 10% ethanol,
including from any pump labeled E15, E30,
E50, E85 (which are only some examples
of fuel containing mo re than 10% ethanol).DO NOT use gasoline con-
taining more than 10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

ES350 300h_OM_OM33A01U_(U)
8398-1. Specifications
8
Vehicle specifications
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhanc ing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoli ne that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level
previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after us ing a different type of fuel (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

908
ES350 300h_OM_OM33A01U_(U)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 669 P. 144 P. 241
Hood lock release leverFuel filler door openerTire inflation pressure
P. 6 6 9 P. 2 4 1 P. 8 3 5
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 828
Cold tire inflation
pressure P. 8 3 5
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE 2AR-FXE
With filter 6.4 (6.1, 5.4) 4.6 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 8 2 9
