112
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
Navigation system
Lexus Display Audio
system
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
Navigation system
Lexus Display Audio
system
When the vehicle is pow-
ered by the gasoline engine
Navigation system
Lexus Display Audio
system

ES350 300h_OM_OM33A01U_(U)
1132. Instrument cluster
2
Instrument cluster
When the vehicle is charg-
ing the hybrid battery
(traction battery)
Navigation system
Lexus Display Audio
system
Navigation system
Lexus Display Audio
system
When there is no energy
flow
Navigation system
Lexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display

114
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual conditions.
Hybrid battery
(traction battery) status
Navigation system
Lexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
LowFull
LowFull

ES350 300h_OM_OM33A01U_(U)
1152. Instrument cluster
2
Instrument cluster
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch, then select “Info/
Apps” on the “Menu” screen.
Select “Fuel Consumption” on the “Information” screen.
Hybrid vehicles: If the “Energy Monitor” screen is displayed, select
“Fuel Consumption”.
Vehicles with Lexus Display Audio system
Press the “MENU” button on the Le xus Display Audio controller, then
select “Car” on the “Menu” screen.
Hybrid vehicles: If the “Energy Mo nitor” screen is displayed, select
“Fuel Consumption”.
Consumption (if equipped)
1
2

116
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
■Trip information
If the “Trip Information” screen is not displayed, select “Trip Informa-
tion”.
Current fuel consumption
Fuel consumption in the past 15 minutes
Hybrid vehicles: Regenerated energy in the past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Displays the average vehicle speed since the engine
was started.
Displays the elapsed time since the engine was started.
Cruising range ( P. 1 1 8 )
Reset the consumption data
“Past Record” (Navigation system) or “History” (Lexus Display Audio
system) screen appears
Hybrid vehicles: “Energy Monitor” screen appears
Average fuel consumption for the past 15 minutes is divided by color into
past averages and averages attaine d since the “START STOP ENGINE”
<“POWER”> switch was last turned to IGNITION ON mode. Use
the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Navigation systemLexus Display Audio system
1
2
3
4
5
6
7
8
9

ES350 300h_OM_OM33A01U_(U)
1172. Instrument cluster
2
Instrument cluster
■Past record
If the “History” or “Past Record” screen is not displayed, select “History”
or “Past Record”.
Average fuel consumption
Previous fuel consumption record
Best recorded fuel consumption
Update the average fuel consumption data
Reset the past record data
“Trip Information” screen appears
Hybrid vehicles: “Energy Monitor” screen appears
The average fuel consumption histor y is divided by color into past aver-
ages and the average fuel consumpti on since the last updated. Use the
displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Navigation systemLexus Display Audio system
1
2
3
4
5
6
7

118
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

ES350 300h_OM_OM33A01U_(U)
1273-2. Opening, closing and locking the doors and trunk
3
Operation of each component

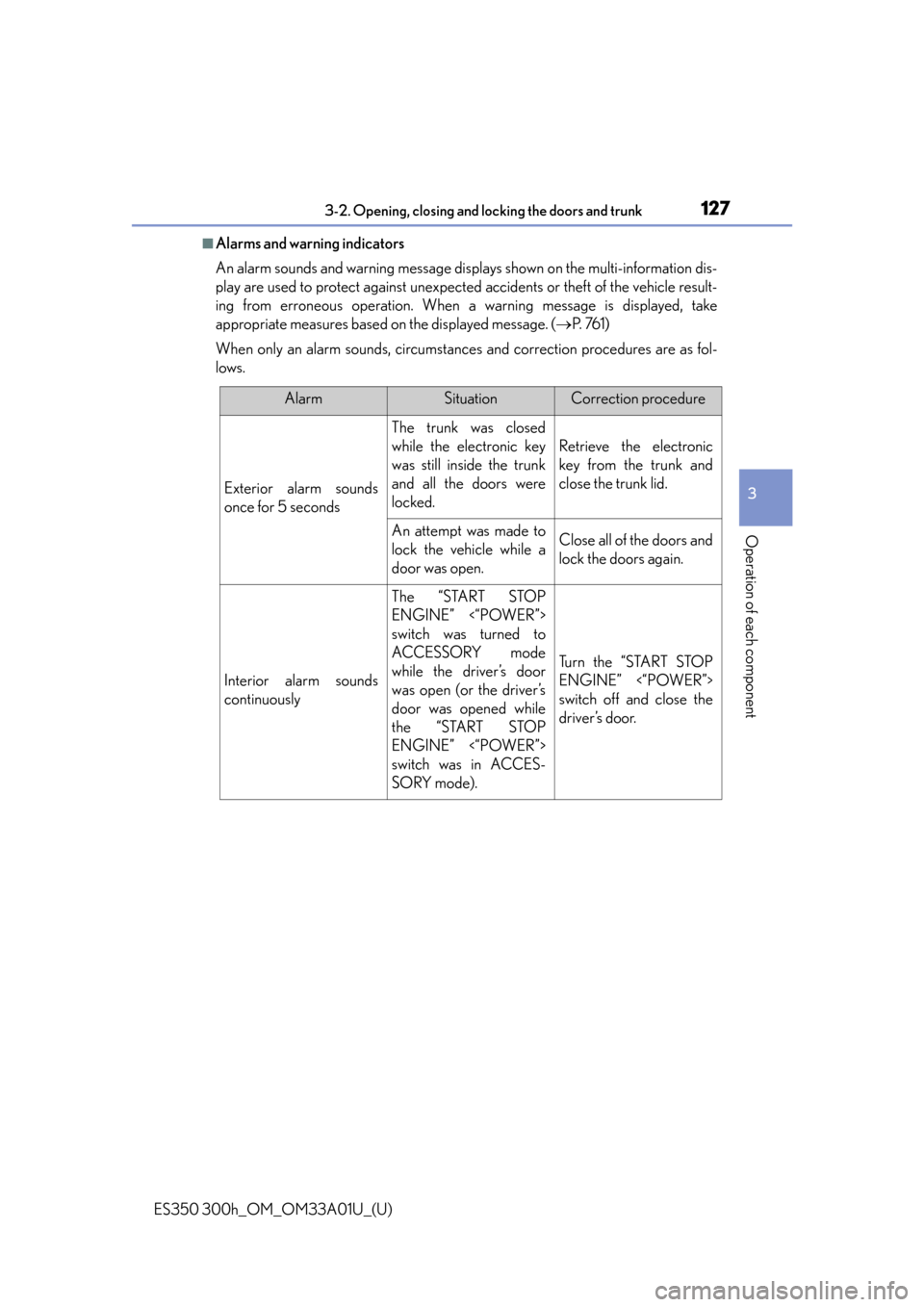

■Alarms and warning indicators
An alarm sounds and warning message displays shown on the multi-information dis-
play are used to protect against unexpected accidents or theft of the vehicle result-
ing from erroneous operation. When a warning message is displayed, take
appropriate measures based on the displayed message. ( P. 76 1 )
When only an alarm sounds, circumstance s and correction procedures are as fol-
lows.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 5 seconds
The trunk was closed
while the electronic key
was still inside the trunk
and all the doors were
locked.
Retrieve the electronic
key from the trunk and
close the trunk lid.
An attempt was made to
lock the vehicle while a
door was open.Close all of the doors and
lock the doors again.
Interior alarm sounds
continuously
The “START STOP
ENGINE” <“POWER”>
switch was turned to
ACCESSORY mode
while the driver’s door
was open (or the driver’s
door was opened while
the “START STOP
ENGINE” <“POWER”>
switch was in ACCES-
SORY mode).
Tu r n t h e “ S T A R T S T O P
ENGINE” <“POWER”>
switch off and close the
driver’s door.

128
ES350 300h_OM_OM33A01U_(U)
3-2. Opening, closing and locking the doors and trunk
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control.
Turn the “START STOP ENGINE” <“POWER”> switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a do or once after the settings have been
changed. (If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 8 4 )
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door han-
dle unlocks only the driver’s
door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once

130
ES350 300h_OM_OM33A01U_(U)
3-2. Opening, closing and locking the doors and trunk
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the follow-
ing situations, the communication between the electronic key and the vehicle may be
affected, preventing the smar t access system with push-button start, wireless remote
control and engine immobilizer system from operating prop-
erly. (Ways of coping:  P. 8 0 2 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key togeth er with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or person al digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
