light Lexus ES300h 2013 Instrument cluster / (OM33A01U) Owner's Guide

87
ES350 300h_OM_OM33A01U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators ..............................88
Gauges and meters ..................... 93
Multi-information display ..........98
Energy monitor/ consumption screen ............... 108

88
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster

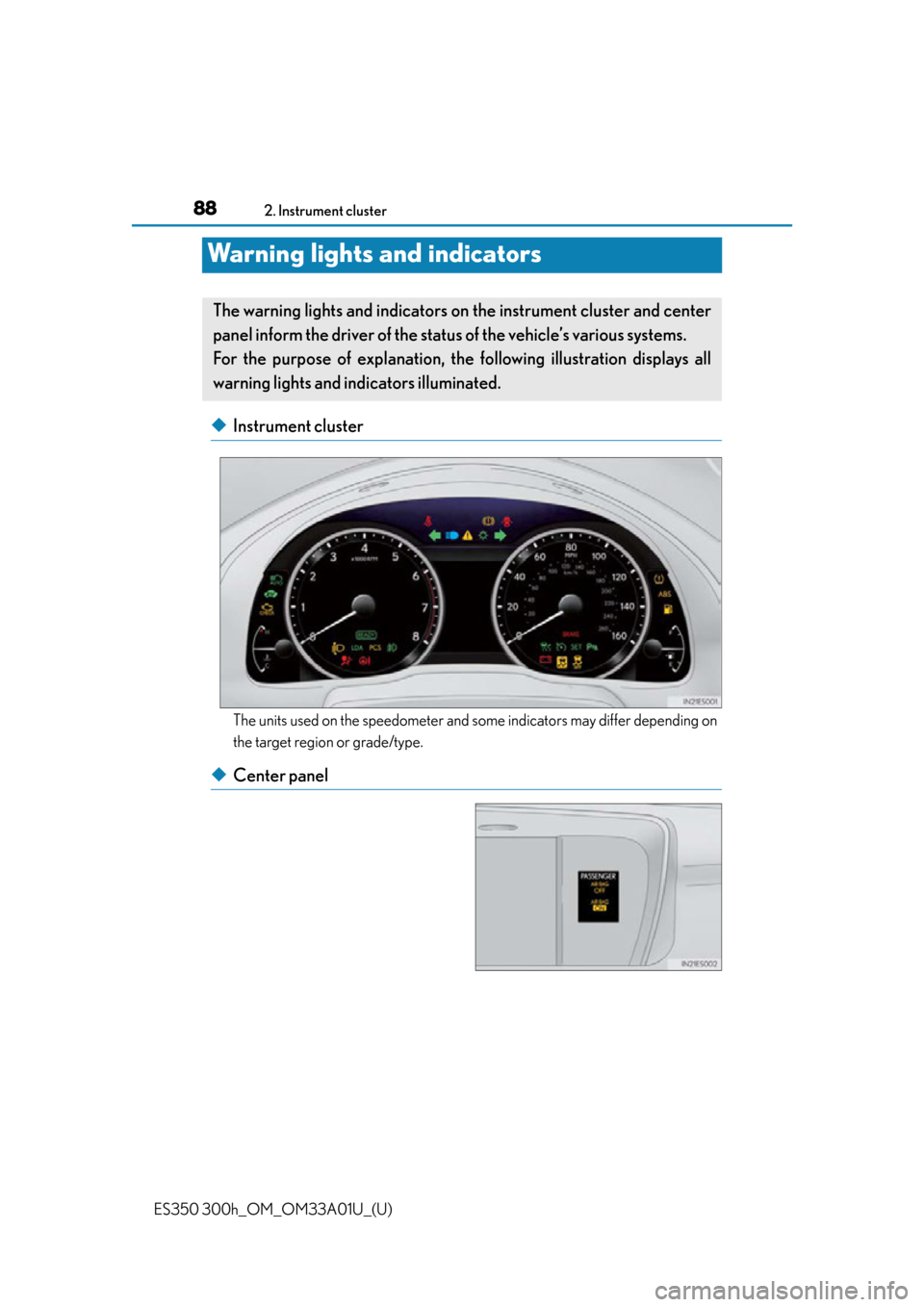

Warning lights and indicators
◆Instrument cluster
The units used on the speedometer and some indicators may differ depending on
the target region or grade/type.
◆Center panel
The warning lights and indicators on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, th e following illustration displays all
warning lights and indicators illuminated.

ES350 300h_OM_OM33A01U_(U)
892. Instrument cluster
2
Instrument cluster
◆Outside rear view mirrors (vehicles with BSM)
Warning lights inform the driver of ma lfunctions in the indicated vehicle’s
systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(  P. 7 5 1 )*1Electric power steering
system warning light
( P. 7 5 3 )
*1
(Canada)
Brake system warning light
( P. 7 5 1 )*1
Slip indicator ( P. 7 5 3 )
*1
Charging system warning
light ( P. 7 5 2 )
*1
(hybrid vehi-
cles)
Brake system warning light
( P. 7 5 3 )
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 7 5 2 )*1
(if equipped)
Automatic headlight level-
ing system warning light
( P. 7 5 3 )
*1
(Canada)
Malfunction indicator
lamp ( P. 7 5 2 )Open door warning light
( P. 7 5 4 )
*1SRS warning light
( P. 7 5 2 )Low fuel level warning light
( P. 7 5 4 )

90
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
*1: These lights turn on when the “START STOP ENGINE” <“POWER”> switch isturned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engi ne is on, or after a few
seconds. There may be a malfunction in a system if the lights do not turn on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*1
(U.S.A.)
ABS warning light
(  P. 7 5 2 )Seat belt reminder light
( P. 7 5 4 )
*1
(Canada)
ABS warning light
( P. 7 5 2 )*1Master warning light
( P. 7 5 4 )
*1, 2
(if equipped)
“PCS” warning light
( P. 7 5 3 , 76 4 )*1
Tire pressure warning light
( P. 7 5 5 )

ES350 300h_OM_OM33A01U_(U)
912. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(  P. 2 2 1 ) Cruise control “SET” indi-
cator (
P. 244, 248)
(U.S.A.)
Headlight indicator
( P. 2 2 4 )
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( P. 2 6 4 )
(Canada)
Tail light indicator
( P. 2 2 4 )
(if equipped)
Intuitive parking assist indi-
cator ( P. 2 7 1 )
Headlight high beam indi-
cator ( P. 2 2 5 )
*1, 2Slip indicator
( P. 2 9 9 , 3 0 4 )
(if equipped)
Automatic High Beam
indicator ( P. 2 2 8 ) *1VSC OFF indicator
( P. 3 0 4 )
Front fog light indicator
(  P. 2 3 4 )
*1, 3
(if equipped)
“PCS” warning light
( P. 3 0 7 )
(hybrid vehi-
cles)
“READY” indicator
( P. 2 0 4 )*4
(if equipped)
BSM outside rear view
mirror indicators
( P. 3 1 3 )
(hybrid vehi-
cles)EV indicator ( P. 7 2 )
*1
(gasoline
vehicles)
Eco Driving Indicator
Light ( P. 105)
Cruise control indicator
(  P. 244, 248)
*1
“A I R B A G O N / O F F ”
indicator ( P. 4 9 )
(if equipped)
Radar cruise control indi-
cator ( P. 2 4 8 )

92
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
*1: These lights turn on when the “START STOP ENGINE” <“POWER”> switch isturned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engi ne is on, or after a few
seconds. There may be a malfunction in a system if the lights do not turn on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turn ed off. The light flashes quickly to indi-
cate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the “START STOP ENGINE” <“POWER”> switch is turned to IGNI- TION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the “START STOP ENGINE”
<“POWER”> switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicato rs do not illuminate or do not turn off,
there may be a malfunction with the system. If this occurs, have the vehicle
inspected by your Lexus dealer.
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine , this could mean that these systems are
not available to help protect you in an accident, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

94
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 214, 217)
Odometer and trip meter display
Odometer
Displays the total distance the vehicle has been driven
Tr i p m e t e r
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Changing the display
6
7
8
Instrument panel light control
1
2

ES350 300h_OM_OM33A01U_(U)
952. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels wh en the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change th e instrument panel brightness. At this time,
any adjustments made to the instrument panel brightness levels will be applied to
both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel ligh ts is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to ei ther the brightest or darkest setting, the
automatic adjustment will not be performed.

ES350 300h_OM_OM33A01U_(U)
1052. Instrument cluster
2
Instrument cluster
■System check display
After turning the “START STOP ENGINE” <“POWER”> switch to IGNITION ON
mode, “SYSTEM CHECK” is displayed while system operation is checked.
■Eco Driving Indicator (gasoline vehicles)
Zone of Eco driving
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco dr iving, the right side of Eco Driving Indi-
cator Zone Display blinks.
Eco Driving Indicator will not oper ate in the following conditions:
●The shift lever is anything other than D.
●Neither normal mode nor Eco drive mode is selected. ( P. 2 9 6 )
●The vehicle speed is approximatel y 80 mph (130 km/h) or higher.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
Suggests Zone of Eco driving and Eco driving
ratio based on acceleration.
Eco Driving Indicator Light
Eco Driving Indicator Light availability can
be customized. The default setting is off.
( P. 8 5 2 )
During Eco-friendly acceleration (Eco driv-
ing), Eco Driving Indicator Light will turn
on.
When the acceleration exceeds Zone of
Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
1
2
3
4

106
ES350 300h_OM_OM33A01U_(U)
2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears whil e the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is tu rned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Custo mizable features P. 8 5 2 )
