358
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger

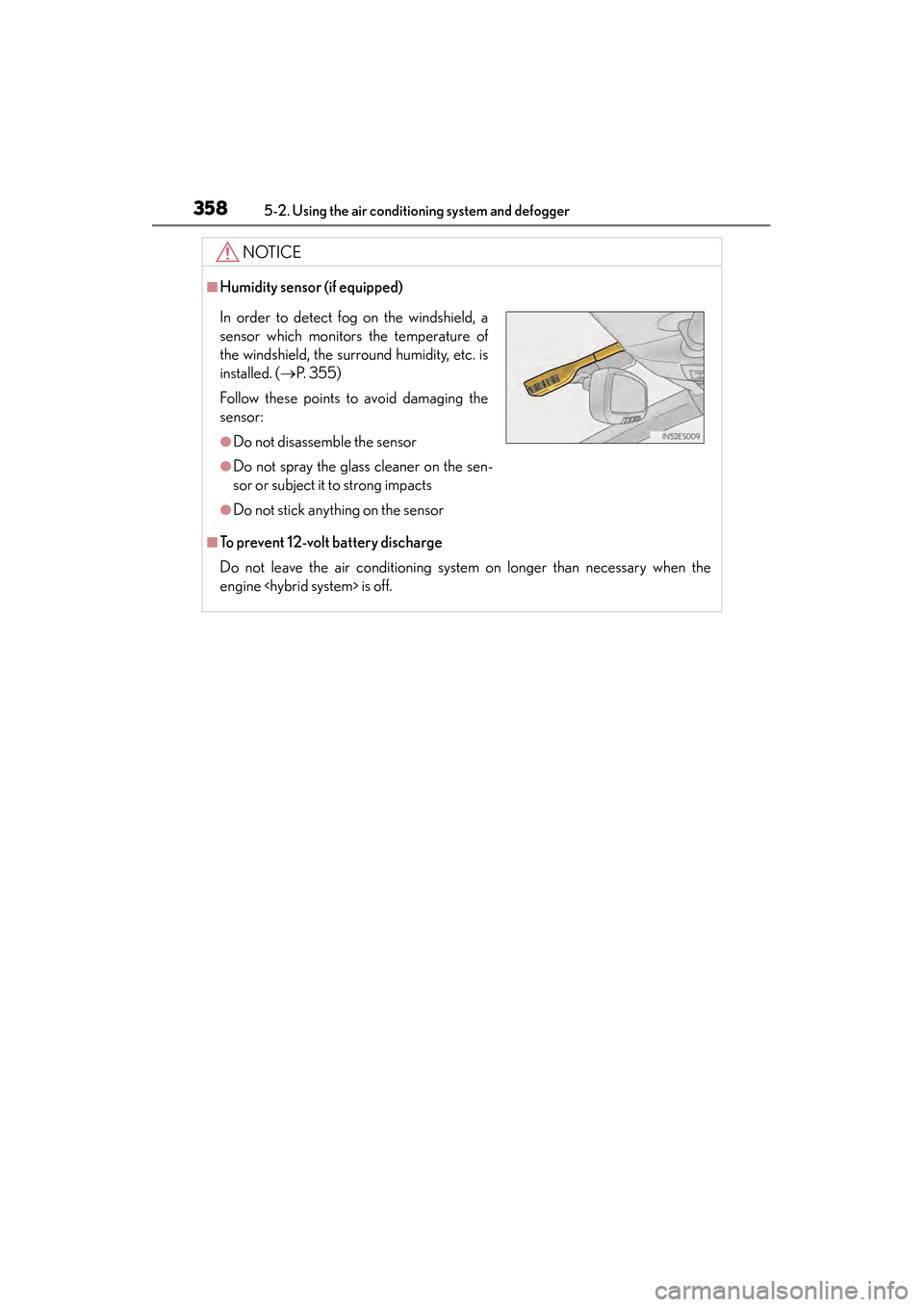

NOTICE
■Humidity sensor (if equipped)
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
In order to detect fog on the windshield, a
sensor which monitors the temperature of
the windshield, the surround humidity, etc. is
installed. ( →P. 3 5 5 )
Follow these points to avoid damaging the
sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sen-
sor or subject it to strong impacts
●Do not stick anything on the sensor

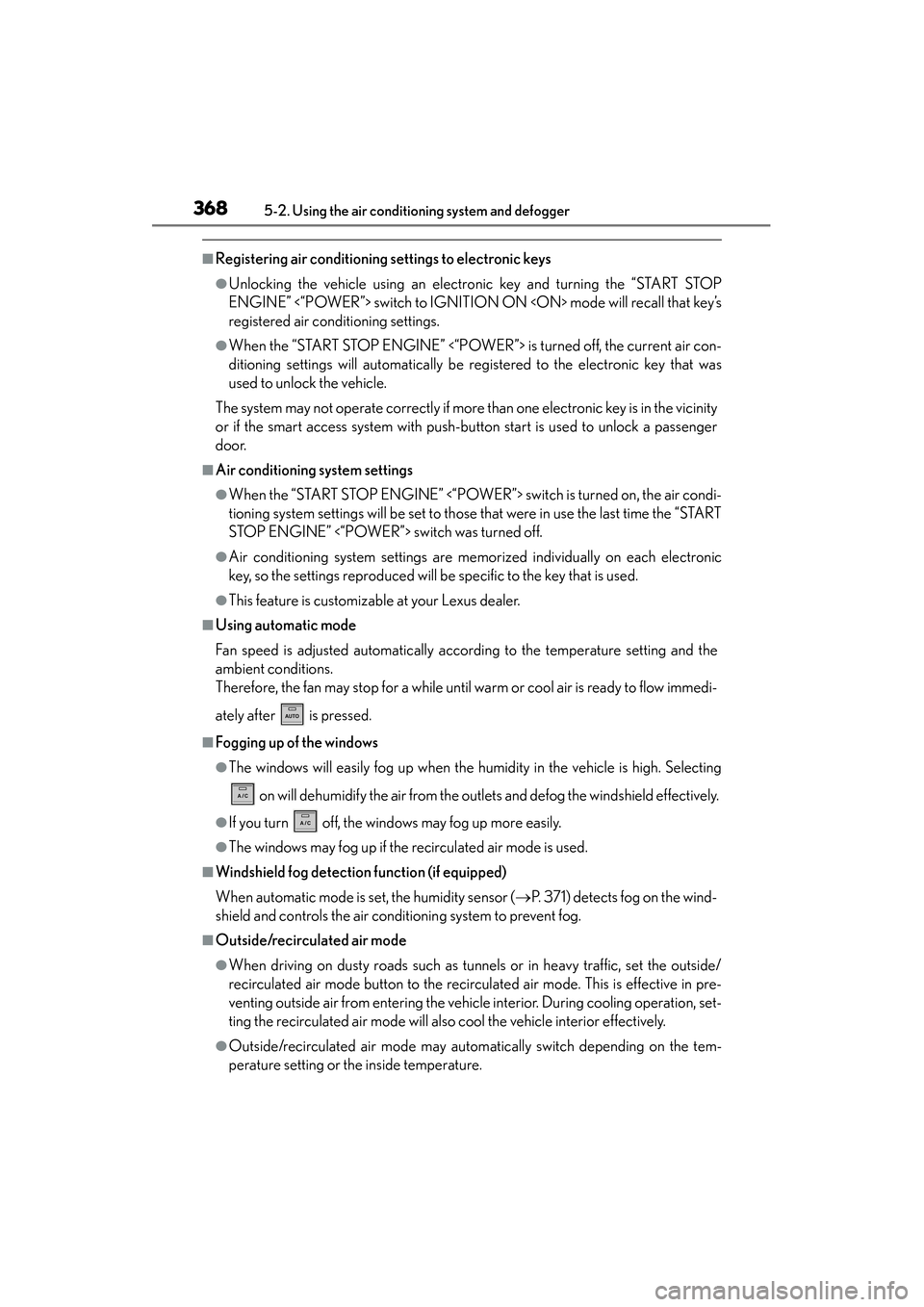

368
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic key and turning the “START STOP
ENGINE” <“POWER”> switch to IGNITION ON mode will recall that key’s
registered air conditioning settings.
●When the “START STOP ENGINE” <“POWER”> is turned off, the current air con-
ditioning settings will automatically be registered to the electronic key that was
used to unlock the vehicle.
The system may not operate correctly if more than one electronic key is in the vicinity
or if the smart access system with push-button start is used to unlock a passenger
door.
■Air conditioning system settings
●When the “START STOP ENGINE” <“POWER”> switch is turned on, the air condi-
tioning system settings will be set to those that were in use the last time the “START
STOP ENGINE” <“POWER”> switch was turned off.
●Air conditioning system settings are memorized individually on each electronic
key, so the settings reproduced will be specific to the key that is used.
●This feature is customizable at your Lexus dealer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immedi-
ately after is pressed.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Selecting
on will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Windshield fog detection function (if equipped)
When automatic mode is set, the humidity sensor ( →P. 371) detects fog on the wind-
shield and controls the air conditioning system to prevent fog.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/
recirculated air mode button to the recirculated air mode. This is effective in pre-
venting outside air from entering the vehicl e interior. During cooling operation, set-
ting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.

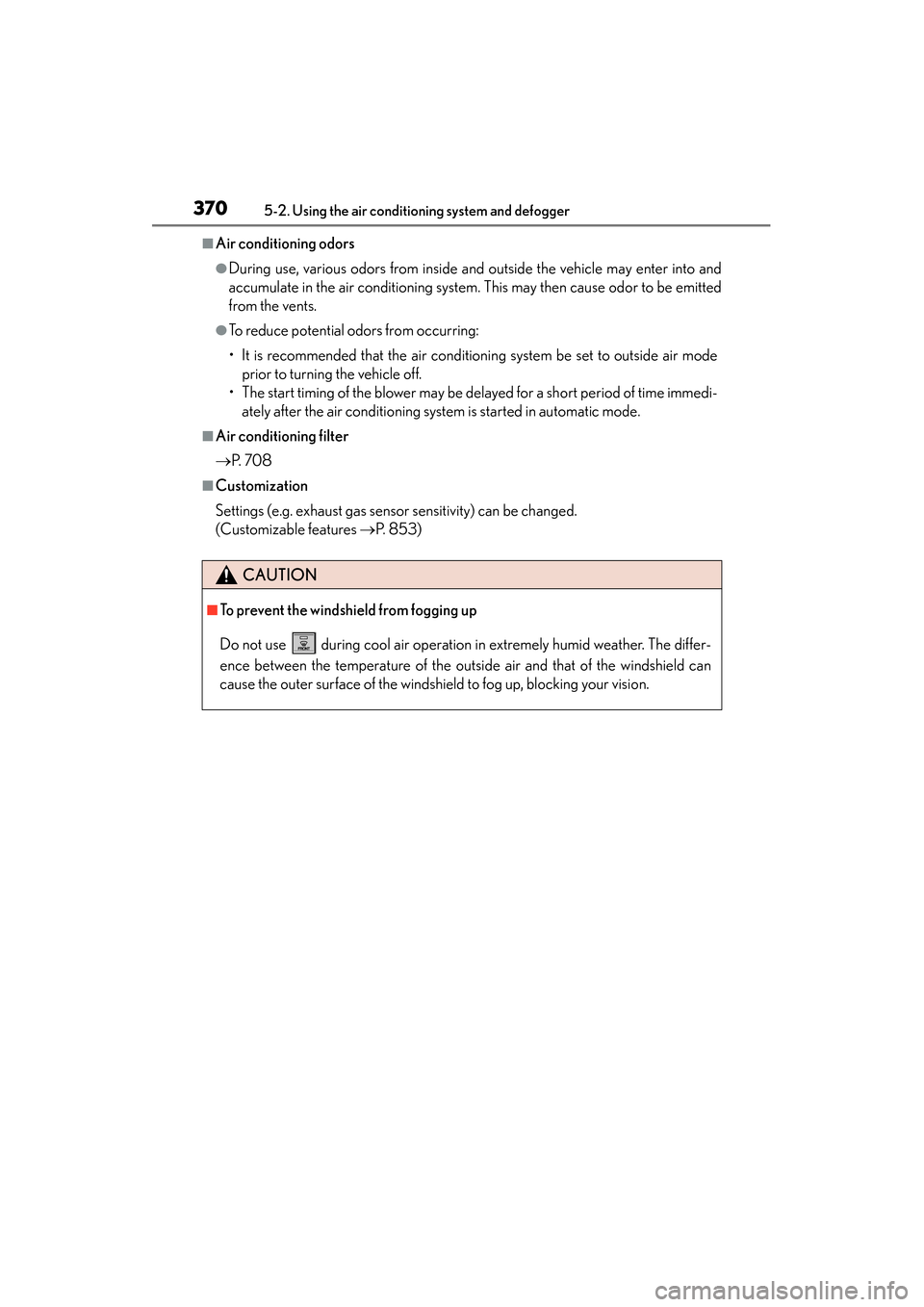

370
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air modeprior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 7 0 8
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features →P. 8 5 3 )
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.

ES350 300h_OM_OM33A01U_(U)
3715-2. Using the air conditioning system and defogger
5
Interior features

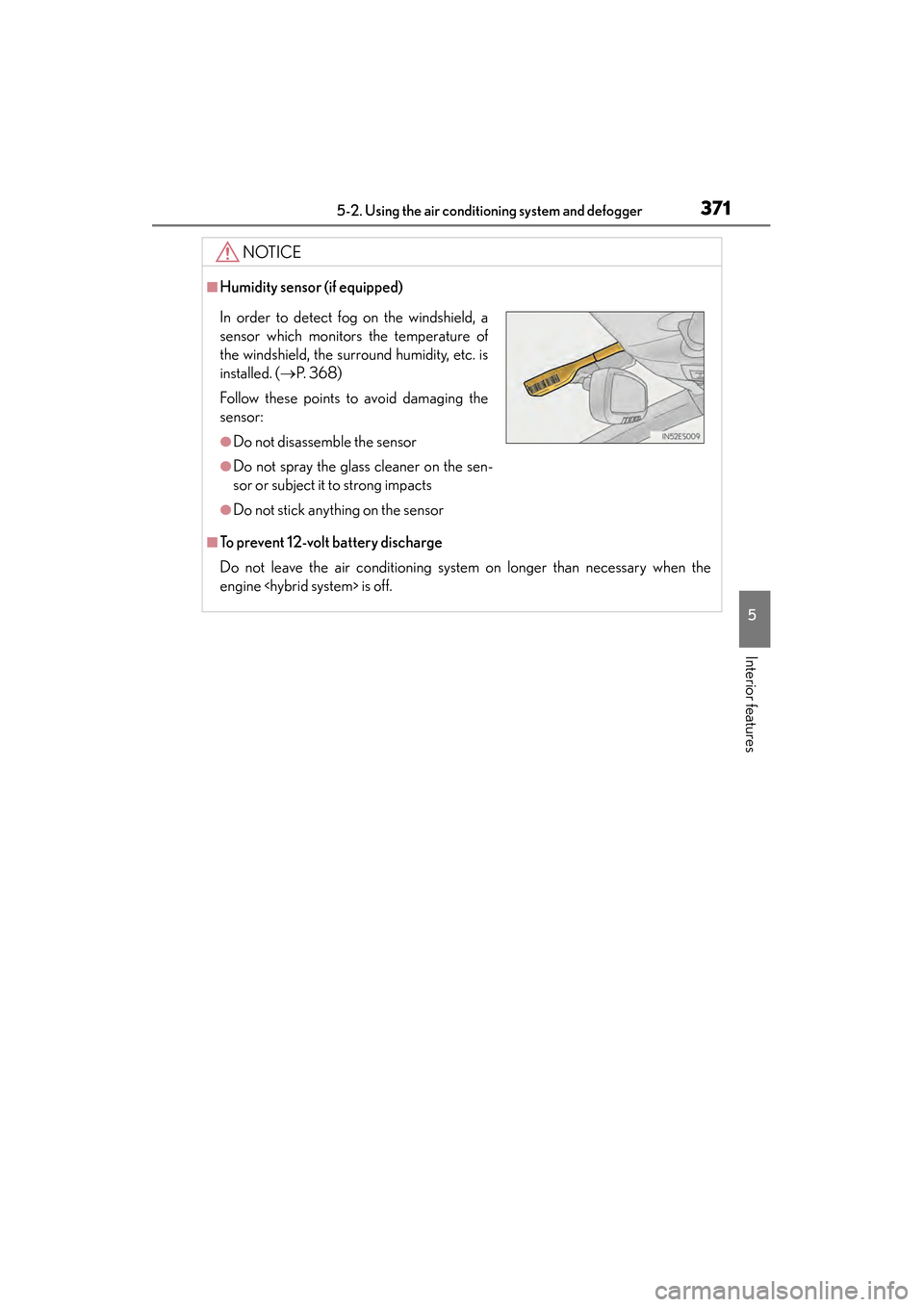

NOTICE
■Humidity sensor (if equipped)
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
In order to detect fog on the windshield, a
sensor which monitors the temperature of
the windshield, the surround humidity, etc. is
installed. ( →P. 3 6 8 )
Follow these points to avoid damaging the
sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sen-
sor or subject it to strong impacts
●Do not stick anything on the sensor

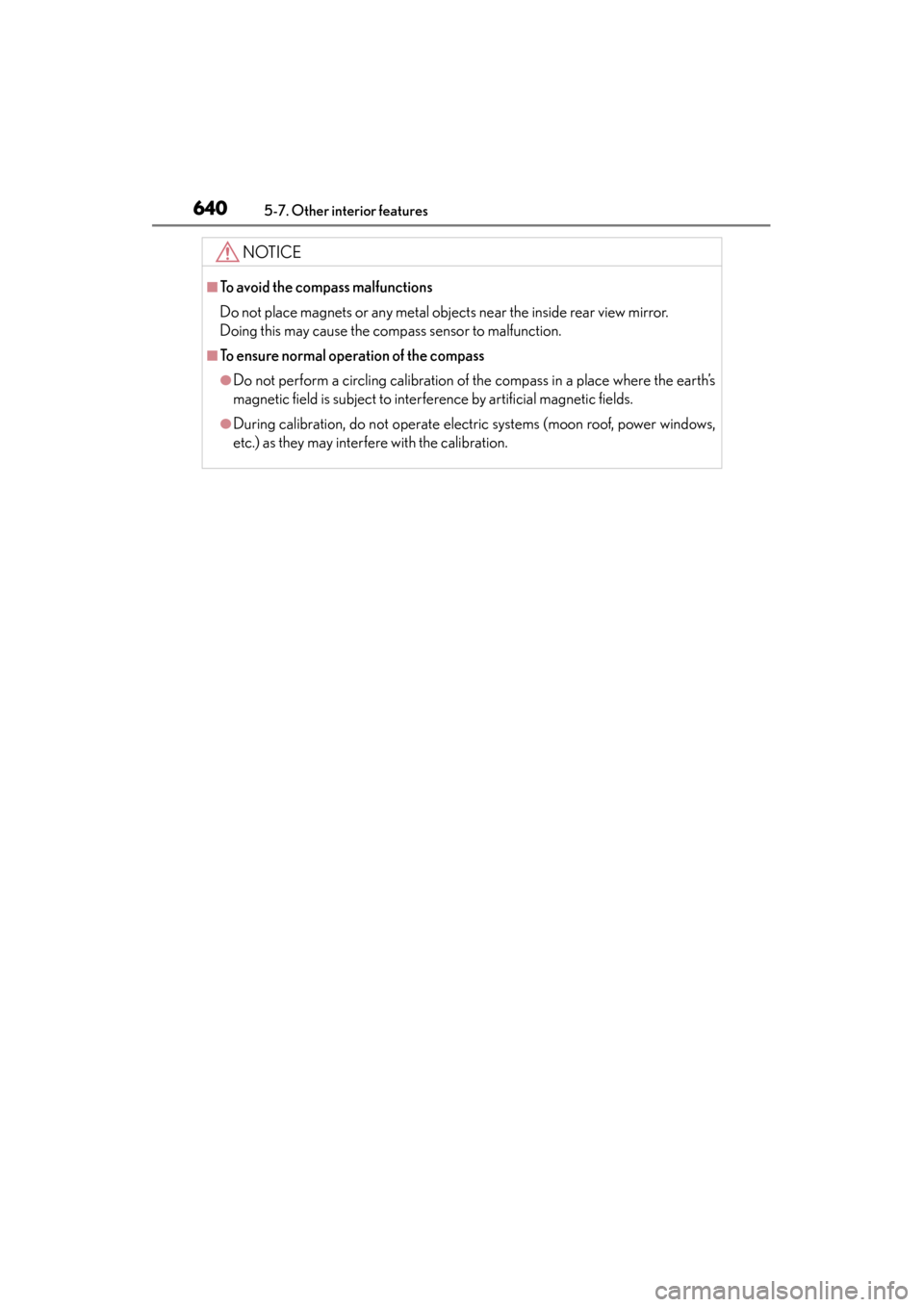

640
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■To ensure normal operation of the compass
●Do not perform a circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

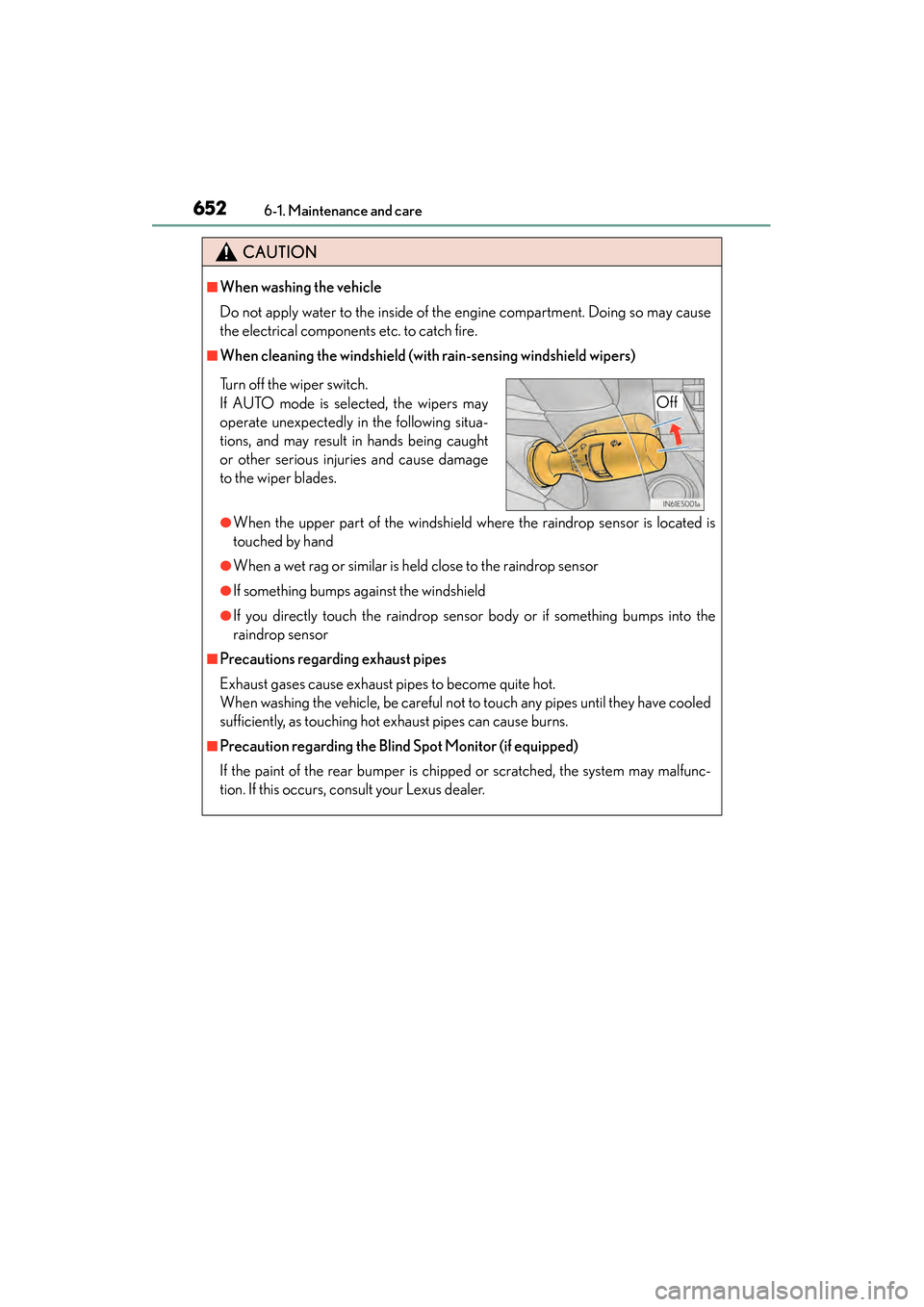

652
ES350 300h_OM_OM33A01U_(U)
6-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield (with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding exhaust pipes
Exhaust gases cause exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch any pipes until they have cooled
sufficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus dealer.
Turn off the wiper switch.
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
Off

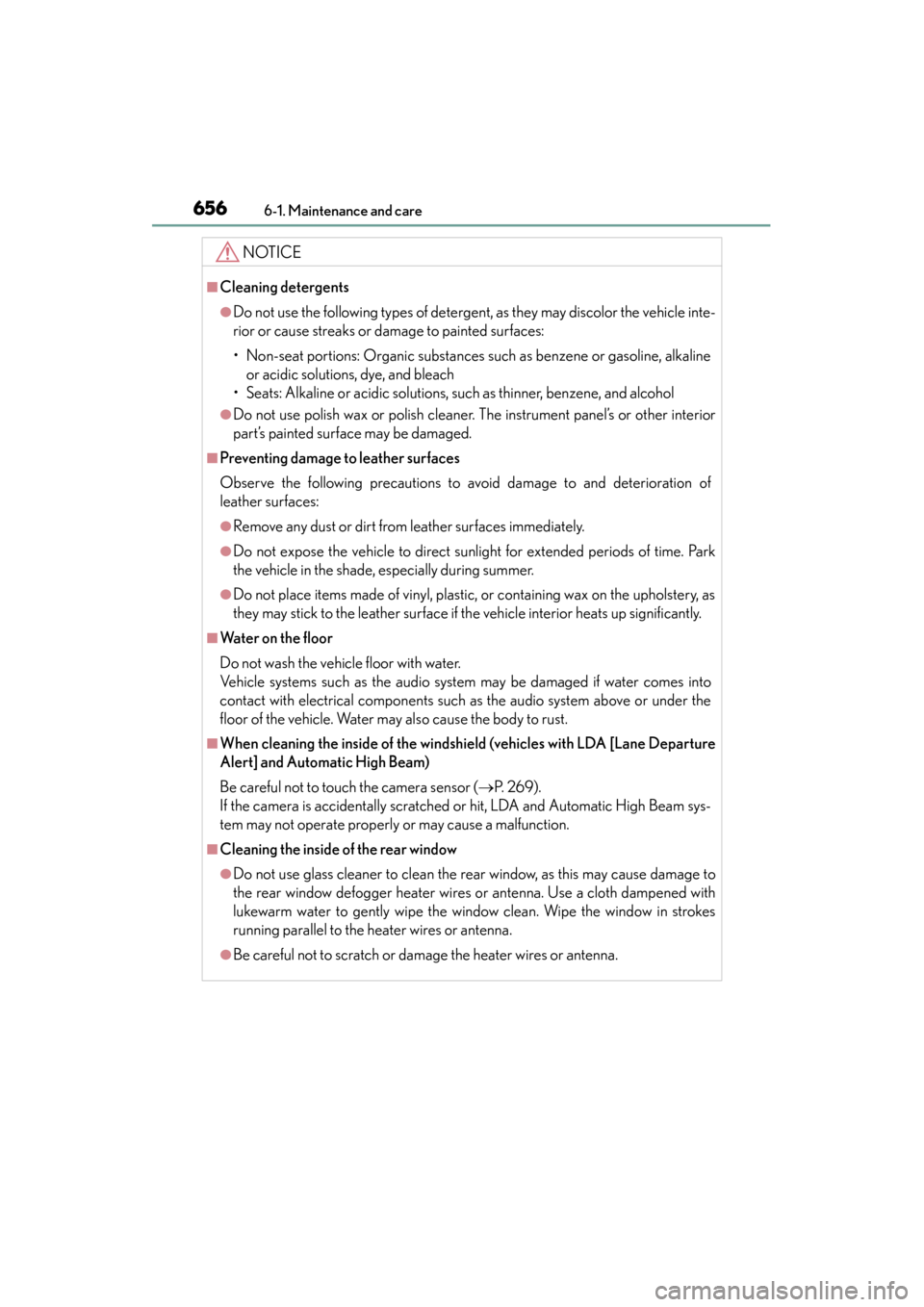

656
ES350 300h_OM_OM33A01U_(U)
6-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LDA [Lane Departure
Alert] and Automatic High Beam)
Be careful not to touch the camera sensor ( →P. 2 6 9 ) .
If the camera is accidentally scratched or hit, LDA and Automatic High Beam sys-
tem may not operate properly or may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

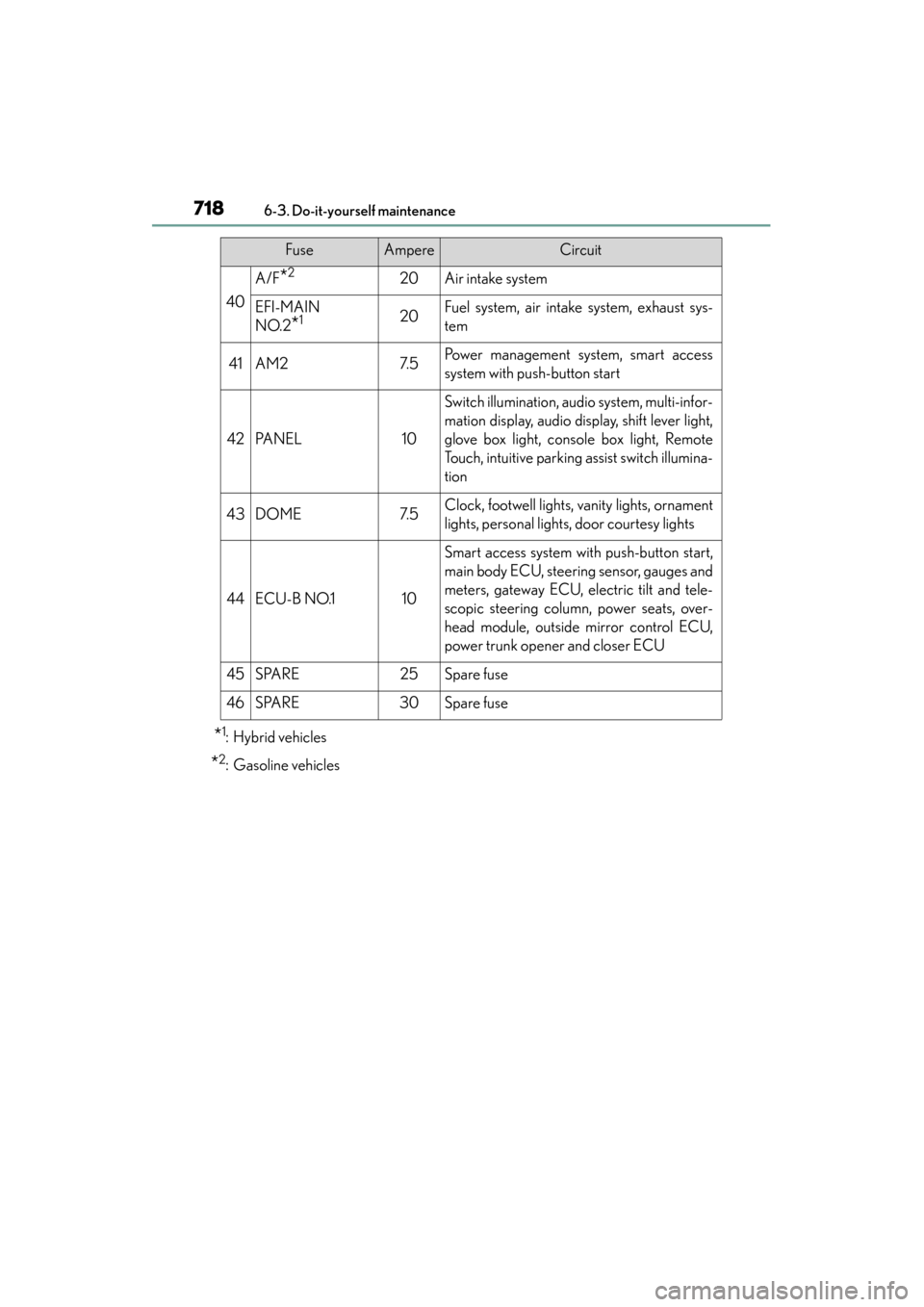

718
ES350 300h_OM_OM33A01U_(U)
6-3. Do-it-yourself maintenance
*1:Hybrid vehicles
*2: Gasoline vehicles
40
A/F*220Air intake system
EFI-MAIN
NO.2
*120Fuel system, air intake system, exhaust sys-
tem
41AM27. 5Power management system, smart access
system with push-button start
42PA N E L10
Switch illumination, audio system, multi-infor-
mation display, audio display, shift lever light,
glove box light, console box light, Remote
Touch, intuitive parking assist switch illumina-
tion
43DOME7. 5Clock, footwell lights, vanity lights, ornament
lights, personal lights, door courtesy lights
44ECU-B NO.110
Smart access system with push-button start,
main body ECU, steering sensor, gauges and
meters, gateway ECU, electric tilt and tele-
scopic steering column, power seats, over-
head module, outside mirror control ECU,
power trunk opener and closer ECU
45SPARE25Spare fuse
46SPARE30Spare fuse
FuseAmpereCircuit

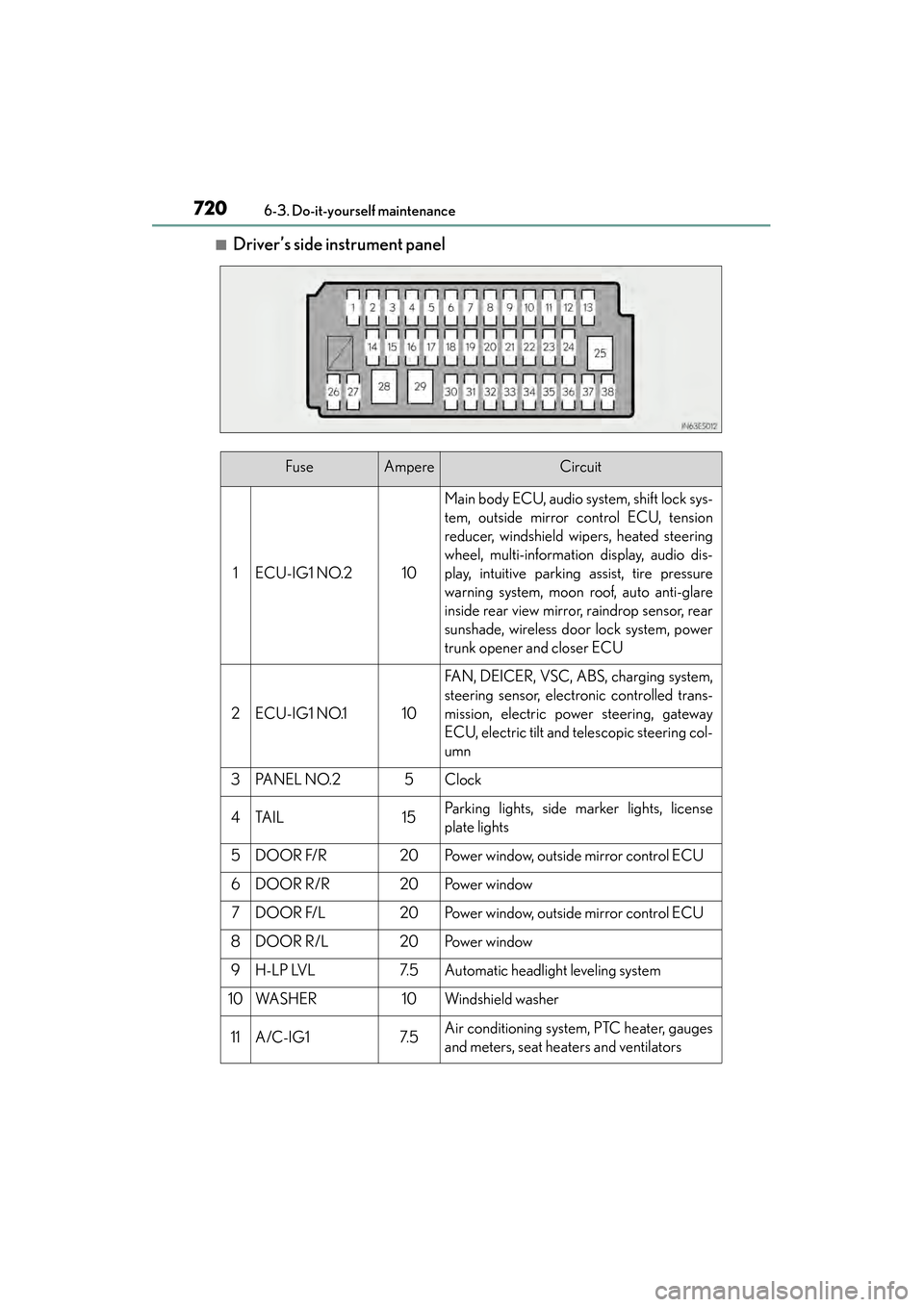

720
ES350 300h_OM_OM33A01U_(U)
6-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1ECU-IG1 NO.210
Main body ECU, audio system, shift lock sys-
tem, outside mirror control ECU, tension
reducer, windshield wipers, heated steering
wheel, multi-information display, audio dis-
play, intuitive parking assist, tire pressure
warning system, moon roof, auto anti-glare
inside rear view mirror, raindrop sensor, rear
sunshade, wireless door lock system, power
trunk opener and closer ECU
2ECU-IG1 NO.110
FAN, DEICER, VSC, ABS, charging system,
steering sensor, electronic controlled trans-
mission, electric power steering, gateway
ECU, electric tilt and telescopic steering col-
umn
3PA N E L N O. 25Clock
4TA I L15Parking lights, side marker lights, license
plate lights
5DOOR F/R20Power window, outside mirror control ECU
6DOOR R/R20Po w e r w i n d o w
7DOOR F/L20Power window, outside mirror control ECU
8DOOR R/L20Po w e r w i n d o w
9H-LP LVL7. 5Automatic headlight leveling system
10WA S H E R10Windshield washer
11A/C-IG17. 5Air conditioning system, PTC heater, gauges
and meters, seat heaters and ventilators

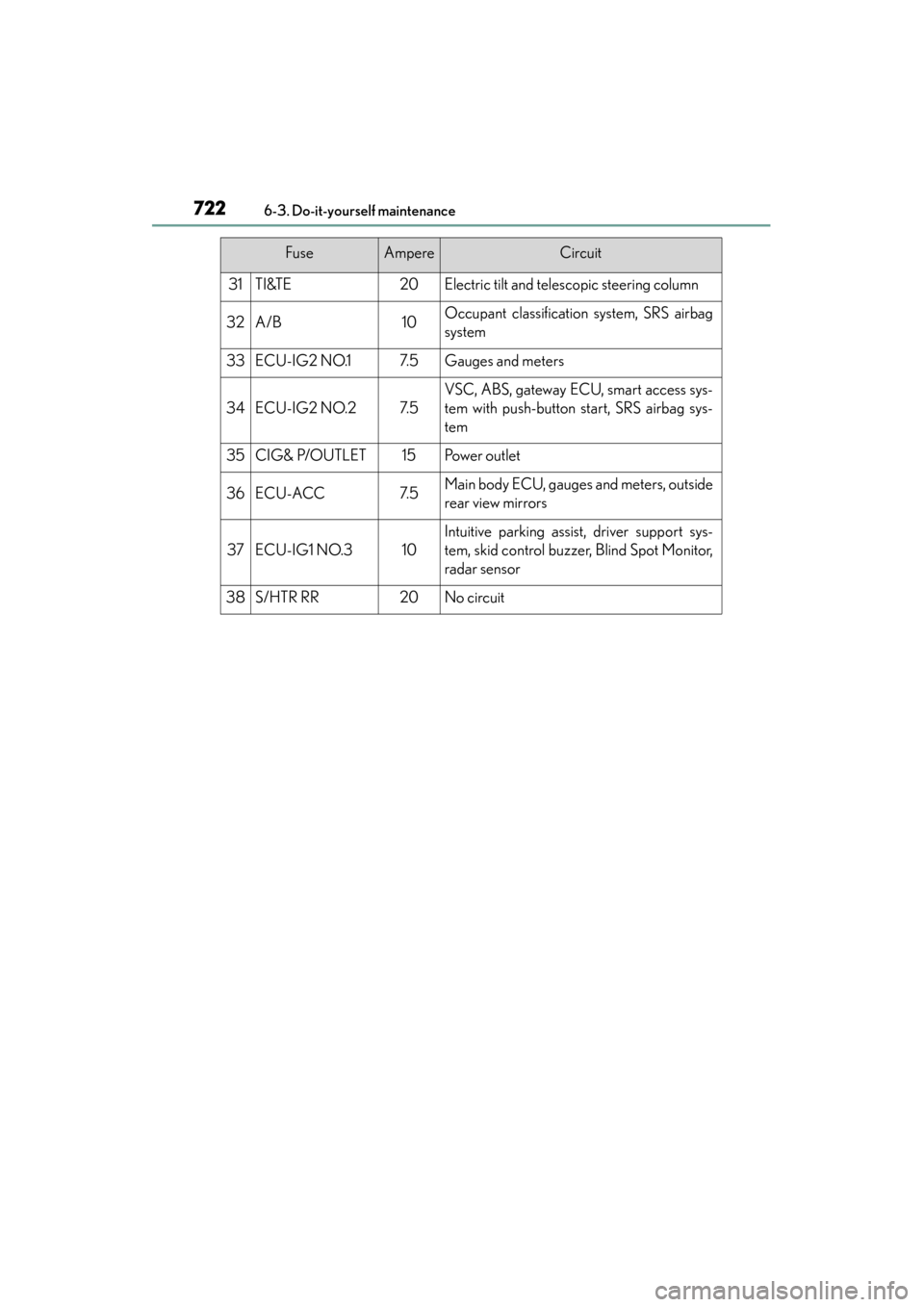

722
ES350 300h_OM_OM33A01U_(U)
6-3. Do-it-yourself maintenance
31TI&TE20Electric tilt and telescopic steering column
32A/B10Occupant classification system, SRS airbag
system
33ECU-IG2 NO.17. 5Gauges and meters
34ECU-IG2 NO.27. 5
VSC, ABS, gateway ECU, smart access sys-
tem with push-button start, SRS airbag sys-
tem
35CIG& P/OUTLET15Po w e r o u t l e t
36ECU-ACC7. 5Main body ECU, gauges and meters, outside
rear view mirrors
37ECU-IG1 NO.310
Intuitive parking assist, driver support sys-
tem, skid control buzzer, Blind Spot Monitor,
radar sensor
38S/HTR RR20No circuit
FuseAmpereCircuit
