17Pictorial index
ES350 300h_OM_OM33A01U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . . P. 374
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 652
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 239
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 828
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 694
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 835
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 694
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 784
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 675
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 8 2 9
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 813, 816
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 766
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 224
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 221
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Stop/tail lights
Hill-start assist control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214, 217
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 724, Watts: P. 836)
*1: If equipped
*2: Hybrid vehicles
8
9
10
11
12
13
14
15

ES350 300h_OM_OM33A01U_(U)

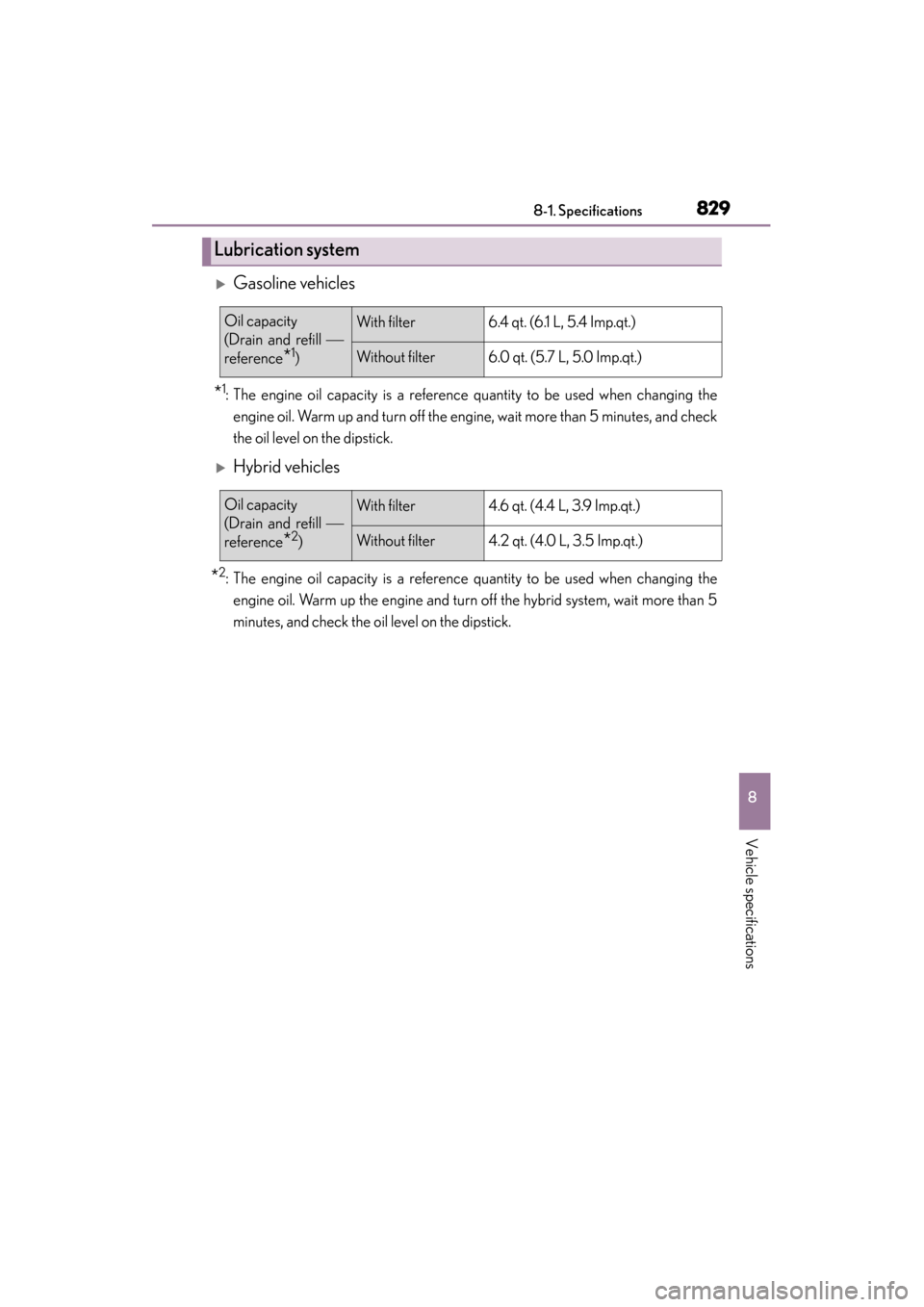

8298-1. Specifications
8
Vehicle specifications
XGasoline vehicles
*1: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
XHybrid vehicles
*2: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
Lubrication system
Oil capacity
(Drain and refill 
reference
*1)
With filter6.4 qt. (6.1 L, 5.4 Imp.qt.)
Witho ut filter6.0 qt. (5.7 L, 5.0 Imp.qt.)
Oil capacity
(Drain and refill 
reference
*2)
With filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
Witho ut filter4.2 qt. (4.0 L, 3.5 Imp.qt.)

ES350 300h_OM_OM33A01U_(U)
8478-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

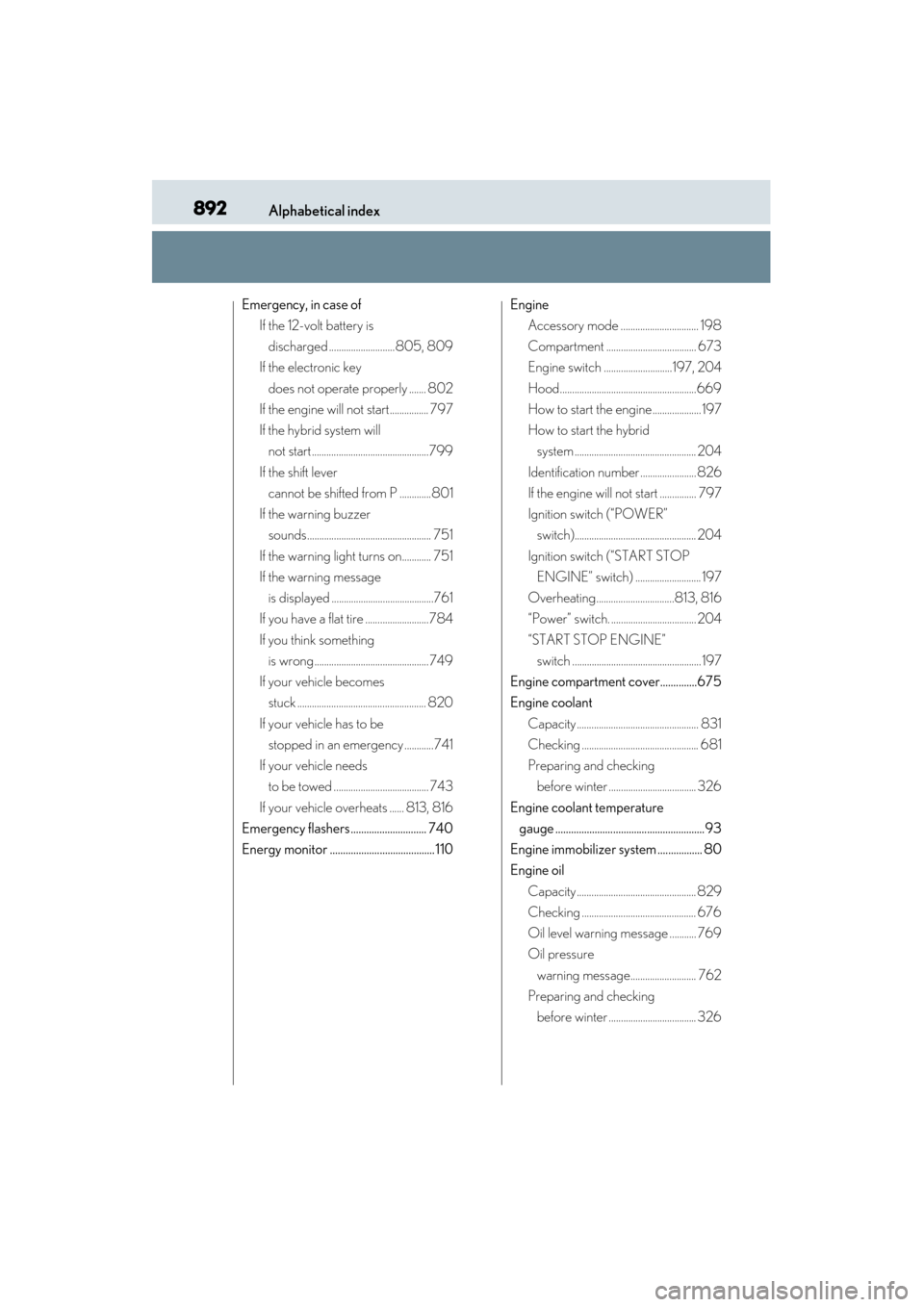

892Alphabetical index
ES350 300h_OM_OM33A01U_(U)
Emergency, in case ofIf the 12-volt battery is
discharged ........................... 805, 809
If the electronic key
does not operate properly ....... 802
If the engine will not start................ 797
If the hybrid system will not start ................................................799
If the shift lever cannot be shifted from P .............801
If the warning buzzer sounds................................................... 751
If the warning light turns on............ 751
If the warning message is displayed ..........................................761
If you have a flat tire ..........................784
If you think something is wrong...............................................749
If your vehicle becomes stuck ..................................................... 820
If your vehicle has to be stopped in an emergency ............741
If your vehicle needs to be towed ....................................... 743
If your vehicle overheats ...... 813, 816
Emergency flashers ............................. 740
Energy monitor ........................................ 110 Engine
Accessory mode ................................ 198
Compartment ..................................... 673
Engine switch ............................197, 204
Hood........................................................669
How to start the engine.................... 197
How to start the hybrid system .................................................. 204
Identification number ....................... 826
If the engine will not start ............... 797
Ignition switch (“POWER” switch).................................................. 204
Ignition switch (“START STOP ENGINE” switch) ........................... 197
Overheating................................813, 816
“Power” switch. ................................... 204
“START STOP ENGINE” switch ..................................................... 197
Engine compartment cover..............675
Engine coolant Capacity .................................................. 831
Checking ................................................ 681
Preparing and checking before winter .................................... 326
Engine coolant temperature gauge .........................................................93
Engine immobilizer system ................. 80
Engine oil Capacity ................................................. 829
Checking ............................................... 676
Oil level warning message ........... 769
Oil pressure warning message........................... 762
Preparing and checking
before winter .................................... 326

908
ES350 300h_OM_OM33A01U_(U)

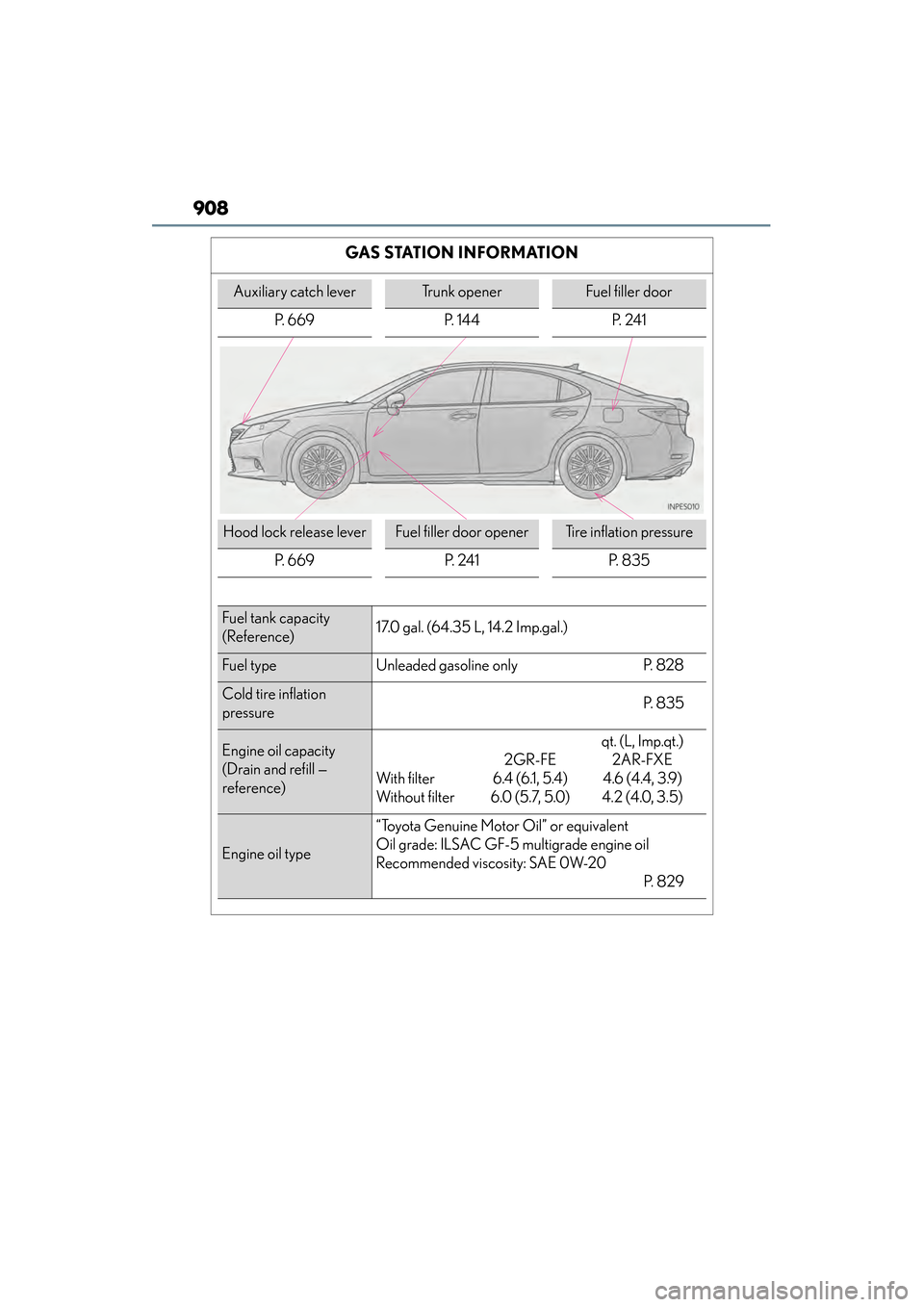

GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 669 P. 144 P. 241
Hood lock release leverFuel filler door openerTire inflation pressure
P. 6 6 9 P. 2 4 1 P. 8 3 5
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 828
Cold tire inflation
pressure P. 8 3 5
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE 2AR-FXE
With filter 6.4 (6.1, 5.4) 4.6 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 8 2 9
