This screen is used for various settings.Display the “Setup” screen. ( P. 345)
Select “General” on the “Setup” screen.
Select language ( P. 3 4 7 )
Beep on/off
Select button color
Customize Startup Image
The initial screen displayed when the “START STOP ENGINE” <“POWER”>
switch is turned to ACCESSORY or IGNITION ON mode can be
changed to image 1, or image 2 which displays the vehicle screen.
Animation on/off
The animation effect for audio source se lection screen, screen transitions, etc.
can be set to “On” or “Off”.
Personal data can be deleted. ( P. 3 4 7 )
When you complete settings, select “Save”.
General settings
1
2
Pa g e 1Pa g e 2
1
2
3
4
5
6
3

ES350_300h_OM_OM33A60U_(U)
3475-1. Lexus Display Audio system
5
Interior features
■Selecting a languageSelect “Language” on the “General Settings” screen.
Select the desired language.
The selectable languages may dif-
fer depending on the model or
region.
■Delete personal dataSelect “Delete Personal Data” on the “General Settings” screen.
Select “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
A confirmation screen will be displayed. Select “Yes”.
The following personal data can be deleted or turned to their default
settings.
• Phonebook data
• Call history data
• Speed dial data
• Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
•Sound settings
•Preset switch data
• Last used radio station
1
2
1
2
3

3485-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
This screen is used for various vehicle settings.Display the “Setup” screen. ( P. 345)
Select “Vehicle” on the “Setup” screen. Vehicle customization settings
( P. 3 4 8 )
LEXUS park assist settings

( P. 283)
■Vehicle customization settings
Various setting can be changed.
Select “Vehicle Customization” on the “Vehicle Settings” screen.
Refer to the list of settings that
can be changed for details.
( P. 863)
When you complete settings, select “Save”.
Vehicle settings
1
2
: If equipped
1
2
1
2

ES350_300h_OM_OM33A60U_(U)
3495-1. Lexus Display Audio system
5
Interior features
This screen is used for various audio settings.Display the “Setup” screen. ( P. 345)
Select “Audio” on the “Setup” screen. HD Radio™ technology set-
tings ( P. 391)
iPod setting ( P. 3 4 9 )
When you complete settings, select “Save”.
■iPod setting
This screen is used for iPod setting. Select “iPod Settings” on the “Audio Settings” screen. ( P. 3 4 9 )
Select “Display Cover Art”.
“On” or “Off” can be selected to
display/iPod cover art in the
screen.
Audio settings
1
2
1
2
3
1
2

3505-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
This screen is used for guidance for Bluetooth® hands-free systems set-
ting.
Display the “Setup” screen. ( P. 345)
Select “Voice” on the “Setup” screen. Voice guidance volume setting
Voice recognition prompts on/
off
Restore default settings
When you complete settings, select “OK”.
Voice settings
1
2
1
2
3
3

351
ES350_300h_OM_OM33A60U_(U)
5-1. Lexus Display Audio system
5
Interior features

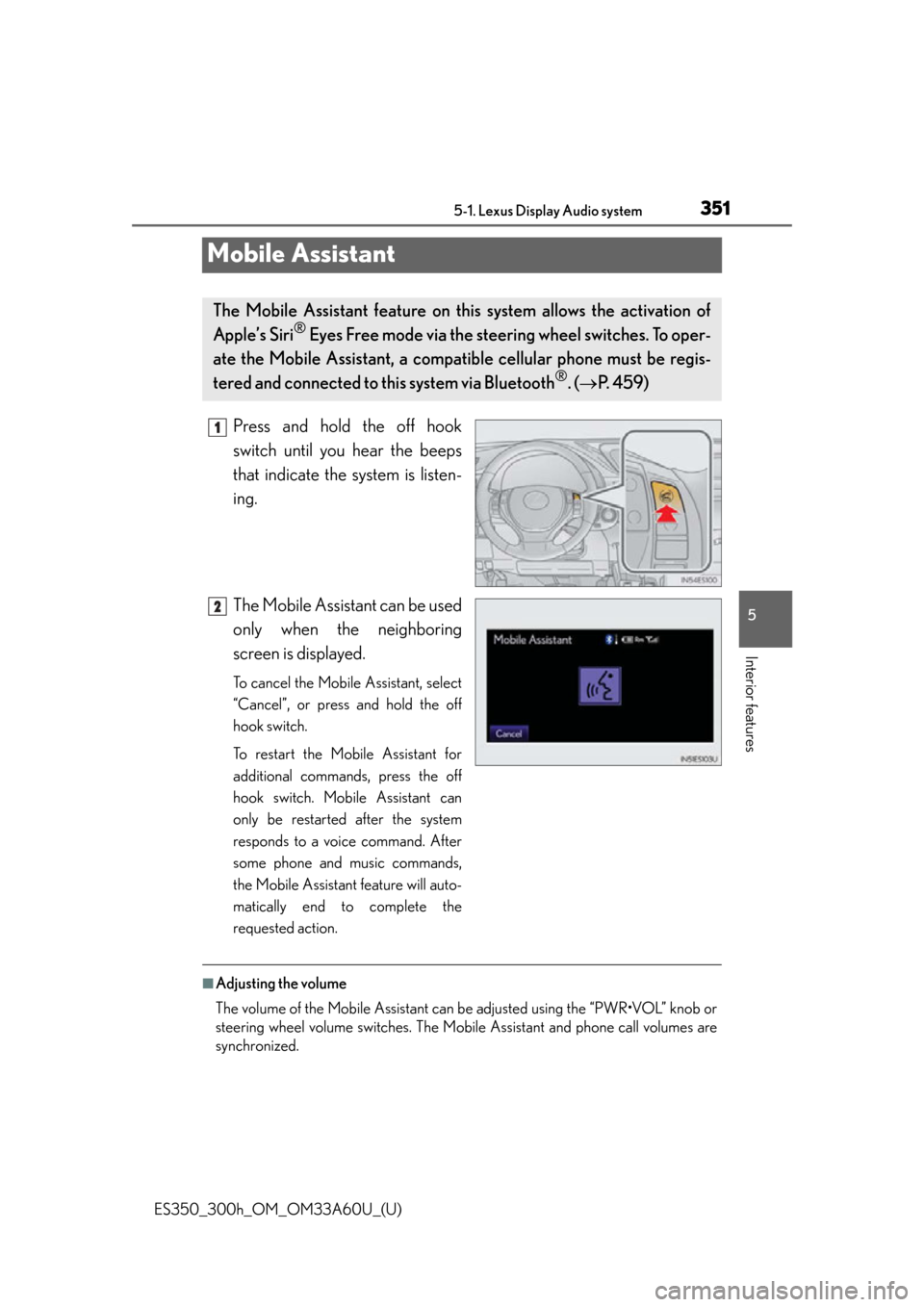

Mobile Assistant
Press and hold the off hook
switch until you hear the beeps
that indicate the system is listen-
ing.
The Mobile Assistant can be used
only when the neighboring
screen is displayed.
To cancel the Mobile Assistant, select
“Cancel”, or press and hold the off
hook switch.
To restart the Mobile Assistant for
additional commands, press the off
hook switch. Mobile Assistant can
only be restarted after the system
responds to a voice command. After
some phone and music commands,
the Mobile Assistant feature will auto-
matically end to complete the
requested action.
■Adjusting the volume
The volume of the Mobile Assistant can be adjusted using the “PWR•VOL” knob or
steering wheel volume switches. The Mobi le Assistant and phone call volumes are
synchronized.
The Mobile Assistant feature on this system allows the activation of
Apple’s Siri
® Eyes Free mode via the steering wheel switches. To oper-
ate the Mobile Assistant, a compa tible cellular phone must be regis-
tered and connected to this system via Bluetooth
®. (  P. 4 5 9 )
1
2

3525-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)

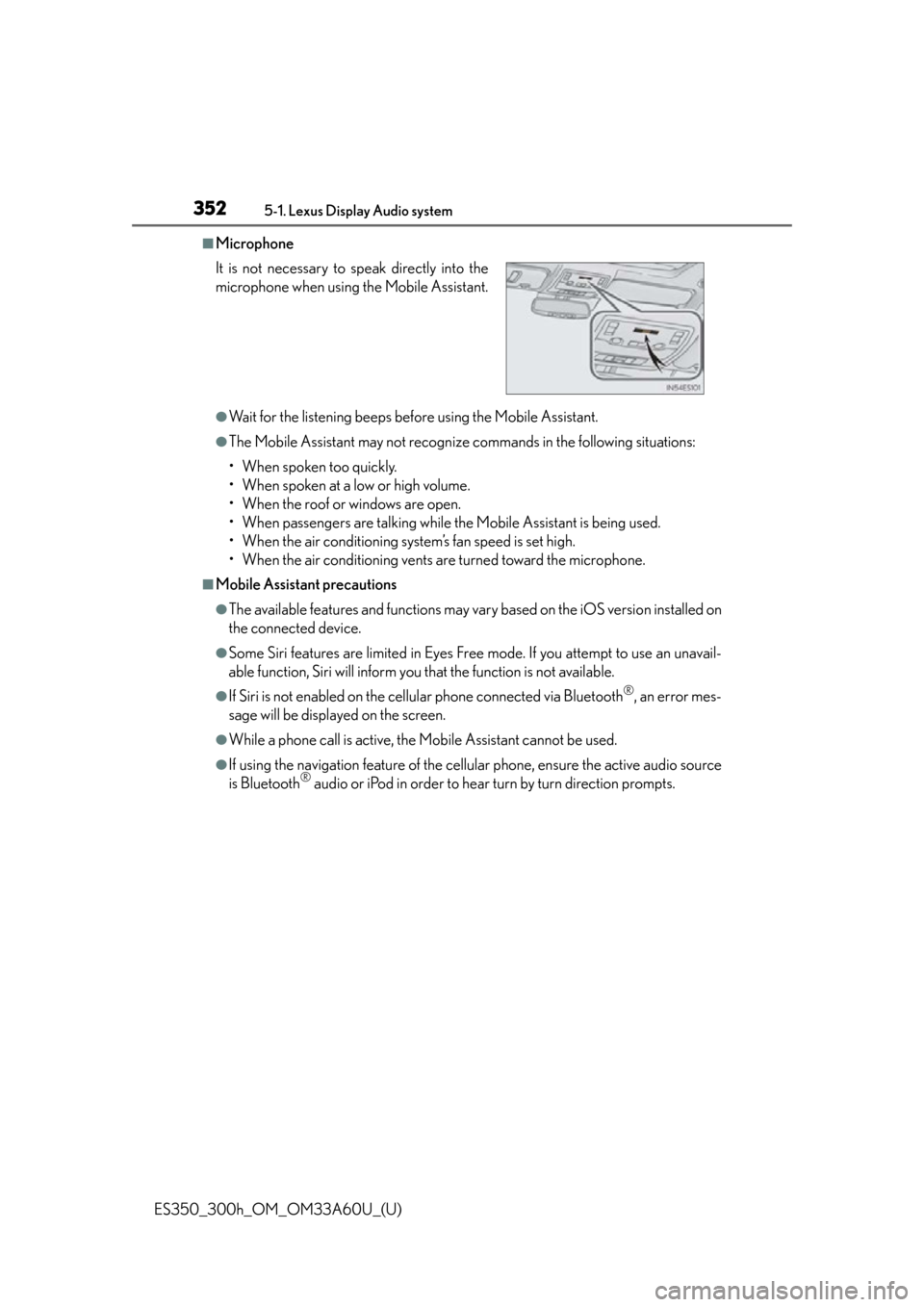

■Microphone
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while th e Mobile Assistant is being used.
• When the air conditioning system’s fan speed is set high.
• When the air conditioning vents are turned toward the microphone.
■Mobile Assistant precautions
●The available features and functions may vary based on the iOS version installed on
the connected device.
●Some Siri features are limited in Eyes Free mode. If you attempt to use an unavail-
able function, Siri will inform you that the function is not available.
●If Siri is not enabled on the cellular phone connected via Bluetooth®, an error mes-
sage will be displayed on the screen.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellular phone, ensure the active audio source
is Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
It is not necessary to
speak directly into the
microphone when using the Mobile Assistant.

353
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
5
Interior features
Automatic air conditioning system (with the Lexus
Display Audio system)
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation sys tem or the Lexus Display Audio sys-
tem
 P. 365
Air outlets and fan speed are automatica lly adjusted according to the
temperature setting.
To display the air conditioning operation screen, press the “MENU”
button on the Lexus Display Audio controller and then select “Cli-
mate”.

354
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
Control panel
Air conditioning operation
screen
Outside temperature display
Automatic mode button
“OFF” button
Fan speed control button
Air outlet selector button
Windshield defogger button
DUAL mode button Passenger’s side temperature
control buttons
Passenger’s side temperature
display
Outside/recirculated air mode
button
Driver’s side temperature dis-
play
Driver’s side temperature con-
trol buttons1
2
3
4
5
6
7
8
9
10
11
12
13

365
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
5
Interior features
Automatic air conditioning system (without a navi-
gation system or the Lexus Display Audio system)
Vehicles with a navigation system
Owners of models equipped with a na vigation system should refer to the
“Navigation System Owner’s Manual”.
Vehicles with the Lexus Display Audio system
 P. 3 5 3
Air outlets and fan speed are automatica lly adjusted according to the
temperature setting.
