2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears whil e the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is tu rned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Custo mizable features P. 8 6 2 )

116
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual conditions.
Hybrid battery
(traction battery) status
Navigation system
Lexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
LowFull
LowFull

118
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
■Trip information
If the “Trip Information” screen is not displayed, select “Trip Informa-
tion”.
Current fuel consumption
Fuel consumption in the past 15 minutes
Hybrid vehicles: Regenerated energy in the past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Displays the average vehicle speed since the engine
was started.
Displays the elapsed time since the engine was started.
Cruising range ( P. 120)
Reset the consumption data
“Past Record” (Navigation system) or “History” (Lexus Display Audio
system) screen appears
Hybrid vehicles: “Energy Monitor” screen appears
Average fuel consumption for the past 15 minutes is divided by color into
past averages and averages attaine d since the “START STOP ENGINE”
<“POWER”> switch was last turned to IGNITION ON mode. Use
the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Navigation systemLexus Display Audio system
1
2
3
4
5
6
7
8
9

ES350_300h_OM_OM33A60U_(U)
1192. Instrument cluster
2
Instrument cluster
■Past record
If the “History” or “Past Record” screen is not displayed, select “History”
or “Past Record”.
Average fuel consumption
Previous fuel consumption record
Best recorded fuel consumption
Update the average fuel consumption data
Reset the past record data
“Trip Information” screen appears
Hybrid vehicles: “Energy Monitor” screen appears
The average fuel consumption histor y is divided by color into past aver-
ages and the average fuel consumpti on since the last updated. Use the
displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Navigation systemLexus Display Audio system
1
2
3
4
5
6
7

125
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for exam ple in your pocket. (The driver should
always carry the electronic key.)
■Operation signals
A buzzer sounds and the emergency flashe rs flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■Security feature
If a door is not opened within approx imately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The side marker, parking, tail and license plate lights automatically turn on at night
when the doors are unlocked using the entr y function or wireless remote control if
the light switch is in the “AUTO” position.
Function summary
Hybrid vehiclesGasoline vehicles
Locks and unlocks the doors ( P. 1 2 6 )
Opens the trunk ( P. 1 2 6 )
Starts the engine ( P. 201)
Starts the hybrid system ( P. 2 0 8 )1
2
3

130
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
■Changing the door unlock function setting
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “START STOP ENGINE” <“POWER”> switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a do or once after the settings have been
changed. (If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 8 6 )
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door han-
dle unlocks only the driver’s
door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once

134
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
■Note for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves an d touch the lock sensor again.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repe atedly. In that case, follow the following
correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access sys- tem with push-button start. ( P. 1 3 1 )
●If the electronic key is inside the vehicle and a door handle becomes wet during a
car wash, a message may be shown on th e multi-information display and a buzzer
will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud,
etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor
on the lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle. Be
careful not to injure fingernails or damage the surface of the door.
■Note for the unlocking function
●A sudden approach to the effective rang e or door handle may prevent the doors
from being unlocked. In this case, return the door handle to the original position
and check that the doors unlock befo re pulling the door handle again.
●Gripping the door handle when wearing a glove may not unlock the door.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repe atedly. In that case, follow the following
correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access sys- tem with push-button start. ( P. 1 3 1 )
●If there is another electronic key in the de tection area, it may take slightly longer to
unlock the doors after the door handle is gripped.
●Fingernails may scrape against the door during operation of the door handle. Be
careful not to injure fingernails or damage the surface of the door.

140
ES350_300h_OM_OM33A60U_(U)
3-2. Opening, closing and locking the doors and trunk
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
Tr u n k :
A buzzer sounds to indicate that the trunk has been opened.
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are operating.
■Welcome light illumination control
 P. 1 2 5
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 se conds. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■Pa n i c m o d e
■Security feature
 P. 1 2 5
■Alarm
Using the wireless remote control to lo ck the doors will set the alarm system.
(  P. 8 6 )
■Conditions affecting operation
P. 1 3 2
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
electronic key.

ES350_300h_OM_OM33A60U_(U)
1493-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Tr u n k l i g h t
The trunk light turns on when the trunk is opened.
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electron ic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinem ent prevention function cannot be acti-
vated, causing the doors to lock when th e trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicle s with power trunk opener and closer)
The trunk lid will not operate when excessiv e load is present on the top of the trunk
lid.
■Fall-down protection function (vehicle s with power trunk opener and closer)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk opener and closer)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.

ES350_300h_OM_OM33A60U_(U)
1513-2. Opening, closing and locking the doors and trunk
3
Operation of each component

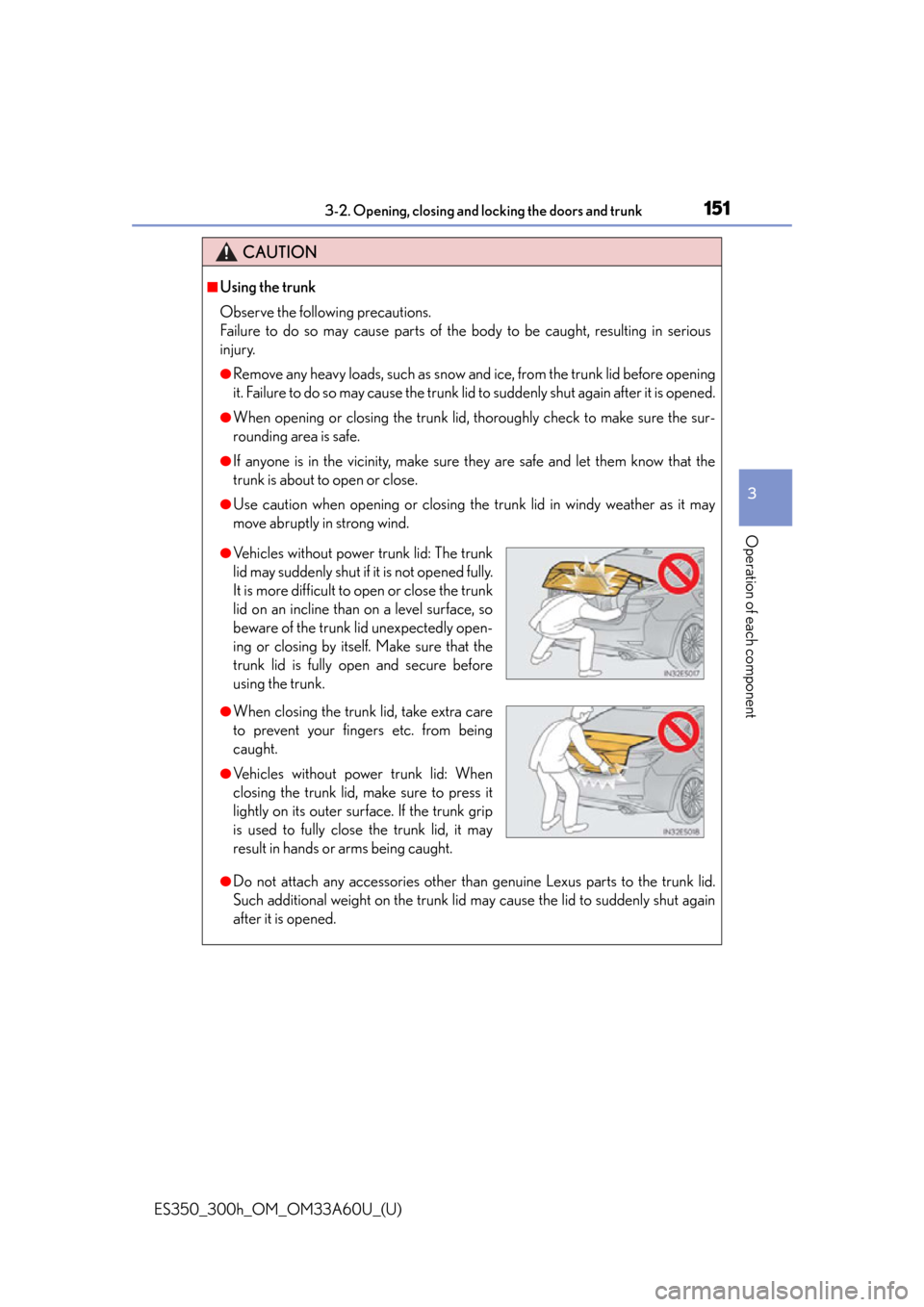

CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious
injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to suddenly shut again
after it is opened.
●Vehicles without power trunk lid: The trunk
lid may suddenly shut if it is not opened fully.
It is more difficult to open or close the trunk
lid on an incline than on a level surface, so
beware of the trunk lid unexpectedly open-
ing or closing by itself. Make sure that the
trunk lid is fully open and secure before
using the trunk.
●When closing the trunk lid, take extra care
to prevent your fingers etc. from being
caught.
●Vehicles without power trunk lid: When
closing the trunk lid, make sure to press it
lightly on its outer surface. If the trunk grip
is used to fully close the trunk lid, it may
result in hands or arms being caught.
