6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle body,
wheel wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is
cool.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm
your vehicle’s paint.
●Hybrid vehicles: Rear spoiler may not be washable in some automatic car washes.
There may also be an increased risk of damage to vehicle.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the win-
dows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed
properly.
Perform the following to protect th e vehicle and maintain it in prime
condition:

674
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
Engine oil level (P. 6 8 4 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 7 2 1 )• Fuse with same amperage rating as
original
Light bulbs ( P. 7 3 3 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser ( P. 6 9 1 )
Tire inflation pressure ( P. 7 1 2 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 6 9 7 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s

7707-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)

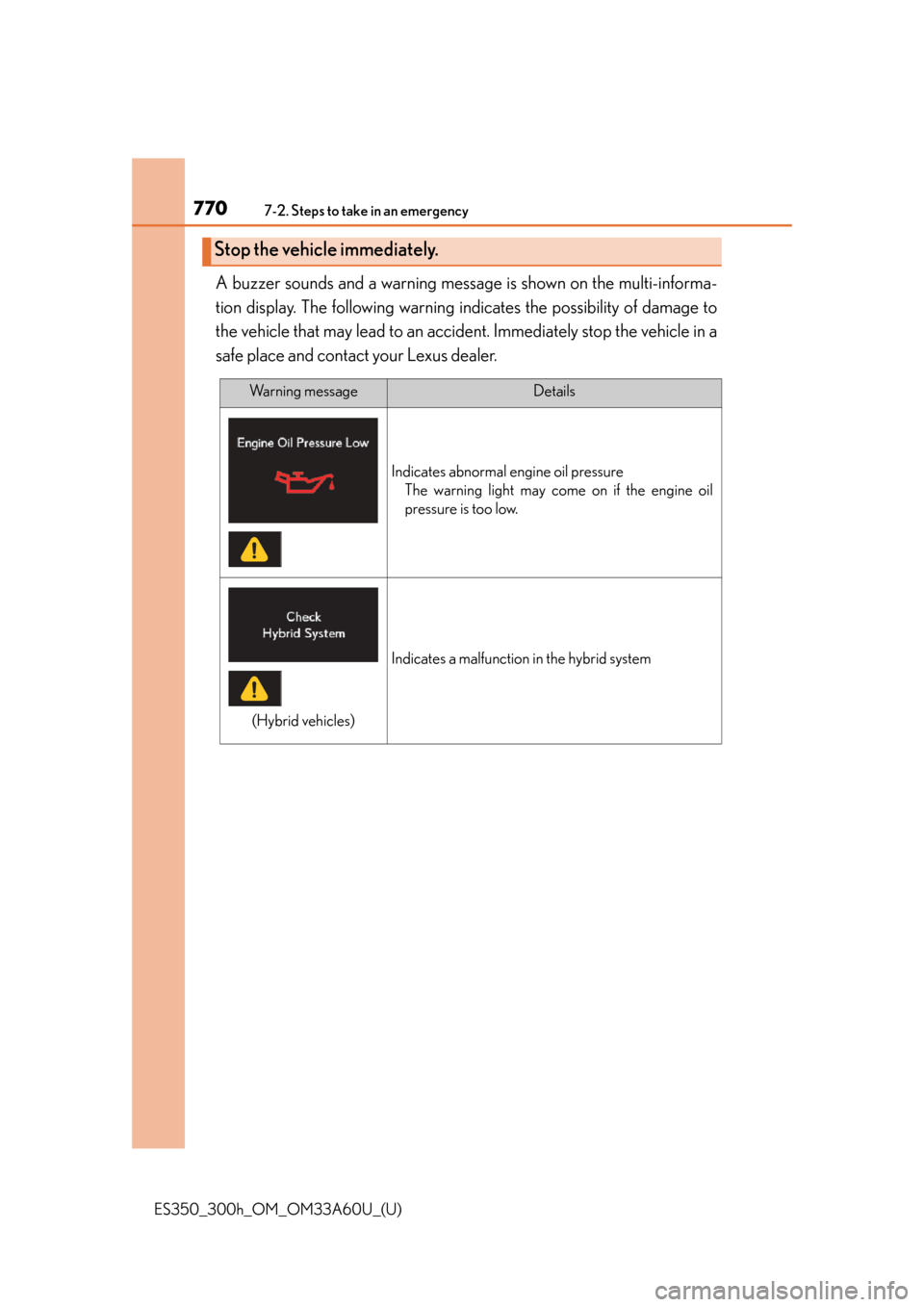

A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning in dicates the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Stop the vehicl e immediately.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system
(Hybrid vehicles)

ES350_300h_OM_OM33A60U_(U)
8578-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

902Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Emergency, in case ofIf a warning buzzer sounds..................................................759
If a warning light turns on...............759
If a warning message is displayed ........................................769
If the 12-volt battery is discharged ................................813, 817
If the electronic key does not operate properly .........810
If the engine will not start............... 805
If the hybrid system will not start ............................................... 807
If the shift lever cannot be shifted from P ........... 809
If you have a flat tire .......................... 792
If you think something is wrong............................................... 757
If your vehicle becomes stuck ..................................................... 828
If your vehicle has to be stopped in an emergency .......... 749
If your vehicle needs to be towed ........................................ 751
If your vehicle overheats ..... 821, 824
Emergency flashers ............................. 748
Energy monitor ........................................ 112 Engine
Accessory mode ............................... 202
Compartment ...................................... 681
Engine switch ........................... 201, 208
Hood........................................................ 677
How to start the engine....................201
How to start the hybrid system ..................................................208
Identification number.......................834
If the engine will not start .............. 805
Ignition switch (“POWER” switch)..................................................208
Ignition switch (“START STOP ENGINE” switch) ...........................201
Overheating.............................. 821, 824
“Power” switch. ...................................208
“START STOP ENGINE” switch .....................................................201
Engine compartment cover............. 683
Engine coolant Capacity.................................................839
Checking .............................................. 689
Preparing and checking before winter ....................................330
Engine coolant temperature gauge ........................................................ 95
Engine immobilizer system ................. 82
Engine oil Capacity................................................. 837
Checking ...............................................684
Oil level warning message ............ 777
Oil pressure warning message........................... 770
Preparing and checking before winter ....................................330

916
ES350_300h_OM_OM33A60U_(U)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 677 P. 147 P. 245
Hood lock release leverFuel filler door openerTire inflation pressure
P. 677 P. 245 P. 844
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 836
Cold tire inflation
pressure P. 8 4 4
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE 2AR-FXE
With filter 6.4 (6.1, 5.4) 4.6 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 8 3 7
