turn signal bulb Lexus ES300h 2014 Instrument cluster / Owner's Manual (OM33A60U)

17Pictorial index
ES350_300h_OM_OM33A60U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . .P. 380
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 660
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 836
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 702
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 844
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 702
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 792
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 677
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 683
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 8 3 7
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 821, 824
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Headlights/parking lights/daytime running li ghts . . . . . . . . . . . . . . . . . . P. 228
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 238
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Stop/tail lights
Hill-start assist control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218, 221
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
4
5
6
7
Light bulbs of the ex terior lights for driving
(Replacing method: P. 733, Watts: P. 846)
*1: If equipped
*2: Hybrid vehicles
8
9
10
11
12
13
14
15

225
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
4
Driving
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or re ar turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the tu rn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(  P. 8 6 2 )
Operating instructions
1
2
3
4

733
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 846)
■Front
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perform, contact your Lexus dealer.
For more information about replacin g other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Bulb locations
Front side marker light
Front turn signal light
Headlight low beam (halogen
bulb) Headlight high beam
Halogen fog light (if
equipped)1
2
3
4
5

ES350_300h_OM_OM33A60U_(U)
7396-3. Do-it-yourself maintenance
6
Maintenance and care

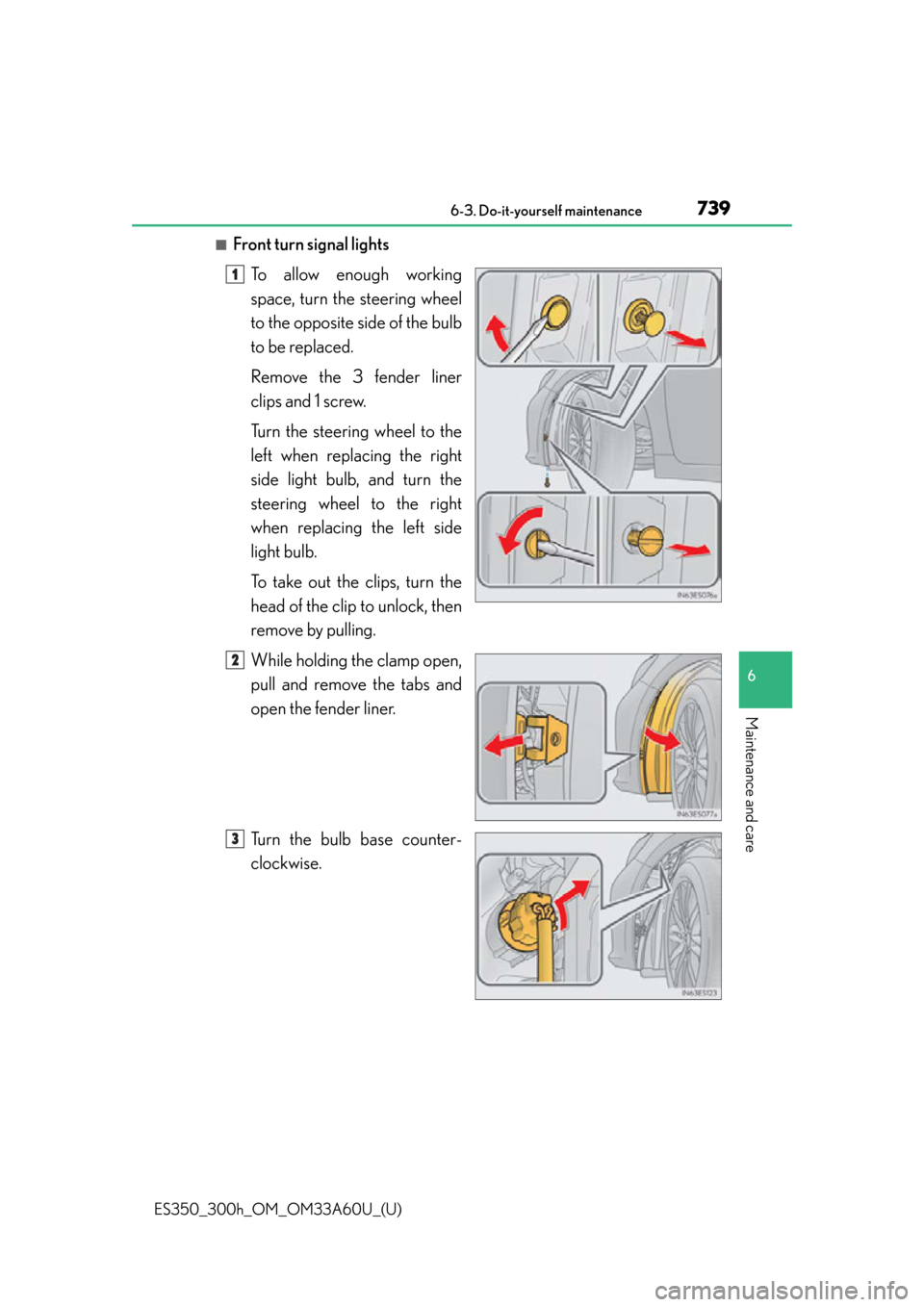

■Front turn signal lightsTo allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 3 fender liner
clips and 1 screw.
Turn the steering wheel to the
left when replacing the right
side light bulb, and turn the
steering wheel to the right
when replacing the left side
light bulb.
To take out the clips, turn the
head of the clip to unlock, then
remove by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Turn the bulb base counter-
clockwise.
1
2
3

ES350_300h_OM_OM33A60U_(U)
7416-3. Do-it-yourself maintenance
6
Maintenance and care
■Front side marker lightsPartly remove the fender liner.
Perform the procedure for “Front turn signal lights” from step 1 to 2.
( P. 7 3 9 )
Turn the bulb base counter-
clockwise.
Remove the code from clip.
Remove the light bulb.
1
2
3
4

ES350_300h_OM_OM33A60U_(U)
7436-3. Do-it-yourself maintenance
6
Maintenance and care

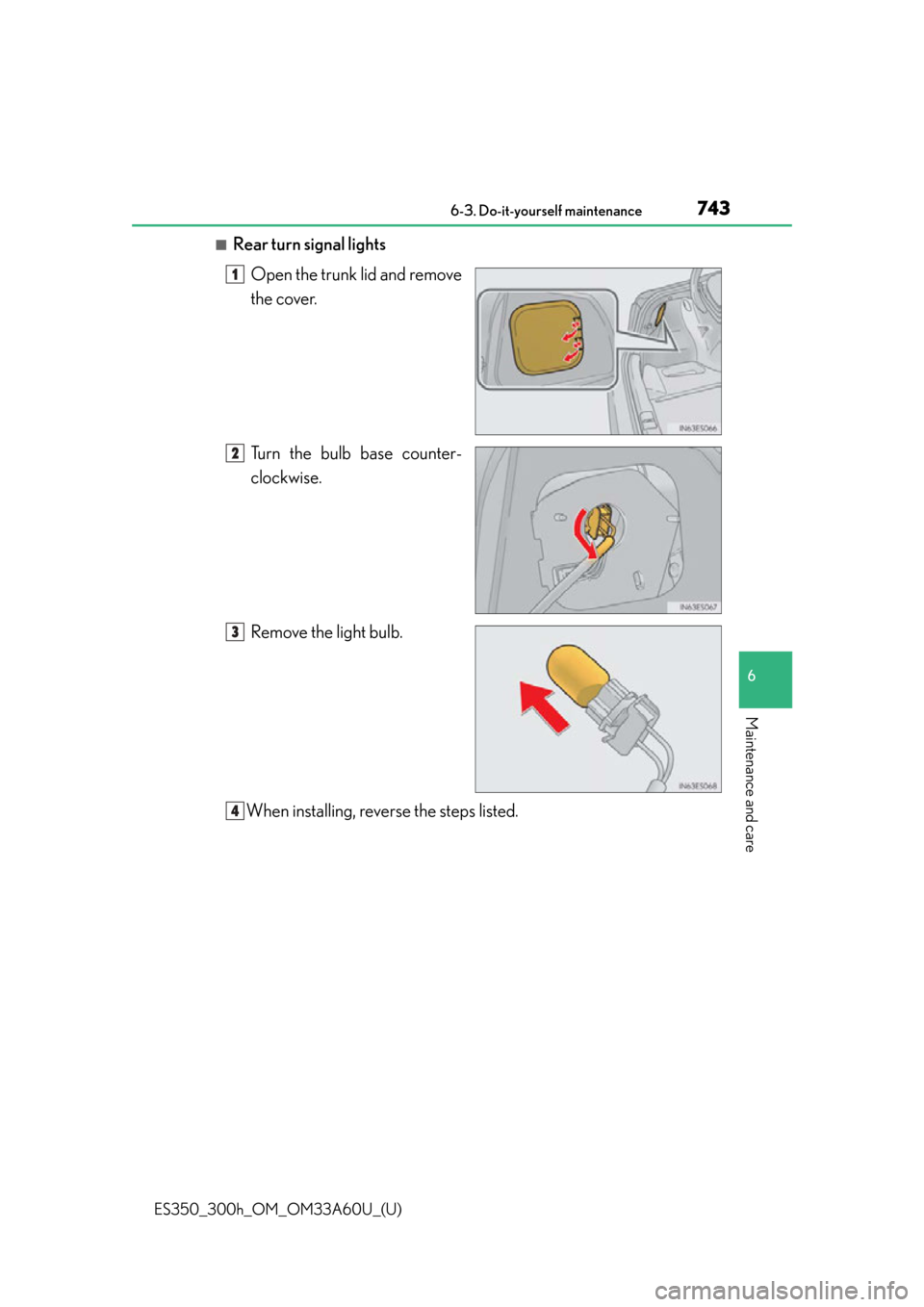

■Rear turn signal lightsOpen the trunk lid and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

ES350_300h_OM_OM33A60U_(U)
7456-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Headlight low beams (discharge bulbs)
●Parking lights/daytime running lights
●Side turn signal lights
●LED fog lights (if equipped)
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.
■LED lights
The parking lights/daytime runni ng lights, side turn signal lights, LED fog lights (if
equipped), stop/tail lights, tail lights, rear side marker lights, high mounted stoplight,
license plate lights and outer foot lights co nsist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the insi de of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P. 7 3 2

846
ES350_300h_OM_OM33A60U_(U)
8-1. Specifications
A: HB3 halogen bulbsB: H11 halogen bulbs
C: D4S discharge bulbs D: H16 halogen bulbs E: Wedge base bulbs (amber)F: Wedge base bulbs (clear)
*:If equipped
Light bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights High beam
Low beam (halogen bulbs)
Low beam (discharge bulbs)
9005
605535A B
C
Fog lights*19D
Front turn signal lights7444NA28 /8E
Front side marker lightsW5W5F
Rear turn signal lightsWY21W21E
Back-up lightsW16W16F
Outer foot lightsW5W5F
Interior
Door courtesy lights5F
Vanity lights5F
Interior light8F
Pe r s o n a l l i g h t s8F
Tr u n k l i g h t5F

903Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Enhanced VSC ..................................... 302
EPS (Electronic Po wer Steering)
Function ................................................. 303
Warning light .........................................761
Warning message ............................. 772
Event data recorder (EDR) .................... 11
Flat tire ...................................................... 792
Floor mats ................................................... 28
Fluid Automatic transaxle..........................842
Brake ....................................................... 843
Hybrid transaxle .................................842
Washer ...................................................697
Fog lights Replacing light bulbs ........................ 737
Switch...................................................... 238
Wattage ................................................. 846
Footwell light ............................................. 611
Front passenger occupant classification system ............................ 50
Front personal lights..............................612
Front seats Adjustment ............................................. 154
Cleaning .................................................662
Correct driving posture ....................30
Driving position memory ................ 156
Head restraints ..................................... 162
Power easy access system ............ 156
Seat heaters ......................................... 628
Seat position memory....................... 156
Seat ventilators ................................... 628 Front side marker lights
Light switch........................................... 228
Replacing light bulbs ......................... 741
Welcome light illumination control.................................................... 125
Wattage .................................................846
Front turn signal lights Replacing light bulbs ....................... 739
Turn signal lever ................................. 225
Wattage .................................................846
Fuel Capacity.................................................836
Fuel gauge ............................................... 95
Fuel pump shut off system ............ 758
Information............................................ 847
Refueling ................................................ 243
Type..........................................................836
Warning light ....................................... 762
Warning messages ..........................780
Fuel filler door.........................................243 Refueling ................................................ 243
When the fuel filler door cannot be opened ......................... 246
Fuel pump shut off system ................ 758
Fuses............................................................ 721
Garage door opener...........................637
Gauges........................................................ 95
Glove box ................................................. 616
Glove box light........................................ 616
Grocery bag hooks............................. 620
F
G

906Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Language (multi-information display) ............ 863
LATCH anchors ...................................... 62
LDA (Lane Departure Alert) .......... 267
Lever Auxiliary catch lever ......................... 677
Hood lock release lever ................. 677
Internal trunk release lever............. 150
Shift lever ....................................... 218, 221
Turn signal lever ................................. 225
Wiper lever ...........................................239
Lexus Display Audio system ............ 338 Display settings ...................................343
Setup menu ...........................................345
Lexus Enform
*
License plate lights Light switch ...........................................228
Replacing light bulbs ........................745
Welcome light illumination control ......................... 125
Light bulbs Replacing ............................................... 733
Wattage ................................................. 846 Lights
Fog light switch ................................... 238
Headlight switch ................................ 228
Illuminated entry system...................613
Interior light............................................. 612
Interior lights list..................................... 611
Personal lights ....................................... 612
Replacing light bulbs ....................... 733
Trunk light................................................149
Turn signal lever ................................. 225
Vanity lights .......................................... 622
Wattage .................................................846
Welcome light illumination control.................................................... 125
Lock steering column......................... 204
Low profile tire .......................................706
Luggage security system .................... 148
Maintenance Do-it-yourself maintenance ......... 673
General maintenance .................... 668
Maintenance data.............................. 832
Maintenance requirements ..........665
Malfunction indicator lamp ...............760
Master warning light ............................ 762
Meter............................................................ 95 Indicators .................................................. 93
Instrument panel light control ........ 96
Multi-information display................ 100
Warning lights.......................................... 91
Micro dust and pollen filter ................ 371
L
M
