rear view mirror Lexus ES300h 2014 Instrument cluster / Owner's Manual (OM33A73U)

4
ES300h_QG_OM33A73U_(U)
Outside Rear View Mirrors ............................................................................................................. 27
Portable Audio Device Ports........................................................................................................... 92
Power (Ignition) Switch .....................................................................................................................28
Power Windows .................................................................................................................................. 103
Rear Sunshade/Rear Door Sunshades.......................................................................................93
Remote Touch (with navigation system) .....................................................................................54
Safety Connect ..................................................................................................................................... 97
Seat Heaters and Ventilators........................................................................................................... 92
Smart Access System with Push-button Start........................................................................... 19
Theft Deterrent System ..................................................................................................................... 22
Tire Pressure Warning System ........................................................................................................53
Trunk ........................................................................................................................................................ 107
Trunk Storage Extension ................................................................................................................... 94
Turn Signal Lever ..................................................................................................................................34
Voice Command System (with navigation system)
Basic operation ................................................................................................................................ 71
Command list .................................................................................................................................. 72
Windshield Wipers and Washer ....................................................................................................40
XM Services.......................................................................................................................................... 101

7
ES300h_QG_OM33A73U_(U)
OverviewInstrument Panel
Odometer/trip meter and trip meter reset button*
Instrument panel light control switches*
Outside rear view mirror switches P.27
Windshield wiper de-icer switch*
Intuitive parking assist switch P.50
BSM (Blind Spot Monitor)
main switch
 P.51
Automatic High Beam switch P.38

10
ES300h_QG_OM33A73U_(U)
OverviewRoof

: If equipped
*: Refer to “Owner’s Manual”.
Moon roof switches P.104
Personal lights*
Interior light*
“SOS” button P.97
Garage door opener switches P.95
Inside rear view mirror*
Vanity lights*

25
ES300h_QG_OM33A73U_(U)
Driving Position Memory (if equipped)
■Driving position memory
■
Recording procedure
Check that the shift lever is in P.
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to the desired
positions.
While pressing the “SET” button, or within 3
seconds after the “SET” button is pressed,
press button “1”, “2” or “3” until the buzzer
sounds.
If the selected button has already been
preset, the previously recorded position
will be overwritten.
■Recall procedure
Check that the shift lever is in P.
Turn the “POWER” switch to ON mode.
Press one of the buttons for the driving
position you want to recall until the buzzer
sounds.
This feature automatically adjusts the front seats, steering wheel (power adjustment type)
and outside rear view mirrors to suit your preferences.
1
2
3
4
1
2
3

27
ES300h_QG_OM33A73U_(U)
Outside Rear View Mirrors
Selects a mirror to adjust (“L”: left or
“R”: right)
Adjust the mirror up, down, in or out
using the switch
■Folding the mirrors
Push the mirror back in the direction of the
vehicle’s rear.
1
2
■When either “L” or “R” of the mirror select switch is selected, the outside rear view mir-
rors will automatically angle downwards when the vehicle is reversing in order to give a
better view of the ground. To disable this function, select neither “L” nor “R”.
■If the mirror angle adjustment switch is operated while the linked mirror function is in
operation, the angle and position of the mirrors can be remembered, and the mirrors will
operate at the angle adjusted to the last time the linked mirror function was operated.
However, because the mirrors move based on the angle they are in when the linked mir-
ror function is not operating, the mirror angle when the linked mirror function is operat-
ing will also be changed if the mirrors are adjusted while the function is not operating.

51
ES300h_QG_OM33A73U_(U)
BSM (Blind Spot Monitor) (if equipped)
BSM main switch
Pressing the switch turns the system on or off. When the switch is set to on, the switch’s
indicator illuminates. Common switch for Blind Spot Monitor function and Rear Cross
Tr a f f i c A l e r t f u n c t i o n .
Outside rear view mirror indicator
Blind Spot Monitor function:
When a vehicle is detected in the blind spot, the outside rear view mirror indicator
comes on while the turn signal lever is not operated and the outside rear view mirror
indicator flashes while the turn signal lever is operated.
Rear Cross Traffic Alert function:
When a vehicle approaching from the right or left rear of the vehicle is detected, the
outside rear view mirror indicators flash.
Rear Cross Traffic Alert function buzzer (Rear Cross Traffic Alert function only)
When a vehicle approaching from the right or left rear of the vehicle is detected, a
buzzer sounds from behind the rear seat.
The Blind Spot Monitor is a system that has 2 functions;
●The Blind Spot Monitor function
Assists the driver in making the decision when changing lanes
●The Rear Cross Traffic Alert function
Assists the driver when backing up
These functions use same sensors.
1
2
3

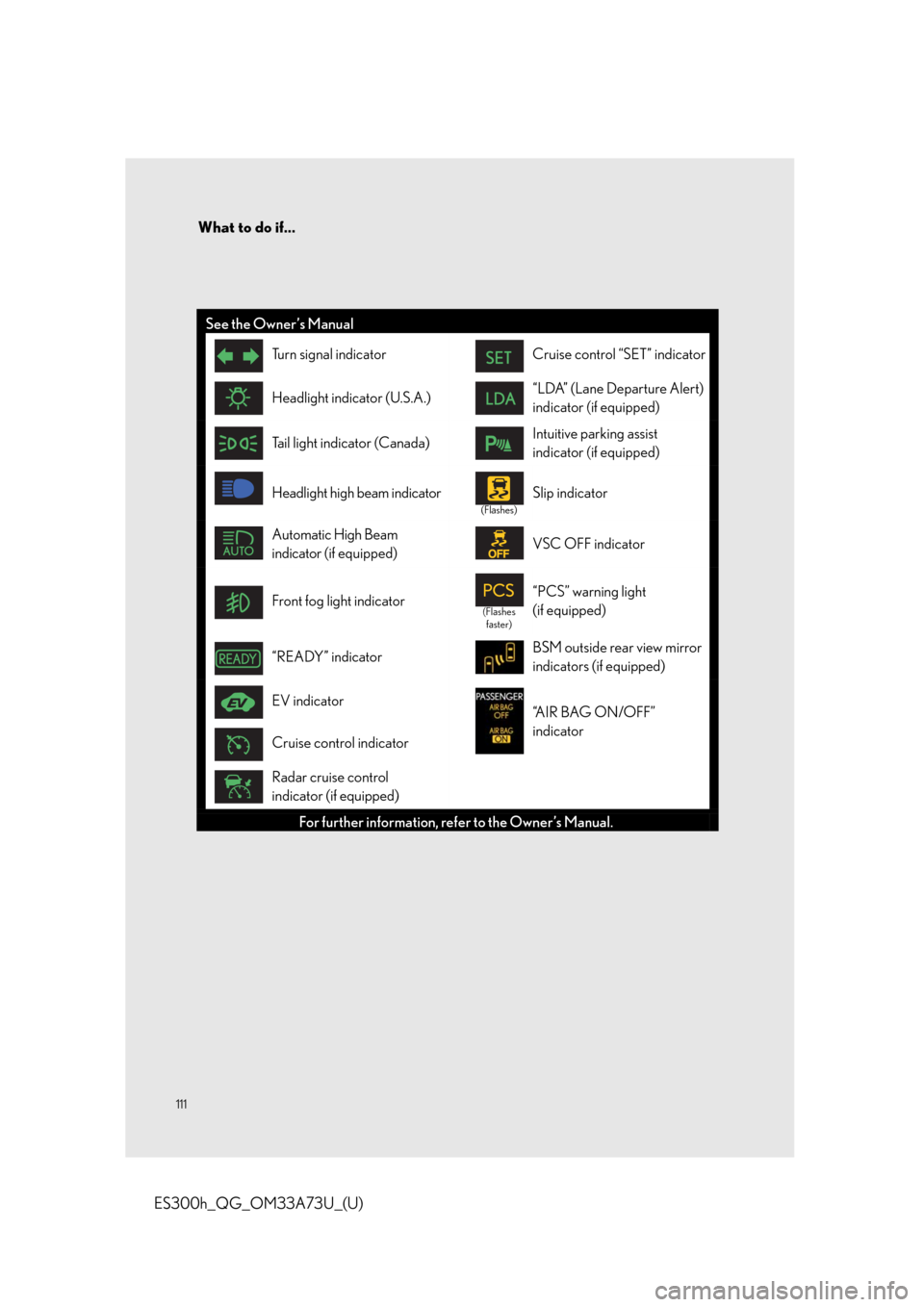

What to do if...
111
ES300h_QG_OM33A73U_(U)
See the Owner’s Manual
Turn signal indicatorCruise control “SET” indicator
Headlight indicator (U.S.A.)“LDA” (Lane Departure Alert)
indicator (if equipped)
Tail light indicator (Canada)Intuitive parking assist
indicator (if equipped)
Headlight high beam indicator
(Flashes)
Slip indicator
Automatic High Beam
indicator (if equipped)VSC OFF indicator
Front fog light indicator(Flashes
faster)
“PCS” warning light
(if equipped)
“READY” indicator BSM outside rear view mirror
indicators (if equipped)
EV indicator “AIR BAG ON/OFF”
indicator
Cruise control indicator
Radar cruise control
indicator (if equipped)
For further information, refer to the Owner’s Manual.
