display Lexus ES300h 2014 Owner's Manual

366
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
Driver’s side temperature dis-
play
Airflow display
Fan speed display
Outside temperature
Passenger’s side temperature
display
Air outlet selector button
Cooling and dehumidification
function on/off button
DUAL mode button Passenger’s side temperature
control button
Micro dust and pollen filter but-
ton
Outside air or recirculated
mode button
Off button
Driver’s side temperature con-
trol button
Automatic mode button
Fan speed control button
Windshield defogger button1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

378
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
Rear window and outside rear view mirror
defoggers
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
XVehicles with the Lexus Display Audio system
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
XVehicles without a navigation system or the Lexus Display Audio sys-
tem
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from th e outside rear view mirrors.

380
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
Windshield wiper de-icer∗
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
XVehicles with the Lexus Display Audio system
Display the air conditioning operation screen. ( →P. 353)
Select to the windshield
wiper de-icer on/off
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.
XVehicles without a navigation system and the Lexus Display Audio sys-
tem
On/off
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.
∗: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2

382
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
Audio system (with the Lexus Display Audio
system)
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
XVehicles without a navigation system or a Lexus Display Audio system
→P. 500
To display the audio control screen, press the “MEDIA” button,
“RADIO” button or the “AUDIO” button on the Lexus Display Audio
controller.

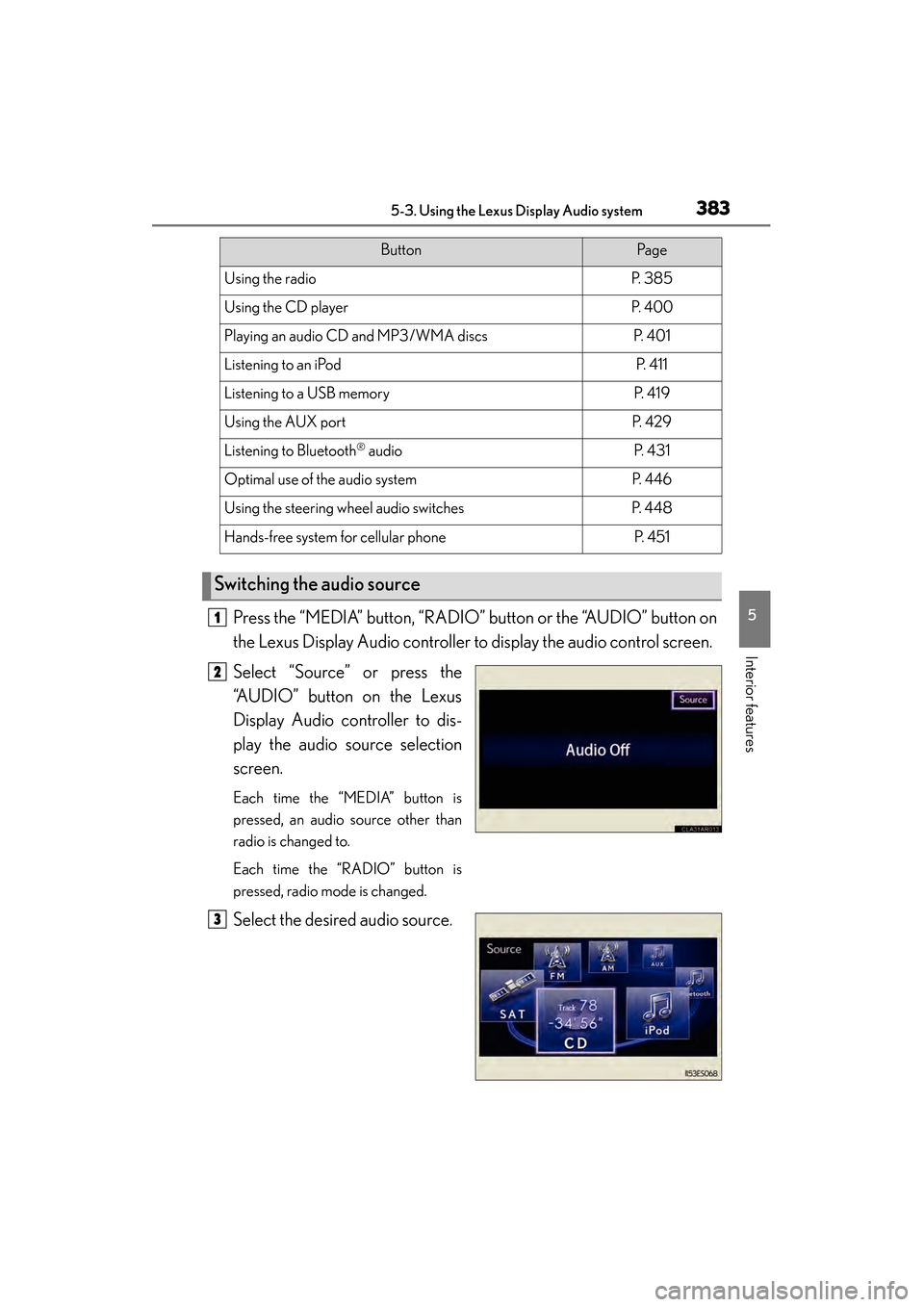

ES350_300h_OM_OM33A60U_(U)
3835-3. Using the Lexus Display Audio system
5
Interior features
Press the “MEDIA” button, “RADIO” button or the “AUDIO” button on
the Lexus Display Audio controller to display the audio control screen.
Select “Source” or press the
“AUDIO” button on the Lexus
Display Audio controller to dis-
play the audio source selection
screen.
Each time the “MEDIA” button is
pressed, an audio source other than
radio is changed to.
Each time the “RADIO” button is
pressed, radio mode is changed.
Select the desired audio source.
ButtonPa g e
Using the radioP. 3 8 5
Using the CD playerP. 4 0 0
Playing an audio CD and MP3/WMA discsP. 4 0 1
Listening to an iPodP. 4 1 1
Listening to a USB memoryP. 4 1 9
Using the AUX portP. 4 2 9
Listening to Bluetooth® audioP. 4 3 1
Optimal use of the audio systemP. 446
Using the steering wheel audio switchesP. 4 4 8
Hands-free system for cellular phoneP. 4 5 1
Switching the audio source
1
2
3

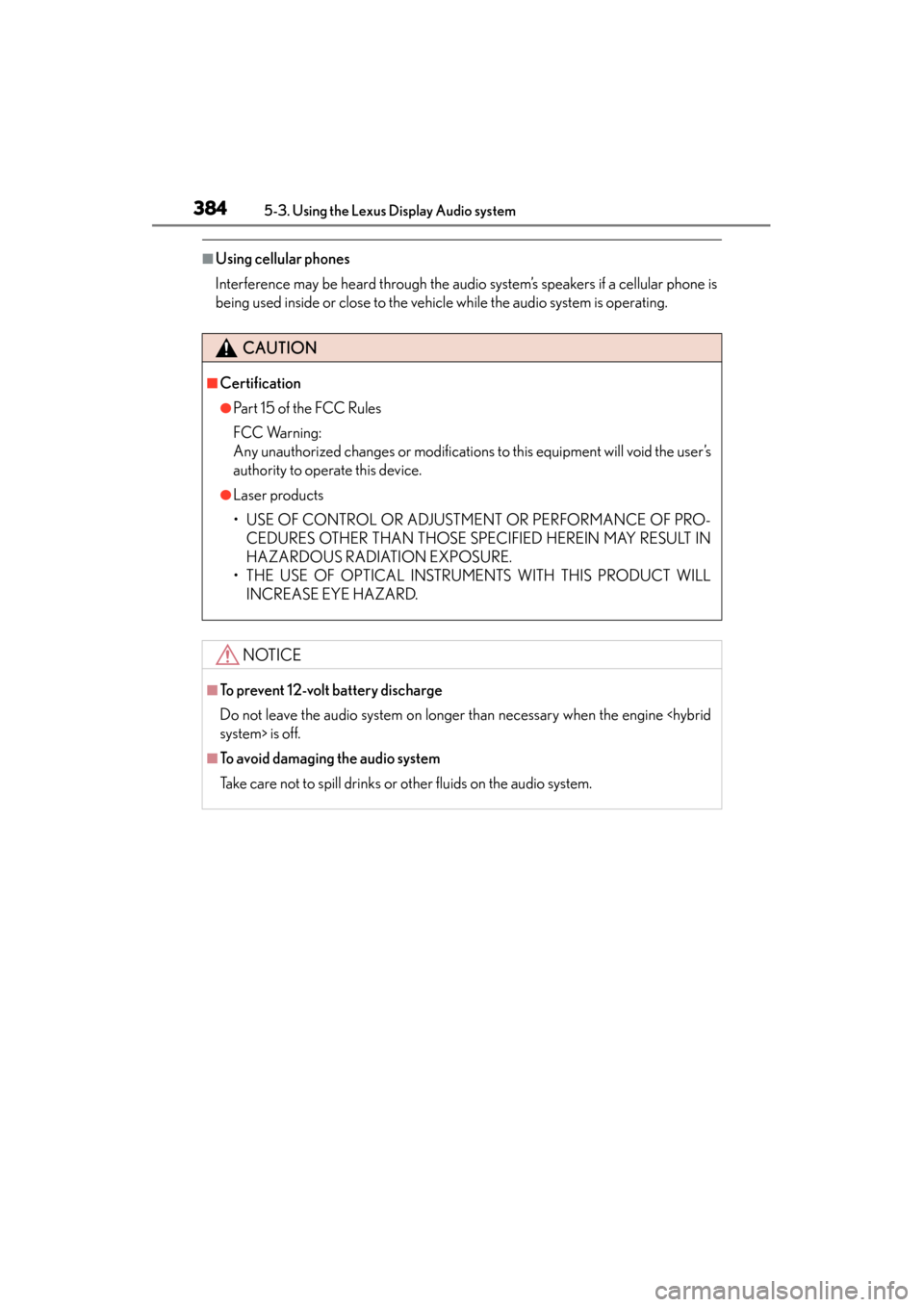

384
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■Certification
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PRO-CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
• THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary when the engine system> is off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

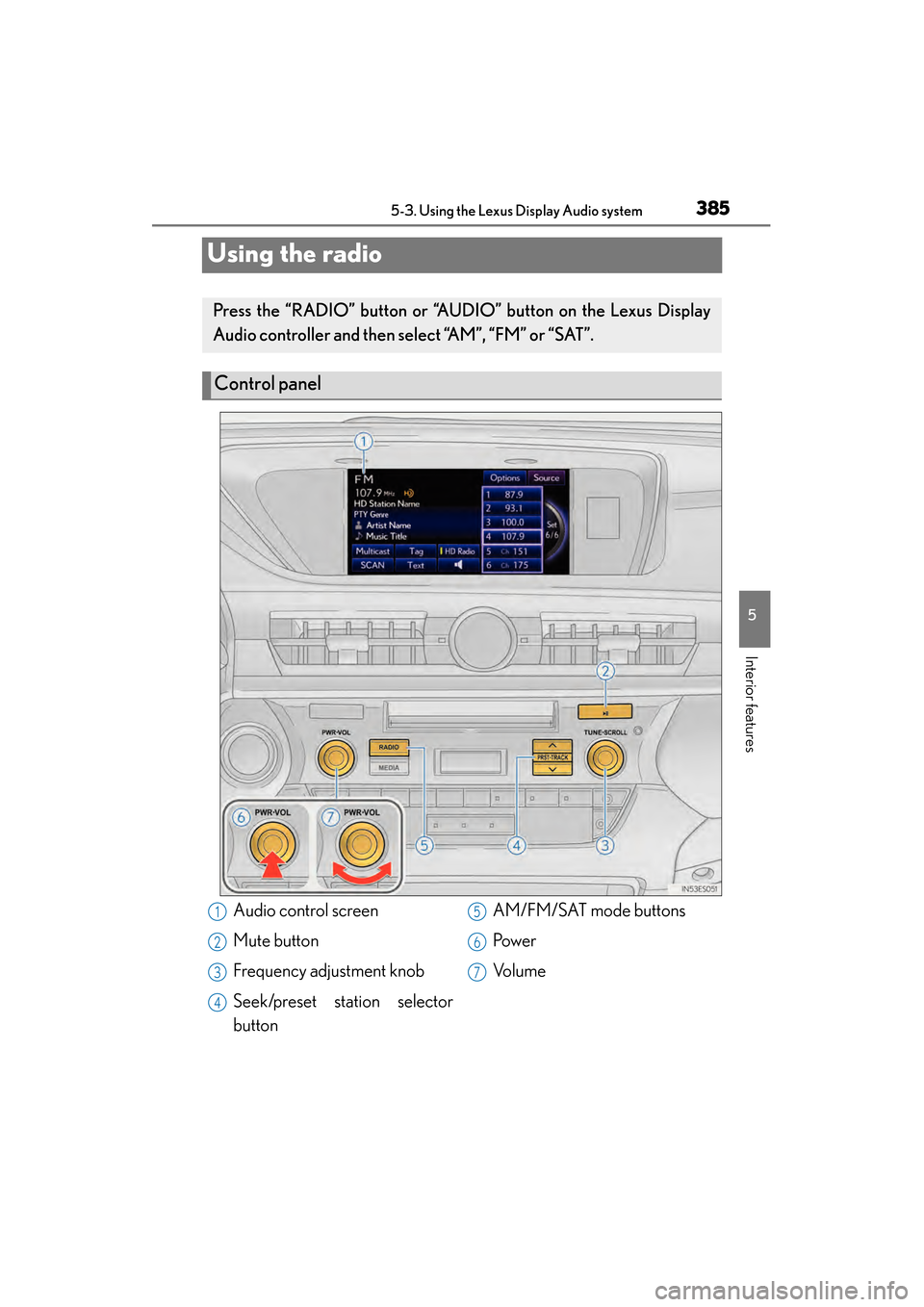

385
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
5
Interior features
Using the radio
Press the “RADIO” button or “AUDIO” button on the Lexus Display
Audio controller and then select “AM”, “FM” or “SAT”.
Control panel
Audio control screen
Mute button
Frequency adjustment knob
Seek/preset station selector
buttonAM/FM/SAT mode buttons
Pow e r
Vo l u m e1
2
3
4
5
6
7

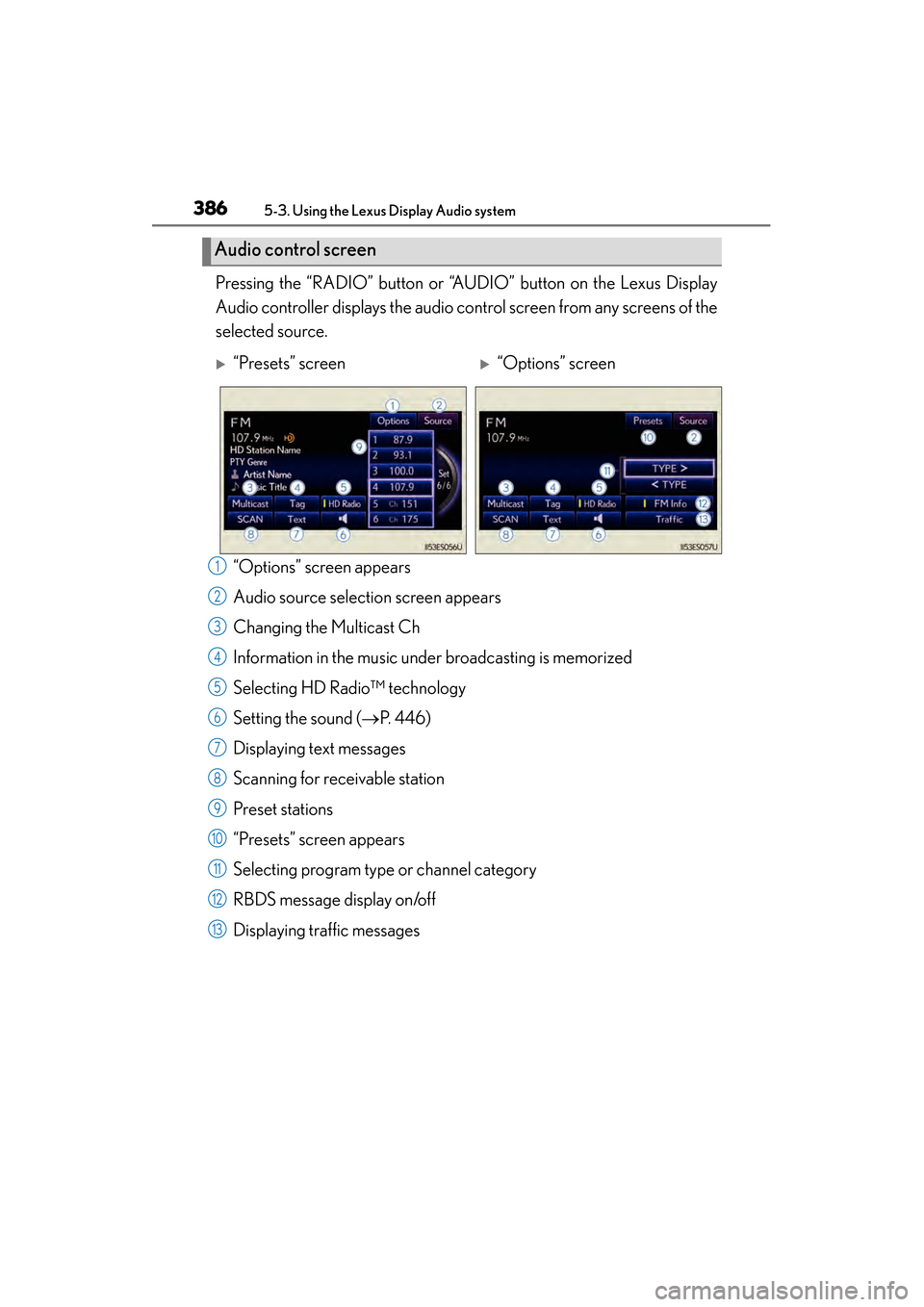

386
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
Pressing the “RADIO” button or “AUDIO” button on the Lexus Display
Audio controller displays the audio control screen from any screens of the
selected source.“Options” screen appears
Audio source selection screen appears
Changing the Multicast Ch
Information in the music under broadcasting is memorized
Selecting HD Radio™ technology
Setting the sound ( →P. 4 4 6 )
Displaying text messages
Scanning for receivable station
Preset stations
“Presets” screen appears
Selecting program type or channel category
RBDS message display on/off
Displaying traffic messages
Audio control screen
X“Presets” screenX“Options” screen
1
2
3
4
5
6
7
8
9
10
11
12
13

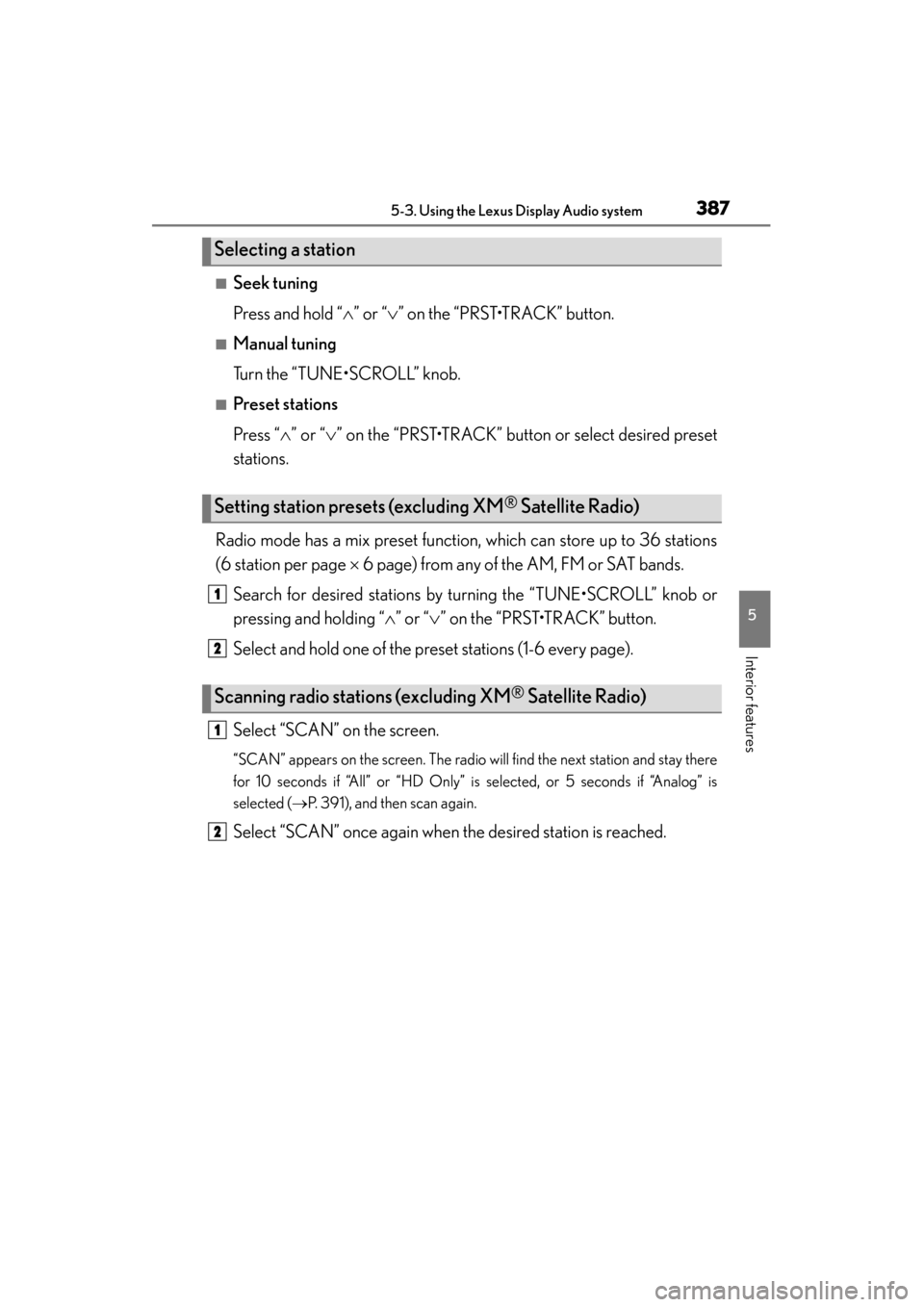

ES350_300h_OM_OM33A60U_(U)
3875-3. Using the Lexus Display Audio system
5
Interior features
■Seek tuning
Press and hold “∧” or “ ∨” on the “PRST•TRACK” button.
■Manual tuning
Turn the “TUNE•SCROLL” knob.
■Preset stations
Press “ ∧” or “ ∨” on the “PRST•TRACK” button or select desired preset
stations.
Radio mode has a mix preset function, which can store up to 36 stations
(6 station per page × 6 page) from any of the AM, FM or SAT bands.
Search for desired stations by turning the “TUNE•SCROLL” knob or
pressing and holding “ ∧” or “ ∨” on the “PRST•TRACK” button.
Select and hold one of the preset stations (1-6 every page).
Select “SCAN” on the screen.
“SCAN” appears on the screen. The radio will find the next station and stay there
for 10 seconds if “All” or “HD Only” is selected, or 5 seconds if “Analog” is
selected ( →P. 391), and then scan again.
Select “SCAN” once again when the desired station is reached.
Selecting a station
Setting station presets (excluding XM® Satellite Radio)
Scanning radio stations (excluding XM® Satellite Radio)
1
2
1
2

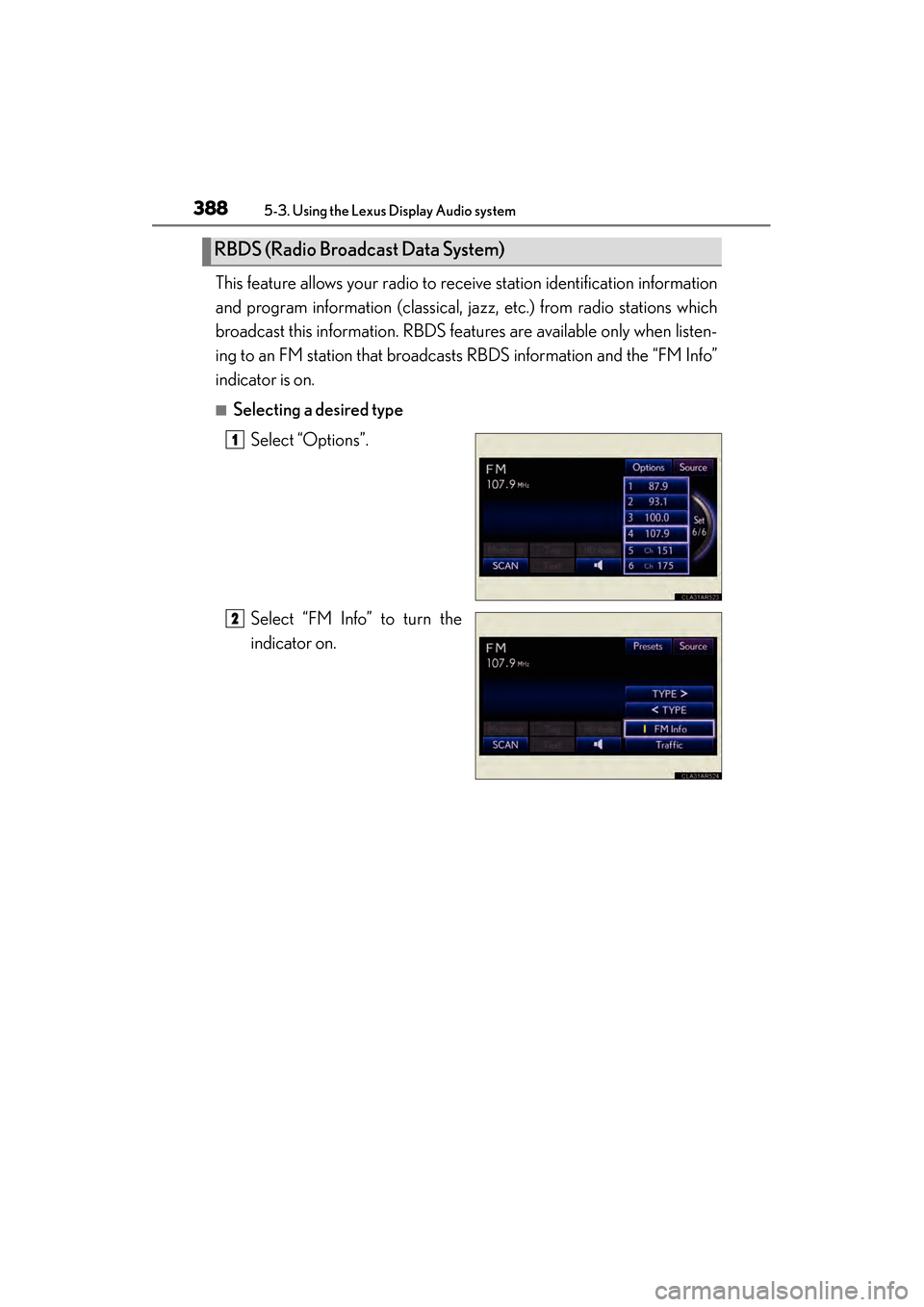

388
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information. RBDS features are available only when listen-
ing to an FM station that broadcasts RBDS information and the “FM Info”
indicator is on.
■Selecting a desired typeSelect “Options”.
Select “FM Info” to turn the
indicator on.
RBDS (Radio Broadcast Data System)
1
2
