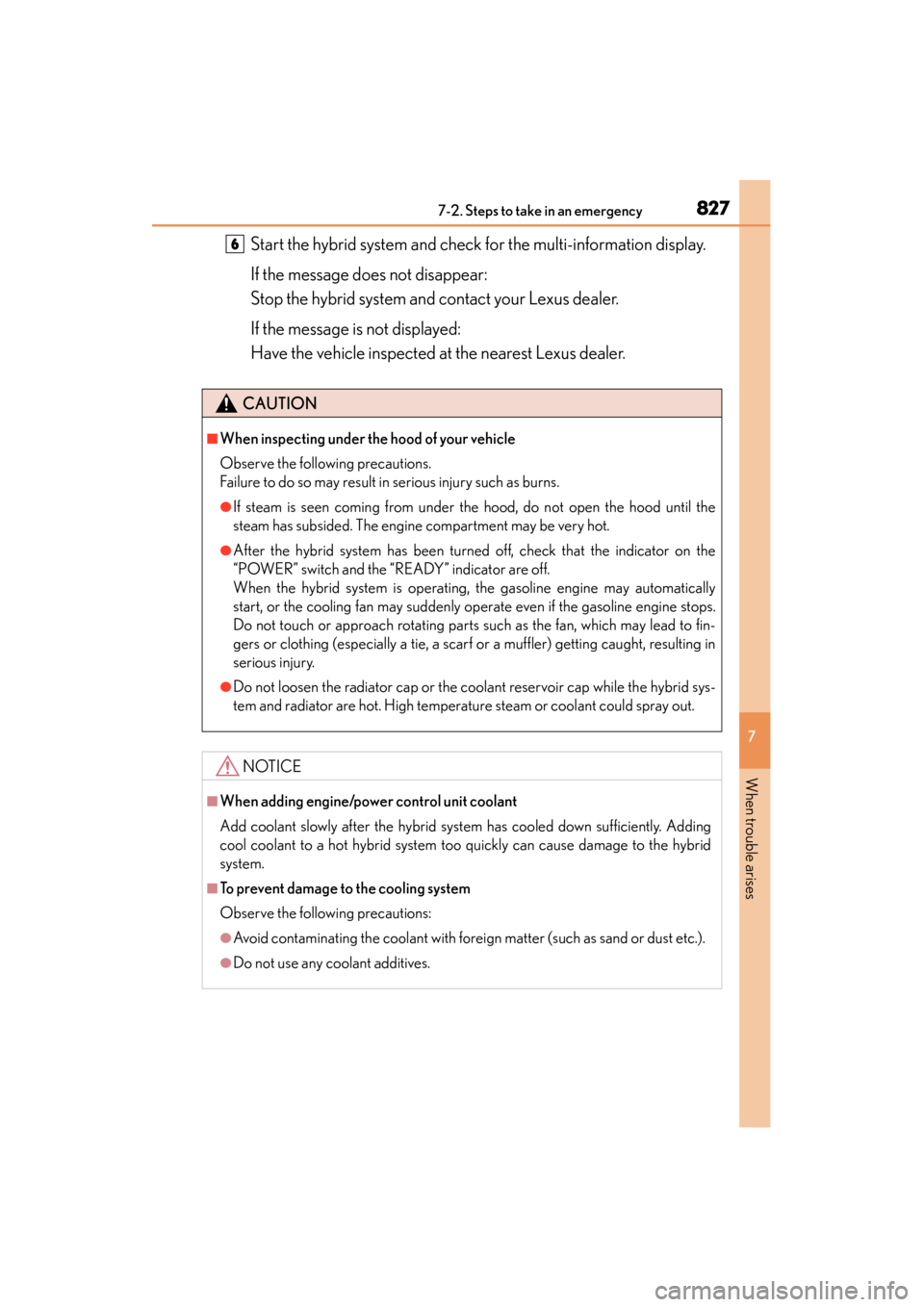

8277-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
“POWER” switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the hybrid sys-
tem and radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
6

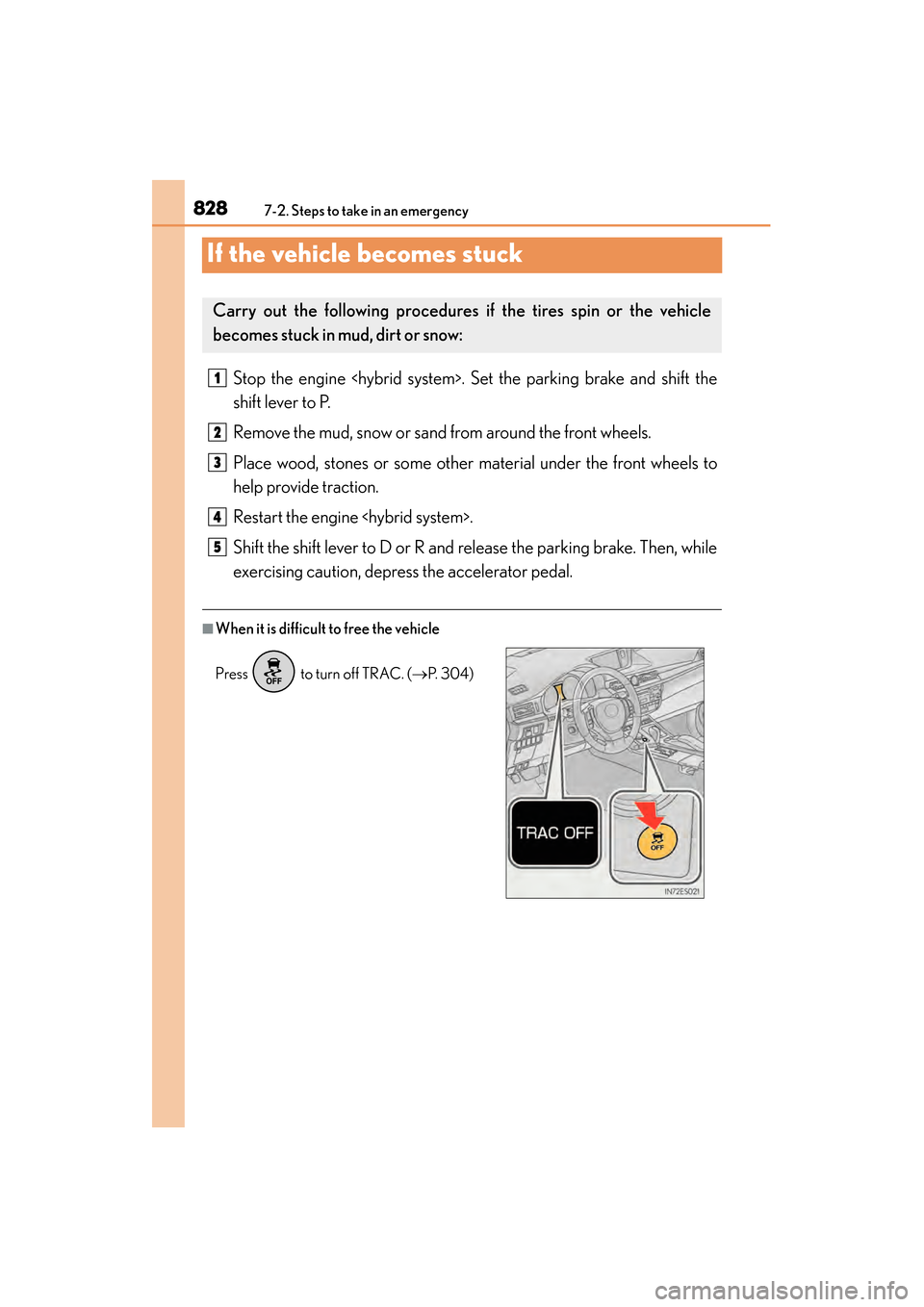

828
ES350_300h_OM_OM33A60U_(U)
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine . Set the parking brake and shift the
shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to
help provide traction.
Restart the engine .
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 3 0 4 )
1
2
3
4
5

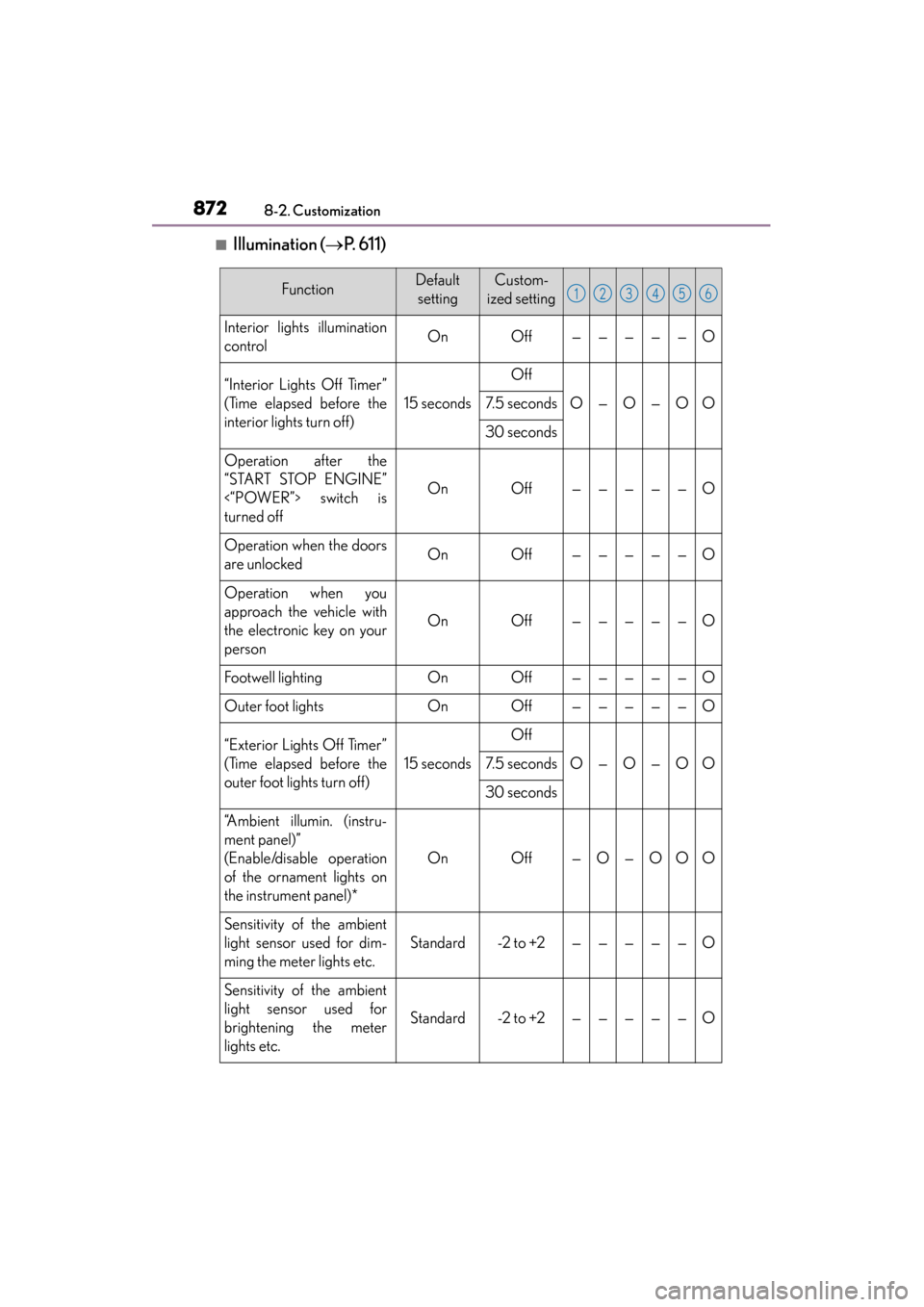

872
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
■Illumination (→P. 6 1 1 )
FunctionDefault
settingCustom-
ized setting
Interior lights illumination
controlOnOff—————O
“Interior Lights Off Timer”
(Time elapsed before the
interior lights turn off)
15 seconds
Off
O—O—OO7. 5 s e c o n d s
30 seconds
Operation after the
“START STOP ENGINE”
<“POWER”> switch is
turned off
OnOff—————O
Operation when the doors
are unlockedOnOff—————O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff—————O
Footwell lightingOnOff—————O
Outer foot lightsOnOff—————O
“Exterior Lights Off Timer”
(Time elapsed before the
outer foot lights turn off)
15 seconds
Off
O—O—OO7. 5 s e c o n d s
30 seconds
“Ambient illumin. (instru-
ment panel)”
(Enable/disable operation
of the ornament lights on
the instrument panel)*
OnOff—O—OOO
Sensitivity of the ambient
light sensor used for dim-
ming the meter lights etc.
Standard-2 t o +2—————O
Sensitivity of the ambient
light sensor used for
brightening the meter
lights etc.
Standard-2 t o +2—————O
123456

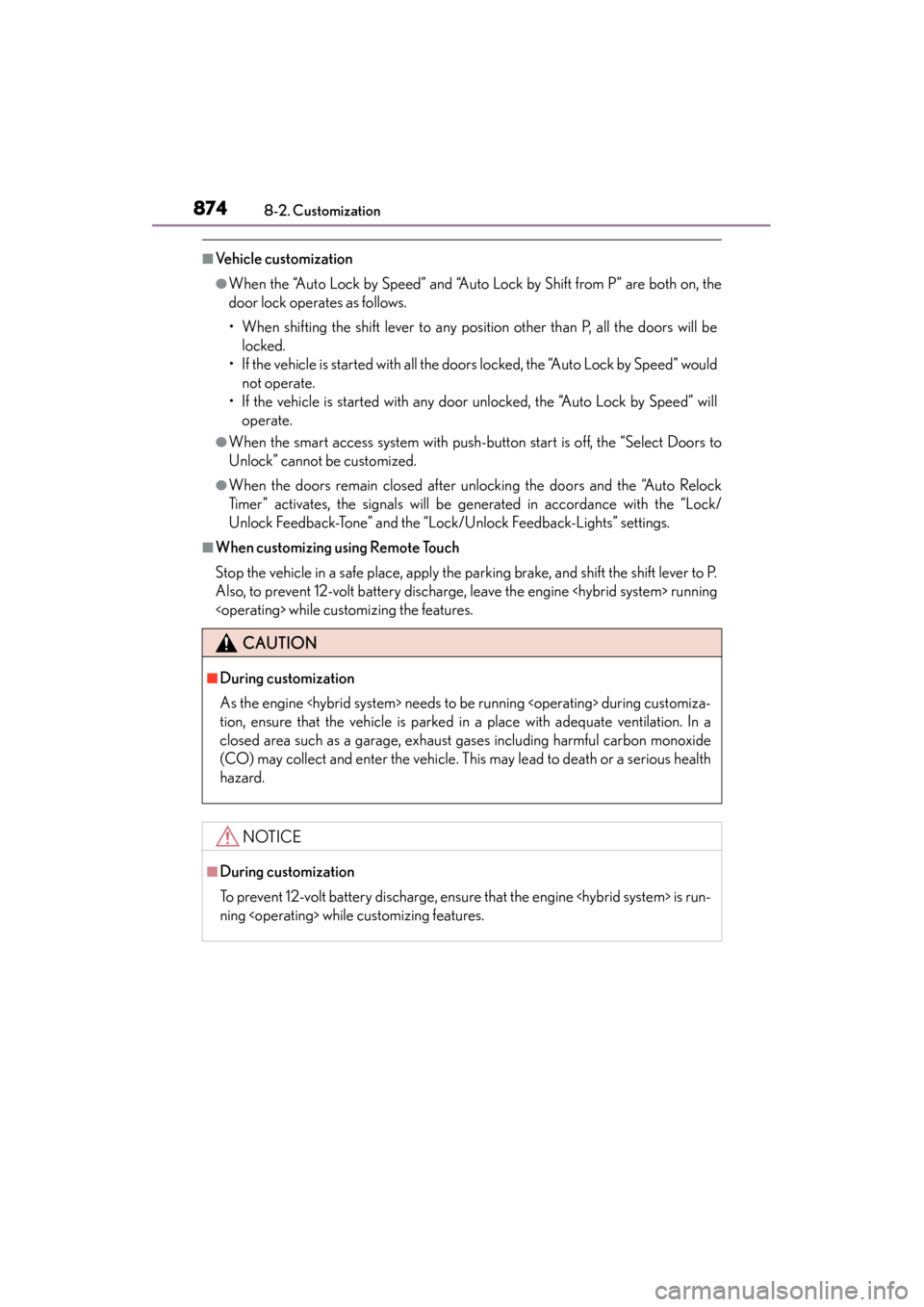

874
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
■Vehicle customization
●When the “Auto Lock by Speed” and “Auto Lock by Shift from P” are both on, the
door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will belocked.
• If the vehicle is started with all the doors locked, the “Auto Lock by Speed” would not operate.
• If the vehicle is started with any door unlocked, the “Auto Lock by Speed” will operate.
●When the smart access system with push-button start is off, the “Select Doors to
Unlock” cannot be customized.
●When the doors remain closed after unlocking the doors and the “Auto Relock
Timer” activates, the signals will be generated in accordance with the “Lock/
Unlock Feedback-Tone” and the “Lock/Unlock Feedback-Lights” settings.
■When customizing using Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent 12-volt battery discharge, leave the engine running
while customizing the features.
CAUTION
■During customization
As the engine needs to be running during customiza-
tion, ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the engine is run-
ning while customizing features.

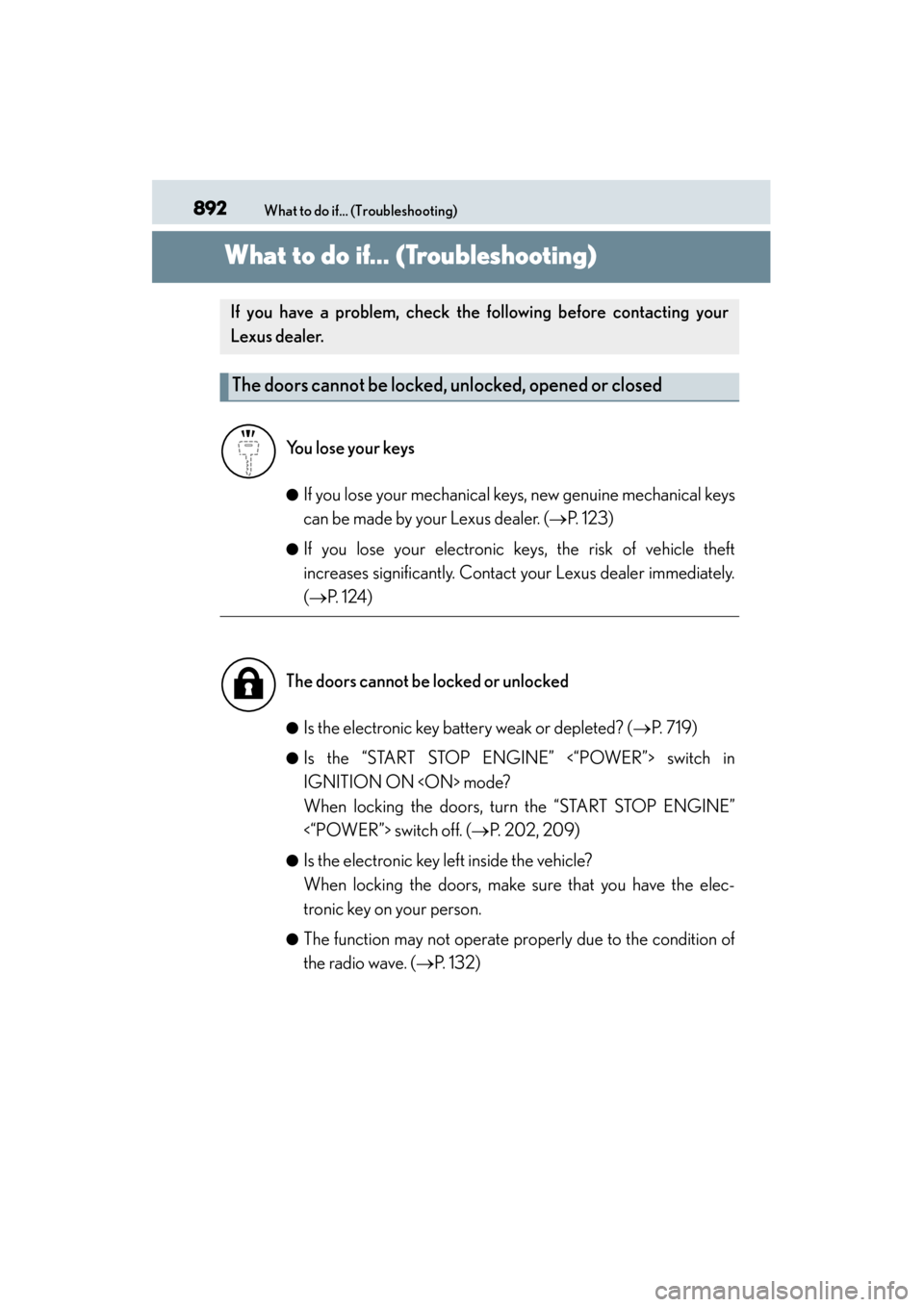

892What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys
can be made by your Lexus dealer. (→P. 123)
●If you lose your electronic keys, the risk of vehicle theft
increases significantly. Contact your Lexus dealer immediately.
(→ P. 1 2 4 )
●Is the electronic key battery weak or depleted? ( →P. 7 1 9 )
●Is the “START STOP ENGINE” <“POWER”> switch in
IGNITION ON mode?
When locking the doors, turn the “START STOP ENGINE”
<“POWER”> switch off. ( →P. 202, 209)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the elec-
tronic key on your person.
●The function may not operate properly due to the condition of
the radio wave. ( →P. 1 3 2 )
If you have a problem, check the following before contacting your
Lexus dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

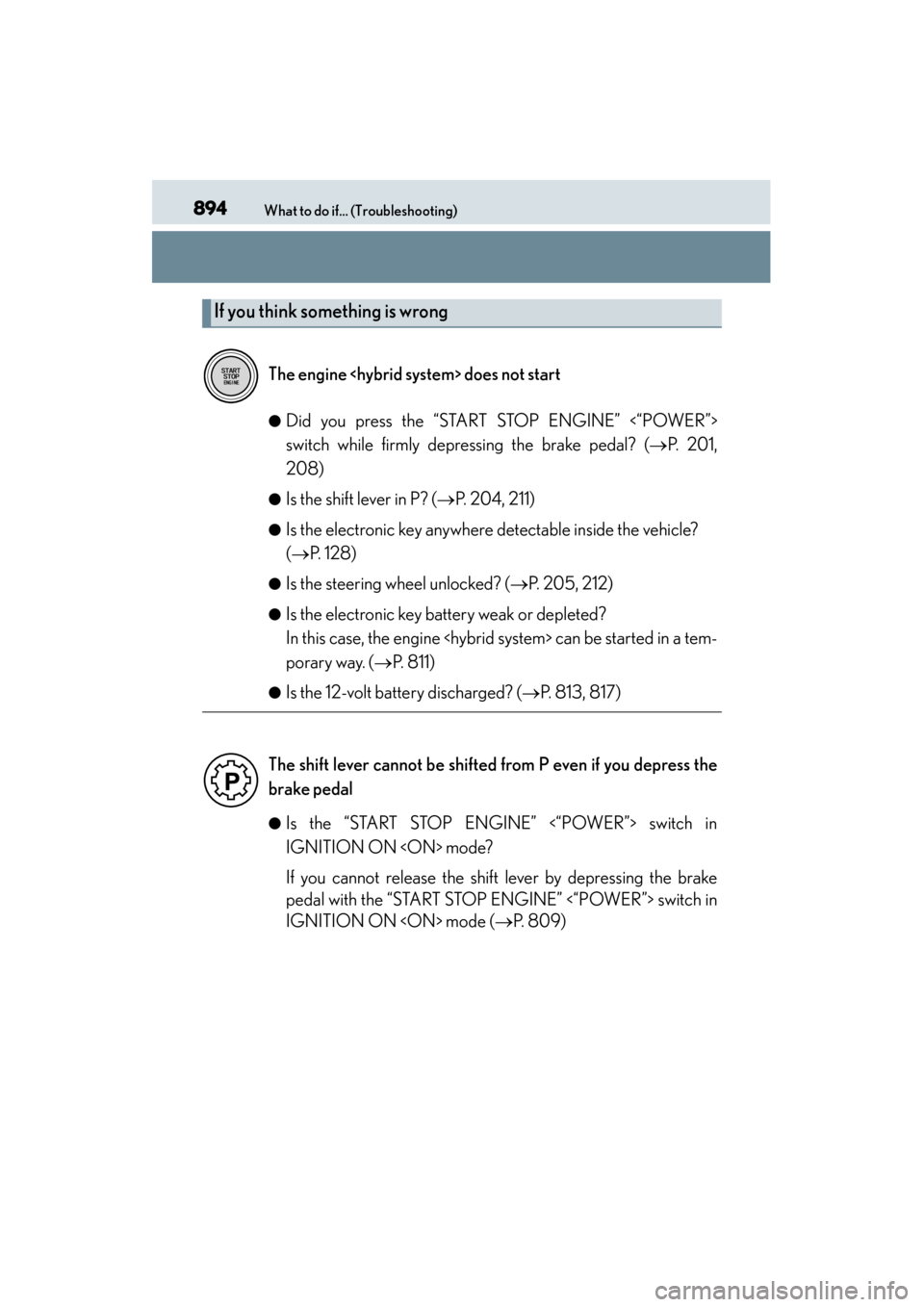

894What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
Did you press the “START STOP ENGINE” <“POWER”>
switch while firmly depressing the brake pedal? (
→P. 201,
208)
●Is the shift lever in P? ( →P. 204, 211)
●Is the electronic key anywhere detectable inside the vehicle?
(→ P. 1 2 8 )
●Is the steering wheel unlocked? ( →P. 205, 212)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a tem-
porary way. ( →P. 8 1 1 )
●Is the 12-volt battery discharged? ( →P. 813, 817)
●Is the “START STOP ENGINE” <“POWER”> switch in
IGNITION ON mode?
If you cannot release the shift lever by depressing the brake
pedal with the “START STOP ENGINE” <“POWER”> switch in
IGNITION ON mode ( →P. 8 0 9 )
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the
brake pedal

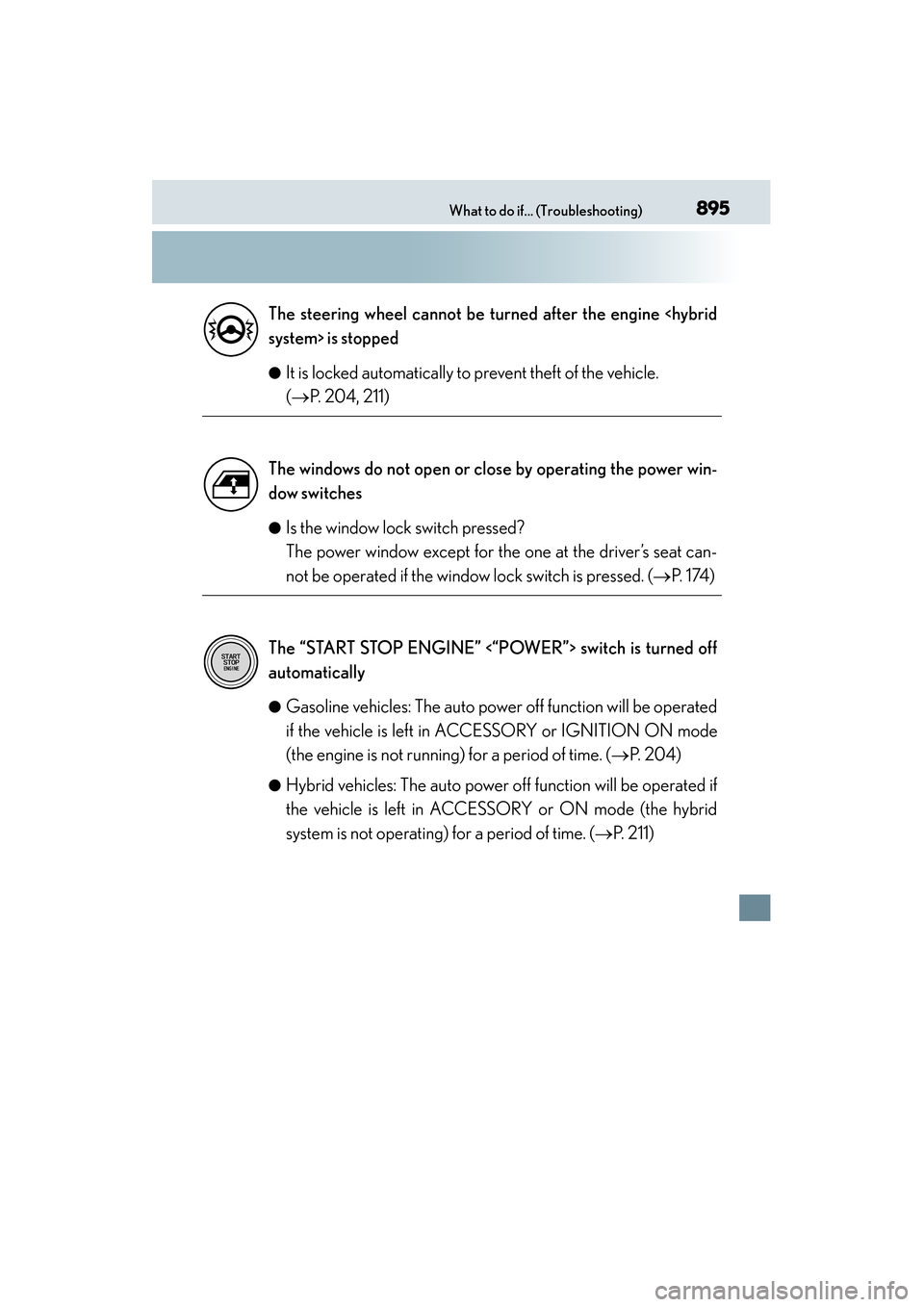

895What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
It is locked automatically to prevent theft of the vehicle.
(→
P. 204, 211)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat can-
not be operated if the window lock switch is pressed. ( →P. 1 74 )
●Gasoline vehicles: The auto power off function will be operated
if the vehicle is left in ACCESSORY or IGNITION ON mode
(the engine is not running) for a period of time. ( →P. 2 0 4 )
●Hybrid vehicles: The auto power off function will be operated if
the vehicle is left in ACCESSORY or ON mode (the hybrid
system is not operating) for a period of time. ( →P. 211)
The steering wheel cannot be tu
rned after the engine system> is stopped
The windows do not open or close by operating the power win-
dow switches
The “START STOP ENGINE” <“POWER”> switch is turned off
automatically

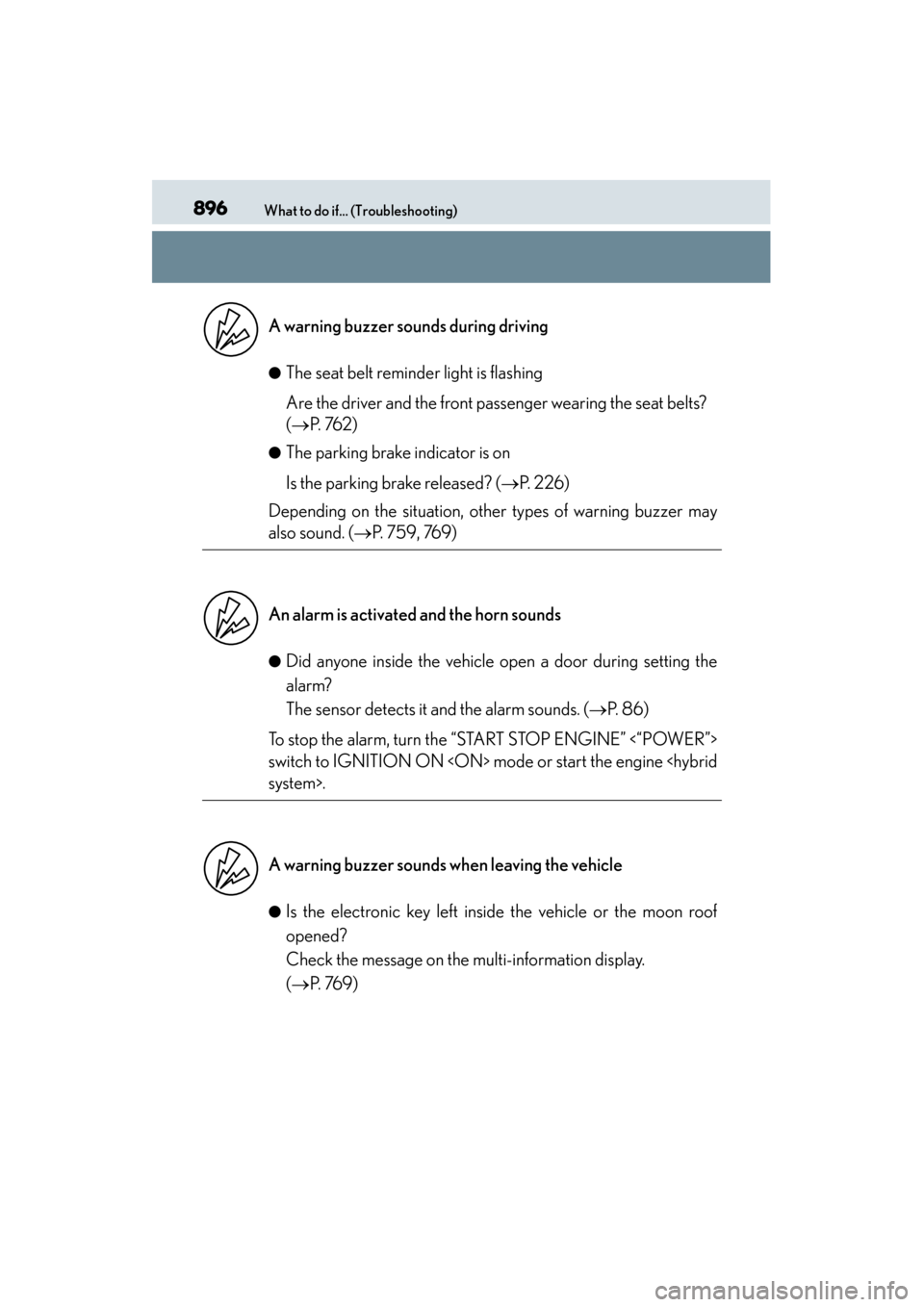

896What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→
P. 76 2 )
●The parking brake indicator is on
Is the parking brake released? (→ P. 2 2 6 )
Depending on the situation, othe r types of warning buzzer may
also sound. ( →P. 759, 769)
●Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( →P. 8 6 )
To stop the alarm, turn the “START STOP ENGINE” <“POWER”>
switch to IGNITION ON mode or start the engine system>.
●Is the electronic key left inside the vehicle or the moon roof
opened?
Check the message on the multi-information display.
(→ P. 76 9 )
A warning buzzer sounds during driving
An alarm is activated
and the horn sounds
A warning buzzer sounds wh en leaving the vehicle

902Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Emergency, in case ofIf a warning buzzer
sounds..................................................759
If a warning light turns on...............759
If a warning message is displayed ........................................769
If the 12-volt battery is discharged ................................813, 817
If the electronic key does not operate properly .........810
If the engine will not start............... 805
If the hybrid system will not start ............................................... 807
If the shift lever
cannot be shifted from P ........... 809
If you have a flat tire .......................... 792
If you think something is wrong............................................... 757
If your vehicle becomes stuck ..................................................... 828
If your vehicle has to be stopped in an emergency .......... 749
If your vehicle needs to be towed ........................................ 751
If your vehicle overheats ..... 821, 824
Emergency flashers ............................. 748
Energy monitor ........................................ 112 Engine
Accessory mode ............................... 202
Compartment ...................................... 681
Engine switch ........................... 201, 208
Hood........................................................ 677
How to start the engine....................201
How to start the hybrid system ..................................................208
Identification number .......................834
If the engine will not start .............. 805
Ignition switch (“POWER” switch)..................................................208
Ignition switch (“START STOP ENGINE” switch) ...........................201
Overheating.............................. 821, 824
“Power” switch. ...................................208
“START STOP ENGINE” switch .....................................................201
Engine compartment cover............. 683
Engine coolant Capacity .................................................839
Checking .............................................. 689
Preparing and checking before winter ....................................330
Engine coolant temperature gauge ........................................................ 95
Engine immobilizer system ................. 82
Engine oil Capacity ................................................. 837
Checking ...............................................684
Oil level warning message ............ 777
Oil pressure warning message........................... 770
Preparing and checking
before winter ....................................330

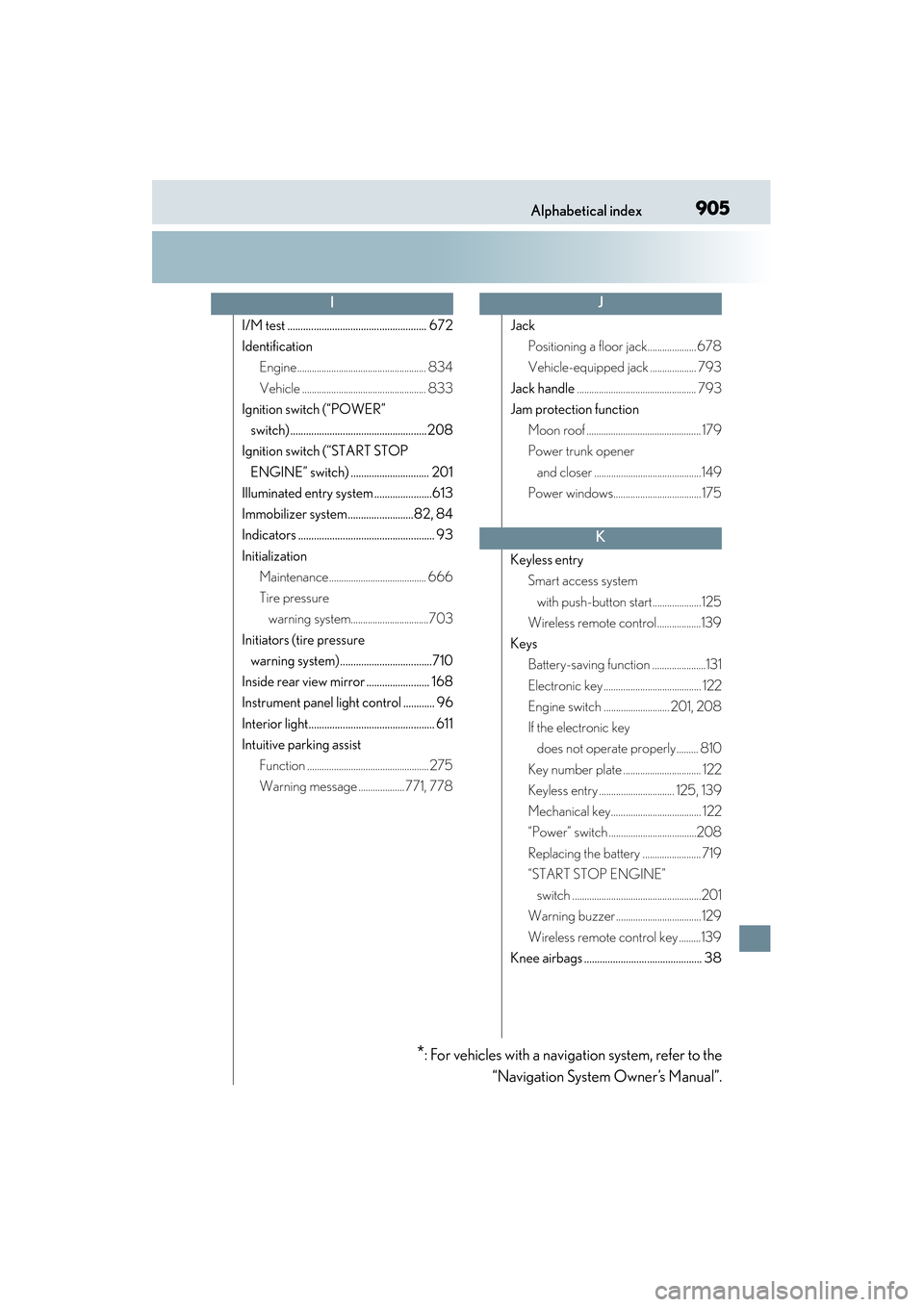

905Alphabetical index
ES350_300h_OM_OM33A60U_(U)
I/M test ..................................................... 672
IdentificationEngine..................................................... 834
Vehicle ................................................... 833
Ignition switch (“POWER”
switch) .................................................... 208
Ignition switch (“START STOP
ENGINE” switch) .............................. 201
Illuminated entry system ......................613
Immobilizer system.........................82, 84
Indicators .................................................... 93
Initialization Maintenance........................................ 666
Tire pressure warning system................................703
Initiators (tire pressure warning system)...................................710
Inside rear view mirror ........................ 168
Instrument panel light control ............ 96
Interior light................................................ 611
Intuitive parking assist Function .................................................. 275
Warning message ................... 771, 778 Jack
Positioning a floor jack....................678
Vehicle-equipped jack ................... 793
Jack handle ................................................. 793
Jam protection function
Moon roof ............................................... 179
Power trunk opener and closer ............................................149
Power windows.................................... 175
Keyless entry Smart access system
with push-button start.................... 125
Wireless remote control..................139
Keys Battery-saving function ......................131
Electronic key ........................................ 122
Engine switch ........................... 201, 208
If the electronic key does not operate properly......... 810
Key number plate ................................ 122
Keyless entry ............................... 125, 139
Mechanical key..................................... 122
“Power” switch ....................................208
Replacing the battery ........................ 719
“START STOP ENGINE” switch .....................................................201
Warning buzzer ................................... 129
Wireless remote control key .........139
Knee airbags ............................................. 38
IJ
K
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
