check engine Lexus ES300h 2014 Owner's Guide

ES350_300h_OM_OM33A60U_(U)
2034-2. Driving procedures
4
Driving
If the engine is stopped with the shift lever in a position other than P, the
“START STOP ENGINE” switch will not be turned off but instead be
turned to ACCESSORY mode. Perform the following procedure to turn
the switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that “POWER ON” and “Turn Power OFF” are displayed alter-
nately on the multi-information display and then press the “START
STOP ENGINE” switch once.
Check that “POWER ON” and “Turn Power OFF” on the multi-infor-
mation display are off.
When stopping the engine with th e shift lever in a position other
than P
1
2
3
4

204
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
■Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or IGNITION
ON mode (the engine is not running) for more than an hour with the shift lever in P,
the “START STOP ENGINE” switch will automatically turn off. However, this func-
tion cannot entirely prevent 12-volt battery discharge. Do not leave the vehicle with
the “START STOP ENGINE” switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■Electronic key battery depletion
→P. 1 3 6
■Conditions affecting operation
→P. 1 3 2
■Notes for the entry function
→P. 1 3 3
■If the engine does not start
●The engine immobilizer system may not have been deactivated. ( →P. 8 2 )
Contact your Lexus dealer.
●Check that the shift lever is securely set in P. The engine may not start if the shift
lever is displaced out of P. “Shift to P position to Start” will be displayed on the multi-
information display.
■Steering lock
After turning the “START STOP ENGINE” switch off and opening and closing the
doors, the steering wheel will be locked due to the steering lock function. Operating
the “START STOP ENGINE” switch again automatically cancels the steering lock.

ES350_300h_OM_OM33A60U_(U)
2054-2. Driving procedures
4
Driving
■When the steering lock cannot be released
■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be suspended if
the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine. After about 10 seconds, the steering lock motor
will resume functioning.
■When “Check Access System with Elec. Key” is displayed on the multi-information
display
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately.
■If the electronic key battery is depleted
→P. 7 1 9
■Operation of the “START STOP ENGINE” switch
●When operating the “START STOP ENGINE” switch, one short, firm press is
enough. If the switch is pressed improperly, the engine may not start or the “START
STOP ENGINE” switch mode may not change. It is not necessary to press and
hold the switch.
●If attempting to restart the engine immediately after turning the “START STOP
ENGINE” switch off, the engine may not start in some cases. After turning the
“START STOP ENGINE” switch off, please wait a few seconds before restarting
the engine.
■If the smart access system with push-button start has been deactivated in a cus-
tomized setting
→P. 8 1 0
■Odometer and trip meter display
When the “START STOP ENGINE” switch is turned off, the odometer or trip meter
display will extinguish after approximately 30 seconds. “Steering Lock active” will be displayed on
the multi-information display.
Check that the shift lever is set in P. Press the
“START STOP ENGINE” switch while turning
the steering wheel left and right.

ES350_300h_OM_OM33A60U_(U)
2074-2. Driving procedures
4
Driving
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the “START STOP ENGINE” switch in ACCESSORY or IGNI-
TION ON mode for long periods of time without the engine running.
●If “POWER ON” is displayed on the multi-information display, the “START STOP
ENGINE” switch is not off. Exit the vehicle after turning the “START STOP
ENGINE” switch off.
●Do not stop the engine when the shift lever is in a position other than P. If the
engine is stopped in another shift lever position, the “START STOP ENGINE”
switch will not be turned off but instead be turned to ACCESSORY mode. If the
vehicle is left in ACCESSORY mode, 12-volt battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle
checked by your Lexus dealer immediately.
■Symptoms indicating a malfunction with the “START STOP ENGINE” switch
If the “START STOP ENGINE” switch seems to be operating somewhat differently
than usual, such as the switch sticking slightly, there may be a malfunction. Contact
your Lexus dealer immediately.

225
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
4
Driving
Tu r n s i g n a l l e v e r
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
( → P. 8 6 2 )
Operating instructions
1
2
3
4

ES350_300h_OM_OM33A60U_(U)
2414-3. Operating the lights and wipers
4
Driving
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to AUTO position while the “START STOP ENGINE”
<“POWER”> switch is in IGNITION ON mode, the wipers will operate once
to show that AUTO mode is activated.
●When the sensor sensitivity ring is turned toward high while in AUTO mode, the
wipers will operate once to indicate that the sensor sensitivity is enhanced.
●If the temperature of the raindrop sensor is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode (vehicles with
rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.

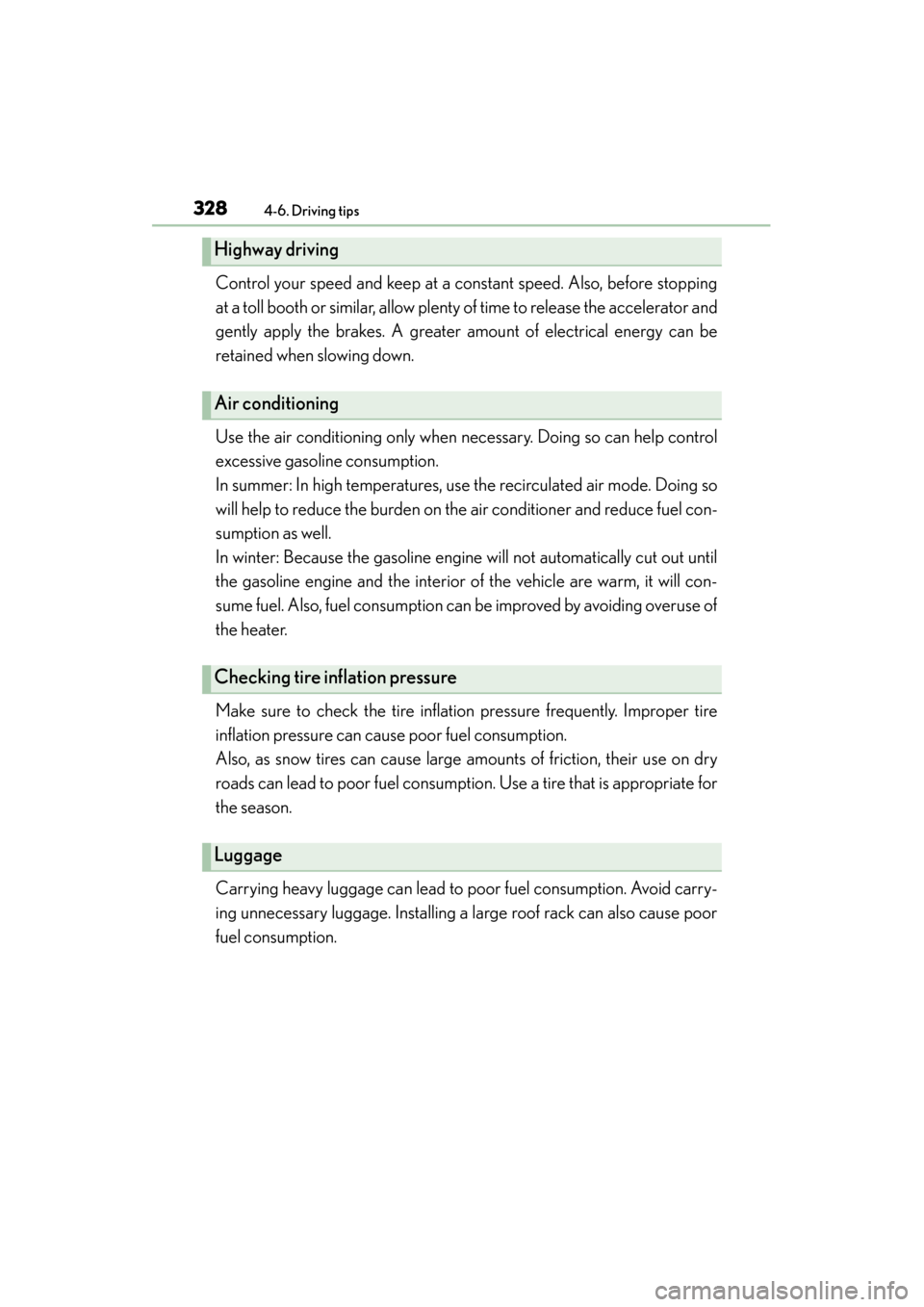

328
ES350_300h_OM_OM33A60U_(U)
4-6. Driving tips
Control your speed and keep at a constant speed. Also, before stopping
at a toll booth or similar, allow plenty of time to release the accelerator and
gently apply the brakes. A greater amount of electrical energy can be
retained when slowing down.
Use the air conditioning only when necessary. Doing so can help control
excessive gasoline consumption.
In summer: In high temperatures, use the recirculated air mode. Doing so
will help to reduce the burden on the air conditioner and reduce fuel con-
sumption as well.
In winter: Because the gasoline engine will not automatically cut out until
the gasoline engine and the interior of the vehicle are warm, it will con-
sume fuel. Also, fuel consumption can be improved by avoiding overuse of
the heater.
Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fuel consumption.
Also, as snow tires can cause large amounts of friction, their use on dry
roads can lead to poor fuel consumption. Use a tire that is appropriate for
the season.
Carrying heavy luggage can lead to poor fuel consumption. Avoid carry-
ing unnecessary luggage. Installing a large roof rack can also cause poor
fuel consumption.
Highway driving
Air conditioning
Checking tire inflation pressure
Luggage

657
ES350_300h_OM_OM33A60U_(U)
6Maintenance and care
6-1. Maintenance and careCleaning and protecting the vehicle exterior.................658
Cleaning and protecting the vehicle interior .................. 662
6-2. Maintenance Maintenance requirements............................. 665
General maintenance ..............668
Emission inspection and maintenance (I/M)
programs .....................................672
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................673
Hood ................................................677
Positioning a floor jack ............. 678
Engine compartment ................ 681
12-volt battery (hybrid vehicles) ......................698
Tires.................................................. 702
Tire inflation pressure .................712
Wheels .............................................715
Air conditioning filter ................. 717
Electronic key battery ................719
Checking and replacing fuses................................................ 721
Light bulbs..................................... 733

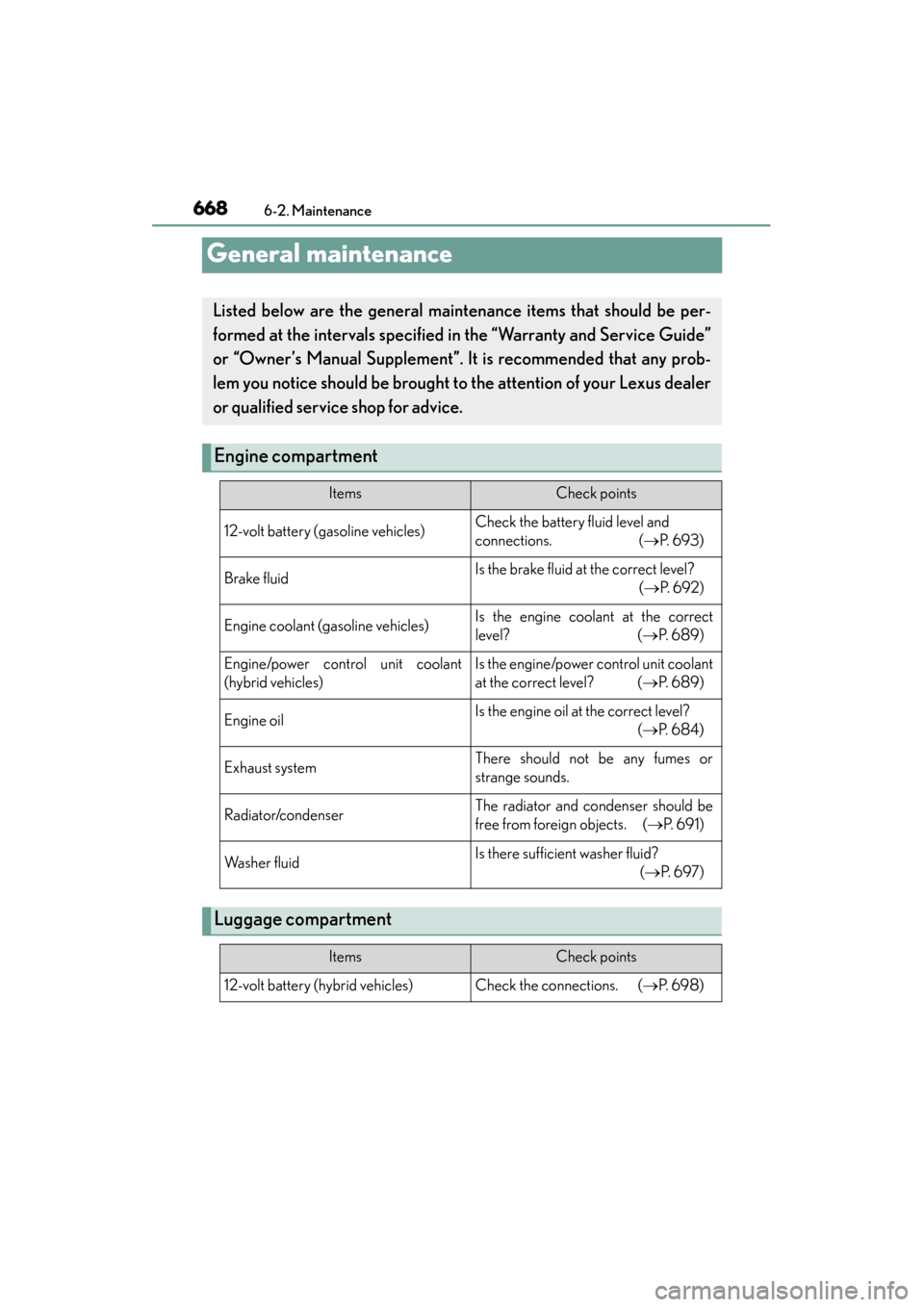

668
ES350_300h_OM_OM33A60U_(U)
6-2. Maintenance
General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Service Guide”
or “Owner’s Manual Supplement”. It is recommended that any prob-
lem you notice should be brought to the attention of your Lexus dealer
or qualified service shop for advice.
Engine compartment
ItemsCheck points
12-volt battery (gasoline vehicles)Check the battery fluid level and
connections. ( →P. 6 9 3 )
Brake fluidIs the brake fluid at the correct level?
(→ P. 6 9 2 )
Engine coolant (gasoline vehicles)Is the engine coolant at the correct
level? ( →P. 6 8 9 )
Engine/power control unit coolant
(hybrid vehicles)Is the engine/power control unit coolant
at the correct level? ( →P. 6 8 9 )
Engine oilIs the engine oil at the correct level?
(→ P. 6 8 4 )
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenserThe radiator and condenser should be
free from foreign objects. ( →P. 6 9 1 )
Wa s h e r f l u i dIs there sufficient washer fluid?
(→ P. 6 9 7 )
Luggage compartment
ItemsCheck points
12-volt battery (hybrid vehicles)Check the connections. ( →P. 6 9 8 )

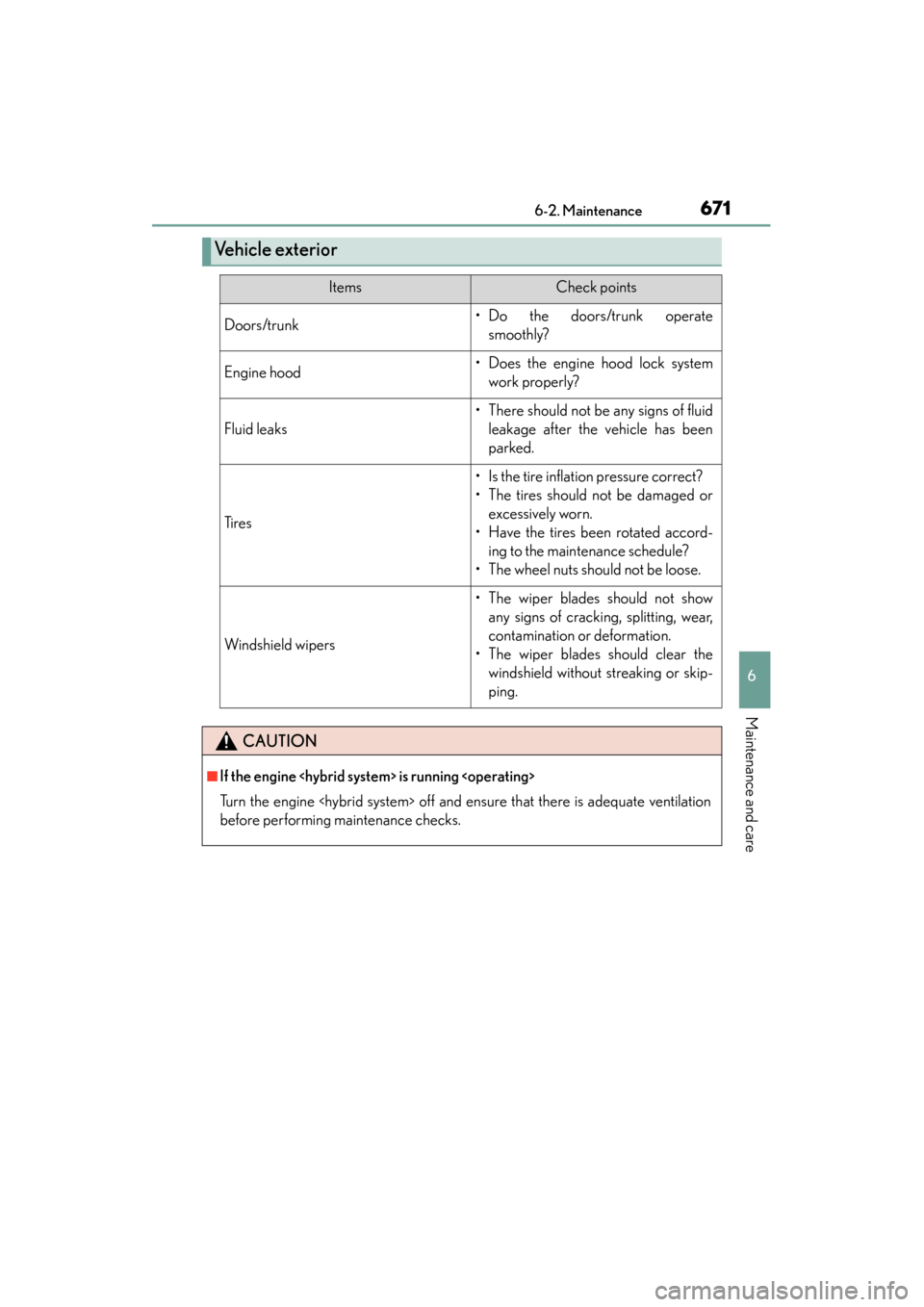

ES350_300h_OM_OM33A60U_(U)
6716-2. Maintenance
6
Maintenance and care
Ve h i c l e e x t e r i o r
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Engine hood• Does the engine hood lock systemwork properly?
Fluid leaks
• There should not be any signs of fluidleakage after the vehicle has been
parked.
Ti r e s
• Is the tire inflation pressure correct?
• The tires should not be damaged orexcessively worn.
• Have the tires been rotated accord- ing to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers
• The wiper blades should not show any signs of cracking, splitting, wear,
contamination or deformation.
• The wiper blades should clear the windshield without streaking or skip-
ping.
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation
before performing maintenance checks.
