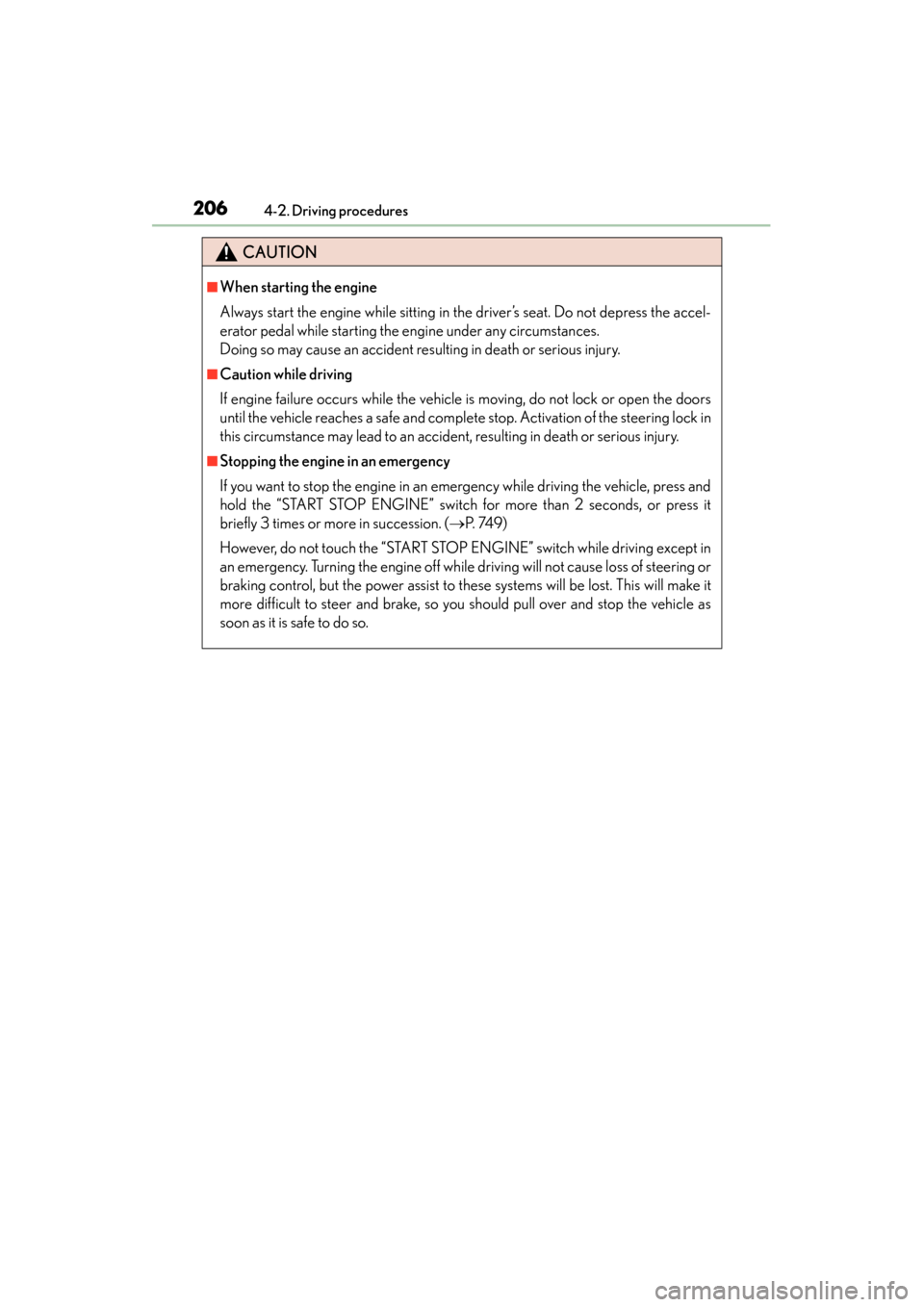

206
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the accel-
erator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the doors
until the vehicle reaches a safe and complete stop. Activation of the steering lock in
this circumstance may lead to an accident, resulting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, press and
hold the “START STOP ENGINE” switch for more than 2 seconds, or press it
briefly 3 times or more in succession. (→P. 74 9 )
However, do not touch the “START STOP ENGINE” switch while driving except in
an emergency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will make it
more difficult to steer and brake, so you should pull over and stop the vehicle as
soon as it is safe to do so.

ES350_300h_OM_OM33A60U_(U)

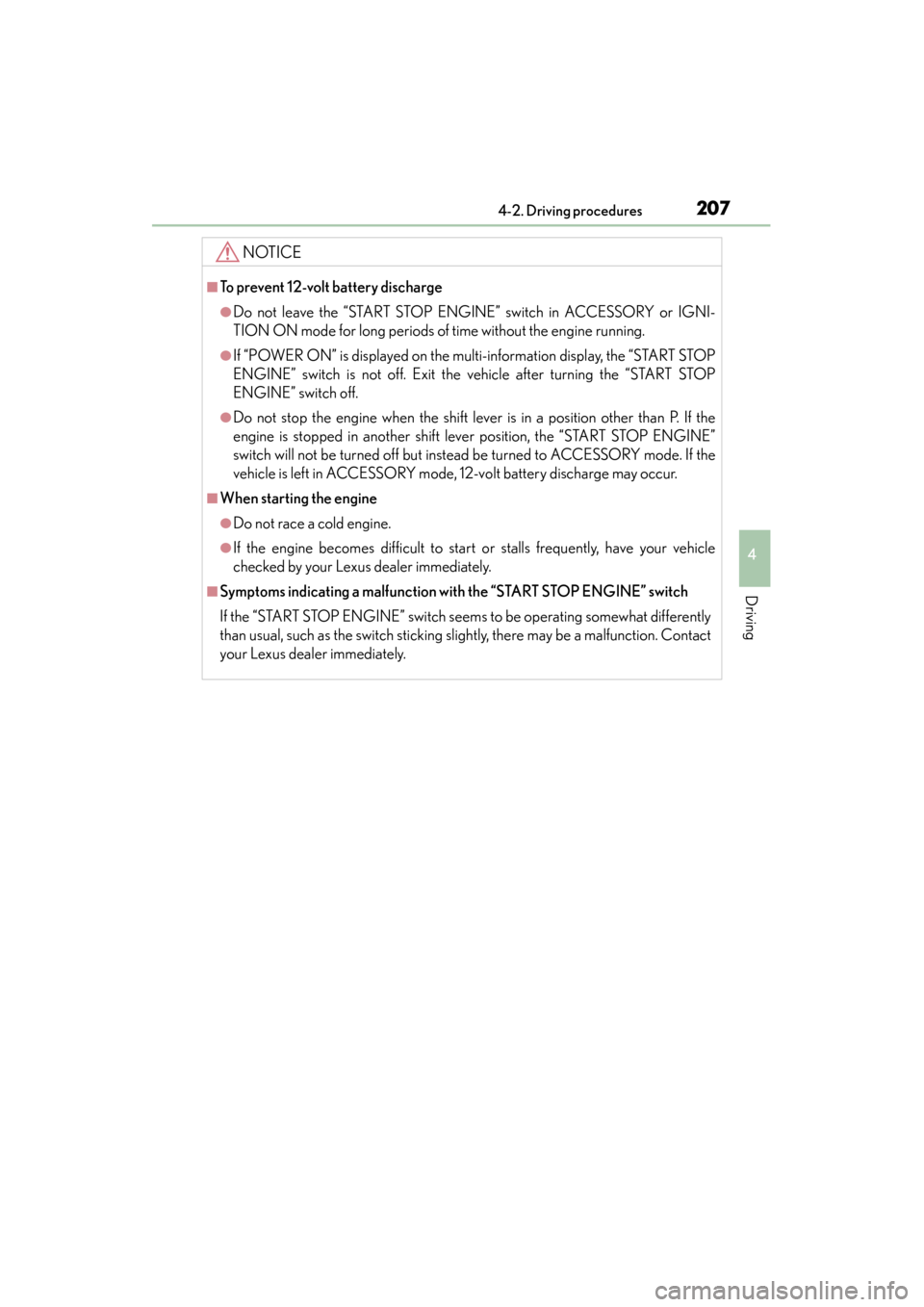

2074-2. Driving procedures
4
Driving
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the “START STOP ENGINE” switch in ACCESSORY or IGNI-
TION ON mode for long periods of time without the engine running.
●If “POWER ON” is displayed on the multi-information display, the “START STOP
ENGINE” switch is not off. Exit the vehicle after turning the “START STOP
ENGINE” switch off.
●Do not stop the engine when the shift lever is in a position other than P. If the
engine is stopped in another shift lever position, the “START STOP ENGINE”
switch will not be turned off but instead be turned to ACCESSORY mode. If the
vehicle is left in ACCESSORY mode, 12-volt battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle
checked by your Lexus dealer immediately.
■Symptoms indicating a malfunction with the “START STOP ENGINE” switch
If the “START STOP ENGINE” switch seems to be operating somewhat differently
than usual, such as the switch sticking slightly, there may be a malfunction. Contact
your Lexus dealer immediately.

ES350_300h_OM_OM33A60U_(U)

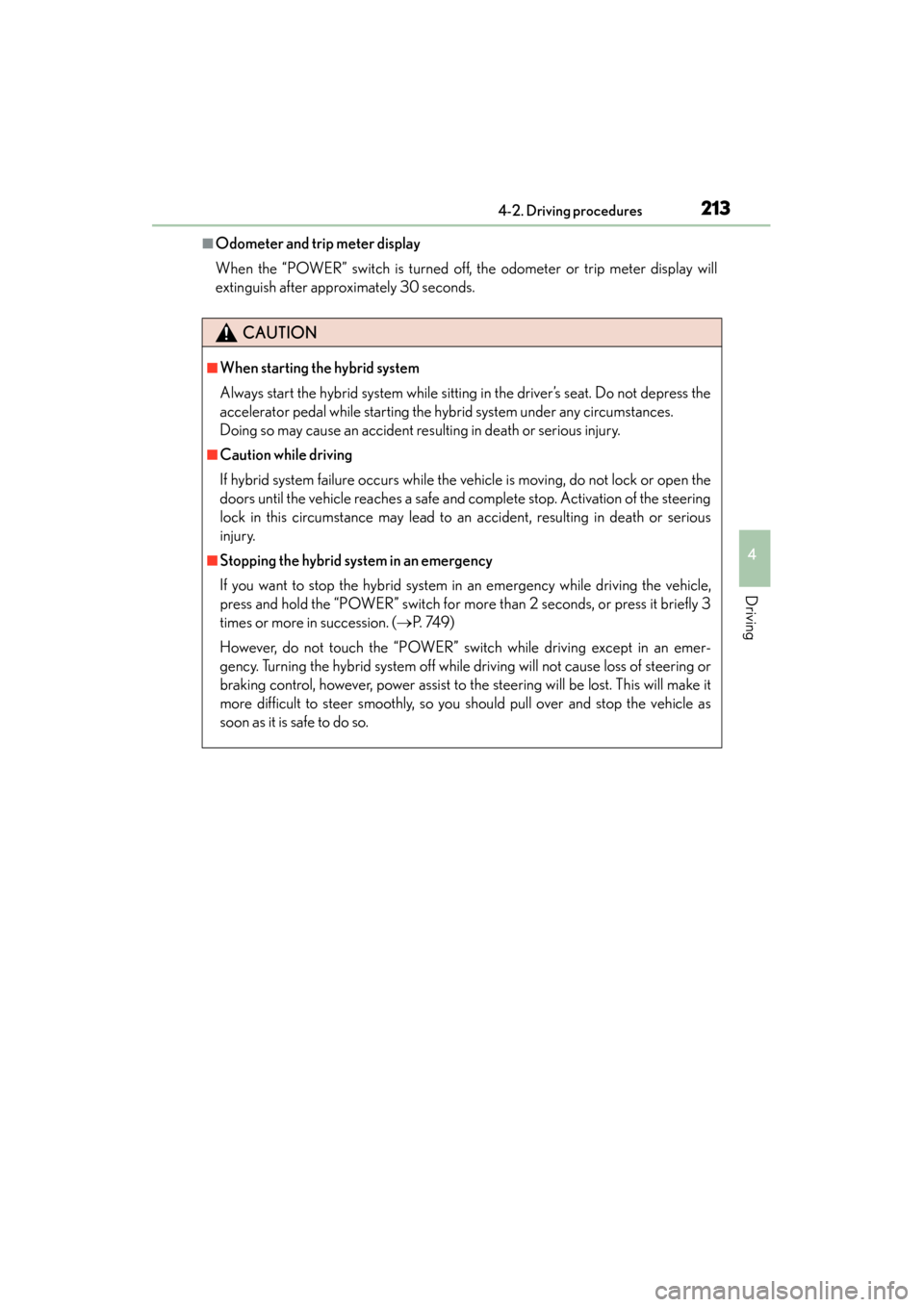

2134-2. Driving procedures
4
Driving
■Odometer and trip meter display
When the “POWER” switch is turned off, the odometer or trip meter display will
extinguish after approximately 30 seconds.
CAUTION
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the hybrid system under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If hybrid system failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the steering
lock in this circumstance may lead to an accident, resulting in death or serious
injury.
■Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the vehicle,
press and hold the “POWER” switch for more than 2 seconds, or press it briefly 3
times or more in succession. (→P. 74 9 )
However, do not touch the “POWER” switch while driving except in an emer-
gency. Turning the hybrid system off while driving will not cause loss of steering or
braking control, however, power assist to the steering will be lost. This will make it
more difficult to steer smoothly, so you should pull over and stop the vehicle as
soon as it is safe to do so.

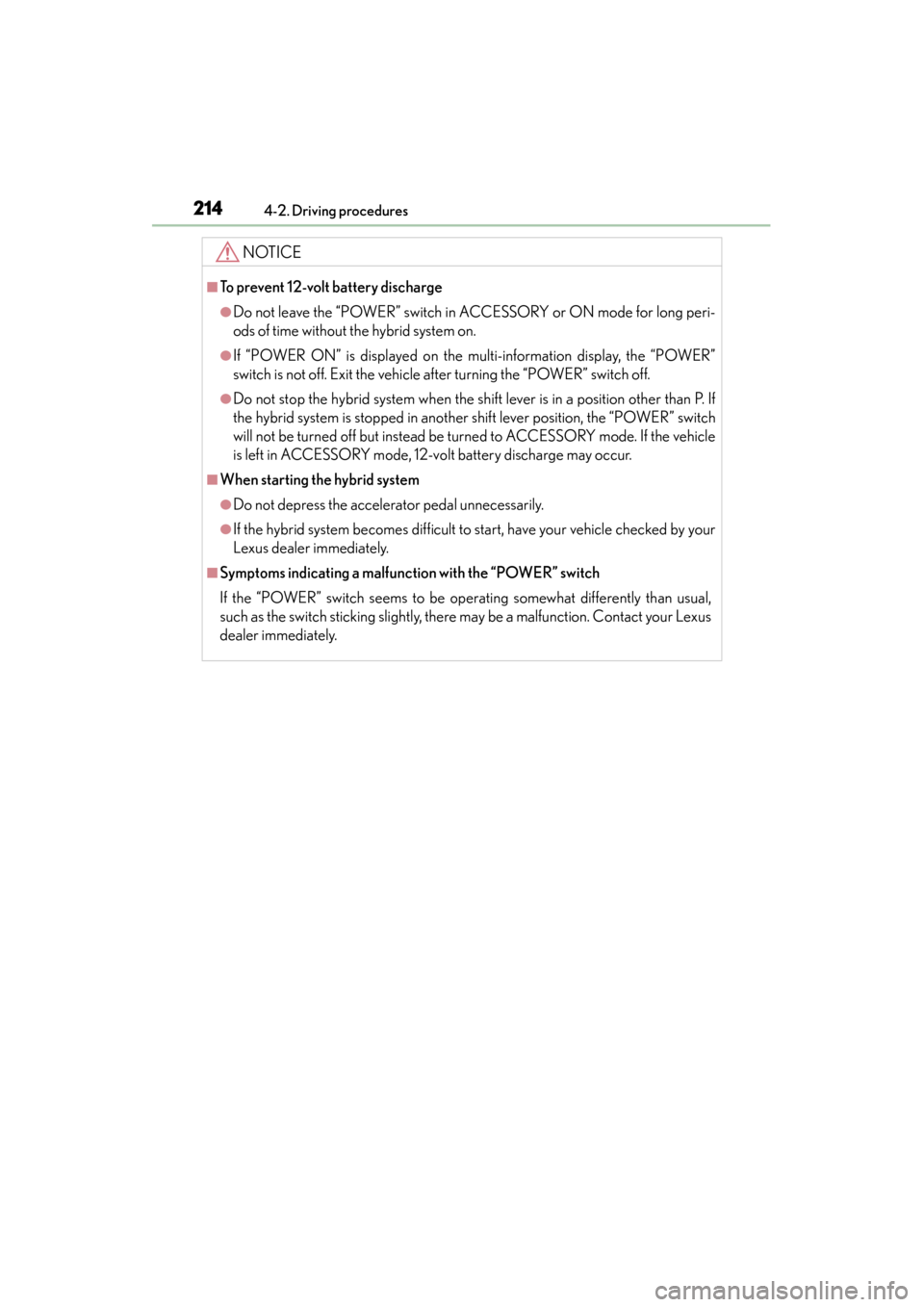

214
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
●Do not leave the “POWER” switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
●If “POWER ON” is displayed on the multi-information display, the “POWER”
switch is not off. Exit the vehicle after turning the “POWER” switch off.
●Do not stop the hybrid system when the shift lever is in a position other than P. If
the hybrid system is stopped in another shift lever position, the “POWER” switch
will not be turned off but instead be turned to ACCESSORY mode. If the vehicle
is left in ACCESSORY mode, 12-volt battery discharge may occur.
■When starting the hybrid system
●Do not depress the accelerator pedal unnecessarily.
●If the hybrid system becomes difficult to start, have your vehicle checked by your
Lexus dealer immediately.
■Symptoms indicating a malfunction with the “POWER” switch
If the “POWER” switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact your Lexus
dealer immediately.

218
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
Automatic transmission (gasoline vehicles)
While the “START STOP ENGINE” switch is in IGNITION ON
mode, move the shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: Shifting the shift lever to D allows the system to select a gear suitable for the driv-ing conditions.
Setting the shift lever to D is recommended for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of the possible gearranges, controls engine braking force, and prevents unnecessary upshifting.
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 ( → P. 2 1 9 )

221
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
4
Driving
Hybrid transmission (hybrid vehicles)
While the “POWER” switch is in ON mode, move the shift lever with
the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for normaldriving.
*2: By selecting shift ranges using S mode, you can control engine braking forces.
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 ( → P. 222)

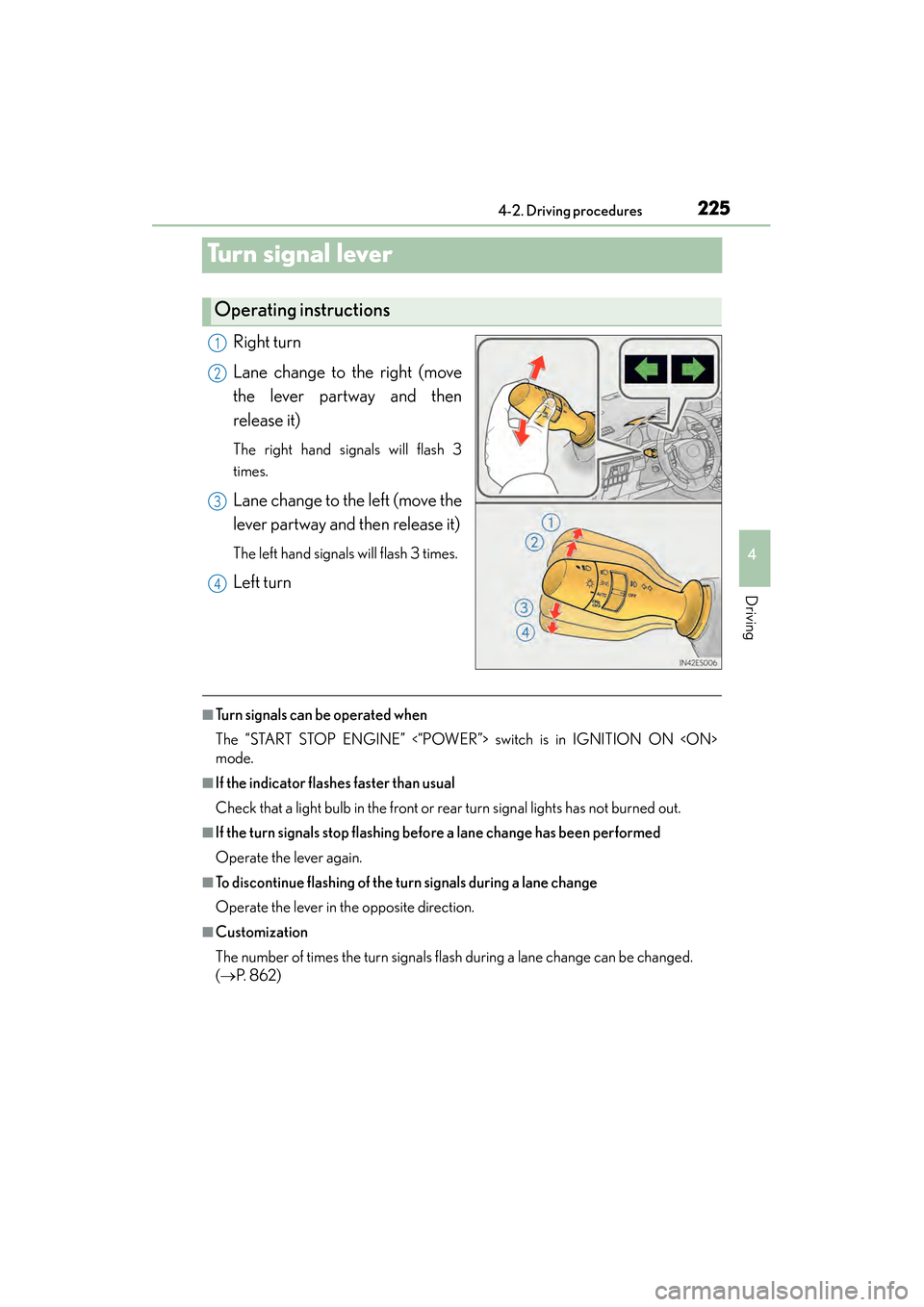

225
ES350_300h_OM_OM33A60U_(U)
4-2. Driving procedures
4
Driving
Tu r n s i g n a l l e v e r
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
( → P. 8 6 2 )
Operating instructions
1
2
3
4

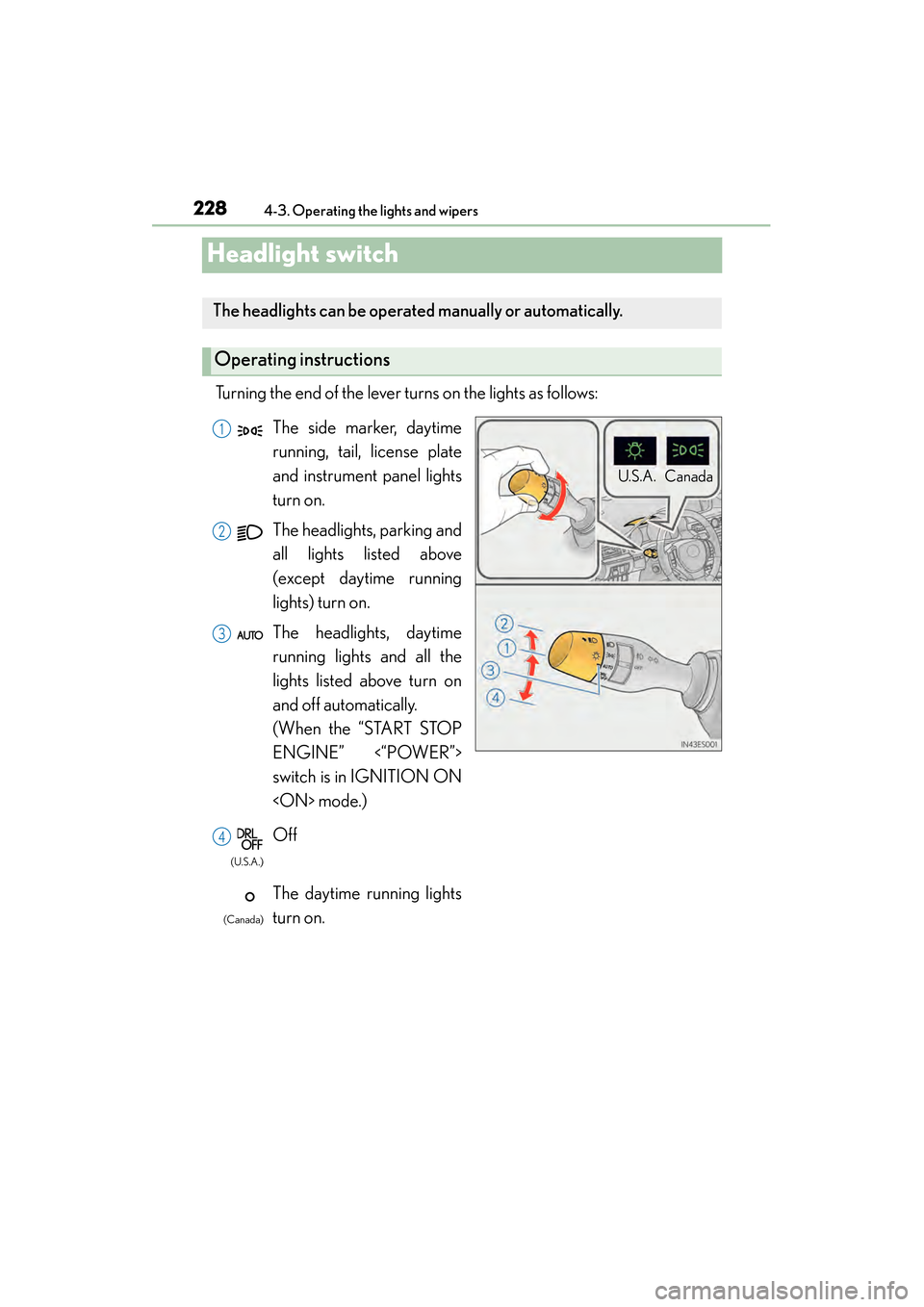

228
ES350_300h_OM_OM33A60U_(U)
4-3. Operating the lights and wipers
Headlight switch
Turning the end of the lever turns on the lights as follows:
The headlights can be operated manually or automatically.
Operating instructions
U. S .A . Can ad a
The side marker, daytime
running, tail, license plate
and instrument panel lights
turn on.
The headlights, parking and
all lights listed above
(except daytime running
lights) turn on.
The headlights, daytime
running lights and all the
lights listed above turn on
and off automatically.
(When the “START STOP
ENGINE” <“POWER”>
switch is in IGNITION ON
mode.)
Off
The daytime running lights
turn on.1
2
3
4
(U.S.A.)
(Canada)

230
ES350_300h_OM_OM33A60U_(U)
4-3. Operating the lights and wipers
■Daytime running light system
To make your vehicle more visible to other drivers, the parking lights turn on auto-
matically (at an increased intensity) whenever the engine is started
and the parking brake is released. Daytime running lights are not designed for use at
night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
■Headlight control sensor
■Automatic light off system
When the light switch is in , or : The headlights and tail lights turn off 30
seconds after the “START STOP ENGINE” <“POWER”> switch is turned to
ACCESSORY mode or turned off and a door is opened and all of the doors and
trunk are closed. (The lights turn off immediately if on the key is pressed twice
after all the doors are closed.)
To turn the lights on again, turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode, or turn the light switch off once and then back to
or .
If any of the doors or trunk lid is kept open, the lights automatically turn off after 20
minutes. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

ES350_300h_OM_OM33A60U_(U)

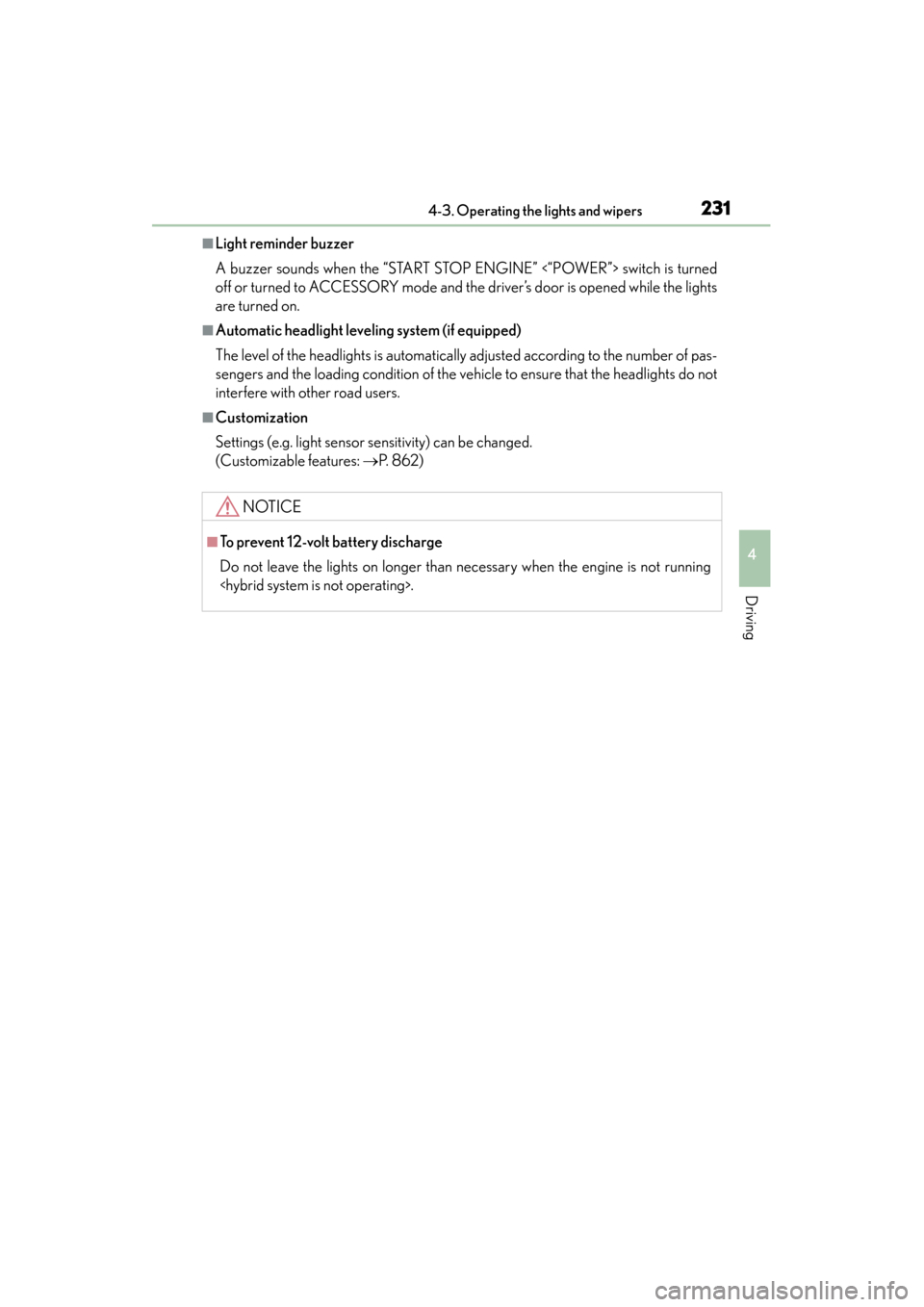

2314-3. Operating the lights and wipers
4
Driving
■Light reminder buzzer
A buzzer sounds when the “START STOP ENGINE” <“POWER”> switch is turned
off or turned to ACCESSORY mode and the driver’s door is opened while the lights
are turned on.
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: → P. 8 6 2 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the engine is not running
.
