Lexus ES300h 2014 Owner's Manual

8307-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)

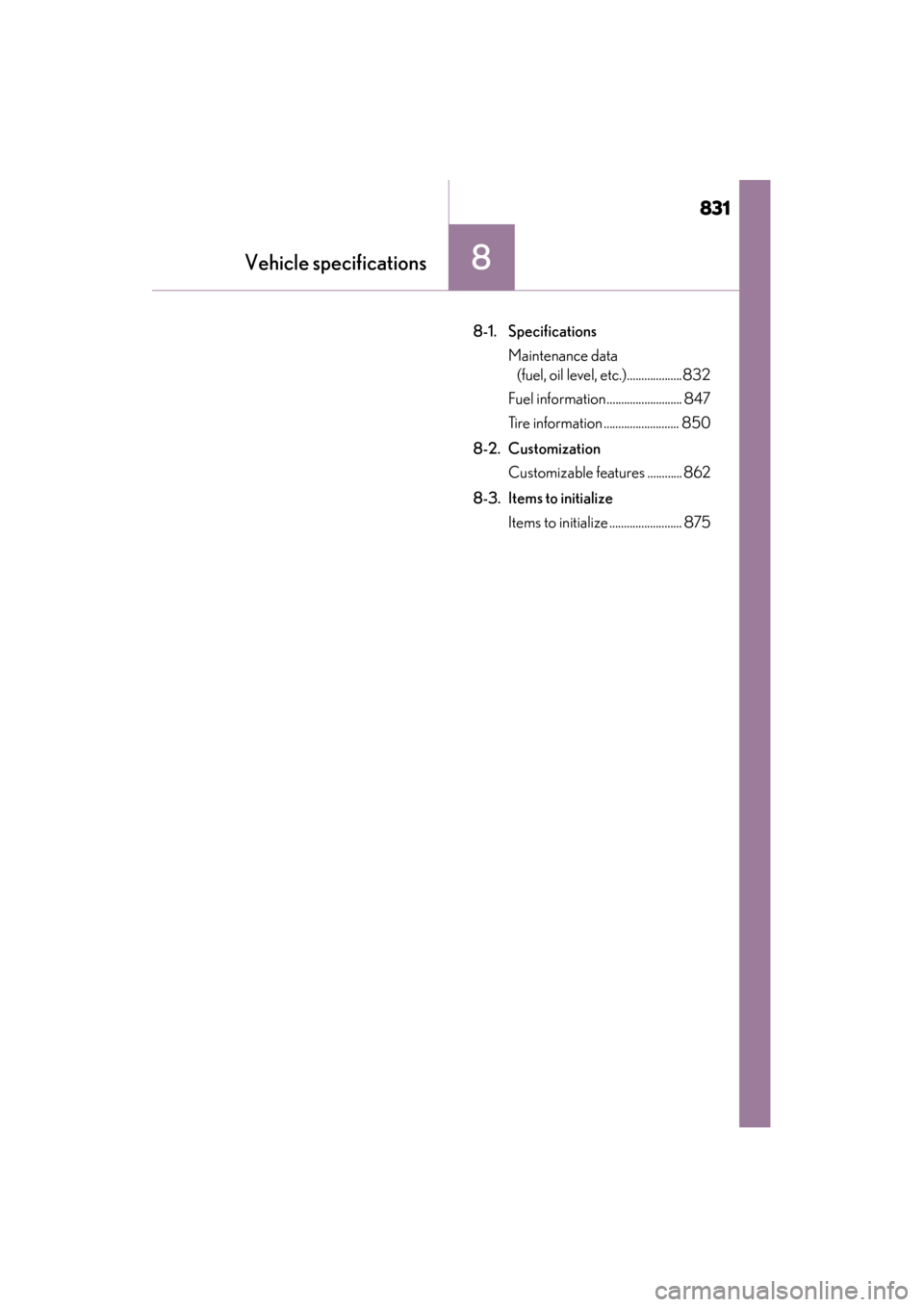

831
ES350_300h_OM_OM33A60U_(U)
8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.)...................832
Fuel information.......................... 847
Tire information .......................... 850
8-2. Customization Customizable features ............ 862
8-3. Items to initialize Items to initialize ......................... 875

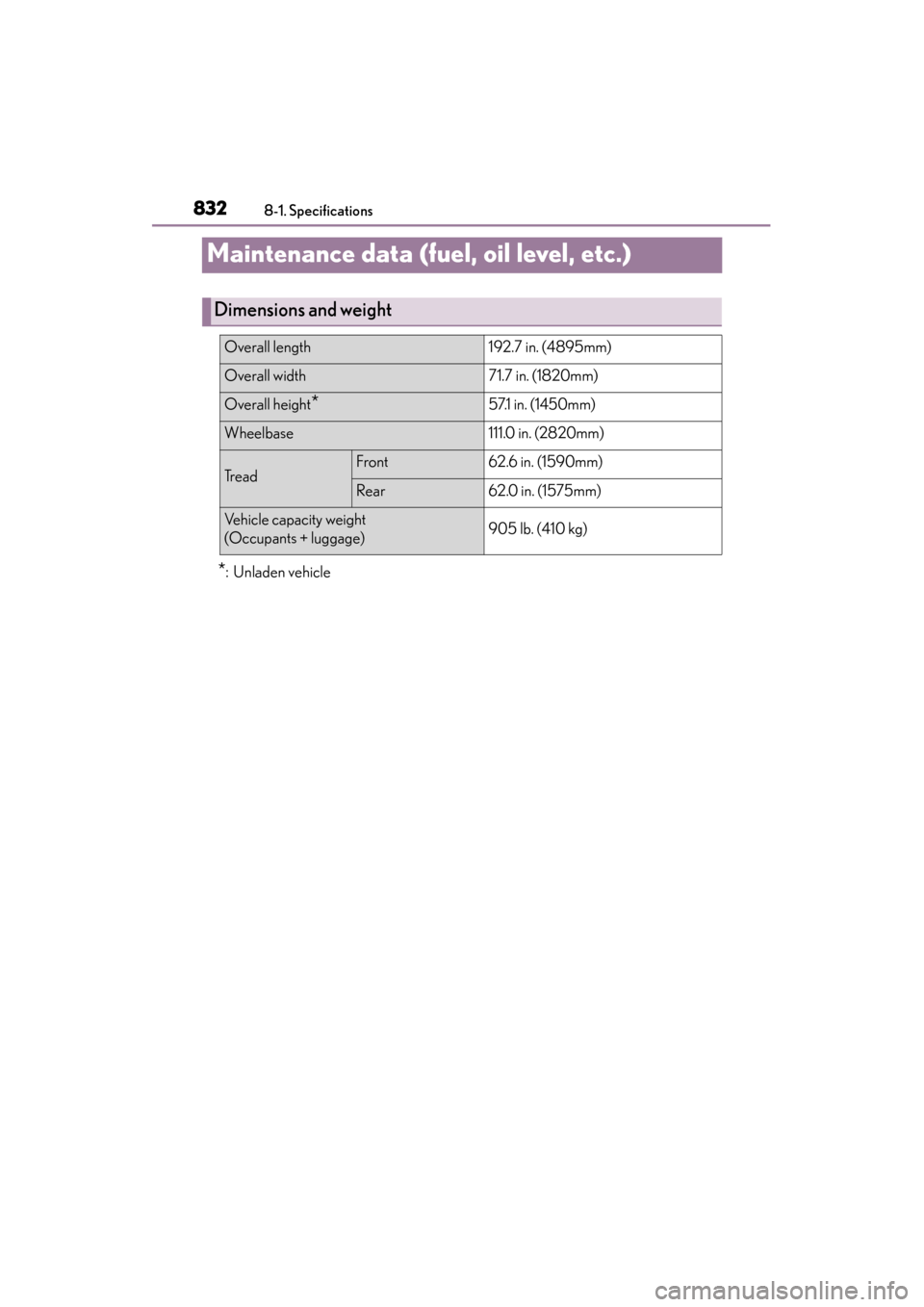

832
ES350_300h_OM_OM33A60U_(U)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length192.7 in. (4895mm)
Overall width71.7 in. (1820mm)
Overall height*57.1 in. (1450mm)
Wheelbase111.0 in. (2820mm)
TreadFront62.6 in. (1590mm)
Rear62.0 in. (1575mm)
Vehicle capacity weight
(Occupants + luggage)905 lb. (410 kg)

ES350_300h_OM_OM33A60U_(U)

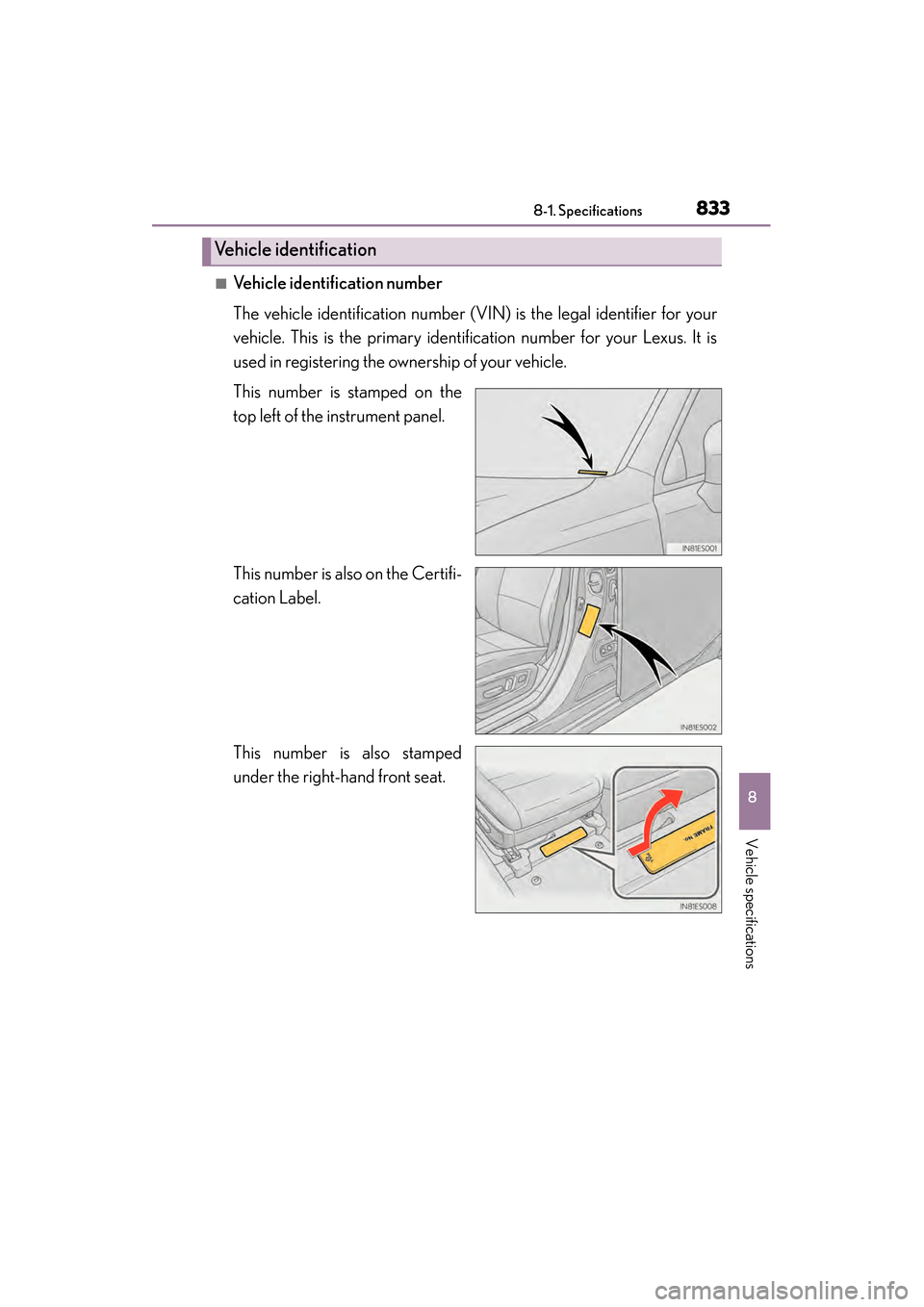

8338-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certifi-
cation Label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

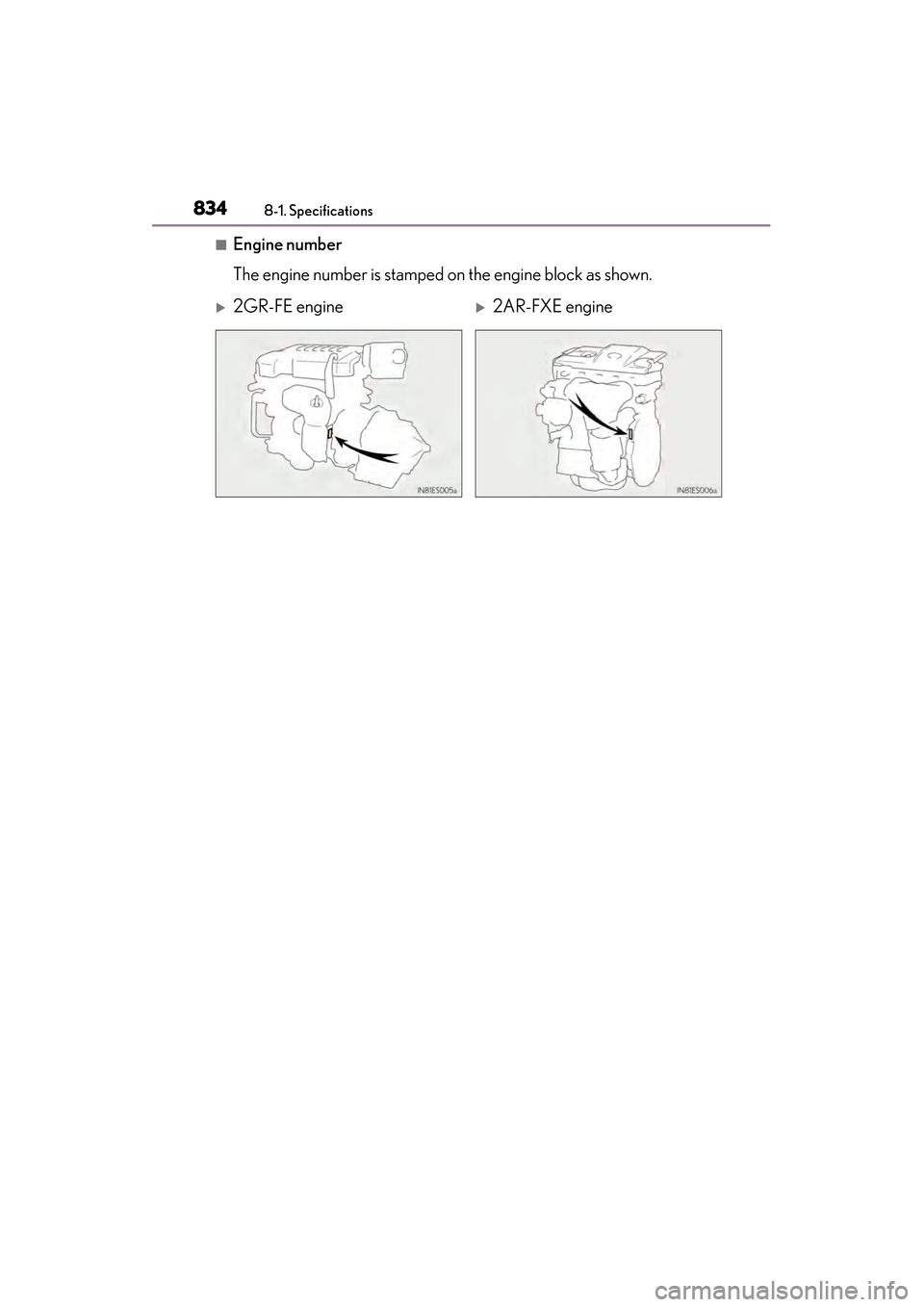

834
ES350_300h_OM_OM33A60U_(U)
8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
X2GR-FE engineX2AR-FXE engine

ES350_300h_OM_OM33A60U_(U)

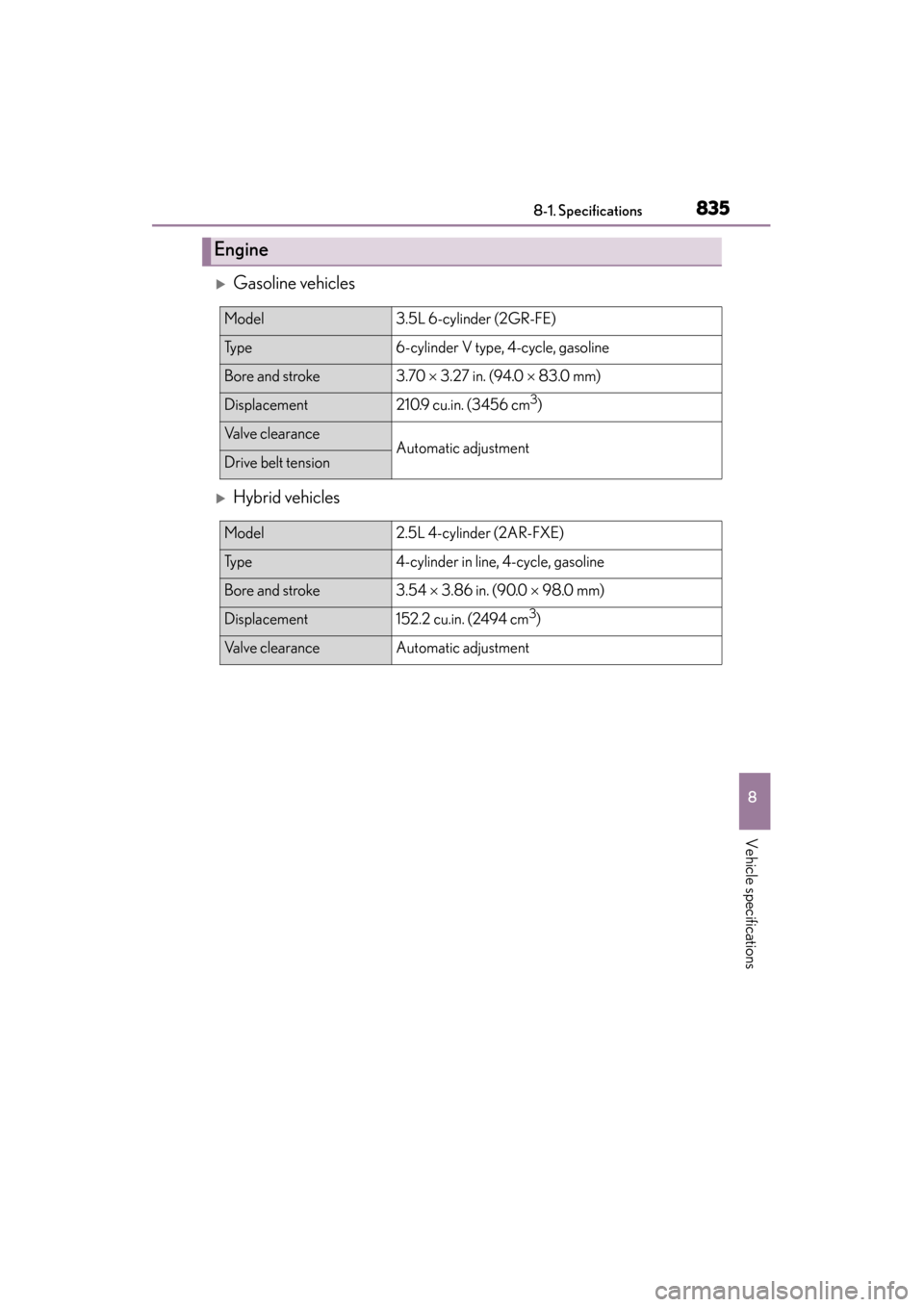

8358-1. Specifications
8
Vehicle specifications
XGasoline vehicles
XHybrid vehicles
Engine
Model3.5L 6-cylinder (2GR-FE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2.5L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54 × 3.86 in. (90.0 × 98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Valve clearanceAutomatic adjustment

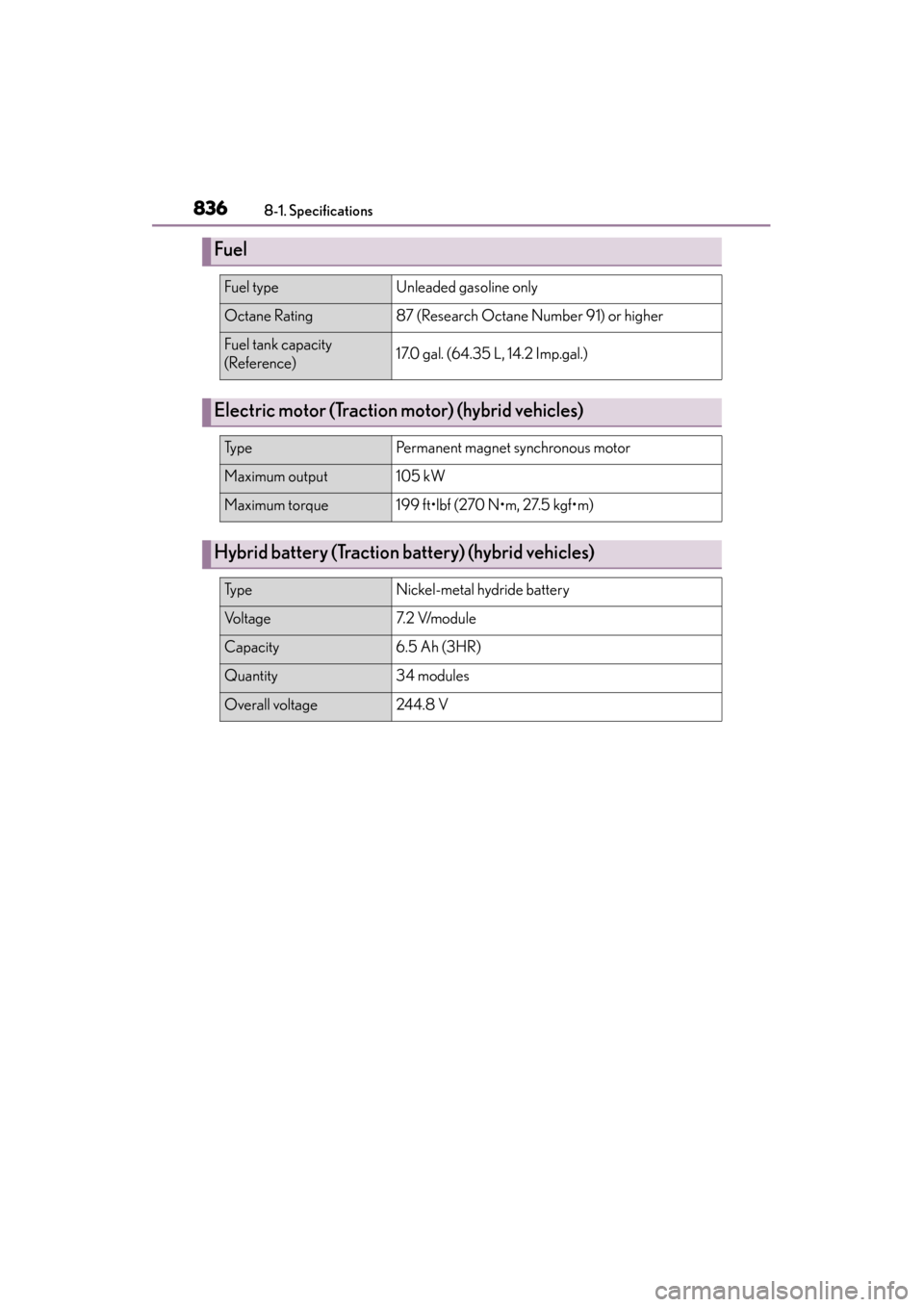

836
ES350_300h_OM_OM33A60U_(U)
8-1. Specifications
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp.gal.)
Electric motor (Traction motor) (hybrid vehicles)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Hybrid battery (Traction battery) (hybrid vehicles)
Ty p eNickel-metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V

ES350_300h_OM_OM33A60U_(U)
8378-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine (Gasoline vehicles) or hybrid system
(Hybrid vehicles), wait more than 5 minutes, and check the oil level on the dip-
stick.
Lubrication system
Oil capacity
(Drain and refill  reference
*)
Wi t h f il te rXGasoline vehicles
6.4 qt. (6.1 L, 5.4 Imp.qt.)
XHybrid vehicles
4.6 qt. (4.4 L, 3.9 Imp.qt.)
Wi t h o u t fi lt erXGasoline vehicles
6.0 qt. (5.7 L, 5.0 Imp.qt.)
XHybrid vehicles
4.2 qt. (4.0 L, 3.5 Imp.qt.)

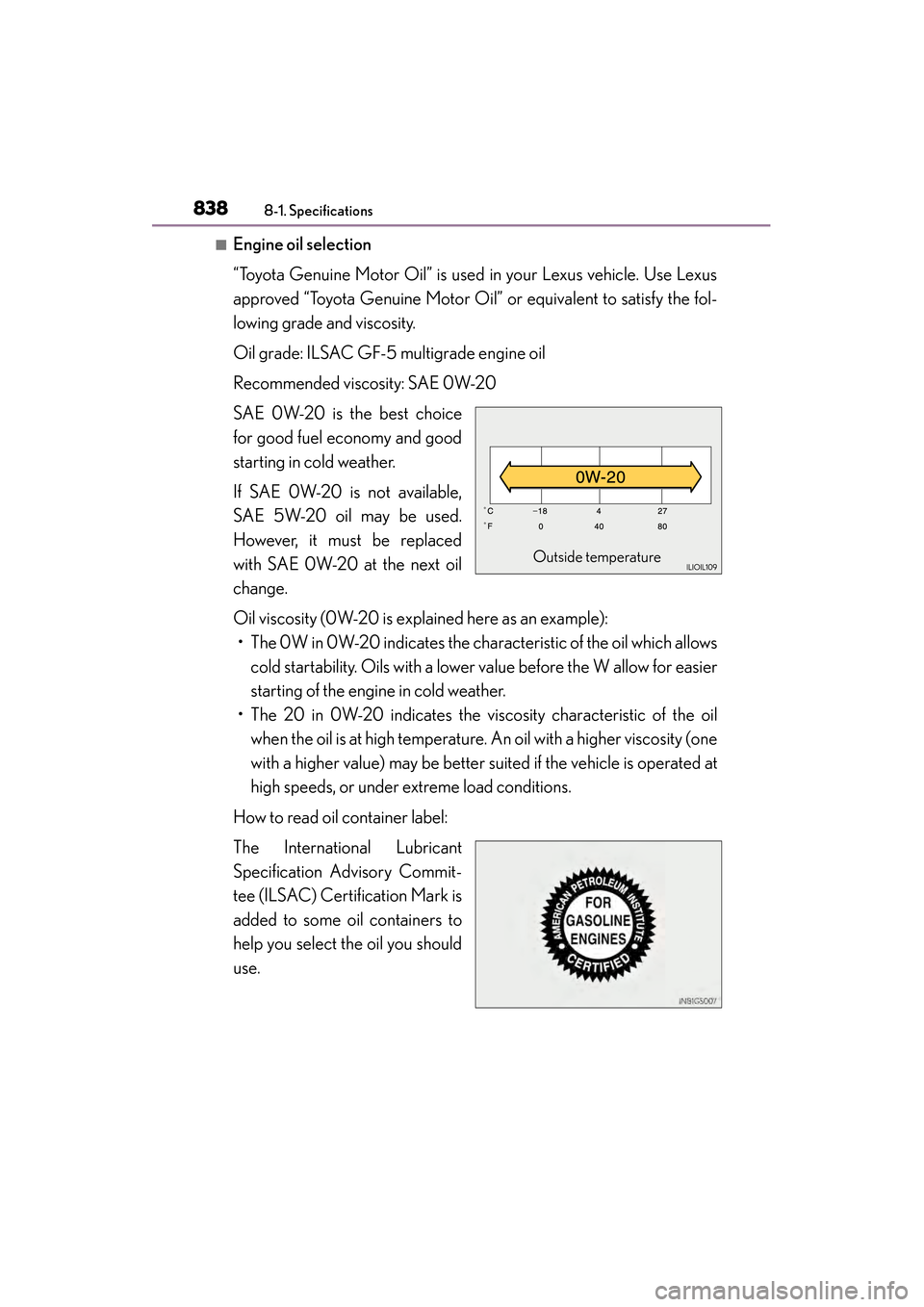

838
ES350_300h_OM_OM33A60U_(U)
8-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature

ES350_300h_OM_OM33A60U_(U)
8398-1. Specifications
8
Vehicle specifications
XGasoline vehicles
XHybrid vehicles
Cooling system
Capacity9.7 qt. (9.2 L, 8.1 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Capacity
Gasoline
engine 7.6 qt. (7.2 L, 6.3 Imp.qt.)
Po w e r
control unit3.4 qt. (3.2 L, 2.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
