Tire initialization Lexus ES300h 2014 Owner's Manual

704
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance

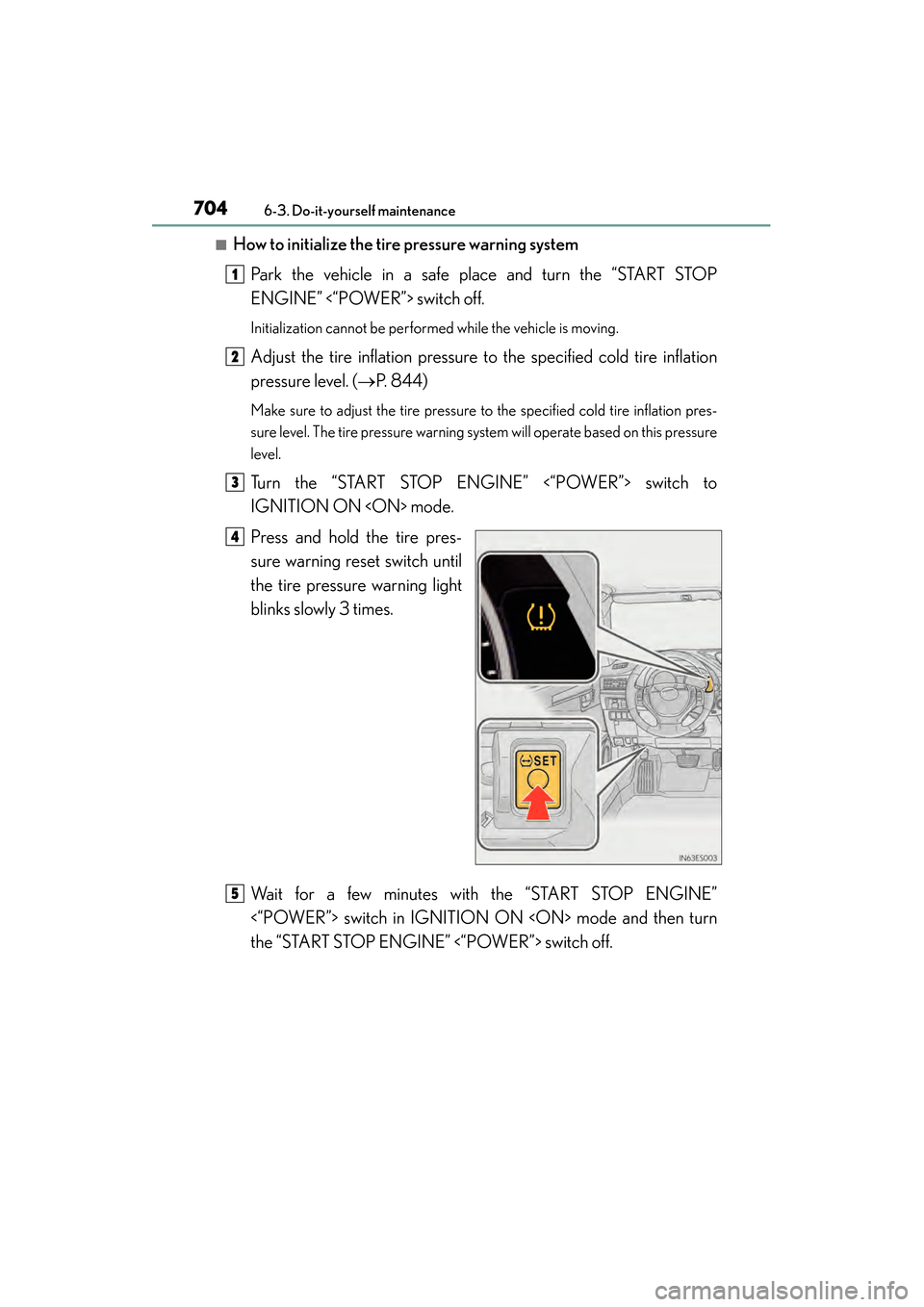

■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the “START STOP
ENGINE” <“POWER”> switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( →P. 844)
Make sure to adjust the tire pressure to the specified cold tire inflation pres-
sure level. The tire pressure warning system will operate based on this pressure
level.
Turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode.
Press and hold the tire pres-
sure warning reset switch until
the tire pressure warning light
blinks slowly 3 times.
Wait for a few minutes with the “START STOP ENGINE”
<“POWER”> switch in IGNITION ON mode and then turn
the “START STOP ENGINE” <“POWER”> switch off.
1
2
3
4
5

708
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the “START STOP ENGINE” <“POWER”> switch
off during initialization, it is not necessary to press the reset switch again as initial-
ization will restart automatically when the “START STOP ENGINE” <“POWER”>
switch has been turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.

905Alphabetical index
ES350_300h_OM_OM33A60U_(U)
I/M test ..................................................... 672
IdentificationEngine..................................................... 834
Vehicle ................................................... 833
Ignition switch (“POWER”
switch) .................................................... 208
Ignition switch (“START STOP
ENGINE” switch) .............................. 201
Illuminated entry system ......................613
Immobilizer system.........................82, 84
Indicators .................................................... 93
Initialization Maintenance........................................ 666
Tire pressure warning system................................703
Initiators (tire pressure warning system)...................................710
Inside rear view mirror ........................ 168
Instrument panel light control ............ 96
Interior light................................................ 611
Intuitive parking assist Function .................................................. 275
Warning message ................... 771, 778 Jack
Positioning a floor jack....................678
Vehicle-equipped jack ................... 793
Jack handle ................................................. 793
Jam protection function
Moon roof ............................................... 179
Power trunk opener and closer ............................................149
Power windows.................................... 175
Keyless entry Smart access system
with push-button start.................... 125
Wireless remote control..................139
Keys Battery-saving function ......................131
Electronic key ........................................ 122
Engine switch ........................... 201, 208
If the electronic key does not operate properly......... 810
Key number plate ................................ 122
Keyless entry ............................... 125, 139
Mechanical key..................................... 122
“Power” switch ....................................208
Replacing the battery ........................ 719
“START STOP ENGINE” switch .....................................................201
Warning buzzer ................................... 129
Wireless remote control key .........139
Knee airbags ............................................. 38
IJ
K
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
