TABLE OF CONTENTS6
ES350_300h_OM_OM33A60U_(U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior ................658
Cleaning and protecting the vehicle interior.................. 662
6-2. Maintenance Maintenance requirements ............................ 665
General maintenance.............. 668
Emission inspection and maintenance (I/M)
programs .....................................672
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................673
Hood ................................................ 677
Positioning a floor jack..............678
Engine compartment ................ 681
12-volt battery (hybrid vehicles) ...................... 698
Tires.................................................. 702
Tire inflation pressure ................. 712
Wheels .............................................715
Air conditioning filter ................. 717
Electronic key battery................ 719
Checking and replacing fuses................................................ 721
Light bulbs .....................................733 7-1. Essential information
Emergency flashers ...................748
If your vehicle has to be stopped in an emergency..... 749
7-2. Steps to take in an emergency If your vehicle needs to be towed.................................. 751
If you think something is wrong ................. 757
Fuel pump shut off system (gasoline vehicles) .................. 758
If a warning light turns on or a warning buzzer sounds......759
If a warning message is displayed ................................. 769
If you have a flat tire ...................792
If the engine will not start (gasoline vehicles) ..................805
If the hybrid system will not start (hybrid vehicles)............ 807
If the shift lever cannot be shifted from P .....................809
If the electronic key does not operate properly ...................... 810
6Maintenance and care7When trouble arises

ES350_300h_OM_OM33A60U_(U)
3555-2. Using the air conditioning system and defogger
5
Interior features
Adjusting driver’s side tempera-
ture setting
Adjusting passenger’s side tem-
perature setting
Adjusting the fan speed
Selecting air outlet mode
Cooling and dehumidification
function on/off
Dual mode on/off
Micro dust and pollen filter on/off
Windshield wiper de-icer on/off
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press or select of the “TEMP” to increase the temperature
and or to decrease the temperature.
When is selected (the indicator on is on) or the passenger’s side
temperature control button is pressed, the temperature for the driver and passen-
ger seats can be adjusted separately.
Automatic air conditioning system control screen
1
2
3
4
5
6
7
8
Using the automatic air conditioning system
1
2

ES350_300h_OM_OM33A60U_(U)

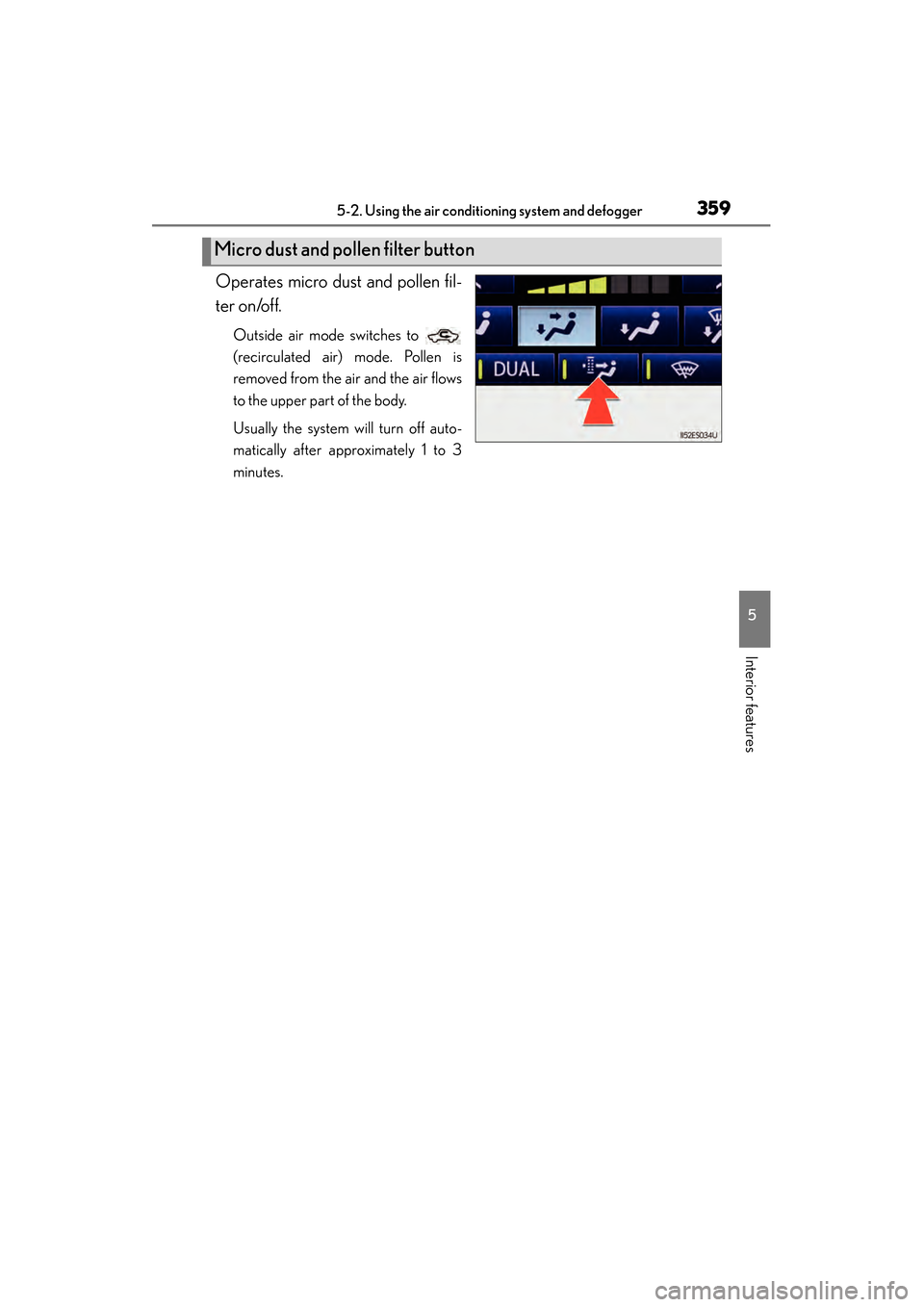

3595-2. Using the air conditioning system and defogger
5
Interior features
Operates micro dust and pollen fil-
ter on/off.
Outside air mode switches to
(recirculated air) mode. Pollen is
removed from the air and the air flows
to the upper part of the body.
Usually the system will turn off auto-
matically after approximately 1 to 3
minutes.
Micro dust and pollen filter button

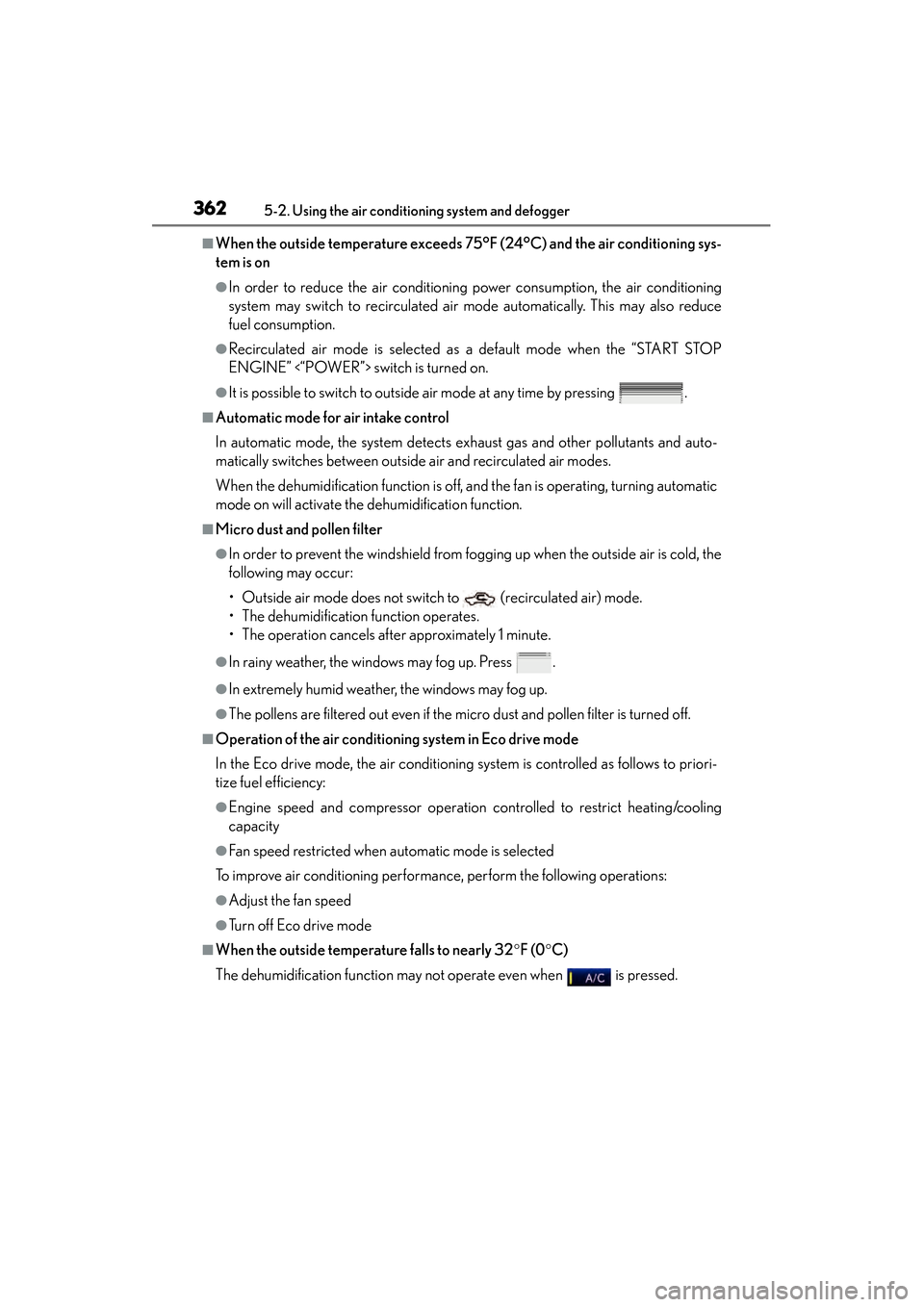

362
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
■When the outside temperature exceeds 75°F (24°C) and the air conditioning sys-
tem is on
●In order to reduce the air conditioning power consumption, the air conditioning
system may switch to recirculated air mode automatically. This may also reduce
fuel consumption.
●Recirculated air mode is selected as a default mode when the “START STOP
ENGINE” <“POWER”> switch is turned on.
●It is possible to switch to outside air mode at any time by pressing .
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is cold, the
following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the micro dust and pollen filter is turned off.
■Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling
capacity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode
■When the outside temperature falls to nearly 32 °F (0 °C)
The dehumidification function may not operate even when is pressed.

ES350_300h_OM_OM33A60U_(U)

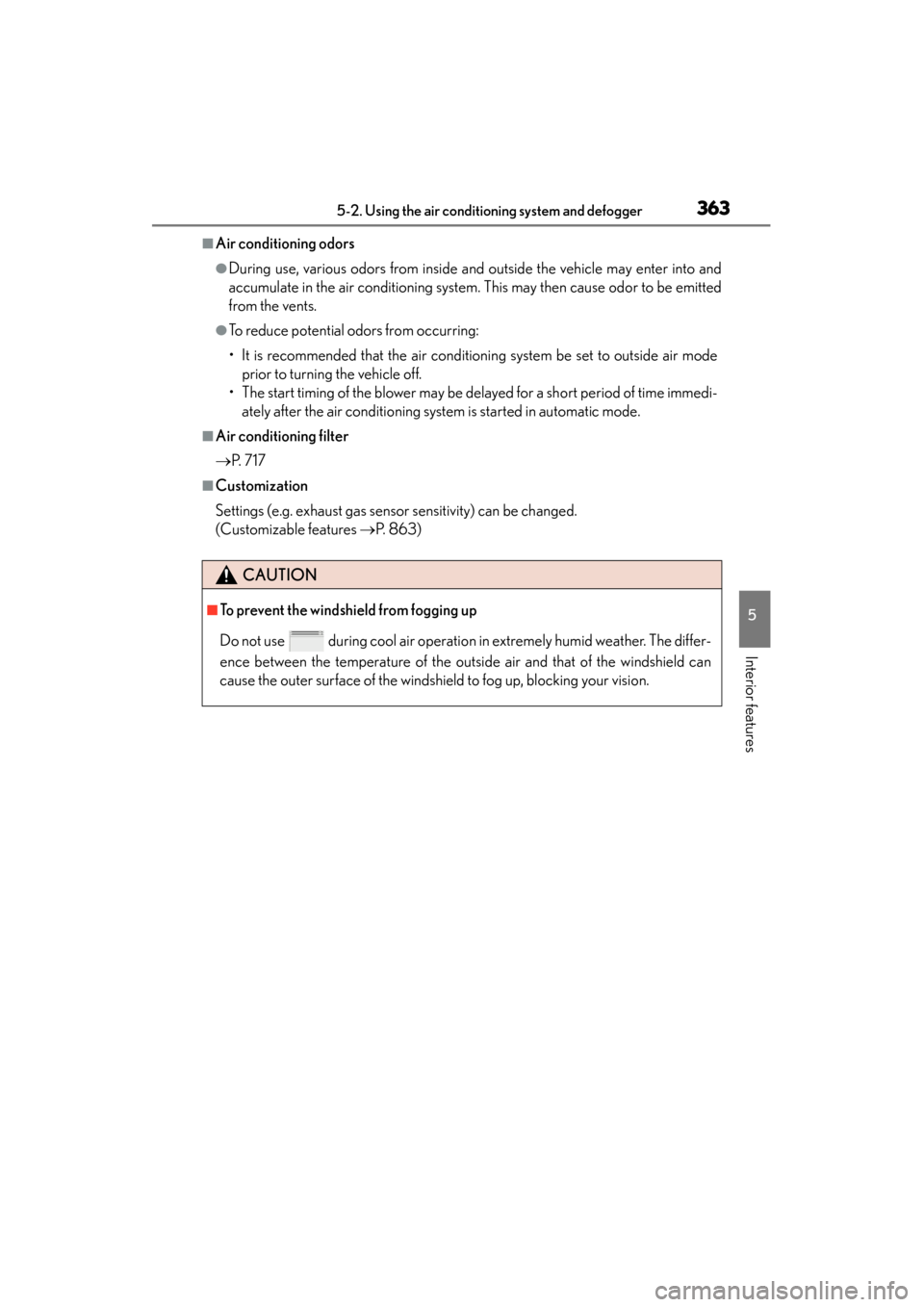

3635-2. Using the air conditioning system and defogger
5
Interior features
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air modeprior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 7 1 7
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features →P. 8 6 3 )
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.

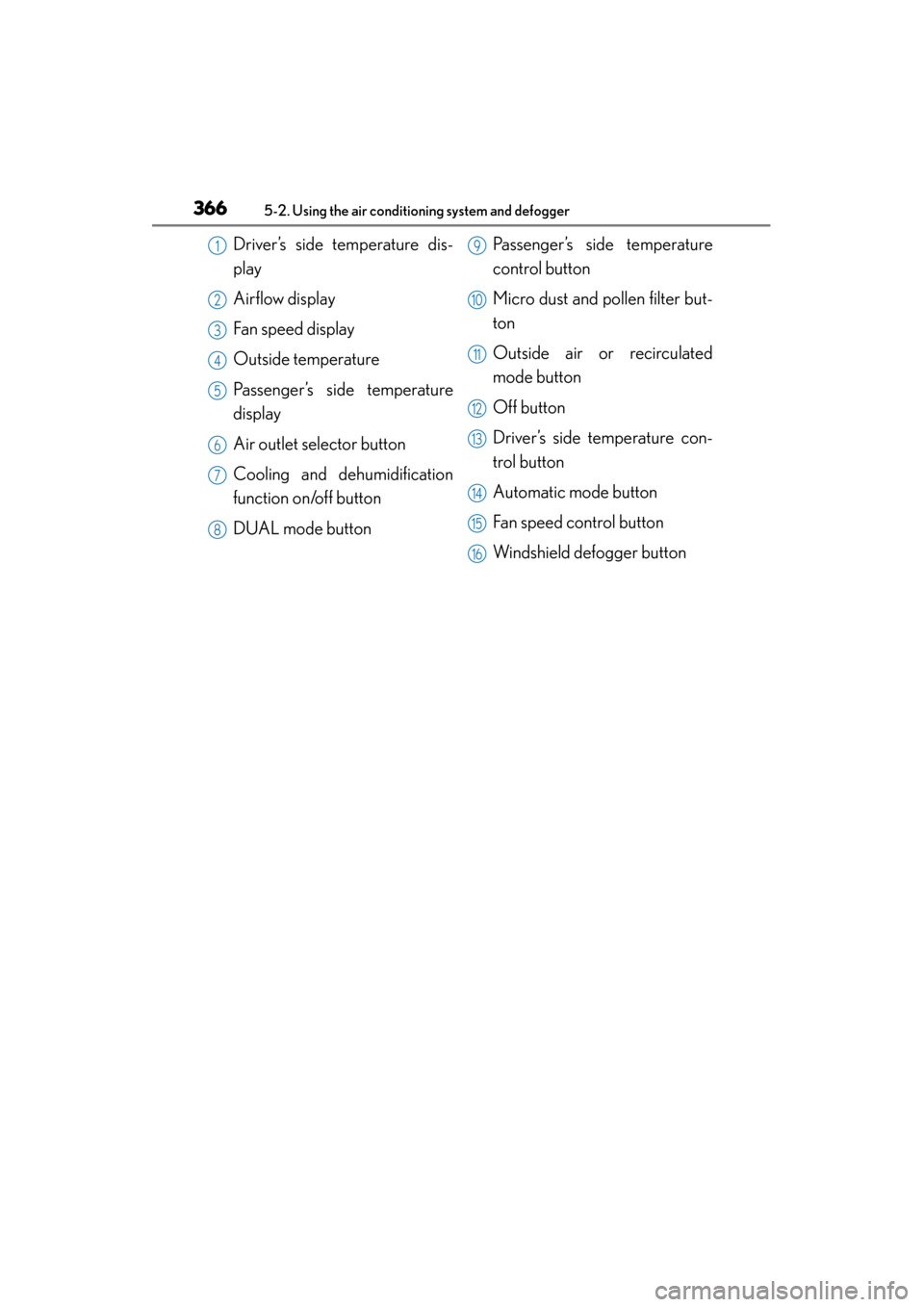

366
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
Driver’s side temperature dis-
play
Airflow display
Fan speed display
Outside temperature
Passenger’s side temperature
display
Air outlet selector button
Cooling and dehumidification
function on/off button
DUAL mode button Passenger’s side temperature
control button
Micro dust and pollen filter but-
ton
Outside air or recirculated
mode button
Off button
Driver’s side temperature con-
trol button
Automatic mode button
Fan speed control button
Windshield defogger button1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

ES350_300h_OM_OM33A60U_(U)

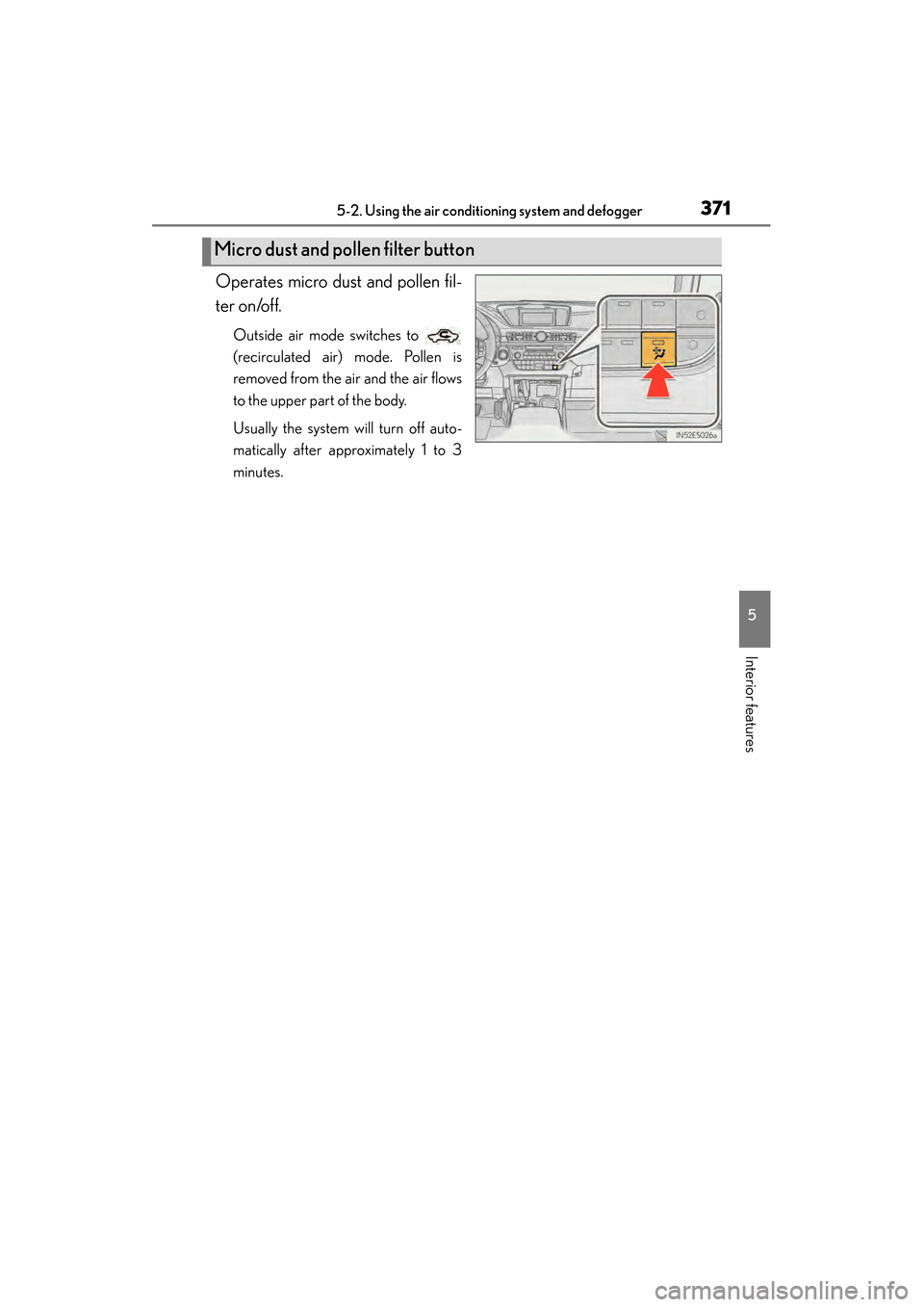

3715-2. Using the air conditioning system and defogger
5
Interior features
Operates micro dust and pollen fil-
ter on/off.
Outside air mode switches to
(recirculated air) mode. Pollen is
removed from the air and the air flows
to the upper part of the body.
Usually the system will turn off auto-
matically after approximately 1 to 3
minutes.
Micro dust and pollen filter button

ES350_300h_OM_OM33A60U_(U)

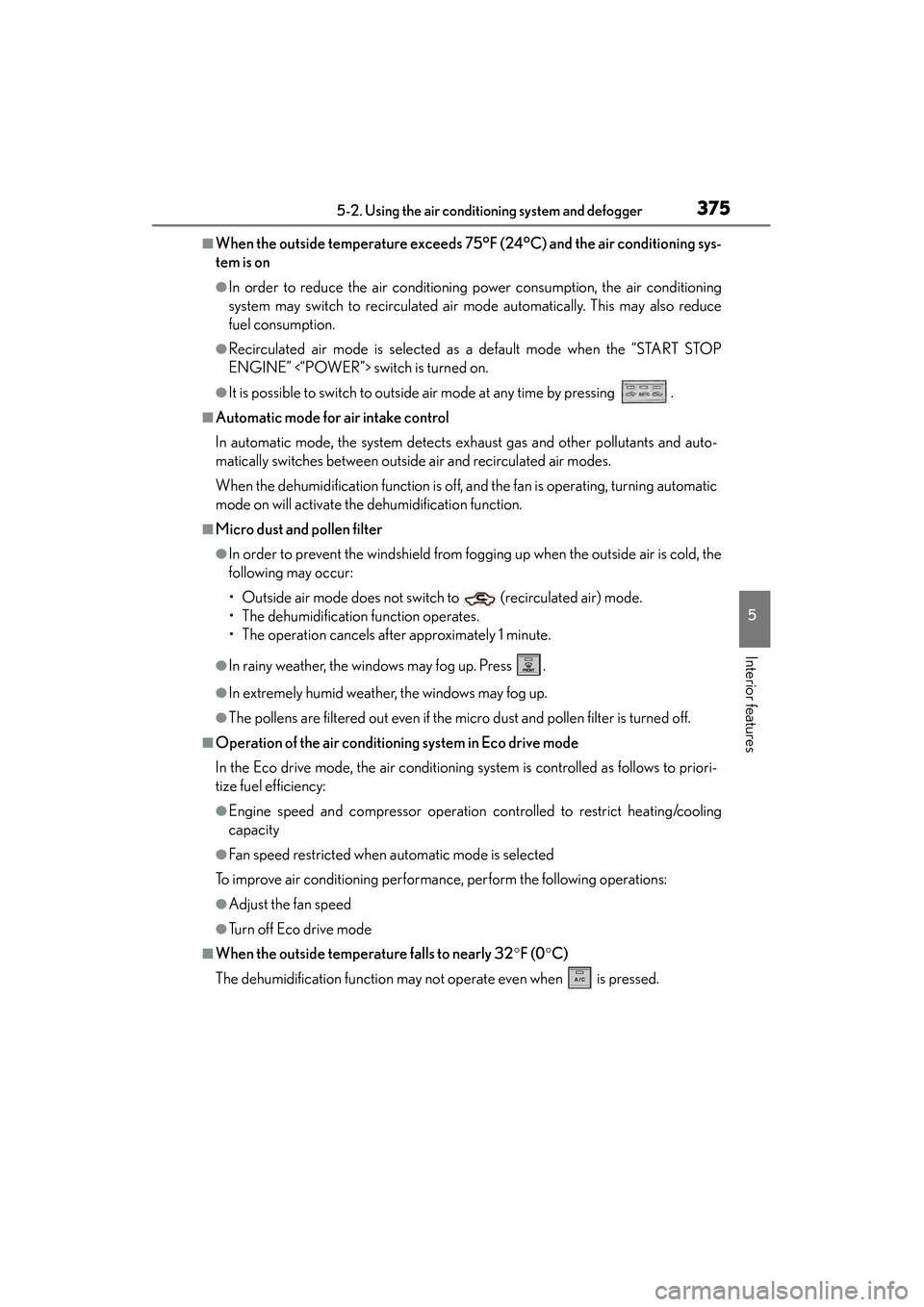

3755-2. Using the air conditioning system and defogger
5
Interior features
■When the outside temperature exceeds 75°F (24°C) and the air conditioning sys-
tem is on
●In order to reduce the air conditioning power consumption, the air conditioning
system may switch to recirculated air mode automatically. This may also reduce
fuel consumption.
●Recirculated air mode is selected as a default mode when the “START STOP
ENGINE” <“POWER”> switch is turned on.
●It is possible to switch to outside air mode at any time by pressing .
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is cold, the
following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the micro dust and pollen filter is turned off.
■Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling
capacity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode
■When the outside temperature falls to nearly 32 °F (0 °C)
The dehumidification function may not operate even when is pressed.

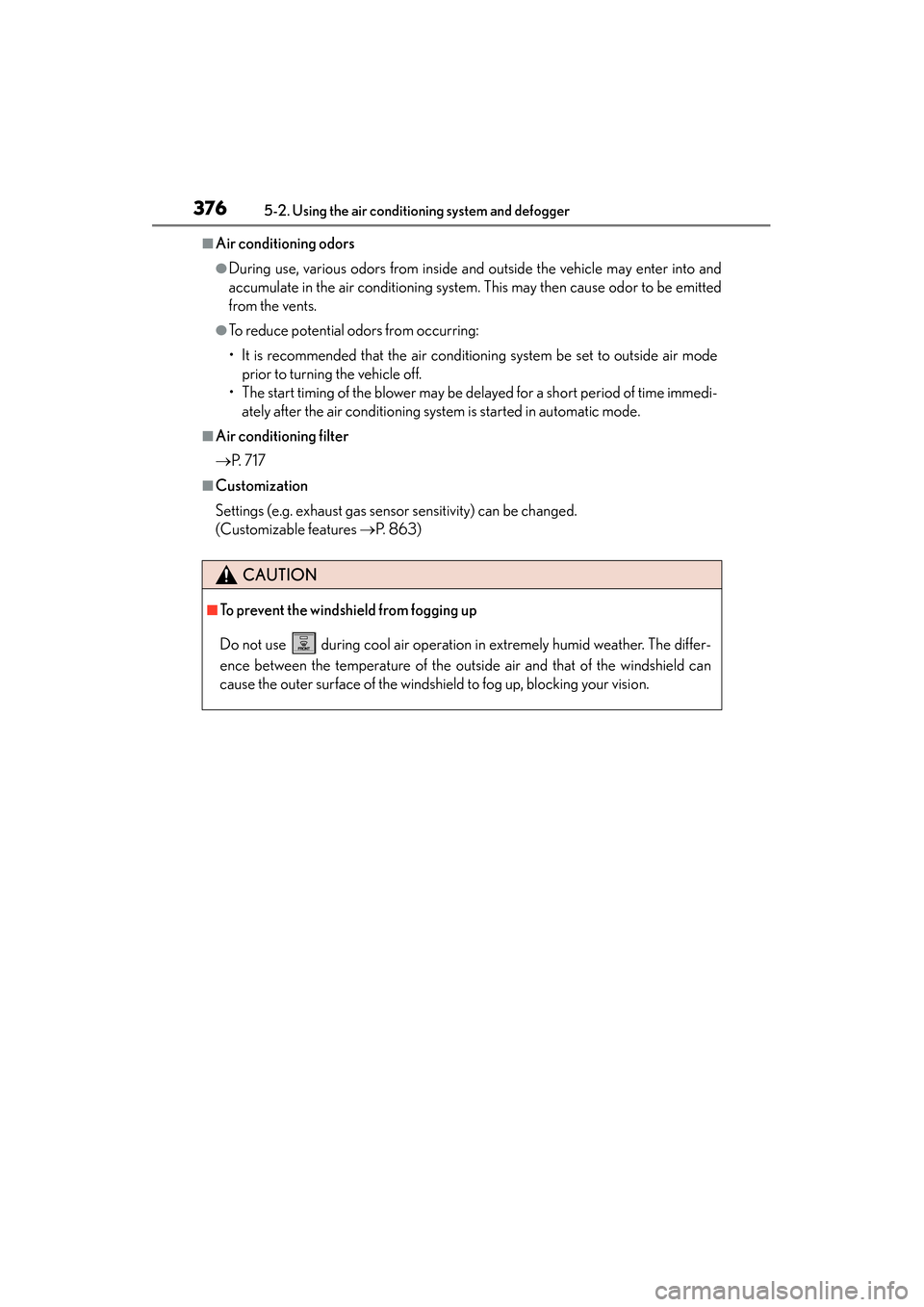

376
ES350_300h_OM_OM33A60U_(U)
5-2. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air modeprior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 7 1 7
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features →P. 8 6 3 )
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.

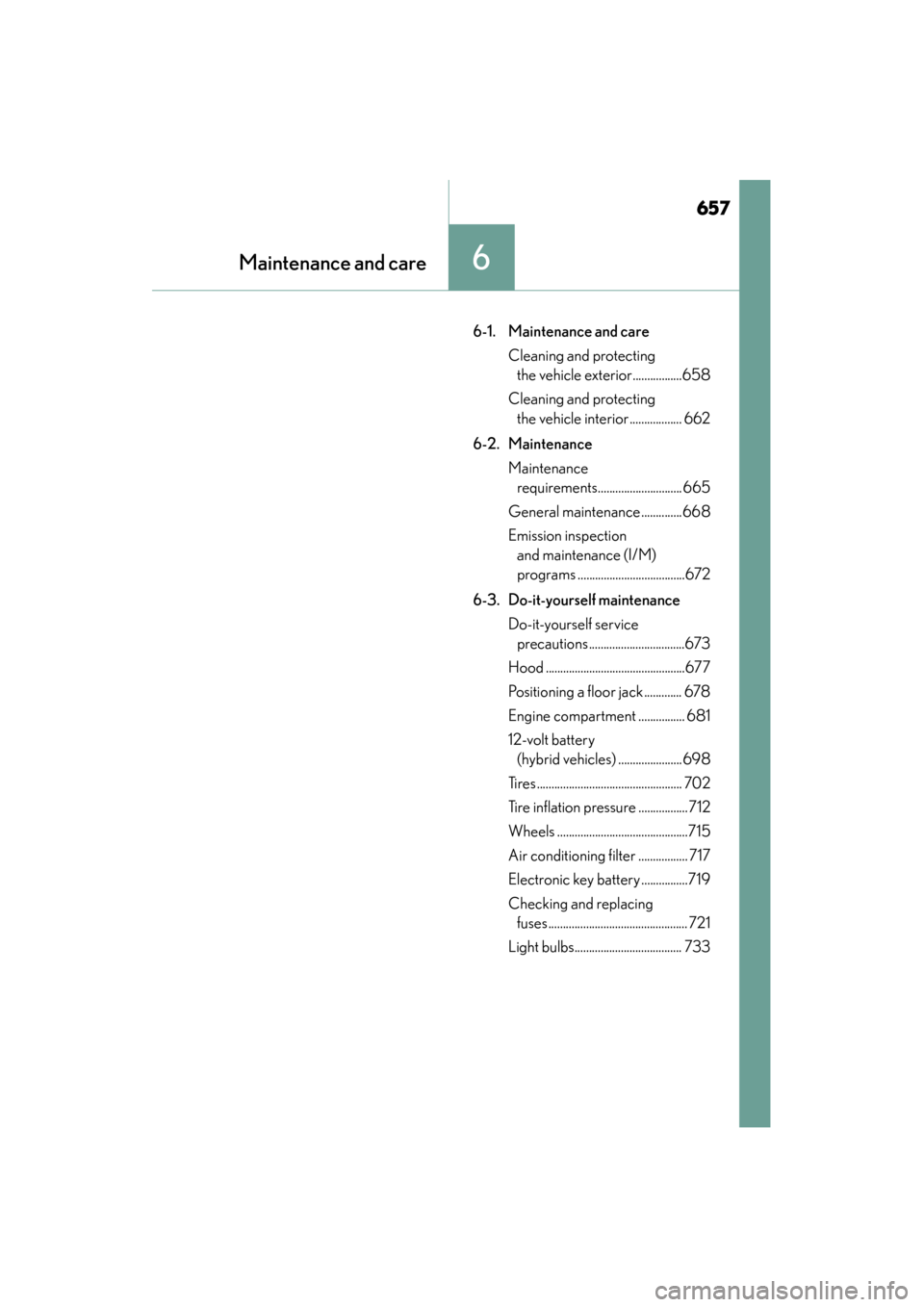

657
ES350_300h_OM_OM33A60U_(U)
6Maintenance and care
6-1. Maintenance and careCleaning and protecting the vehicle exterior.................658
Cleaning and protecting the vehicle interior .................. 662
6-2. Maintenance Maintenance requirements............................. 665
General maintenance ..............668
Emission inspection and maintenance (I/M)
programs .....................................672
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................673
Hood ................................................677
Positioning a floor jack ............. 678
Engine compartment ................ 681
12-volt battery (hybrid vehicles) ......................698
Tires.................................................. 702
Tire inflation pressure .................712
Wheels .............................................715
Air conditioning filter ................. 717
Electronic key battery ................719
Checking and replacing fuses................................................ 721
Light bulbs..................................... 733
