display Lexus ES300h 2014 Owner's Manual

TABLE OF CONTENTS2
ES350_300h_OM_OM33A60U_(U)For your information ................................... 8
Reading this manual...................................14
How to search ..............................................15
Pictorial index ...............................................16
1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 50
Safety information for children ................................... 56
Child restraint systems ................57

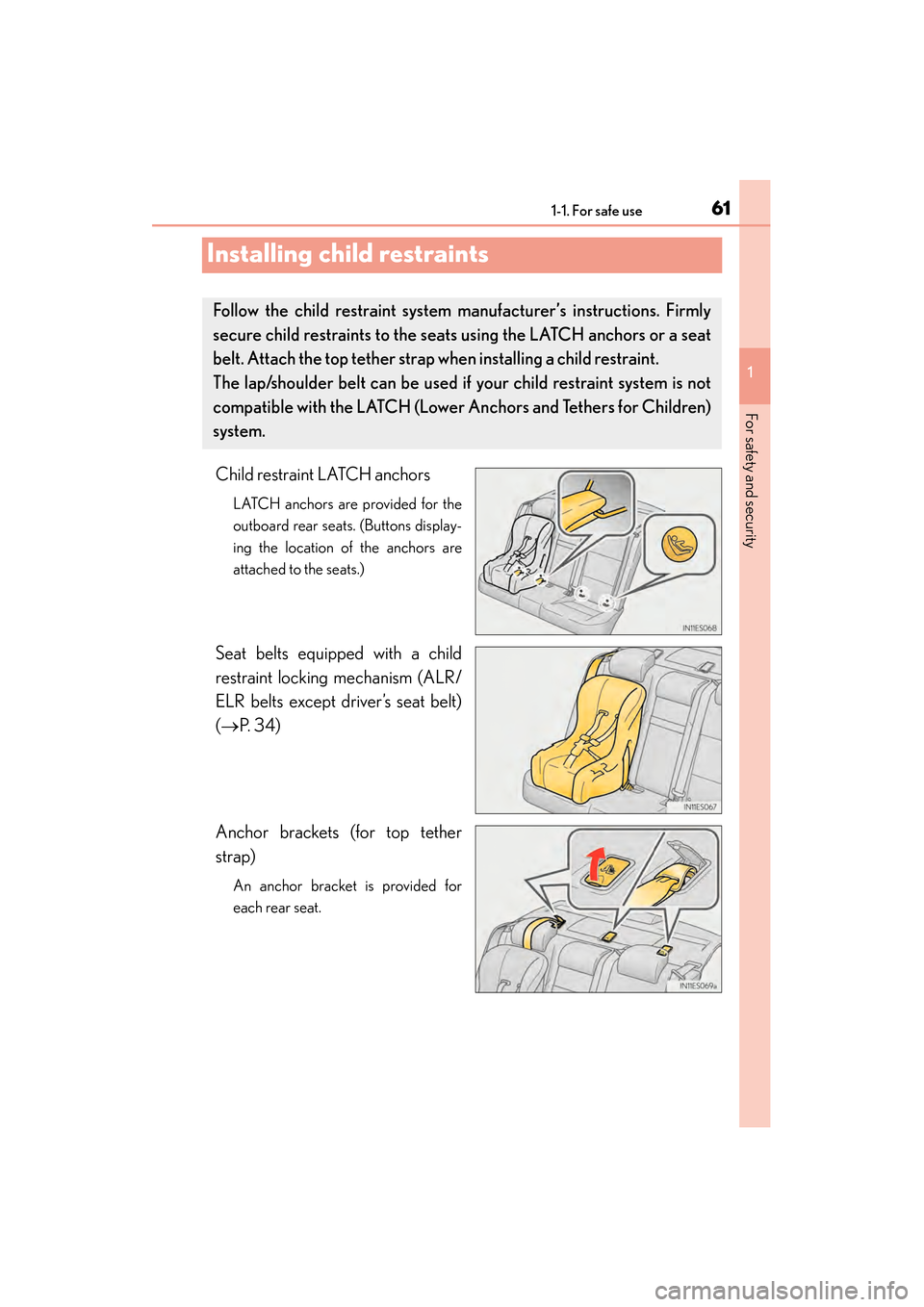

Installing child restraints............... 61
Exhaust gas precautions.............. 71
1-2. Hybrid system Hybrid system features (hybrid vehicles) ..........................72
Hybrid system precautions (hybrid vehicles) .......................... 76
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles)..................... 82
Immobilizer system (hybrid vehicles) ......................... 84
Alarm ................................................. 86 2. Instrument cluster
Warning lights and indicators .............................. 90
Gauges and meters ..................... 95
Multi-information display ........ 100
Energy monitor/ consumption screen .................110
3-1. Key information Keys ...................................................122
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .............125
Wireless remote control ...........139
Doors ................................................ 142
Trunk.................................................. 147
3-3. Adjusting the seats Front seats.......................................154
Driving position memory..........156
Head restraints ............................. 162
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................166
Inside rear view mirror ............. 168
Outside rear view mirrors......... 171
3-5. Opening, closing the windows and moon roof
Power windows ..............................174
Moon roof ....................................... 177
1For safety and security

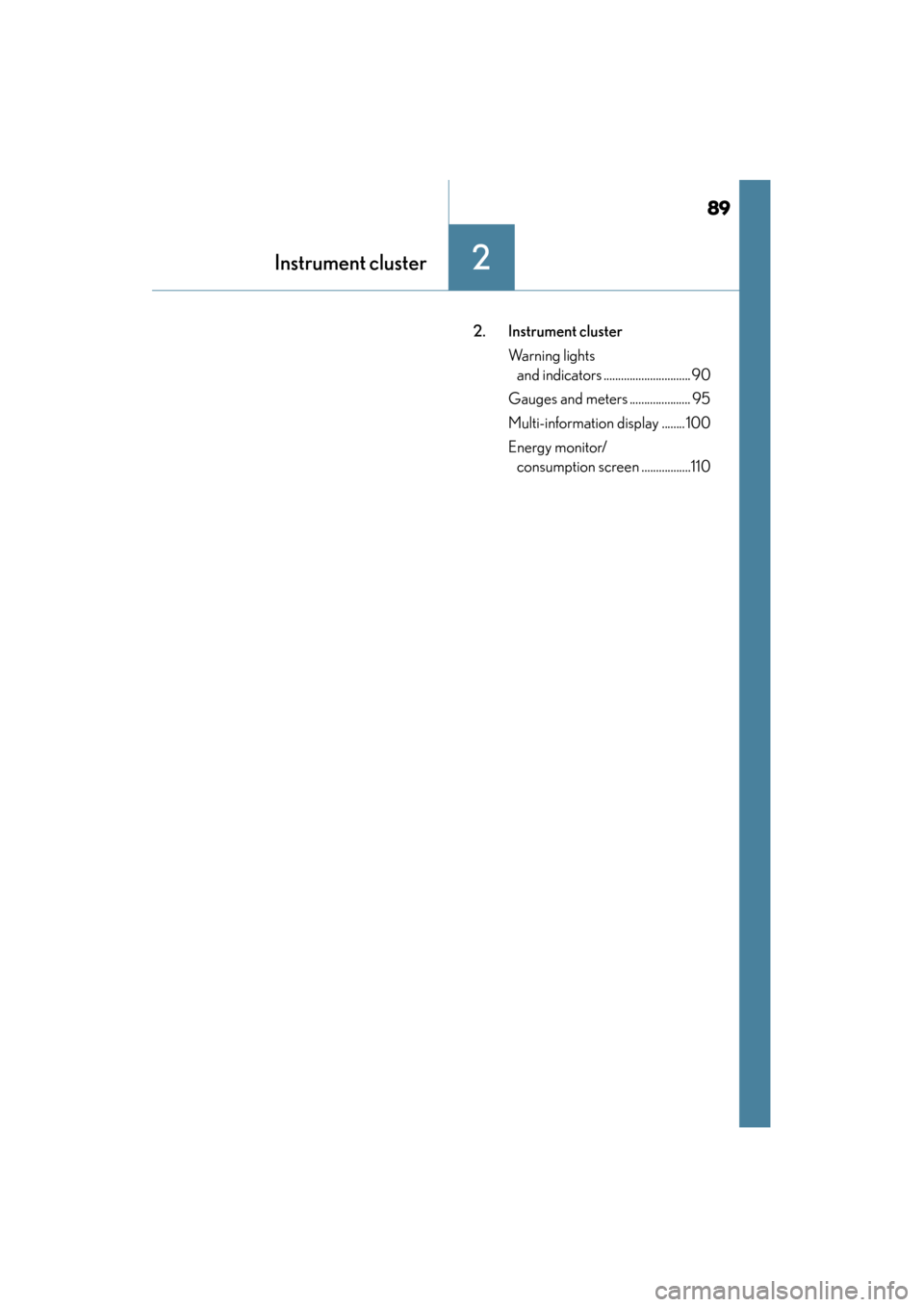

2Instrument cluster
3Operation of each
component

TABLE OF CONTENTS4
ES350_300h_OM_OM33A60U_(U)5-1. Lexus Display Audio system
Lexus Display Audio system .......................................... 338
Display settings........................... 343
Setup menu .................................. 345
Mobile Assistant...........................351
5-2. Using the air conditioning system and defogger
Automatic air conditioning system (with the Lexus
Display Audio system).......... 353
Automatic air conditioning system (without a navigation
system or the Lexus
Display Audio system).......... 365
Rear window and outside rear view mirror defoggers .......... 378
Windshield wiper de-icer.......380 5-3. Using the Lexus
Display Audio system
Audio system (with the Lexus Display Audio system).......... 382
Using the radio ...........................385
Using the CD player ................400
Playing an audio CD and MP3/WMA discs ................... 401
Listening to an iPod...................... 411
Listening to a USB memory ..........................419
Using the AUX port ................. 429
Listening to Bluetooth
® audio .....................431
Optimal use of the audio system ..................... 446
Using the steering wheel audio switches.......................... 448
Hands-free system (for cellular phone) .................. 451
Using the Bluetooth
®
phone ........................................... 459
Setting the hands-free system ...........................................478
Bluetooth
® settings ....................491
5Interior features

5
1
8 7
6
5
4
3
2
ES350_300h_OM_OM33A60U_(U)
9
5-4. Using the audio systemAudio system (without a navigation system or
the Lexus Display
Audio system) ..........................500
Using the radio ...........................503
Using the CD player ..................512
Playing MP3 and WMA discs .................................521
Operating an iPod..................... 529
Operating a USB memory .... 539
Bluetooth
® audio system ....... 548
Using the Bluetooth
®
audio system ............................. 552
Operating a Bluetooth
®
enabled portable player....... 557
Setting up a Bluetooth
®
enabled portable player......... 561
Bluetooth
® audio
system setup .............................568
Optimal use of the audio system ............................. 569
Using the AUX port ................... 571
Using the steering wheel audio switches...........................573
Hands-free system (for cellular phone) ................. 576
Using the hands-free system (for cellular phones) ............... 581
Making a phone call .................589
Setting a cellular phone .......... 593
Security and system setup......598
Using the phone book ............. 603 5-5. Using the interior lights
Interior lights list ............................ 611• Interior light.............................. 612
• Personal lights ......................... 612
5-6. Using the storage features List of storage features .............. 614• Glove box ................................. 616
• Console box ............................ 617
• Cup holders .............................618
• Auxiliary box............................ 619
Trunk features .............................. 620
5-7. Other interior features Sun visors and vanity mirrors ....................622
Clock .............................................. 623
Power outlets ................................624
Heated steering wheel .............626
Seat heaters and ventilators................................... 628
Armrest.......................................... 630
Rear sunshade/ rear door sunshades................631
Trunk storage extension .......... 634
Coat hooks ................................... 635
Assist grips ................................... 636
Garage door opener ................637
Compass ....................................... 644
Safety Connect........................... 649

TABLE OF CONTENTS6
ES350_300h_OM_OM33A60U_(U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior ................658
Cleaning and protecting the vehicle interior.................. 662
6-2. Maintenance Maintenance requirements ............................ 665
General maintenance.............. 668
Emission inspection and maintenance (I/M)
programs .....................................672
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................673
Hood ................................................ 677
Positioning a floor jack..............678
Engine compartment ................ 681
12-volt battery (hybrid vehicles) ...................... 698
Tires.................................................. 702
Tire inflation pressure ................. 712
Wheels .............................................715
Air conditioning filter ................. 717
Electronic key battery................ 719
Checking and replacing fuses................................................ 721
Light bulbs .....................................733 7-1. Essential information
Emergency flashers ...................748
If your vehicle has to be stopped in an emergency..... 749
7-2. Steps to take in an emergency If your vehicle needs to be towed.................................. 751
If you think something is wrong ................. 757
Fuel pump shut off system (gasoline vehicles) .................. 758
If a warning light turns on or a warning buzzer sounds......759
If a warning message is displayed ................................. 769
If you have a flat tire ...................792
If the engine will not start (gasoline vehicles) ..................805
If the hybrid system will not start (hybrid vehicles)............ 807
If the shift lever cannot be shifted from P .....................809
If the electronic key does not operate properly ...................... 810
6Maintenance and care7When trouble arises

19Pictorial index
ES350_300h_OM_OM33A60U_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. P. 100
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . P. 769
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 331
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 769
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . P. 228
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 238
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 239
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 782
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 748
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 836
Trunk opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 4 7
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
Tilt and telescopic steering control switch
* . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 166
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 156
Tilt and telescopic steering lock release lever
* . . . . . . . . . . . . . . . . . . . . . P. 166
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 166
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353, 365
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353, 3 65
Rear window and outside rear view mirror defoggers . . . . . . . . . . . . . . . P. 378
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382, 500
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 451, 576
*: If equipped
4
5
6
7
8
9
10
11
12
13
14
15

23Pictorial index
ES350_300h_OM_OM33A60U_(U)Seat heater and ventilator switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Heated steering wheel switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 626
Rear sunshade switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 631
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 300
EV drive mode switch
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 215
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Remote Touch
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Lexus Display Audio controller
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111, 338
*1: Refer to “Navigation System Owner’s Manual”.
*2: If equipped
*3: Hybrid vehicles
1
2
3
4
5
6
7
8

611-1. For safe use
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
(→P. 3 4 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat
belt. Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not
compatible with the LATCH (Lower Anchors and Tethe rs for Children)
system.

771-2. Hybrid system
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
There is an air intake vent beside the
rear left seat for the purpose of
cooling the hybrid battery (traction
battery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the emer-
gency shut off system blocks off the high voltage current and stops the fuel
pump to minimize the risk of electrocution and fuel leakage. If the emer-
gency shut off system activates, your vehicle will not restart. To restart the
hybrid system, contact your Lexus dealer.
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the instruc-
tions.
( →P. 76 9 )
Hybrid battery (traction battery) air vent
Emergency shut off system
Hybrid warning message

781-2. Hybrid system
ES350_300h_OM_OM33A60U_(U)
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is
disconnected
The hybrid system may not start. In that case, try to start the system again. If the
“READY” indicator does not come on, contact your Lexus dealer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel
the vehicle with at least enough gasoline to make the low fuel level warning light
( → P. 762) go off. If there is only a small amount of fuel, the hybrid system may not be
able to start. (The minimum amount of fuel to add to make the low fuel level warning
light go out is about 3.0 gal. [11.3 L, 2.5 Imp.gal.], when the vehicle is on a level sur-
face. This value may vary when the vehicle is on a slope.)
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electromagnetic
shielding, and therefore emit approximately the same amount of electromagnetic
waves as conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio
parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.

89
ES350_300h_OM_OM33A60U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators .............................. 90
Gauges and meters ..................... 95
Multi-information display ........ 100
Energy monitor/ consumption screen .................110
