781-2. Hybrid system
ES350_300h_OM_OM33A60U_(U)
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is
disconnected
The hybrid system may not start. In that case, try to start the system again. If the
“READY” indicator does not come on, contact your Lexus dealer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel
the vehicle with at least enough gasoline to make the low fuel level warning light
( → P. 762) go off. If there is only a small amount of fuel, the hybrid system may not be
able to start. (The minimum amount of fuel to add to make the low fuel level warning
light go out is about 3.0 gal. [11.3 L, 2.5 Imp.gal.], when the vehicle is on a level sur-
face. This value may vary when the vehicle is on a slope.)
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electromagnetic
shielding, and therefore emit approximately the same amount of electromagnetic
waves as conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio
parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.

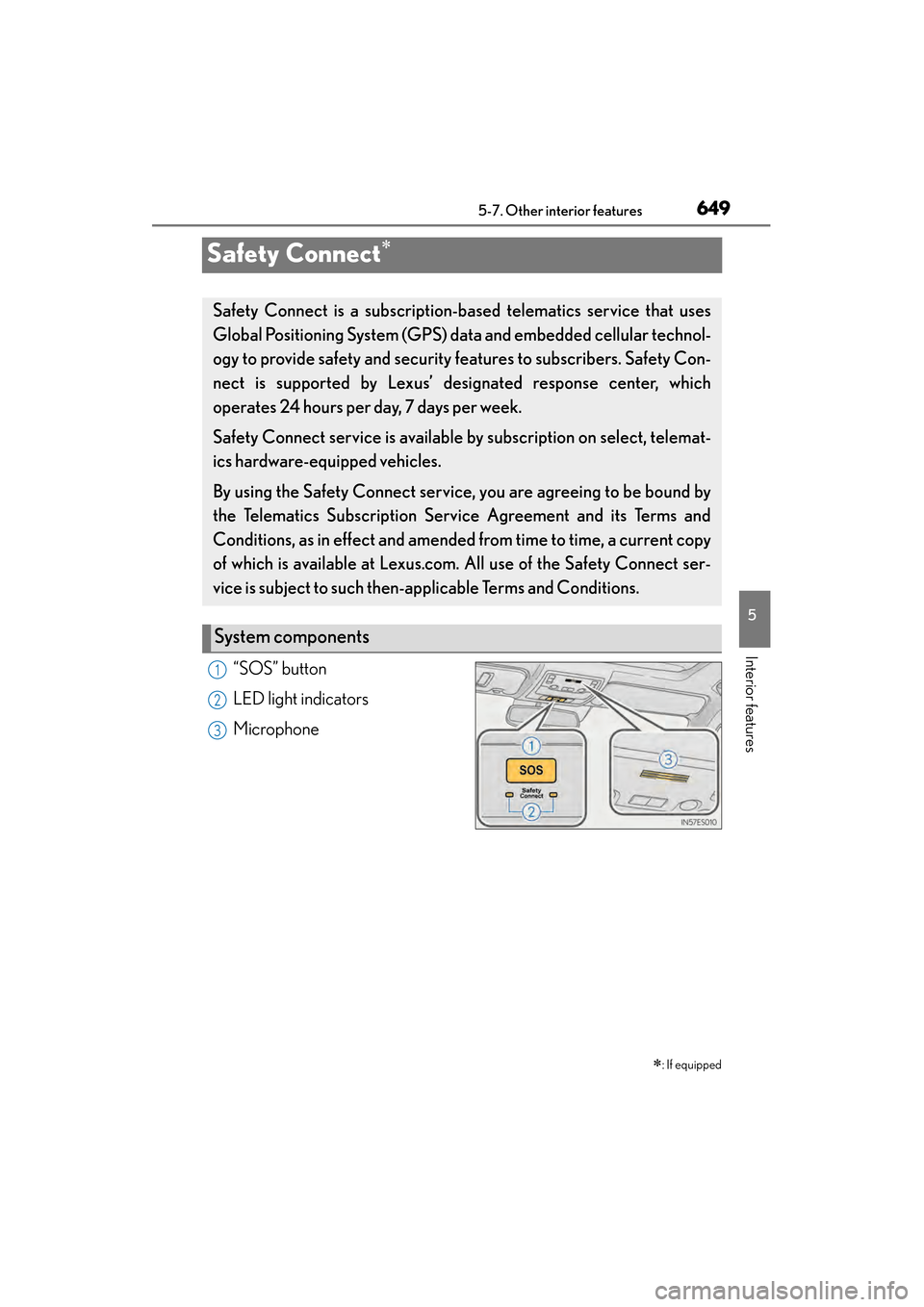

649
ES350_300h_OM_OM33A60U_(U)
5-7. Other interior features
5
Interior features
Safety Connect∗
“SOS” button
LED light indicators
Microphone∗
: If equipped
Safety Connect is a subscription-based telematics service that uses
Global Positioning System (GPS) data and embedded cellular technol-
ogy to provide safety and security features to subscribers. Safety Con-
nect is supported by Lexus’ de signated response center, which
operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telemat-
ics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by
the Telematics Subscription Ser vice Agreement and its Terms and
Conditions, as in effect and amended from time to time, a current copy
of which is available at Lexus.com. All use of the Safety Connect ser-
vice is subject to such then-app licable Terms and Conditions.
System components
1
2
3

652
ES350_300h_OM_OM33A60U_(U)
5-7. Other interior features
When the “START STOP ENGINE” <“POWER”> switch is turned to
IGNITION ON mode, the red indicator light comes on for 2 sec-
onds then turns off. Afterward, the green indicator light comes on, indicat-
ing that the service is active.
The following indicator light patterns indicate specific system usage con-
ditions:
●Green indicator light on = Active service
●Green indicator light flashing = Safety Connect call in process
●Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
●No indicator light (off) = Safety Connect service not active
■Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the occu-
pants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services pro-
vider to describe the situation, and requests that assistance be sent to
the location.
Safety Connect LED light Indicators
Safety Connect services

672

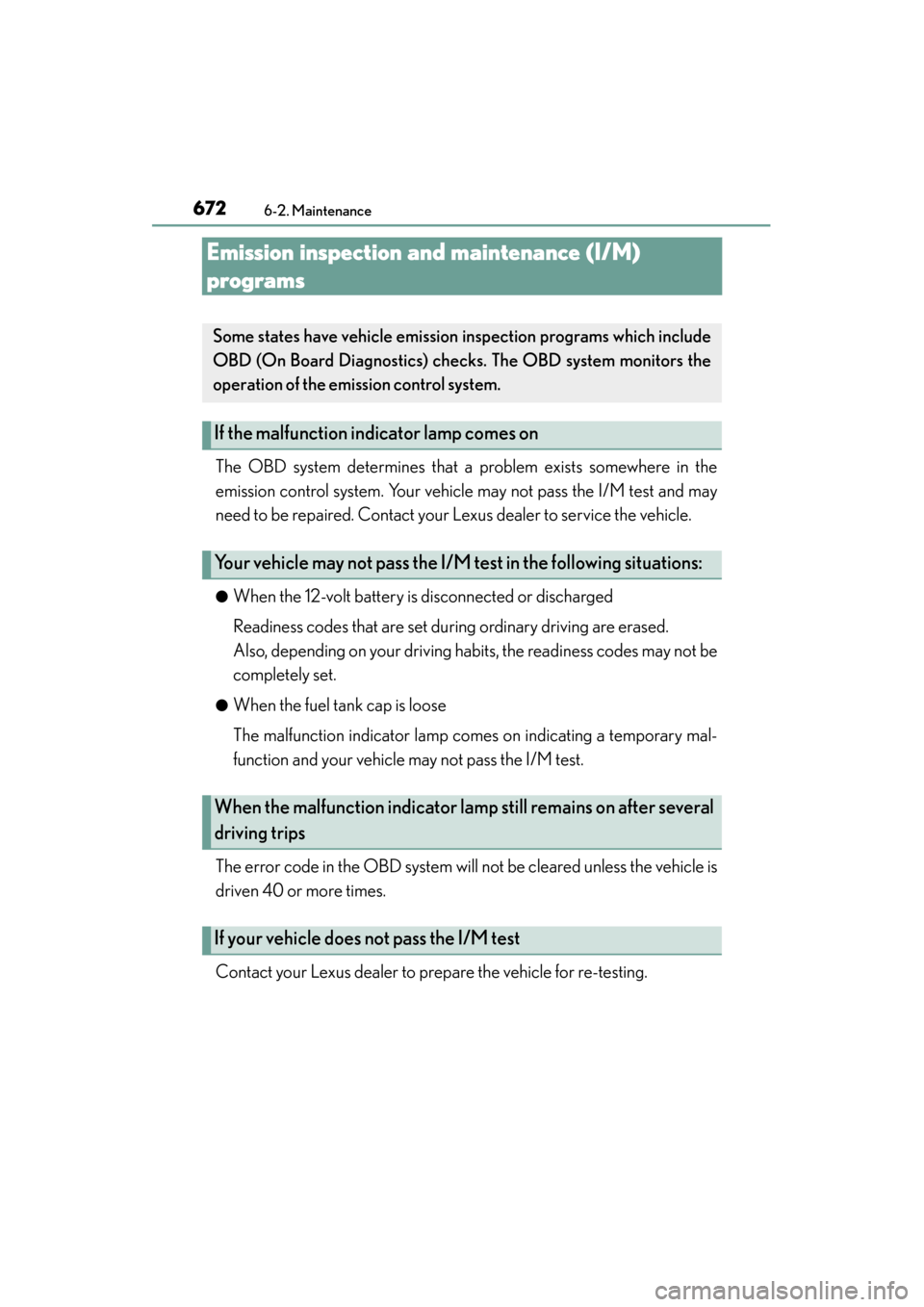

ES350_300h_OM_OM33A60U_(U)
6-2. Maintenance
Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and may
need to be repaired. Contact your Lexus dealer to service the vehicle.
●When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be
completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary mal-
function and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks . The OBD system monitors the
operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after several
driving trips
If your vehicle does not pass the I/M test

ES350_300h_OM_OM33A60U_(U)

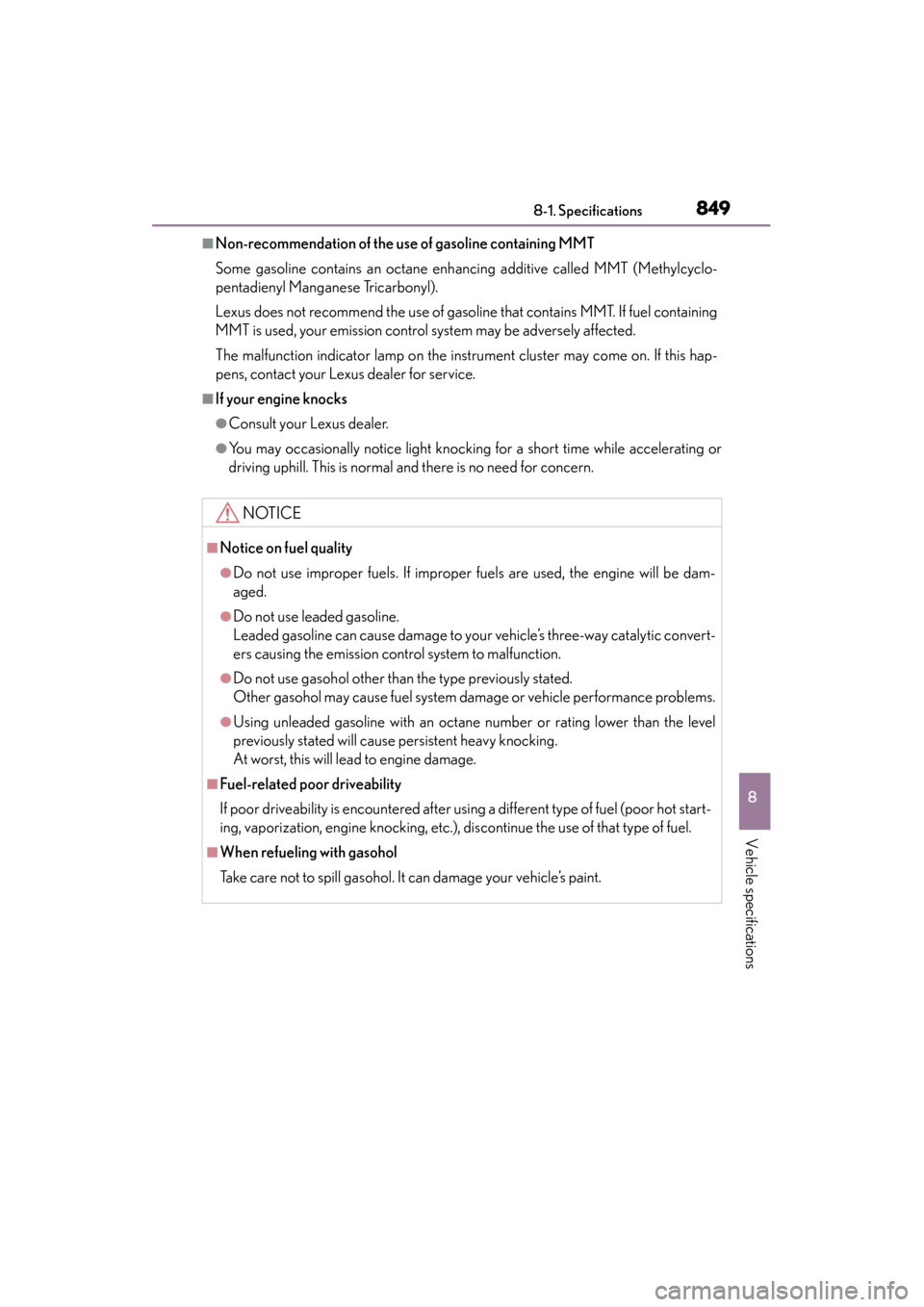

8498-1. Specifications
8
Vehicle specifications
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level
previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

910Alphabetical index
ES350_300h_OM_OM33A60U_(U)
SeatsAdjustment ............................................. 154
Adjustment precautions .................. 155
Child seats/child restraint
system installation................................61
Cleaning .................................................662
Driving position memory ................ 156
Head restraints..................................... 162
Power easy access system ............ 156
Properly sitting in the seat ................30
Seat heaters ......................................... 628
Seat position memory....................... 156
Seat ventilators ................................... 628
Sensor
Automatic headlight system ........ 230
Humidity sensor ..................... 364, 377
Inside rear view mirror ..................... 170
Intuitive parking assist ...................... 275
LDA (Lane Departure Alert) ....... 273
Radar sensor .....................261, 311, 320
Rain-sensing windshield wipers .....................................................241
Service reminder indicators ............... 90
Shift lever Automatic transmission ................... 218
Hybrid transmission............................221
If the shift lever cannot be shifted from P ........... 809
Shift lever light .......................................... 611
Shift lock system....................................809
Side airbags ............................................... 39 Side marker lights
Light switch........................................... 228
Replacing light bulbs ............. 741, 745
Welcome light illumination
control.................................................... 125
Side mirrors
Adjusting and folding .......................... 171
Blind Spot Monitor ............................. 317
Linked mirror function when reversing.................................. 172
Mirror position memory ..................156
Side turn signal lights
Replacing light bulbs ....................... 745
Turn signal lever ................................. 225
Smart access system with push-button start
Antenna location.................................. 127
Entry functions ...................................... 125
Starting the engine ..............................201
Starting the hybrid system.............208
Warning message..............................773
Snow tires ................................................ 334
Spare tire ..................................................792 Inflation pressure................................845
Storage location ................................. 793
Spark plug ............................................... 840
Specifications......................................... 832
Speedometer ............................................ 95
“START STOP ENGINE” switch ....................................................... 201
