2. Instrument cluster
Outside temperature, average fuel
consumption after refueling or driv-
ing range can be selected and dis-
played.
If displayed on the drive monitor,
other trip information or warning
messages can be di splayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Drive monitor

ES350_300h_OM_OM33A60U_(U)
1052. Instrument cluster
2
Instrument cluster
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Vehicles without Lexus Display
Audio system or a navigation sys-
tem: Press and hold the “DISP”
button after selecting the desired
setting item (“Meter”, “Vehicle”
or “Ambient illumin.” [if
equipped]) by pressing the
“DISP” button.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Setting up the displays
1
2
3

106
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
(The display goes back to step
automatically in few seconds without
proceeding step .)
4
3
5
1
1
5

ES350_300h_OM_OM33A60U_(U)
1072. Instrument cluster
2
Instrument cluster
■System check display
After turning the “START STOP ENGINE” <“POWER”> switch to IGNITION ON
mode, “SYSTEM CHECK” is displayed while system operation is checked.
■Eco Driving Indicator (gasoline vehicles)
Zone of Eco driving
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco dr iving, the right side of Eco Driving Indi-
cator Zone Display blinks.
Eco Driving Indicator will not oper ate in the following conditions:
●The shift lever is anything other than D.
●Neither normal mode nor Eco drive mode is selected. ( P. 3 0 0 )
●The vehicle speed is approximatel y 80 mph (130 km/h) or higher.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
Suggests Zone of Eco driving and Eco driving
ratio based on acceleration.
Eco Driving Indicator Light
Eco Driving Indicator Light availability can
be customized. The default setting is off.
( P. 8 6 2 )
During Eco-friendly acceleration (Eco driv-
ing), Eco Driving Indicator Light will turn
on.
When the acceleration exceeds Zone of
Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
1
2
3
4

108
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears whil e the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is tu rned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Custo mizable features P. 8 6 2 )

ES350_300h_OM_OM33A60U_(U)
1092. Instrument cluster
2
Instrument cluster
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal multi-
information display. At extremely low temperatures, the multi-information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during
setting up the display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running tem is operating> while setting up the display features.

110
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
Energy monitor/consumption screen
Navigation system screen or
Lexus Display Audio system
screen (if equipped)
Multi-information display
You can view the status of your vehicle on the multi-information display
and the navigation system screen or Lexus Display Audio system
screen.
1
2

ES350_300h_OM_OM33A60U_(U)
1112. Instrument cluster
2
Instrument cluster
Navigation system
Remote Touch
*
“MENU” button
Remote Touch knob
*: For use of Remote Touch, refer to the “Navigation System Owner’s
Manual”.
Lexus Display Audio system
Lexus Display Audio controller
( P. 3 3 8 )
“MENU” button
Displaying the “MENU” screen
Lexus Display Audio controller
Turn or move the controller in the four
direction to select a function, number
and screen button.
Push the controller to enter the
selected function, number and screen
button.
Remote Touch/Lexus Display Au dio controller (if equipped)
1
2
1
2

112
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster

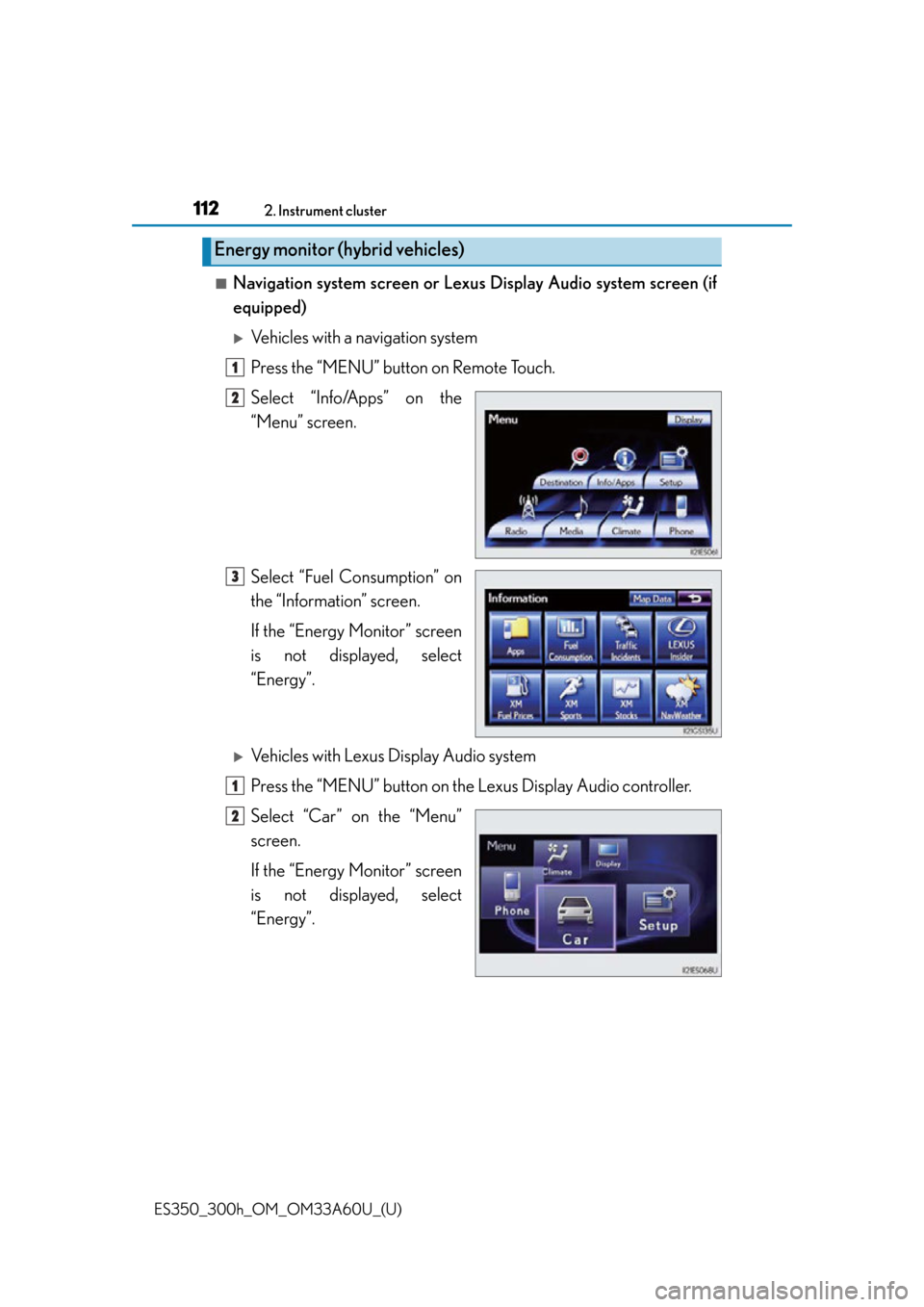

■Navigation system screen or Lexus Display Audio system screen (if
equipped)
Vehicles with a navigation system
Press the “MENU” button on Remote Touch.
Select “Info/Apps” on the
“Menu” screen.
Select “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Vehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Car” on the “Menu”
screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Energy monitor (hybrid vehicles)
1
2
3
1
2

ES350_300h_OM_OM33A60U_(U)
1132. Instrument cluster
2
Instrument cluster
■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.
