8-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms

688
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency

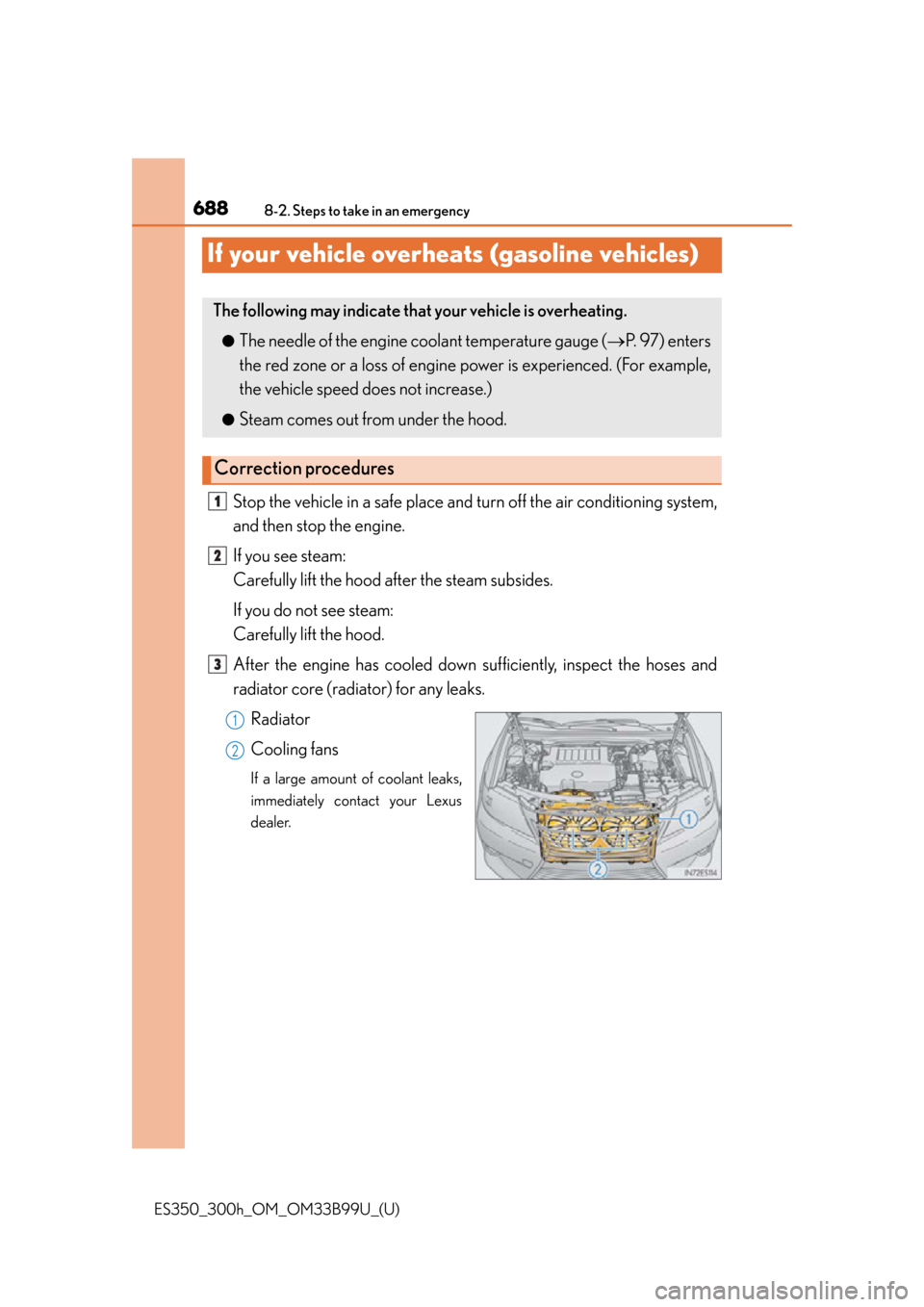

If your vehicle overheats (gasoline vehicles)
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( P. 97) enters
the red zone or a loss of engine power is expe rienced. (For example,
the vehicle speed does not increase.)
●Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

6898-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises

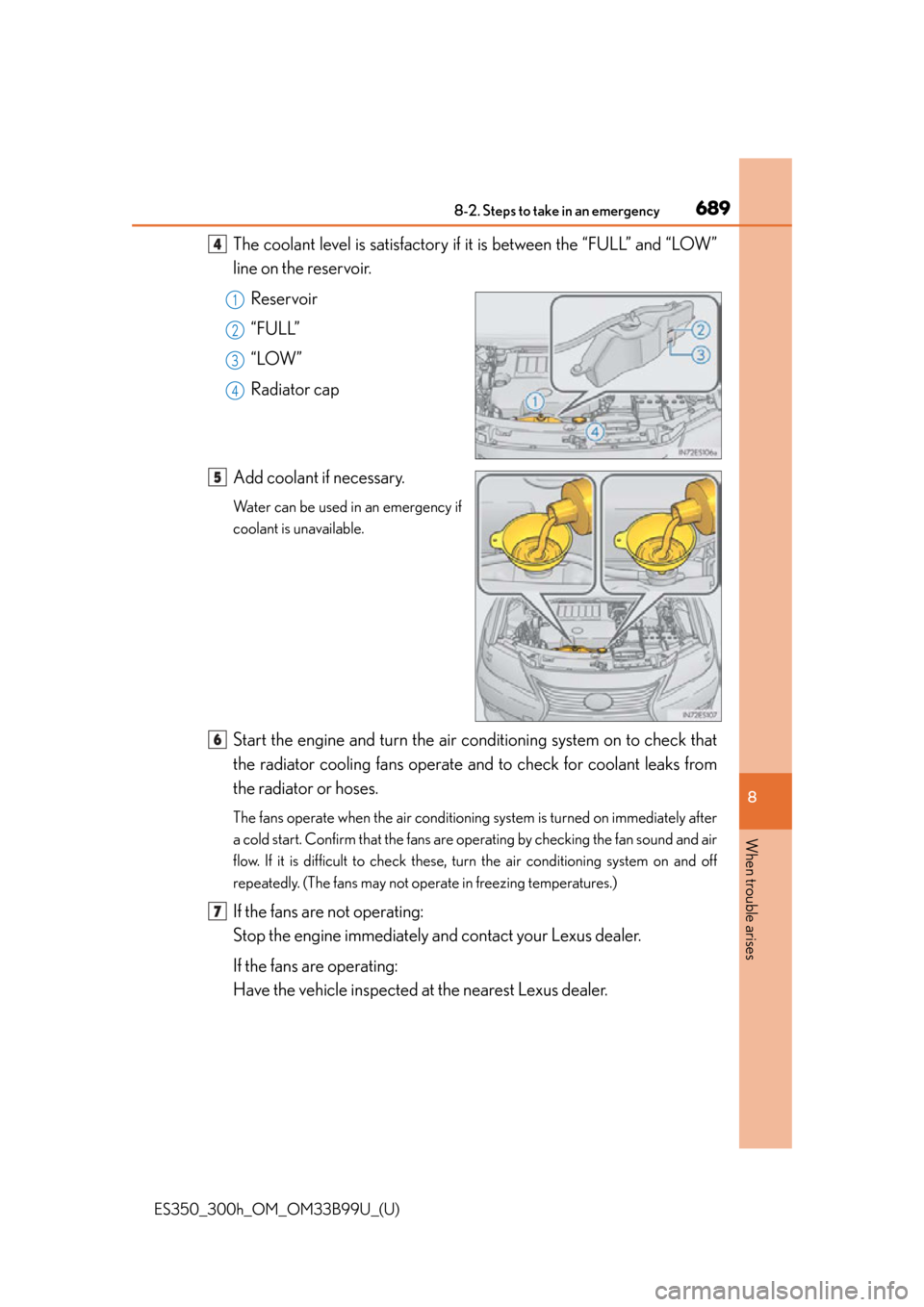

The coolant level is satisfactory if it is between the “FULL” and “LOW”
line on the reservoir.
Reservoir
“FULL”
“LOW”
Radiator cap
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that
the radiator cooling fa ns operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after
a cold start. Confirm that the fans are operating by checking the fan sound and air
flow. If it is difficult to check these, tu rn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7

6908-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans
and belts. Failure to do so may cause the hands or clothing to be caught, resulting
in serious injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the engine and
radiator are hot. High temperatur e steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.

691
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
8
When trouble arises

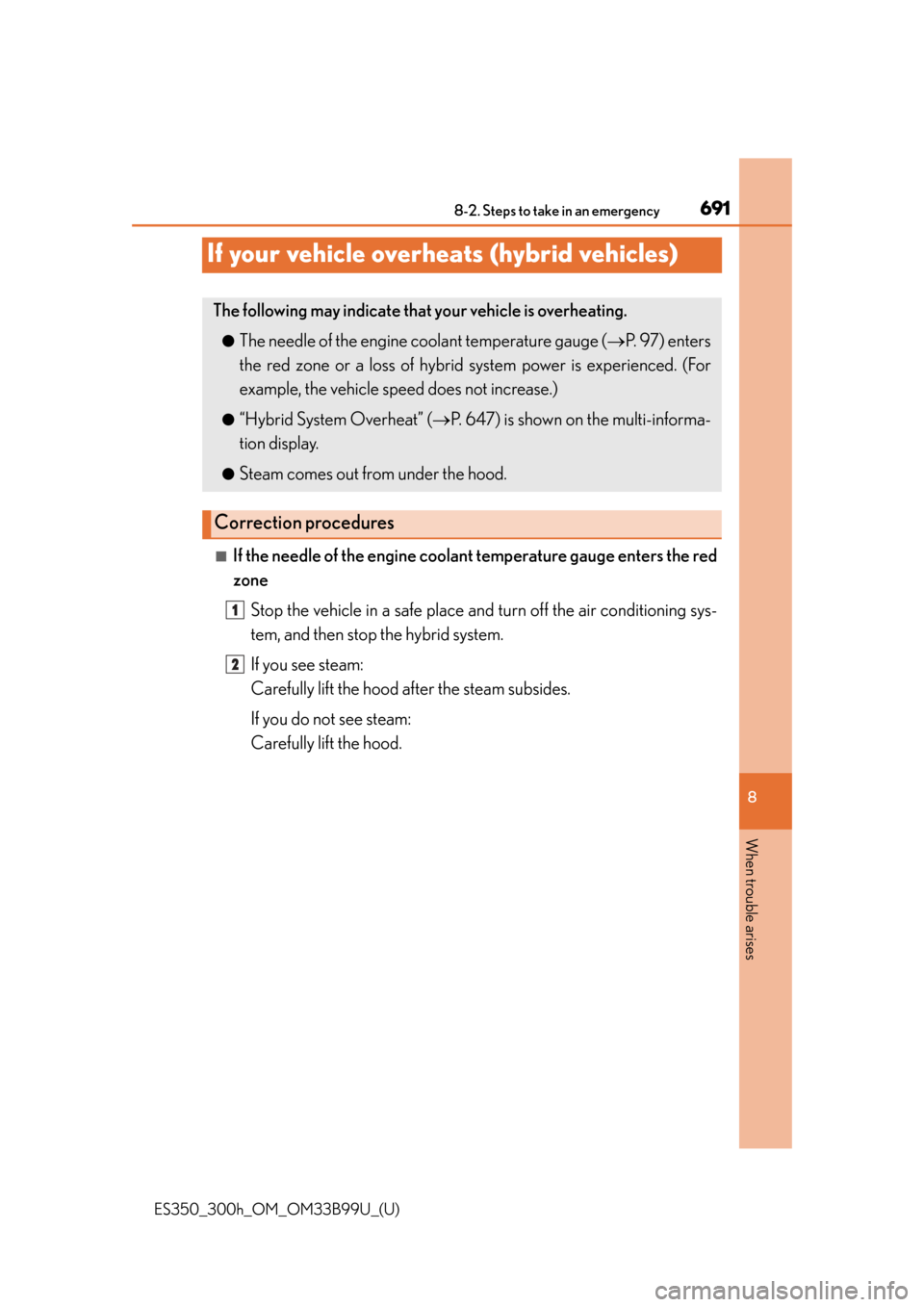

If your vehicle overheats (hybrid vehicles)
■If the needle of the engine coolant temperature gauge enters the red
zone
Stop the vehicle in a safe place an d turn off the air conditioning sys-
tem, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( P. 97) enters
the red zone or a loss of hybrid system power is experienced. (For
example, the vehicle speed does not increase.)
●“Hybrid System Overheat” ( P. 647) is shown on the multi-informa-
tion display.
●Steam comes out from under the hood.
Correction procedures
1
2

6958-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
“POWER” switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly oper ate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the hybrid sys-
tem and radiator are hot. High temper ature steam or coolant could spray out.
6

6968-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause da mage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.

ES350_300h_OM_OM33B99U_(U)
7079-1. Specifications
9
Vehicle specifications
Gasoline vehicles
Hybrid vehicles

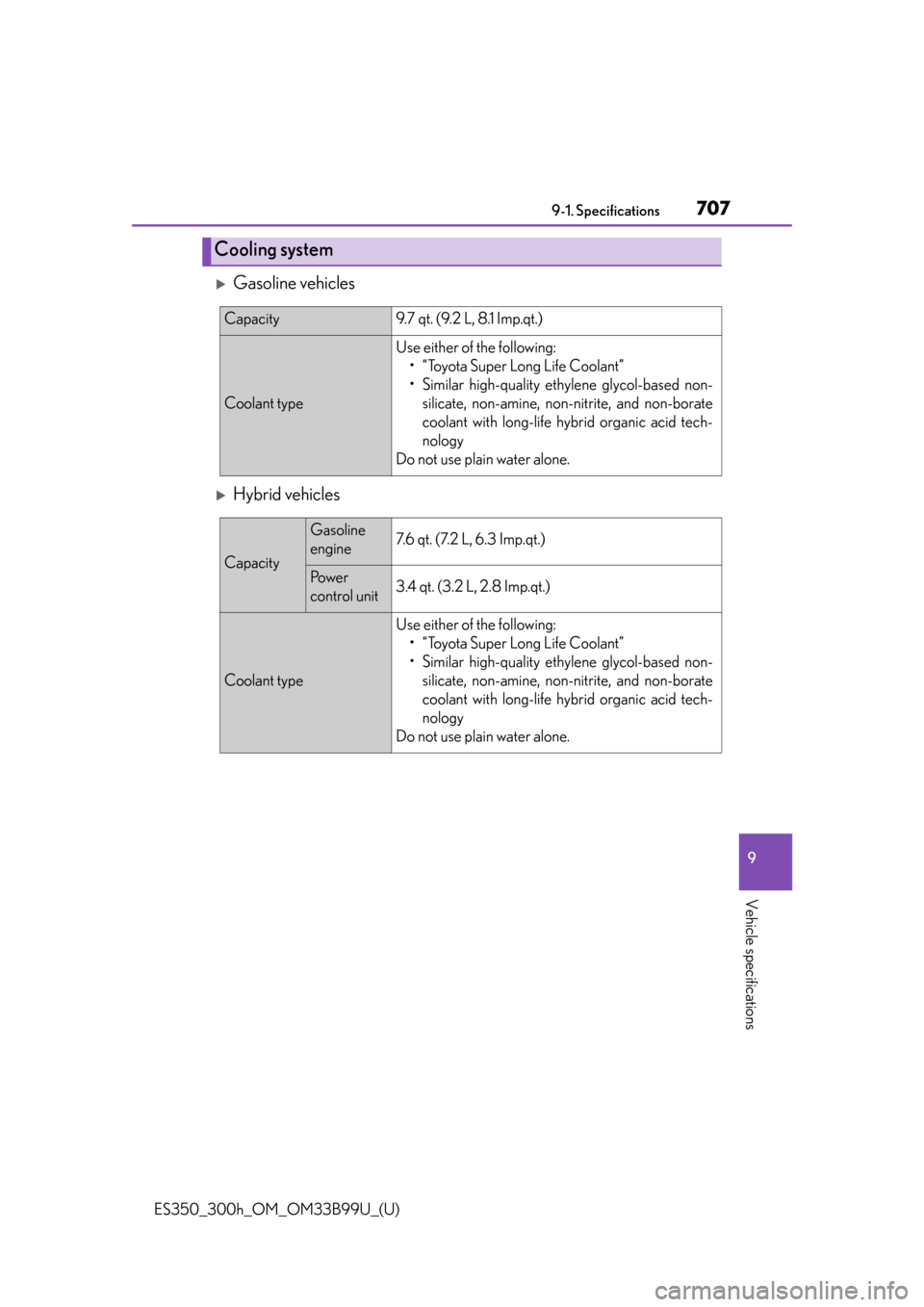

Cooling system
Capacity9.7 qt. (9.2 L, 8.1 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Capacity
Gasoline
engine 7.6 qt. (7.2 L, 6.3 Imp.qt.)
Po w e r
control unit3.4 qt. (3.2 L, 2.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.

ES350_300h_OM_OM33B99U_(U)
7259-1. Specifications
9
Vehicle specifications

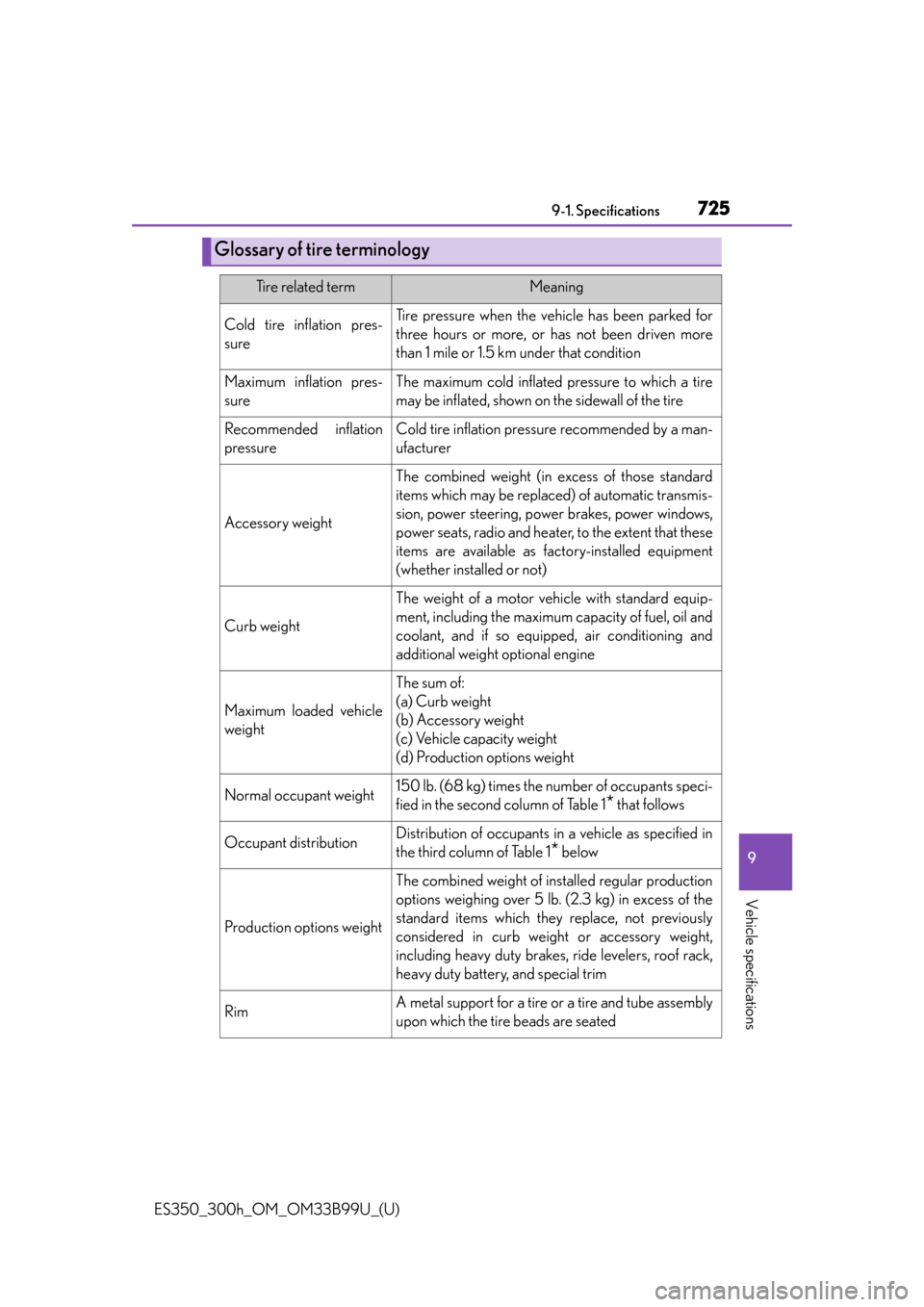

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

770Alphabetical index
ES350_300h_OM_OM33B99U_(U)
Emergency, in case ofIf a warning buzzer sounds..................................................626
If a warning light turns on...............626
If a warning message is displayed ....................................... 636
If the 12-volt battery is discharged ........................... 680, 684
If the electronic key does not operate properly ........ 677
If the engine will not start................ 672
If the hybrid system will not start ................................................ 674
If the shift lever cannot be shifted from P ............676
If you have a flat tire ......................... 659
If you think something is wrong...............................................624
If your vehicle becomes stuck ......................................................697
If your vehicle has to be stopped in an emergency ........... 615
If your vehicle needs to be towed .........................................617
If your vehicle overheats .... 688, 691
Emergency flashers ...............................614
Energy monitor ........................................ 114 Engine
Accessory mode ............................... 206
Compartment .....................................545
Engine switch ............................205, 212
Hood..........................................................541
How to start the engine..................205
How to start the hybrid system .................................................... 212
Identification number....................... 702
If the engine will not start ............... 672
Ignition switch (“POWER” switch).................................................... 212
Ignition switch (“START STOP ENGINE” switch) .........................205
Overheating..............................688, 691
“POWER” switch. ............................... 212
“START STOP ENGINE” switch ...................................................205
Engine compartment cover..............547
Engine coolant Capacity................................................. 707
Checking ...............................................553
Preparing and checking before winter ...................................... 341
Engine coolant temperature gauge ......................................................... 97
Engine immobilizer system ................. 84
Engine oil Capacity................................................. 705
Checking ...............................................548
Oil level warning message ........... 644
Oil pressure warning message........................... 637
Preparing and checking before winter ...................................... 341
