adding oil Lexus ES300h 2015 Instrument cluster / Owner's Manual (OM33B99U)

538
ES350_300h_OM_OM33B99U_(U)

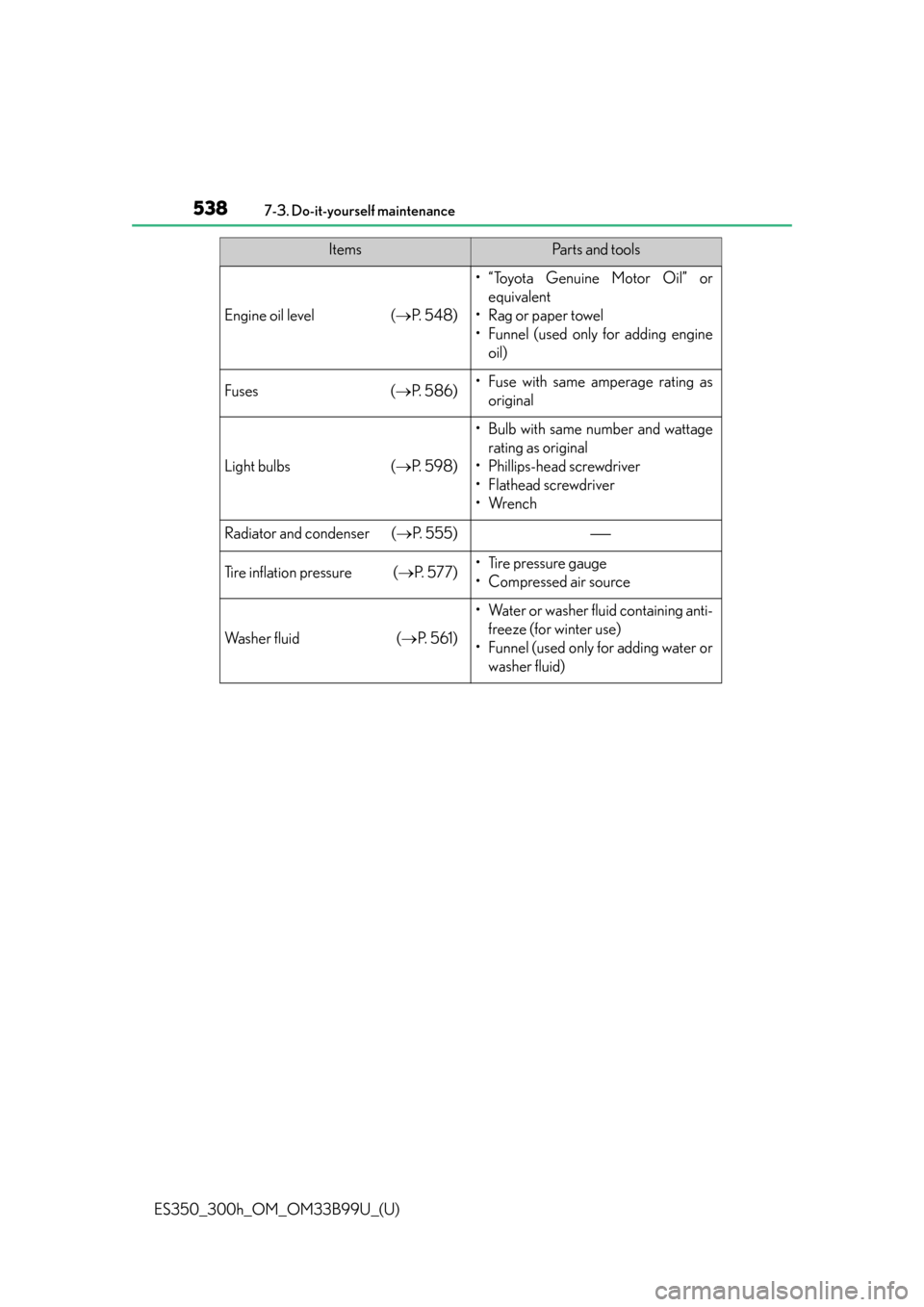

7-3. Do-it-yourself maintenance
Engine oil level (P. 5 4 8 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 5 8 6 )• Fuse with same amperage rating as
original
Light bulbs ( P. 5 9 8 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser ( P. 555)
Tire inflation pressure ( P. 5 7 7 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 5 6 1 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s

550
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the
same type as that already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Gasoline vehiclesHybrid vehicles
Engine oil selection P. 7 0 6
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3
