ES350_300h_OM_OM33B99U_(U)
2774-5. Using the driving support systems
4
Driving
■Conditions in which the function may not operate correctly
In the following conditions, the camera sensor may be unable to recognize lane
markers causing the lane departure warning function to operate incorrectly. How-
ever, this does not indicate a malfunction.
●When driving through an area with no lane markers, such as a tollbooth, a crossing
or before a ticket checkpoint
●When driving on a sharp curve
●When lane markers are extremely narrow or extremely wide
●When the vehicle leans to one side an unusual amount due to a heavy load or
improper tire inflation pressure
●When the following distance between your vehicle and the vehicle ahead is
extremely short
●When the lane markers are yellow (These may be more difficult for the system to
recognize compared to white markers.)
●When the lane markers are broken, “Botts’ dots”, “Raised pavement marker” or
stones
●When the lane markers are on a curb etc.
●When lane markers are obscured or partially obscured by sand, dirt, etc.
●When there are shadows on the road running parallel with lane markers, or if a
shadow covers the lane markers
●When driving on a particularly bright road surface, such as concrete
●When driving on a road surface that is bright due to reflected light
●When driving in a location where the light level changes rapidly, such as the
entrance to or exit from a tunnel
●When sunlight or the headlights of oncoming vehicles are shining directly into the
camera lens
●When driving on roads that are branching or merging
●When driving on a road surface that is wet due to rain, previous rainfall, standing
water, etc.
●When the vehicle experiences strong up-a nd-down motion such as when driving
on an extremely rough road or on a seam in the pavement
●When headlight brightness at nighttime is reduced due to dirt on the lenses, or
when the headlights are misaligned
●When driving on winding roads or roads that are uneven
●When driving on rough or unpaved roads

ES350_300h_OM_OM33B99U_(U)
3094-5. Using the driving support systems
4
Driving
CAUTION
■When using the Lexus parking assist monitor system
The parking assist monitor is a supplemental device intended to assist the driver
when backing up. When backing up, be sure to check visually behind and all
around the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death
or serious injuries.
●Never depend on the parking assist monitor entirely when backing up. The image
and the position of the guid e lines displayed on the screen may differ from the
actual state.
Use caution, just as you would when backing up any vehicle.
●Be sure to back up slowly, depressing the brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles , obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehicle.
●The instructions given are only guidelines.
When and how much to turn the steering wheel will vary according to traffic con-
ditions, road surface conditions, vehicle condition, etc. when parking. It is neces-
sary to be fully aware of this before using the parking assist system.
●When parking, be sure to check that the parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the parking assist monitor in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or emergency tires
• When the trunk is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
●In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to
see the image on the screen. Be sure to check direct visually and with the mirrors
all around the vehicle before proceeding.

ES350_300h_OM_OM33B99U_(U)
5357-2. Maintenance
7
Maintenance and care

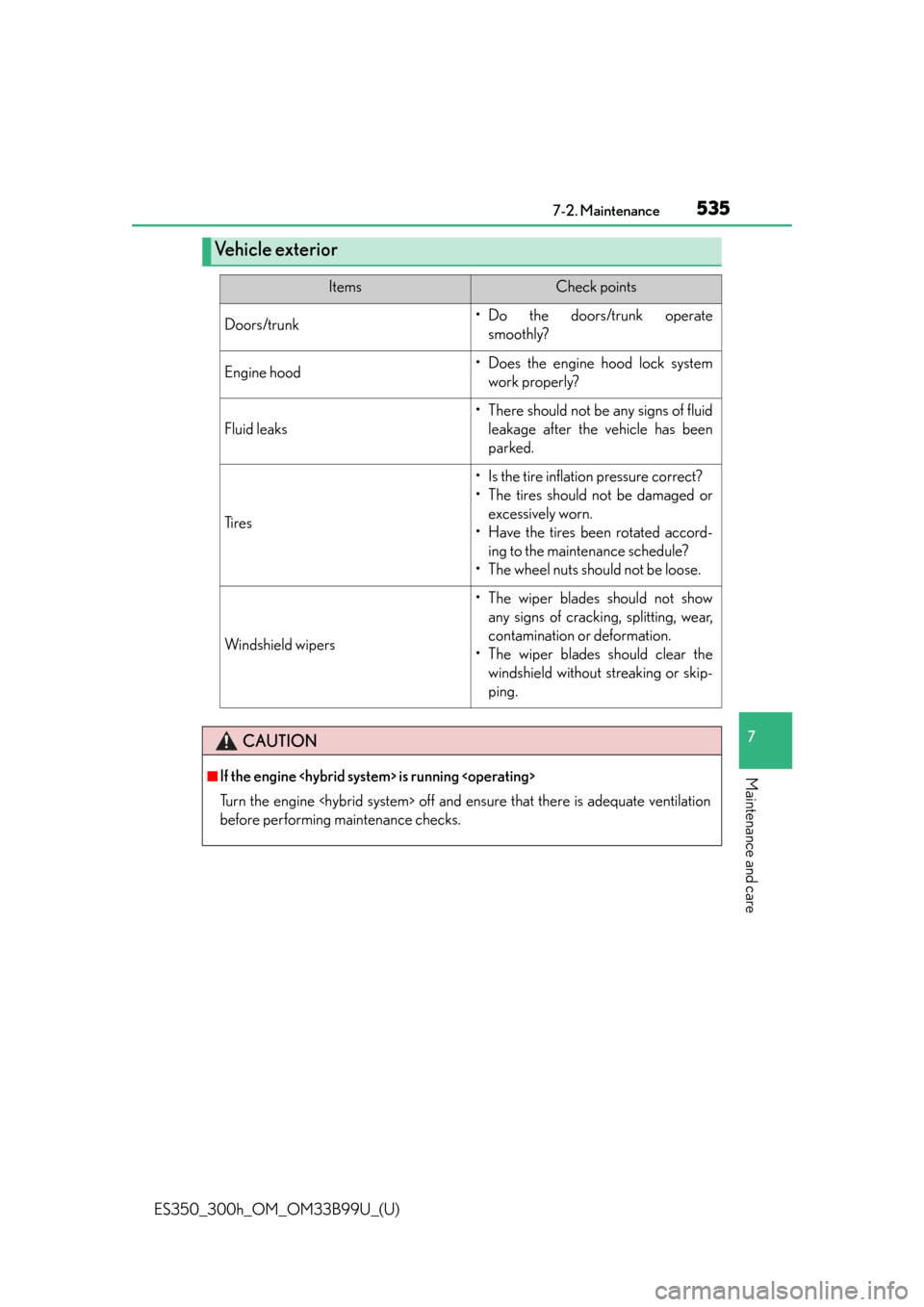

Ve h i c l e e x t e r i o r
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Engine hood• Does the engine hood lock systemwork properly?
Fluid leaks
• There should not be any signs of fluidleakage after the vehicle has been
parked.
Ti r e s
• Is the tire inflation pressure correct?
• The tires should not be damaged orexcessively worn.
• Have the tires been rotated accord- ing to the maintenance schedule?
• The wheel nuts should not be loose.
Wi n dsh iel d wi pers
• The wiper blades should not show any signs of cracking, splitting, wear,
contamination or deformation.
• The wiper blades should clear the windshield without streaking or skip-
ping.
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation
before performing maintenance checks.

ES350_300h_OM_OM33B99U_(U)
5717-3. Do-it-yourself maintenance
7
Maintenance and care
■If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run- flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If the spare tire is in a location subject to poor radio wave signal reception.
*
• If a large metallic object which can interfere with signal reception is put in the trunk.
*
*
: Vehicles with a full-size spare tire only
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wire- less communication device
If tire position information is not correctly displayed due to the radio wave condi-
tions, the display may be corrected by driving and changing the radio wave condi-
tions.
●When the vehicle is parked, the time taken for the warning to start or go off could
be extended.
●When tire inflation pressure declines rapi dly for example when a tire has burst, the
warning may not function.

624
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms

780Alphabetical index
ES350_300h_OM_OM33B99U_(U)
Rear sunshade switch ..................... 495
Rear window and outside rear view mirror defoggers
switch....................................................470
Seat heater switches.........................478
Seat ventilator switches ..................478
“SOS” button......................................... 513
“START STOP ENGINE” switch................................................... 205
Talk switch
*........................................... 431
Telephone switches
*........................ 431
Tilt and telescopic steering control switch ................. 169
Tire pressure warning reset switch................................................... 568
Trunk closer switch ............................ 150
Trunk opener switch ......................... 149
Trunk opener main switch.............. 150
Vehicle-to-vehicle distance button .................................................... 261
VSC OFF switch ................................ 315
Window lock switch........................... 177
Windshield wipers and washer switch .........................245 Tachometer ................................................ 97
Tail lights
Light switch........................................... 233
Replacing light bulbs ........................ 610
Welcome light illumination control.................................................... 127
Talk switch
*.............................................. 431
Telephone switches
*............................ 431
Theft deterrent system Alarm ..........................................................88
Engine immobilizer system ............. 84
Immobilizer system.............................. 86
Tire inflation pressure Maintenance data................................ 712
Tire inflation pressure display function................................................. 105
Warning light .......................................630
Warning message............................ 650
Tire information ...................................... 718 Glossary................................................. 725
Size ............................................................. 721
Tire identification number ............. 720
Uniform Tire Quality Grading ...............................................723
Tire pressure warning system Function .................................................. 567
Initializing ............................................... 567
Installing tire pressure warning valves and transmitters................ 567
Registering ID codes .......................569
Tire pressure warning reset switch .................................................. 568
Warning light .......................................630
Warning message............................ 650
T

781Alphabetical index
ES350_300h_OM_OM33B99U_(U)
TiresChains......................................................343
Checking............................................... 566
If you have a flat tire ......................... 659
Inflation pressure .................................. 712
Information ............................................. 718
Replacing .............................................. 659
Rotating tires ....................................... 566
Size .............................................................. 712
Snow tires ..............................................345
Spare tire ............................................... 659
Tire inflation pressure display function ................................................. 105
Tire pressure warning system .....567
Warning light ...................................... 630
Warning message ............................ 650
Tools........................................................... 660
Top tether strap........................................ 69
Total load capacity ............................... 202
Towing Dinghy towing .....................................204
Emergency towing..............................617
Towing eyelet...................................... 620
Trailer towing ...................................... 203
TRAC (Traction Control) ...................313
Traction battery (hybrid battery) .......77
Traction motor (electric motor) .........77
Transmission Automatic transmission .................. 222
Driving mode select switch ............. 311
Hybrid transmission.......................... 226
If the shift lever cannot be shifted from P ...................................676
Trip information...................................... 103
Trip meters ..................................................97 Trunk
Internal trunk release lever ............. 152
Jam protection function..................... 151
Luggage security system................ 150
Open trunk warning message.... 642
Power trunk opener and closer ...149
Smart access system with push-button start....................128
Trunk closer switch............................ 150
Trunk easy closer ................................. 151
Trunk features..................................... 488
Trunk handle ......................................... 150
Trunk light................................................. 151
Trunk opener main switch ............. 150
Trunk opener switch ..........................149
Trunk storage extension ................498
Wireless remote control....................141
Trunk light Trunk light................................................. 151
Wattage ................................................... 714
Turn signal lights Replacing light bulbs ..........604, 608
Turn signal lever ................................. 230
Wattage ................................................... 714
USB memory
*...................................... 359
U
*: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

784
ES350_300h_OM_OM33B99U_(U)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 541 P. 149 P. 251
Hood lock release leverFuel filler door openerTire inflation pressure
P. 541 P. 251 P. 712
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 704
Cold tire inflation
pressure P. 7 1 2
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
2GR-FE 2AR-FXE
With filter 6.4 (6.1, 5.4) 4.6 (4.4, 3.9)
Without filter 6.0 (5.7, 5.0) 4.2 (4.0, 3.5)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 7 0 5
