3-2. Opening, closing and locking the doors and trunk
■Note for locking the doors
●Touching the door lock sensor while we aring gloves may delay or prevent lock
operation. Remove the gloves an d touch the lock sensor again.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repe atedly. In that case, follow the following
correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access sys- tem with push-button start. ( P. 1 3 3 )
●If the electronic key is inside the vehicle and a door handle becomes wet during a
car wash, a message may be shown on th e multi-information display and a buzzer
will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud,
etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor
on the lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle. Be
careful not to injure fingernails or damage the surface of the door.
■Note for the unlocking function
●A sudden approach to the effective rang e or door handle may prevent the doors
from being unlocked. In this case, return the door handle to the original position
and check that the doors unlock befo re pulling the door handle again.
●Gripping the door handle when wearing a glove may not unlock the door.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repe atedly. In that case, follow the following
correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access sys- tem with push-button start. ( P. 1 3 3 )
●If there is another electronic key in the de tection area, it may take slightly longer to
unlock the doors after the door handle is gripped.
●Fingernails may scrape against the door during operation of the door handle. Be
careful not to injure fingernails or damage the surface of the door.

ES350_300h_OM_OM33B99U_(U)
1373-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
●The smart access system with push-butto n start can be deactivated in advance.
(  P. 7 3 0 )
■Alarm
Using the smart access system with push-but ton start to lock the doors will set the
alarm system. ( P. 8 8 )
■To operate the system properly
●Make sure to carry the electronic key wh en operating the system. Do not get the
electronic key too close to the vehicle wh en operating the system from the outside
of the vehicle.
Depending on the position and holding co ndition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not oper-
ate.)
●Do not leave the electronic key inside the luggage compartment.
The key confinement prevention function may not operate, depending on the loca-
tion of the key (close to a spare tire, th e inside edge of the luggage compartment),
conditions (inside a metal bag, close to me tallic objects) and the radio waves in the
surrounding area. ( P. 151)
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors and opening the trunk: Use the mechanical key.
( P. 6 7 7 )
●Starting the engine : P. 6 7 8

138
ES350_300h_OM_OM33B99U_(U)
3-2. Opening, closing and locking the doors and trunk
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 6 5 6 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when neces-
sary. ( P. 5 8 4 )
• The smart access system with push-button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
•Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Table lamps
• Induction cookers
■When the electronic key battery is fully depleted
 P. 5 8 4
■Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features: P. 7 3 0 )
■If the smart access system with push-but ton start has been deactivated in a cus-
tomized setting
●Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. ( P. 141, 677)
●Starting the engine and changing “START STOP ENGINE”
<“POWER”> switch modes: P. 6 7 8
●Stopping the engine : ( P. 2 0 6 , 2 1 3 )

142
ES350_300h_OM_OM33B99U_(U)
3-2. Opening, closing and locking the doors and trunk
■Operation signals
Doors:
A buzzer sounds and the emergency flashe rs flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
Tr u n k :
A buzzer sounds to indicate that the trunk has been opened.
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are operating.
■Welcome light illumination control
 P. 1 2 7
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 se conds. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■Pa n i c m o d e
■Security feature
 P. 1 2 7
■Alarm
Using the wireless remote control to lo ck the doors will set the alarm system.
(  P. 88)
■Conditions affecting operation
P. 1 3 4
■If the wireless remote control does not operate properly
Locking and unlocking the doors and open ing the trunk: Use the mechanical key.
(  P. 6 7 7 )
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
electronic key.

ES350_300h_OM_OM33B99U_(U)
1433-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Electronic key battery depletion
P. 1 3 8
■When the electronic key battery is fully depleted
P. 5 8 4
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask your
Lexus dealer for details.
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 7 3 0 )

ES350_300h_OM_OM33B99U_(U)
1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “START STOP ENGINE” <“POWER”>
switch is in ACCESSORY or IGNITION ON mode, or the elec-
tronic key is left inside the vehicle.
The key may not be detected correc tly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

ES350_300h_OM_OM33B99U_(U)
1473-2. Opening, closing and locking the doors and trunk
3
Operation of each component
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P. 6 7 7 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 7 3 0 )
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked
door locking function
PShift position linked
door unlocking function
Speed linked door
locking function
NDriver’s door linked door
unlocking function

149
ES350_300h_OM_OM33B99U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component

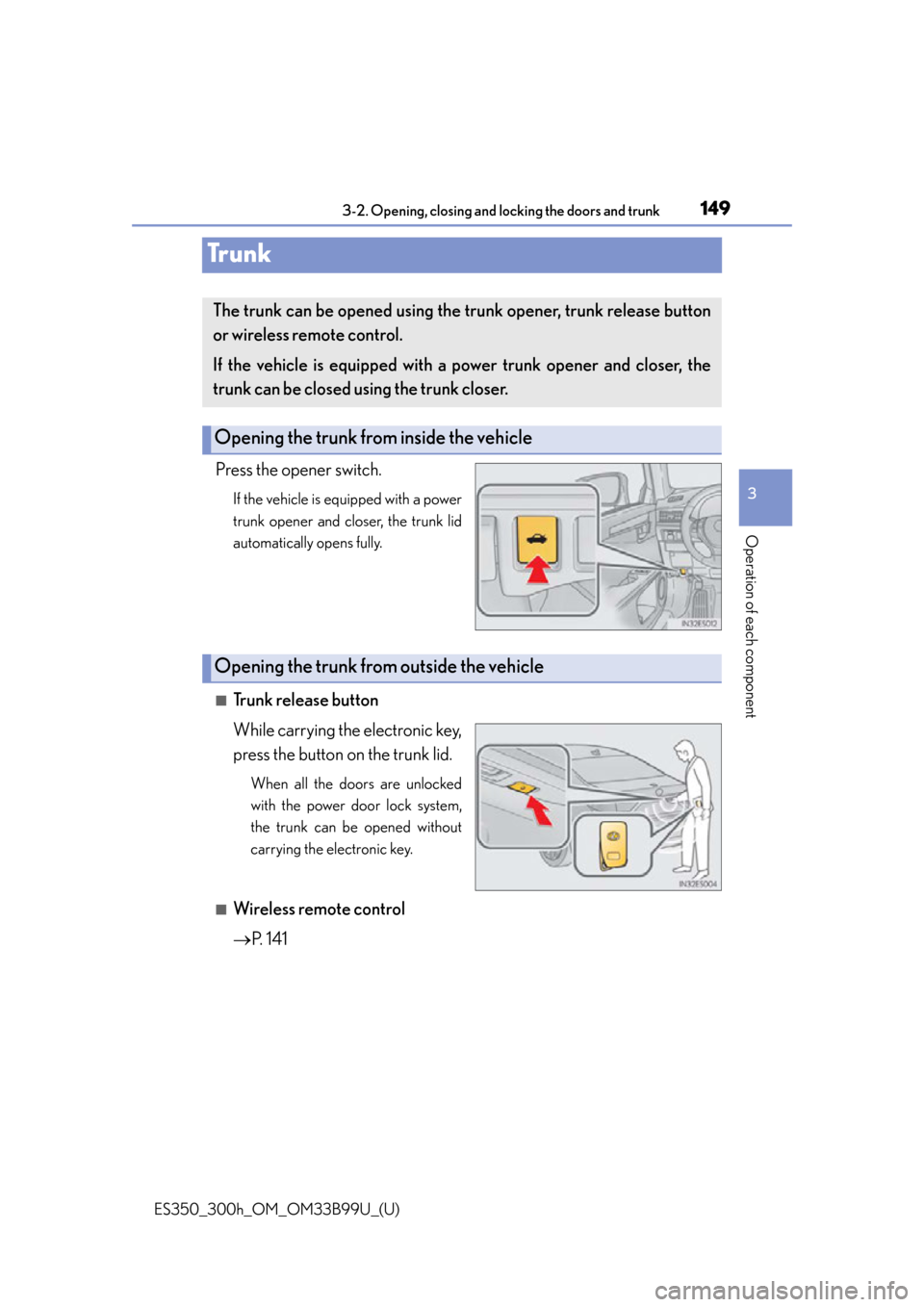

Tr u n k
Press the opener switch.
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
■Trunk release button
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked
with the power door lock system,
the trunk can be opened without
carrying the electronic key.
■Wireless remote control
P. 1 4 1
The trunk can be opened using the trunk opener, trunk release button
or wireless remote control.
If the vehicle is equipp ed with a power trunk opener and closer, the
trunk can be closed using the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

ES350_300h_OM_OM33B99U_(U)
1513-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Tr u n k l i g h t
The trunk light turns on when the trunk is opened.
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being lo cked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electron ic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on th e places and the surrounding radio wave
conditions. In this case, the key confinem ent prevention function cannot be acti-
vated, causing the doors to lock when th e trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicle s with power trunk opener and closer)
The trunk lid will not operate when excessiv e load is present on the top of the trunk
lid.
■Fall-down protection function (vehicle s with power trunk opener and closer)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk opener and closer)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.

152
ES350_300h_OM_OM33B99U_(U)
3-2. Opening, closing and locking the doors and trunk
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( P. 6 7 8 )
■When leaving a key to the vehicle with a parking attendant
P. 1 2 5
The trunk lid can be opened by pulling the
glow-in-the-dark lever located on the inside
of the trunk lid to the side.
The lever will continue
to glow for some time
after the trunk lid is closed.
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the tr unk, they could suffer from heat exhaus-
tion, suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to deat h or serious injury.
