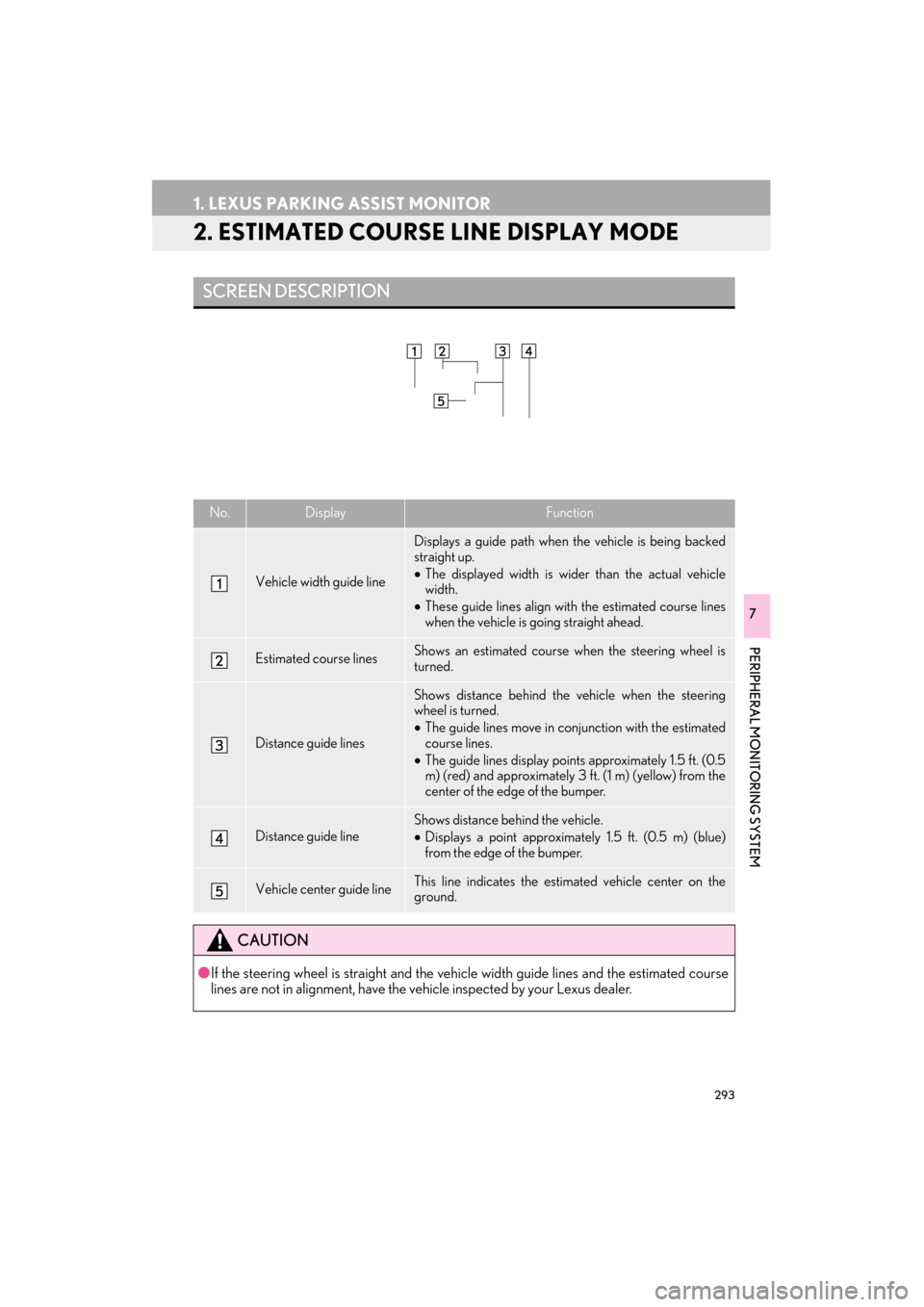

1. LEXUS PARKING ASSIST MONITOR
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
PERIPHERAL MONITORING SYSTEM
7
2. ESTIMATED COURSE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
• These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShows an estimated course when the steering wheel is
turned.
Distance guide lines
Shows distance behind the vehicle when the steering
wheel is turned.
•The guide lines move in conjunction with the estimated
course lines.
• The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
center of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
Vehicle center guide lineThis line indicates the estima ted vehicle center on the
ground.
CAUTION
● If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by your Lexus dealer.

294
1. LEXUS PARKING ASSIST MONITOR
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
1Shift the shift lever to the “R” position.
2Turn the steering wheel so that the esti-
mated course lines are within the park-
ing space, and back up slowly.
XParking space
Estimated course lines
3When the rear position of the vehicle
has entered the parking space, turn the
steering wheel so that the vehicle width
guide lines are within the left and right
dividing lines of the parking space.
XVehicle width guide line
4Once the vehicle width guide lines and
the parking space lines are parallel,
straighten the steering wheel and back
up slowly until the vehicle has complete-
ly entered the parking space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.

295
1. LEXUS PARKING ASSIST MONITOR
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
PERIPHERAL MONITORING SYSTEM
7
3. PARKING ASSIST GUIDE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Vehicle center guide lineThis line indicates the estima ted vehicle center on the
ground.

299
1. LEXUS PARKING ASSIST MONITOR
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
PERIPHERAL MONITORING SYSTEM
7
zThe distance guide lines and the vehicle
width guide lines may not actually be paral-
lel with the dividing lines of the parking
space, even when they appear to be so. Be
sure to check visually.
z The distances between the vehicle width
guide lines and the left and right dividing
lines of the parking space may not be equal,
even when they appear to be so. Be sure to
check visually.
z The distance guide lines give a distance
guide for flat road surfaces. In any of the
following situations, there is a margin of
error between the guide lines on the screen
and the actual distance/course on the road.
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROADWHEN THE GROUND BEHIND
THE VEHICLE SLOPES UP
SHARPLY
The distance guide lines will appear to
be closer to the vehicle than the actual
distance. Because of this, objects will ap-
pear to be farther away than they actual-
ly are. In the same way, there will be a
margin of error between the guidelines
and the actual distance/course on the
road.
