check oil Lexus ES300h 2015 Opening, closing and locking the doors and trunk / (OM33B99U) User Guide

ES350_300h_OM_OM33B99U_(U)
7059-1. Specifications
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the en gine (gasoline vehicles) or hybrid system
(hybrid vehicles), wait more than 5 minute s, and check the oil level on the dipstick.

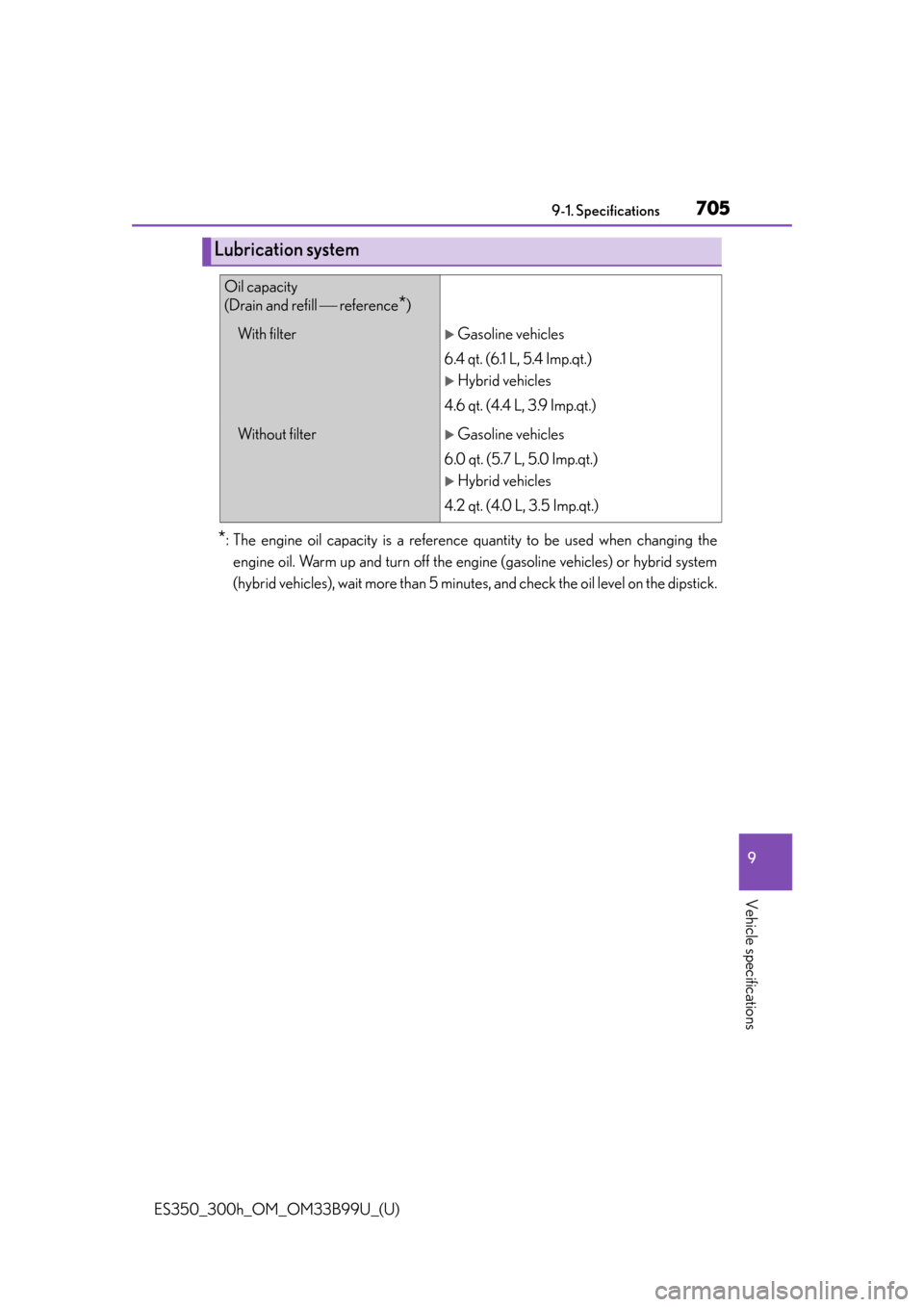

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filterGasoline vehicles
6.4 qt. (6.1 L, 5.4 Imp.qt.)
Hybrid vehicles
4.6 qt. (4.4 L, 3.9 Imp.qt.)
Without filterGasoline vehicles
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Hybrid vehicles
4.2 qt. (4.0 L, 3.5 Imp.qt.)

770Alphabetical index
ES350_300h_OM_OM33B99U_(U)
Emergency, in case ofIf a warning buzzer sounds..................................................626
If a warning light turns on...............626
If a warning message is displayed ....................................... 636
If the 12-volt battery is discharged ........................... 680, 684
If the electronic key does not operate properly ........ 677
If the engine will not start................ 672
If the hybrid system will not start ................................................ 674
If the shift lever cannot be shifted from P ............676
If you have a flat tire ......................... 659
If you think something is wrong...............................................624
If your vehicle becomes stuck ......................................................697
If your vehicle has to be stopped in an emergency ........... 615
If your vehicle needs to be towed .........................................617
If your vehicle overheats .... 688, 691
Emergency flashers ...............................614
Energy monitor ........................................ 114 Engine
Accessory mode ............................... 206
Compartment .....................................545
Engine switch ............................205, 212
Hood..........................................................541
How to start the engine..................205
How to start the hybrid system .................................................... 212
Identification number....................... 702
If the engine will not start ............... 672
Ignition switch (“POWER” switch).................................................... 212
Ignition switch (“START STOP ENGINE” switch) .........................205
Overheating..............................688, 691
“POWER” switch. ............................... 212
“START STOP ENGINE” switch ...................................................205
Engine compartment cover..............547
Engine coolant Capacity................................................. 707
Checking ...............................................553
Preparing and checking before winter ...................................... 341
Engine coolant temperature gauge ......................................................... 97
Engine immobilizer system ................. 84
Engine oil Capacity................................................. 705
Checking ...............................................548
Oil level warning message ........... 644
Oil pressure warning message........................... 637
Preparing and checking before winter ...................................... 341
