trunk Lexus ES300h 2015 Opening, closing and locking the doors and trunk / (OM33B99U) Repair Manual

ES350_300h_OM_OM33B99U_(U)
6097-3. Do-it-yourself maintenance
7
Maintenance and care

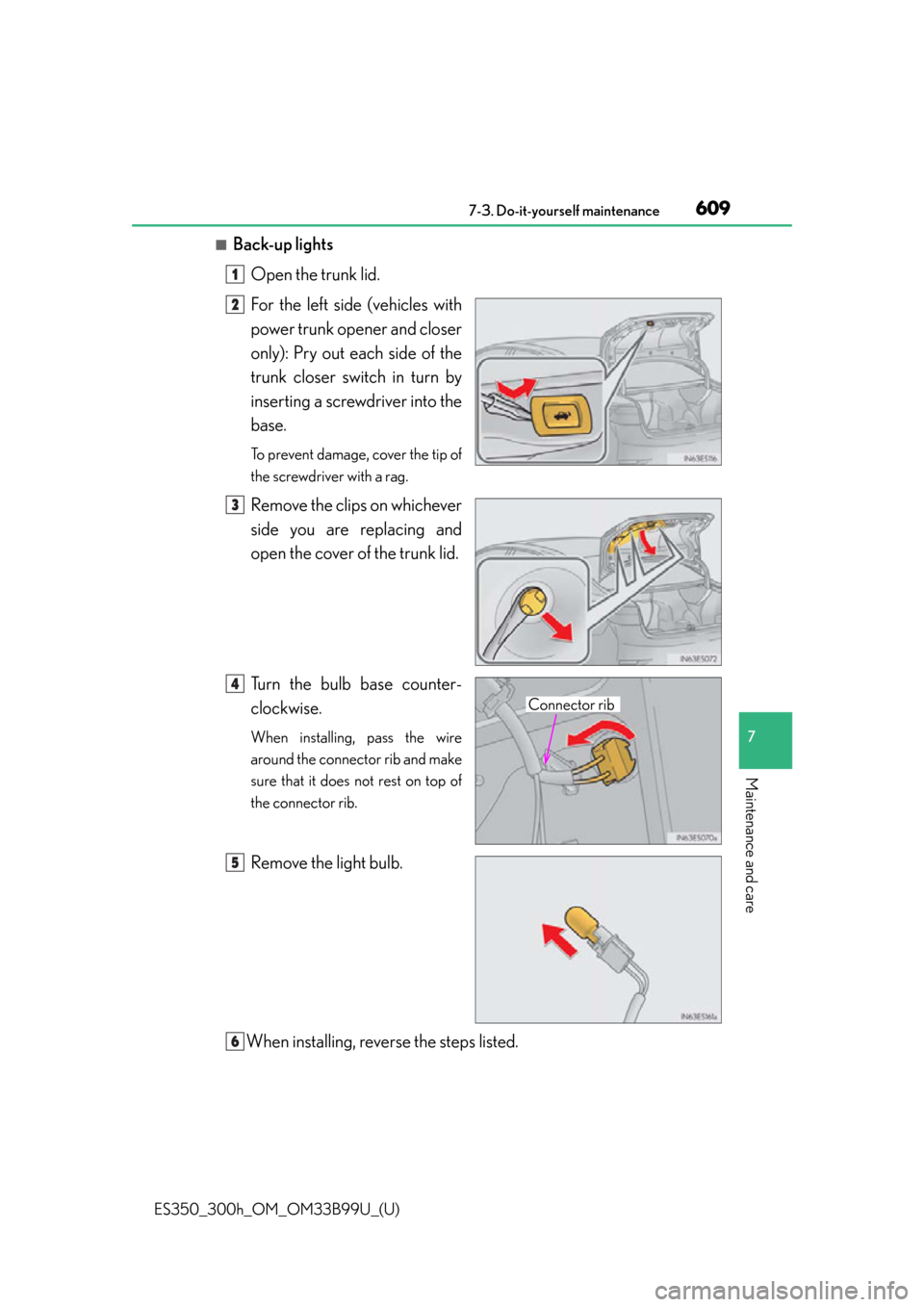

■Back-up lightsOpen the trunk lid.
For the left side (vehicles with
power trunk opener and closer
only): Pry out each side of the
trunk closer switch in turn by
inserting a screwdriver into the
base.
To prevent damage, cover the tip of
the screwdriver with a rag.
Remove the clips on whichever
side you are replacing and
open the cover of the trunk lid.
Turn the bulb base counter-
clockwise.
When installing, pass the wire
around the connector rib and make
sure that it does not rest on top of
the connector rib.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
Connector rib
4
5
6

6298-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.
Follow the correction procedures.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed
Check that all the doors and
the trunk are closed.
Low fuel level warning light Indicates remaining fuel is
approximately 2.6 gal. (9.7 L,
2.1 Imp.gal.)
Refuel the vehicle.
Seat belt reminder light (warn-
ing buzzer)
*2
Warns the driver and/or front
passenger to fasten their seat
belts
Fasten the seat belt.If the front passenger’s seat is
occupied, the front passen-
ger’s seat belt also needs to
be fastened to make the
warning light (warning
buzzer) off.
Master warning lightA buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
 P. 6 3 6

6428-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows
and the moon roof.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)

677
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
8
When trouble arises
If the electronic key does not operate properly
■Doors
Use the mechanical key
(P. 124) in order to perform the
following operations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the ele ctronic key and vehicle is inter-
rupted ( P. 134) or the electronic key cannot be used because the
battery is depleted, the smart access system with push-button start and
wireless remote control cannot be us ed. In such cases, the doors and
trunk can be opened and the engine can be started by
following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1
2
3
4

6788-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
■Trunk
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the “START
STOP ENGINE” <“POWER”>
switch.
The “START STOP ENGINE”
<“POWER”> switch will turn to IGNI-
TION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the “START
STOP ENGINE” <“POWER”> switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the “START STOP ENGINE” <“POWER”> switch.
In the event that the engine still cannot be started, contact
your Lexus dealer.
Starting the engine
1
2
3
4

684
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
If the 12-volt battery is discharged (hybrid vehicles)
If you have a set of jumper (or booster) cables and a second vehicle with a
12-volt battery, you can jump start your vehicle by following the steps
below.
Open the trunk lid and remove the 12-volt battery cover.
( P. 5 6 2 )
In the event that the trunk opener cannot be used, use the mechanical key to open
the trunk. ( P. 677)
Connect the jumper cables according to the following procedure:
The following procedures may be used to start the hybrid system if the
12-volt battery is discharged.
You can also call your Lexus dealer or a qualified repair shop.
1
2

734
ES350_300h_OM_OM33B99U_(U)
9-2. Customization
■Smart access system with push-button start (P. 127) and wireless
remote control ( P. 141)
“Auto Unlock by Driver
Door”
(All doors are automatically
unlocked when driver’s door
is opened)
OffOnO—O
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
FunctionDefault settingCustomized
setting123
FunctionDefault settingCustomized setting
“Lock/Unlock Feedback-
To n e ”
(Adjust the volume of
buzzer sounds)
5
Off
O—O
1 to 7
“Lock/Unlock Feedback-
Lights”
(Enable/disable the opera-
tion of the emergency flash-
ers when the vehicle is
locked or unlocked)
OnOffO—O
“A u t o R e l o c k Ti m e r ”
(Adjust the time elapsed
before the automatic door
lock function is activated if a
door is not opened after
being unlocked)
60 seconds
Off
O—O30 seconds
120 seconds
Operation buzzer (When
the vehicle is locked or
unlocked)
OnOff——O
123

736
ES350_300h_OM_OM33B99U_(U)
9-2. Customization
■Driving position memory* ( P. 159)
*:If equipped
“Remote 2-Press Unlock”
(Allows all doors to be
unlocked by pressing
on the electronic key twice)On (Driver’s
door unlocked in one step, all
doors unlocked in two steps)
Off (All doors
unlocked in one step)
O—O
Trunk unlocking operationPress and hold (short)
One short press
——OPush twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
FunctionDefault settingCustomized setting123
FunctionDefault settingCustomized setting
“Driver’s Seat Easy Exit”
(Driver’s seat movement
when exiting the vehicle)
Full
Off
O—OPa r t i a l
Selecting the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors——O
123

761What to do if... (Troubleshooting)
ES350_300h_OM_OM33B99U_(U)●
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when
the lock is set. Open the re
ar door from outside and then
unlock the child-protector lock. ( P. 145)
●The function to prevent the electronic key from being left inside
the trunk will operate and you ca n open the trunk as usual. Take
the key out from the trunk. ( P. 151)
The rear door cannot be opened
The trunk lid is closed with the electronic key left inside
