Lexus ES300h 2015 Opening, closing and locking the doors and trunk / Owner's Manual (OM33B99U)

ES350_300h_OM_OM33B99U_(U)
7419-2. Customization
9
Vehicle specifications
*:If equipped
■Rear sunshade* ( P. 495)
*:If equipped
Sensitivity of the ambient
light sensor used for bright-
ening the meter lights etc.
Standard-2 to +2——O
Enable/disable operation of
the outer foot lights when
you approach the vehicle
with the electronic key on
your person
OnOff——O
Enable/disable operation of
the outer foot lights when
the doors are unlocked with
the power door lock switch
OnOff——O
FunctionDefault settingCustomized
setting123
FunctionDefaultsettingCustomized setting
Reverse operationOnOff——O
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 second
——O0.9 seconds
1.2 seconds
123

742
ES350_300h_OM_OM33B99U_(U)
9-2. Customization
■Vehicle customization
●When the “Auto Lock by Speed” and “Auto Lock by Shift from P” are both on, the
door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
• If the vehicle is started with all the door s locked, the “Auto Lock by Speed” would
not operate.
• If the vehicle is started with any door unlocked, the “Auto Lock by Speed” will operate.
●When the smart access system with push-b utton start is off, the “Select Doors to
Unlock” cannot be customized.
●When the doors remain closed after un locking the doors and the “Auto Relock
Timer” activates, the signals will be generated in accordance with the “Lock/
Unlock Feedback-Tone” and the “Lock/Unlock Feedback-Lights” settings.
■When customizing using Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent 12-volt battery discharge, leave the engine running
while customizing the features.
CAUTION
■During customization
As the engine needs to be running during customiza-
tion, ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the engine is run-
ning while customizing features.

743
ES350_300h_OM_OM33B99U_(U)
9-3. Items to initialize
9
Vehicle specifications

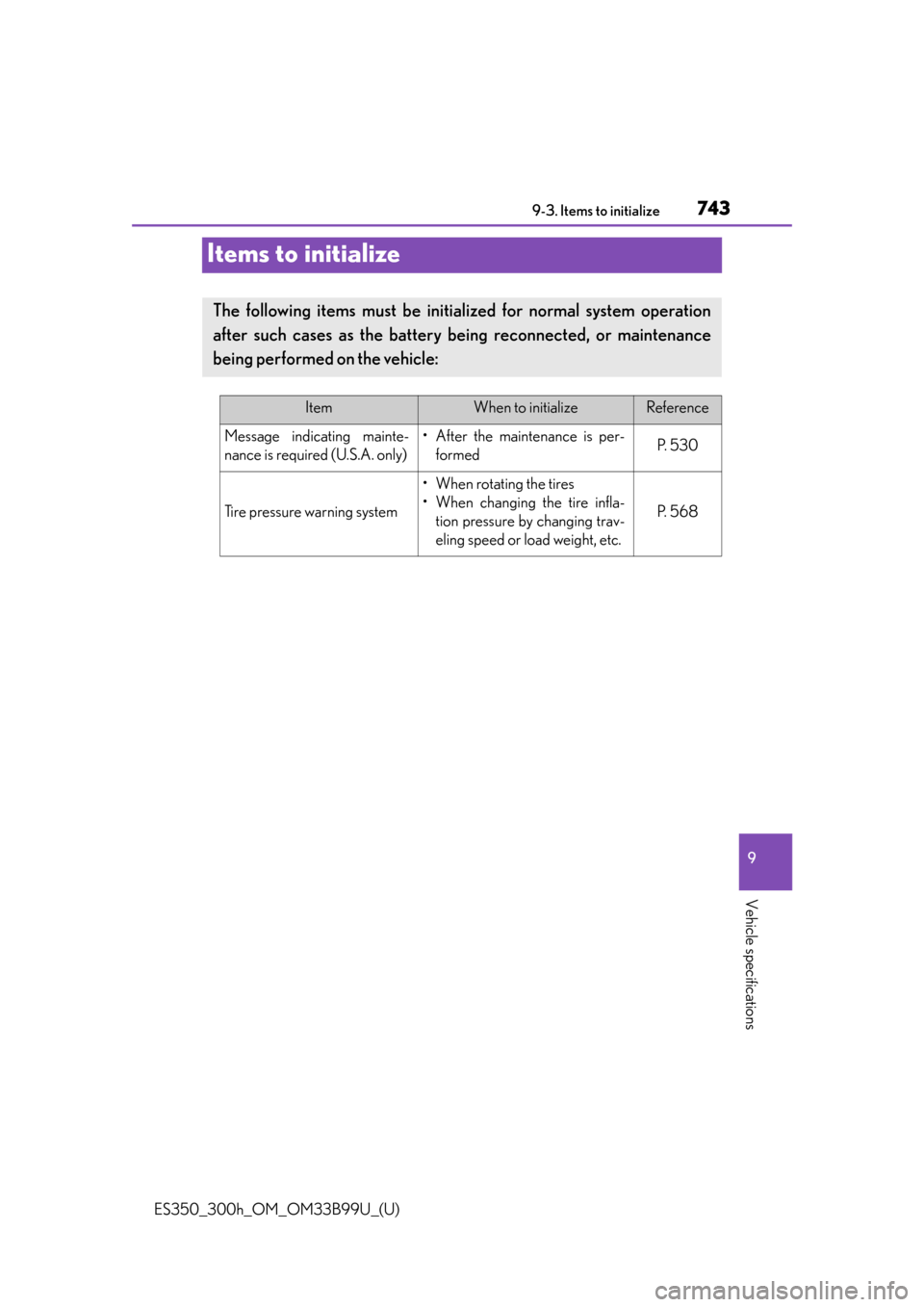

Items to initialize
The following items must be initialized for normal system operation
after such cases as the batter y being reconnected, or maintenance
being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)• After the maintenance is per- formedP. 5 3 0
Tire pressure warning system
• When rotating the tires
• When changing the tire infla-tion pressure by changing trav-
eling speed or load weight, etc.
P. 5 6 8

744
ES350_300h_OM_OM33B99U_(U)
9-3. Items to initialize

745
ES350_300h_OM_OM33B99U_(U)
10For owners
Reporting safety defects for U.S. owners ...................................... 746
Seat belt instructions for Canadian owners
(in French) ............................................... 747
SRS airbag instructions for Canadian owners
(in French) ............................................... 749

746
ES350_300h_OM_OM33B99U_(U)

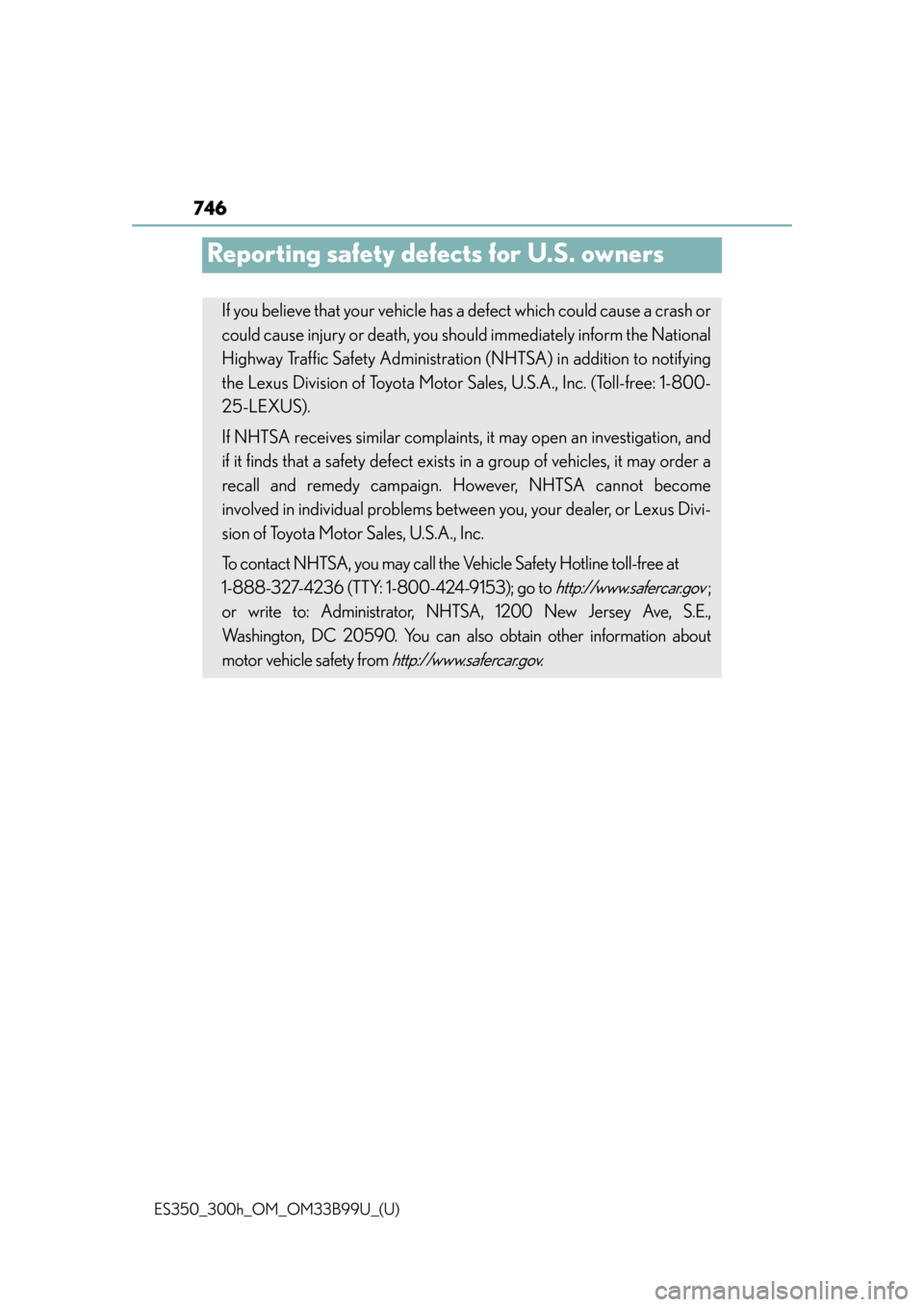

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you sh ould immediately inform the National
Highway Traffic Safety Ad ministration (NHTSA) in addition to notifying
the Lexus Division of Toyota Motor Sa les, U.S.A., Inc. (Toll-free: 1-800-
25-LEXUS).
If NHTSA receives similar complaints , it may open an investigation, and
if it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA cannot become
involved in individual problems between you, your dealer, or Lexus Divi-
sion of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTS A, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can a lso obtain other information about
motor vehicle safety from
http://www.safercar.gov.

747
ES350_300h_OM_OM33B99U_(U)
10
For owners
Seat belt instructions for Canadian owners
(in French)
●Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre entiè-
rement l’épaule; elle ne doit
cependant pas toucher le cou ni
glisser de l’épaule.
●Placez la ceinture abdominale le
plus bas possible sur les hanches.
●Réglez la position du dossier.
Tenez-vous assis bien au fond du
siège, le dos droit.
●Ne vrillez pas la ceinture de
sécurité.
The following is a French explanation of seat belt instructions extracted
from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate de s ceintures de sécurité

748
ES350_300h_OM_OM33B99U_(U)
■Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux et de
l’eau tiède. Vérifiez aussi les ceintures régulièrement pour vous assurer
qu’elles ne présentent pa s d’usure excessive, d’effilochage ou de cou-
pures.
Entretien et soin
ATTENTION
■Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Assurez-vous qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas une
ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les ceintures
de sécurité endommagées ne peuvent pas protéger les occupants contre les bles-
sures graves, voire mortelles.

749
ES350_300h_OM_OM33B99U_(U)
10
For owners
SRS airbag instructions for Canadian owners
(in French)
◆Coussins gonflables SRS avant
Coussin gonflable SRS du conducteur/du passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du pas-
sager avant contre les impacts avec des composants intérieurs
Coussins gonflables SRS de protection des genoux
Peuvent aider à protéger le conducteur et le passager avant
Un coussin gonflable SRS de protection des genoux pour le siège du passager
avant est intégré dans la porte de la boîte à gants.
The following is a French expl anation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instructions in
English.
1
2

750
ES350_300h_OM_OM33B99U_(U)
◆Coussins gonflables SRS latéraux et en rideau
Coussins gonflables SRS latéraux avant
Peuvent aider à protéger le torse des occupants des sièges avant
Coussins gonflables SRS latéraux arrière
Peuvent aider à protéger le torse des occupants des sièges latéraux
arrière
Coussins gonflables SRS en rideau
Peuvent aider à protéger principal ement la tête des occupants des siè-
ges latéraux
3
4
