Lexus ES300h 2015 Owner's Manual

230
ES350_300h_OM_OM33B36U_(U)
4-2. Driving procedures
Tu r n s i g n a l l e v e r
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
( → P. 7 3 0 )
Operating instructions
1
2
3
4

231
ES350_300h_OM_OM33B36U_(U)
4-2. Driving procedures
4
Driving
Pa rk in g b ra ke
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depressing
the brake pedal with your right foot.
(Depressing the pedal again
releases the parking brake.)
■Usage in winter time
→P. 3 4 2
U.S.A. Canada
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.

232
ES350_300h_OM_OM33B36U_(U)
4-2. Driving procedures
Horn
To sound the horn, press on or close
to the mark.
■After adjusting the steering wheel (manual adjustment type)
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked. (→P. 1 6 9 )

233
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers
4
Driving
Headlight switch
Turning the end of the lever turns on the lights as follows:
The headlights can be operated manually or automatically.
Operating instructions
U. S .A . Can ad a
The side marker, daytime
running, tail, license plate
and instrument panel lights
turn on.
The headlights, parking and
all lights listed above
(except daytime running
lights) turn on.
The headlights, daytime
running lights and all the
lights listed above turn on
and off automatically.
(When the “START STOP
ENGINE” <“POWER”>
switch is in IGNITION ON
mode.)
Off
The daytime running lights
turn on.1
2
3
4
(U.S.A.)
(Canada)

234
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers
With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with the
headlights on or off.
Turning on the high beam headlights
1
2

ES350_300h_OM_OM33B36U_(U)
2354-3. Operating the lights and wipers
4
Driving
■Daytime running light system
●To make your vehicle more visible to other drivers, the parking lights turn on auto-
matically (at an increased intensity) whenever the engine is started
and the parking brake is released. Daytime running lights are not designed for use
at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
●Compared to turning on the headlights, the daytime running light system offers
greater durability and consumes less electricity, so it can help improve fuel econ-
omy.
■Headlight control sensor
■Automatic light off system
When the light switch is in , or : The headlights and tail lights turn off 30
seconds after the “START STOP ENGINE” <“POWER”> switch is turned to
ACCESSORY mode or turned off and a door is opened and all of the doors and
trunk are closed. (The lights turn off immediately if on the key is pressed twice
after all the doors are closed.)
To turn the lights on again, turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode, or turn the light switch off once and then back to
or .
If any of the doors or trunk lid is kept open, the lights automatically turn off after 20
minutes. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

236
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers
■Light reminder buzzer
A buzzer sounds when the “START STOP ENGINE” <“POWER”> switch is turned
off or turned to ACCESSORY mode and the driver’s door is opened while the lights
are turned on.
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: → P. 7 3 0 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the engine is not running
.

237
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers
4
Driving
Automatic High Beam∗
Push the lever away from you
with the headlight switch in
or position.
Press the Automatic High Beam
switch.
The Automatic High Beam indicator
will come on when the headlights are
turned on automatically to indicate
that the system is active.
∗: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess
the brightness of streetlights, th e lights of oncoming and preceding
vehicles, etc., and automatic ally turns high beam on or off as necessary.
Activating the Automatic High Beam system
1
2

238
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers

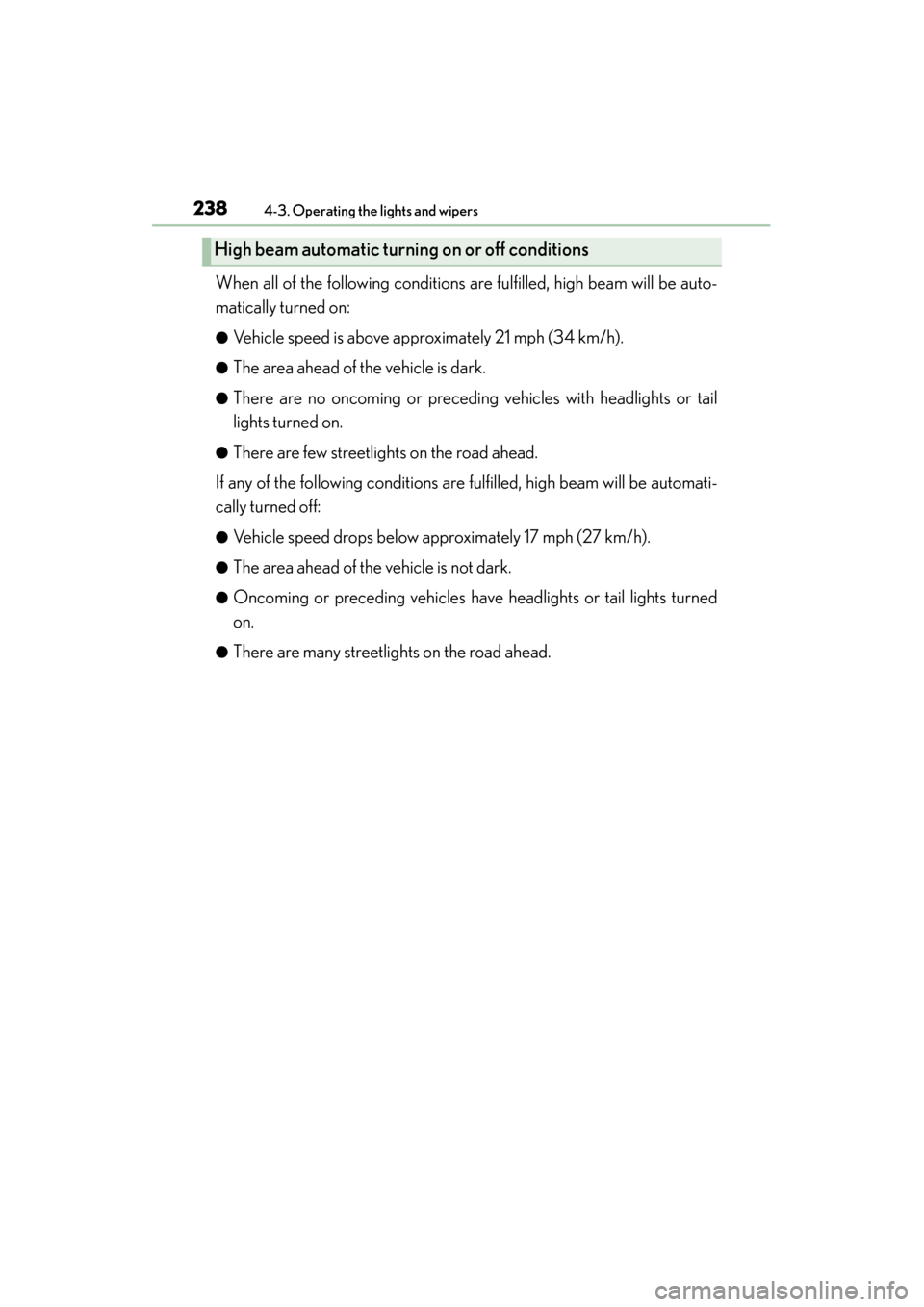

When all of the following conditions are fulfilled, high beam will be auto-
matically turned on:
●Vehicle speed is above approximately 21 mph (34 km/h).
●The area ahead of the vehicle is dark.
●There are no oncoming or preceding vehicles with headlights or tail
lights turned on.
●There are few streetlights on the road ahead.
If any of the following conditions are fulfilled, high beam will be automati-
cally turned off:
●Vehicle speed drops below approximately 17 mph (27 km/h).
●The area ahead of the vehicle is not dark.
●Oncoming or preceding vehicles have headlights or tail lights turned
on.
●There are many streetlights on the road ahead.
High beam automatic turning on or off conditions

ES350_300h_OM_OM33B36U_(U)
2394-3. Operating the lights and wipers
4
Driving
■Switching to low beam
Pull the lever to original position.
The Automatic High Beam indica-
tor will turn off.
Push the lever away from you to
activate the Automatic High Beam
system again.
■Switching to high beam
Press the Automatic High Beam
switch.
The Automatic High Beam indica-
tor will turn off and the high beam
indicator will turn on.
Press the switch to activate the
Automatic High Beam system
again.
Turning the high beam on/off manually
