Lexus ES300h 2015 Owner's Manual

350
ES350_300h_OM_OM33B36U_(U)
5-1. Basic Operations
Lexus Display Audio System∗
Eject a disc.
Disc slot
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Selects a preset radio station, or to access a desired track or file.
Display the radio top screen.
Display the media top screen.
“PWR•VOL” knob
Press to turn the audio system on/off, and turn to adjust the volume.∗
: If equipped
Use the following buttons to start listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

ES350_300h_OM_OM33B36U_(U)
3515-1. Basic Operations
5
Lexus Display Audio system
■“Menu” screen
To display the “Menu” screen, press the “MENU” button on the control-
ler unit.
ButtonFunction
“Radio”Display the radio top screen (→P. 3 7 8 )
“Media”Display the media top screen
(→ P. 387, 395, 399, 404, 417)
“Climate”Automatic air conditioning system ( →P. 4 6 4 )
“Phone”Display the phone top screen ( →P. 4 1 9 )
“Info”Display the “Information” screen ( →P. 4 4 9 )
“Setup”Setup menu ( →P. 3 6 1 )
“Display”Display settings ( →P. 3 6 7 )

3525-1. Basic Operations
ES350_300h_OM_OM33B36U_(U)
By using the Lexus Display Audio controller, you can control the audio
system, hands-free system, etc.Display the “Source” screen or audio top screen (→ P. 369)
Display the “Menu” screen ( →P. 351)
Back button
Display the previous screen
Turn or move the controller to select a function and number.
Move the controller to display the left or right side of the screen.
Push the controller to enter the selected function and number.
Lexus Display Audio controller
1
2
3
4

ES350_300h_OM_OM33B36U_(U)
3535-1. Basic Operations
5
Lexus Display Audio system
■Using the Lexus Display Audio controllerSelect: Turn or move the con-
troller.
Enter: Push the controller.
■Basic screen operation
When a list is displayed, use the appropriate button to scroll through
the list.
Indicator turns on when you
can select the list by turning
the controller.
Indicator turns on when you
can return to the previous
screen by pressing the back
button.
Indicator turns on when you can move the controller left to view
additional screen text.
Indicator turns on when you can move the controller right to view
additional screen text.
1
2
1
2
3
4

3545-1. Basic Operations
ES350_300h_OM_OM33B36U_(U)
■Input mode
Letters and numbers are inputted via the screen.Turn the controller to select the
desired character and press
the controller to input the
character.
When this indicator is shown,
you can change input fields by
moving the controller forward.
When this indicator is shown, you can change character types by
moving the controller to the right and then selecting the desired
character type.
Select to erase characters one by one. Select and hold to erase all
characters.
Select to complete data input.
Inputting letters and numbers
1
2
3
4
5

ES350_300h_OM_OM33B36U_(U)
3555-1. Basic Operations
5
Lexus Display Audio system
■Input field mode
When in the input field you can move the cursor to the desired position.Turn the controller to move the
cursor left or right.
When this indicator is shown,
you can move the cursor to the
right input field by moving the
controller to the right.
When this indicator is shown,
you can move the cursor to the
left input field by moving the
controller to the left.
When this indicator is shown, you can change to input mode by mov-
ing the controller backward.
■When using the screen
●Under extremely cold conditions, the Lexus Display Audio controller may react
slowly.
●If the screen is cold, the display may be dark, or the system may seem to be operat-
ing slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses.
Change your angle of viewing, adjust the display on the “Display” screen ( →P. 3 6 7 )
or remove your sunglasses.
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
1
2
3
4

3565-1. Basic Operations
ES350_300h_OM_OM33B36U_(U)

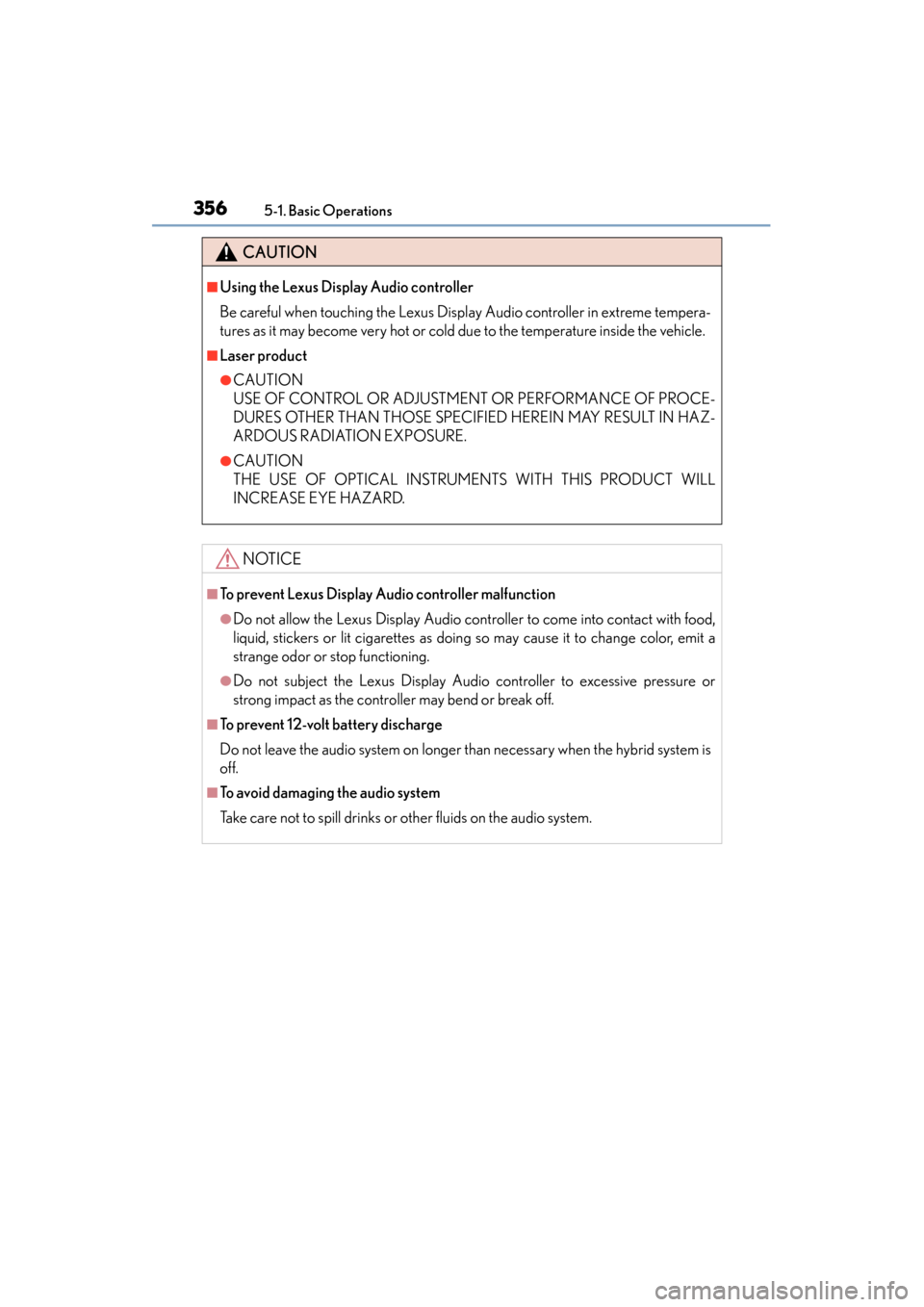

CAUTION
■Using the Lexus Display Audio controller
Be careful when touching the Lexus Display Audio controller in extreme tempera-
tures as it may become very hot or cold due to the temperature inside the vehicle.
■Laser product
●CAUTION
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCE-
DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZ-
ARDOUS RADIATION EXPOSURE.
●CAUTION
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL
INCREASE EYE HAZARD.
NOTICE
■To prevent Lexus Display Audio controller malfunction
●Do not allow the Lexus Display Audio controller to come into contact with food,
liquid, stickers or lit cigarettes as doing so may cause it to change color, emit a
strange odor or stop functioning.
●Do not subject the Lexus Display Audio controller to excessive pressure or
strong impact as the controller may bend or break off.
■To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary when the hybrid system is
off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

357
ES350_300h_OM_OM33B36U_(U)
5-1. Basic Operations
5
Lexus Display Audio system
Steering wheel audio switches
Radio mode:• Press: Selects a radio station
• Press and hold: Seeks up/down
CD, MP3/WMA/AAC disc,
Bluetooth
®, iPod or USB mode:
• Press: Selects a track/file/ video
• Press and hold: Scrolls up/
down tracks/files/videos
(MP3/WMA/AAC disc, iPod
or USB)
Volume switch • Press: Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
“MODE” switch • Press: Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To cancel the mute or pause, press and hold.
Some audio features can be controll ed using the switches on the steer-
ing wheel.
Operation may differ depending on th e type of audio system or naviga-
tion system. For details, refer to th e manual provided with the audio sys-
tem or naviga tion system.
Operating the audio system using the steering wheel switches
1
2
3

3585-1. Basic Operations
ES350_300h_OM_OM33B36U_(U)

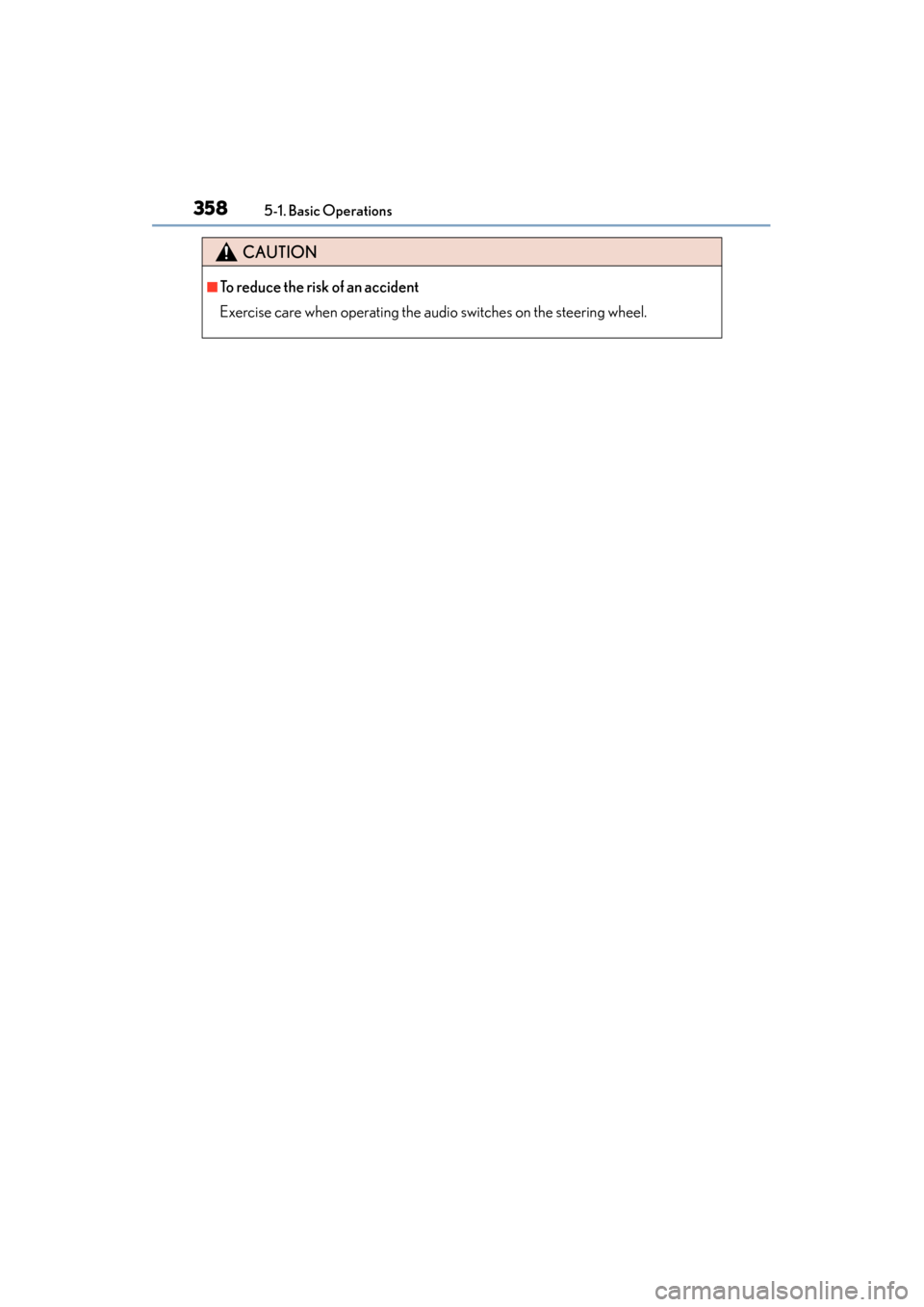

CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

359
ES350_300h_OM_OM33B36U_(U)
5-1. Basic Operations
5
Lexus Display Audio system
USB/AUX ports
Push the knob to release the lock,
and lift the armrest to open fully.
Open the cover.
Connect an iPod, USB memory device or portable audio player to the
USB/AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “A/V”
on the audio source selection screen and the device can be operated via
Lexus Display Audio system.
Connecting using the USB/AUX port
1
2
