6198-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
Gasoline vehicles: If a tow truck is
not available in an emergency, your
vehicle may be temporarily towed
using a cable or chain secured to
the emergency towing eyelet. This
should only be attempted on hard
surfaced roads for 50 miles (80
km) at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Hybrid vehicles: If a tow truck is not available in an emergency, your vehi-
cle may be temporarily towed using a cable or chain secured to the emer-
gency towing eyelet. This should only be attempted on hard surfaced
roads for short distances at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Emergency towing

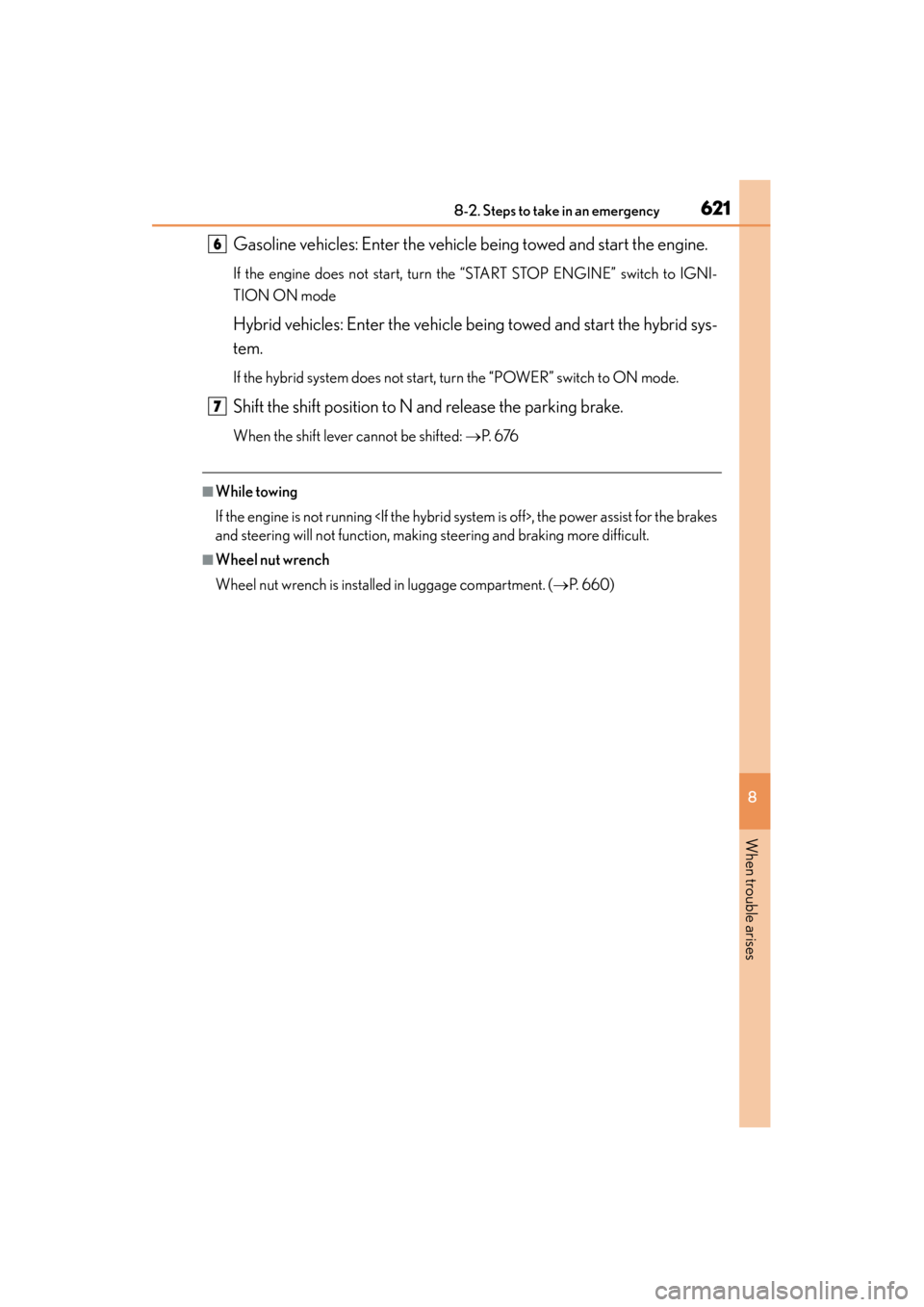

6218-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
Gasoline vehicles: Enter the vehicle being towed and start the engine.
If the engine does not start, turn the “START STOP ENGINE” switch to IGNI-
TION ON mode
Hybrid vehicles: Enter the vehicle being towed and start the hybrid sys-
tem.
If the hybrid system does not start, turn the “POWER” switch to ON mode.
Shift the shift position to N and release the parking brake.
When the shift lever cannot be shifted: →P. 6 76
■While towing
If the engine is not running , the power assist for the brakes
and steering will not function, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( →P. 660)
6
7

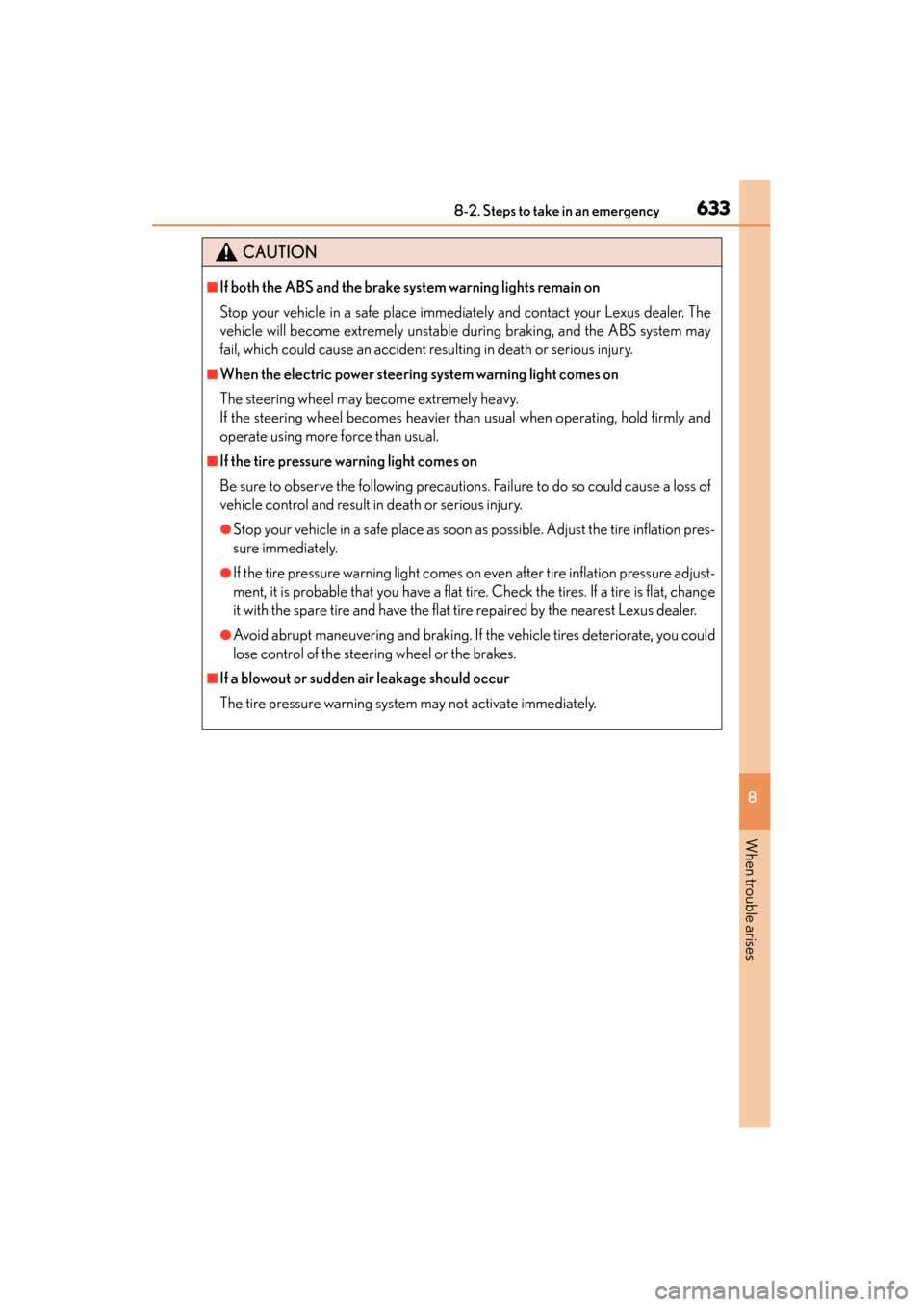

6338-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

6578-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once
XGasoline vehicles
XHybrid vehicles
The driver’s door
was opened and
closed with the
“START STOP
ENGINE”
<“POWER”> switch
turned off and then
the “START STOP
ENGINE”
<“POWER”> switch
was put in ACCES-
SORY mode twice
without the engine

being started.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal.
During an engine

starting procedure
in the event that the
electronic key was
not functioning
properly ( →P. 6 7 8 ) ,
the “START STOP
ENGINE”
<“POWER”> switch
was touched with
the electronic key.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch within
10 seconds
of the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
“START STOP
ENGINE”
<“POWER”> switch
being pressed.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
(Flashes)
(Flashes)
(Flashes)

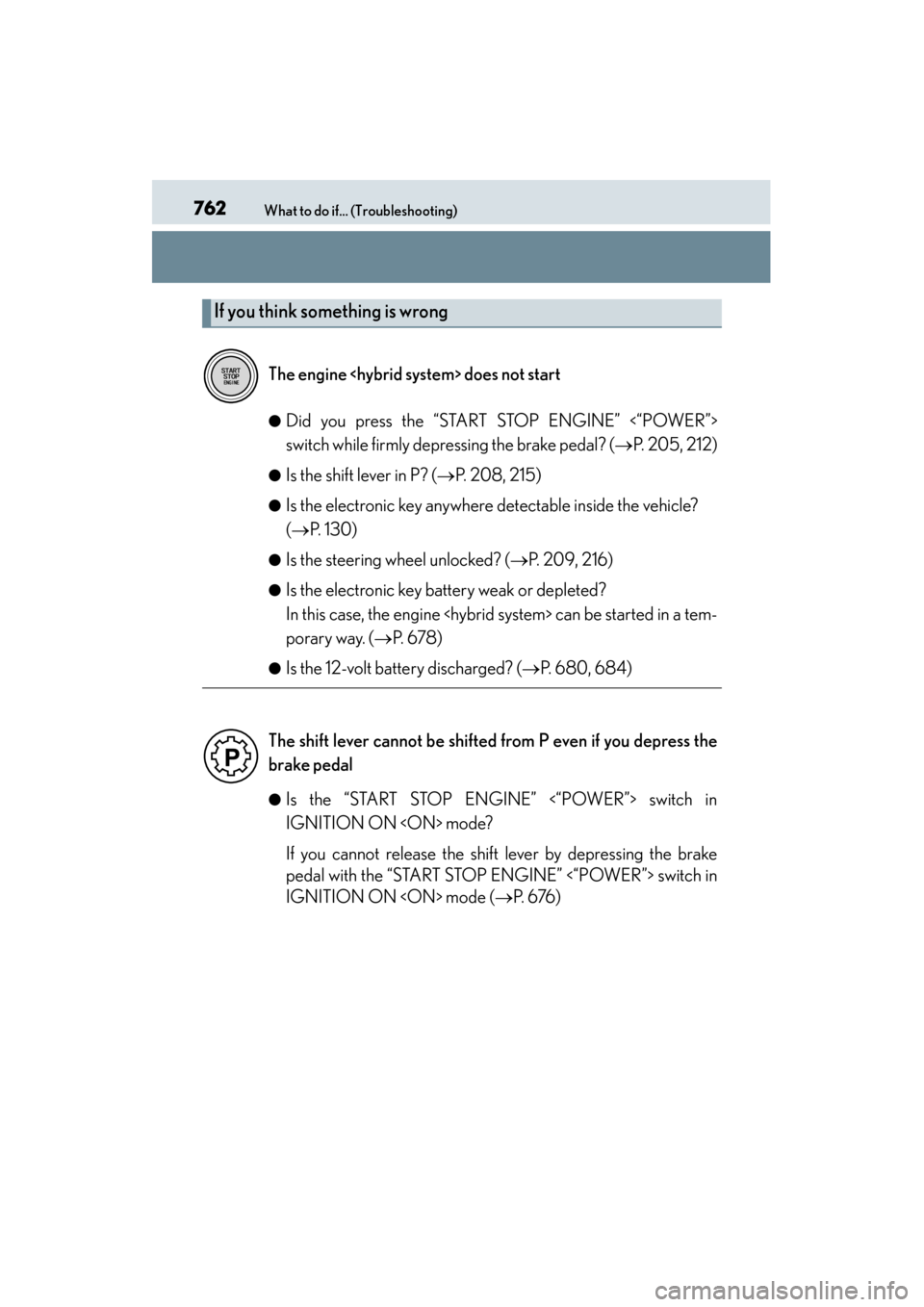

762What to do if... (Troubleshooting)
ES350_300h_OM_OM33B36U_(U)●
Did you press the “START STOP ENGINE” <“POWER”>
switch while firmly depressing the brake pedal? (
→P. 205, 212)
●Is the shift lever in P? ( →P. 208, 215)
●Is the electronic key anywhere detectable inside the vehicle?
(→ P. 1 3 0 )
●Is the steering wheel unlocked? ( →P. 2 0 9 , 2 1 6 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a tem-
porary way. ( →P. 6 7 8 )
●Is the 12-volt battery discharged? ( →P. 6 8 0 , 6 8 4 )
●Is the “START STOP ENGINE” <“POWER”> switch in
IGNITION ON mode?
If you cannot release the shift lever by depressing the brake
pedal with the “START STOP ENGINE” <“POWER”> switch in
IGNITION ON mode ( →P. 6 76 )
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the
brake pedal

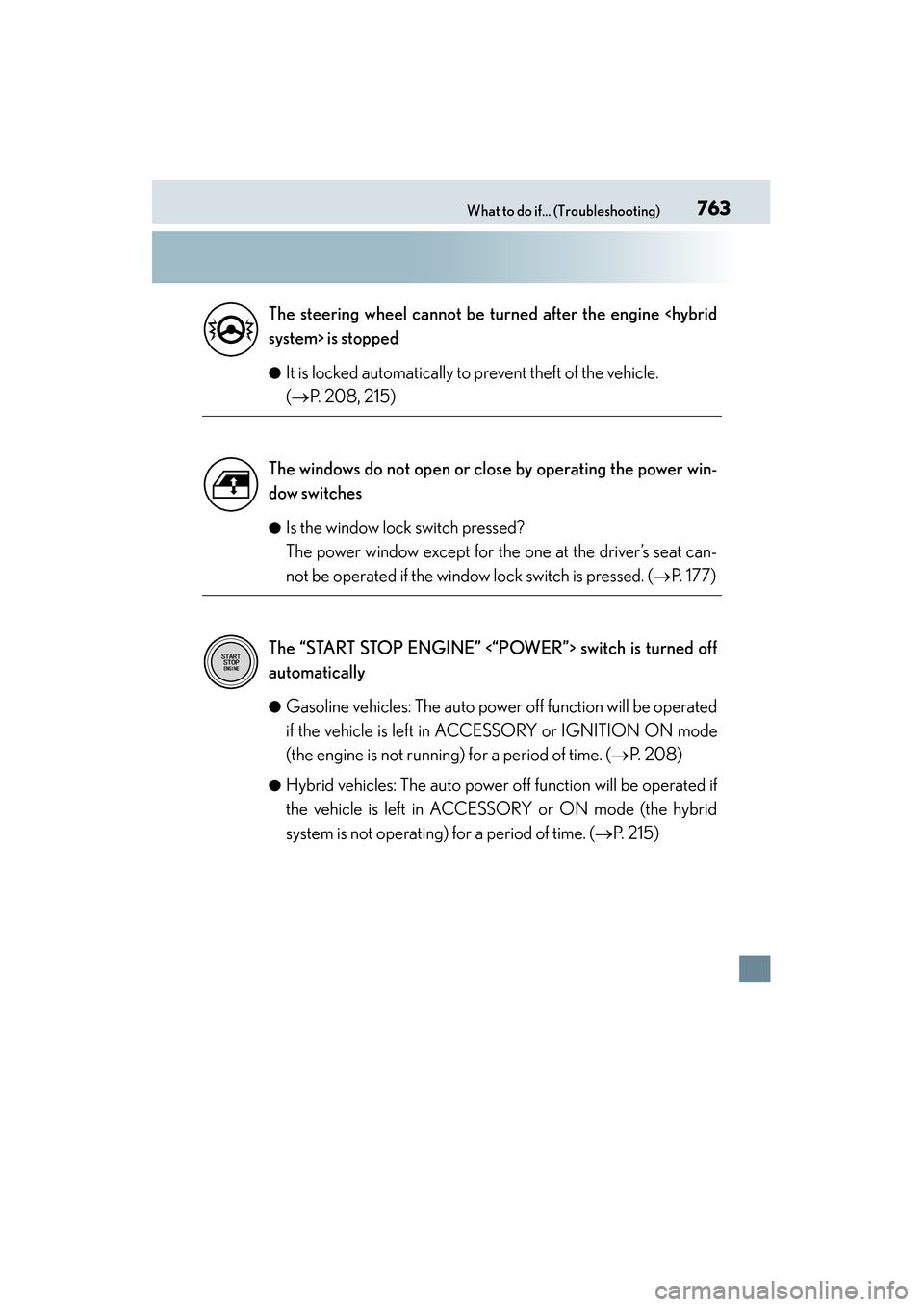

763What to do if... (Troubleshooting)
ES350_300h_OM_OM33B36U_(U)●
It is locked automatically to prevent theft of the vehicle.
(→
P. 208, 215)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat can-
not be operated if the window lock switch is pressed. ( →P. 177)
●Gasoline vehicles: The auto power off function will be operated
if the vehicle is left in ACCESSORY or IGNITION ON mode
(the engine is not running) for a period of time. ( →P. 2 0 8 )
●Hybrid vehicles: The auto power off function will be operated if
the vehicle is left in ACCESSORY or ON mode (the hybrid
system is not operating) for a period of time. ( →P. 215)
The steering wheel cannot be tu
rned after the engine system> is stopped
The windows do not open or close by operating the power win-
dow switches
The “START STOP ENGINE” <“POWER”> switch is turned off
automatically

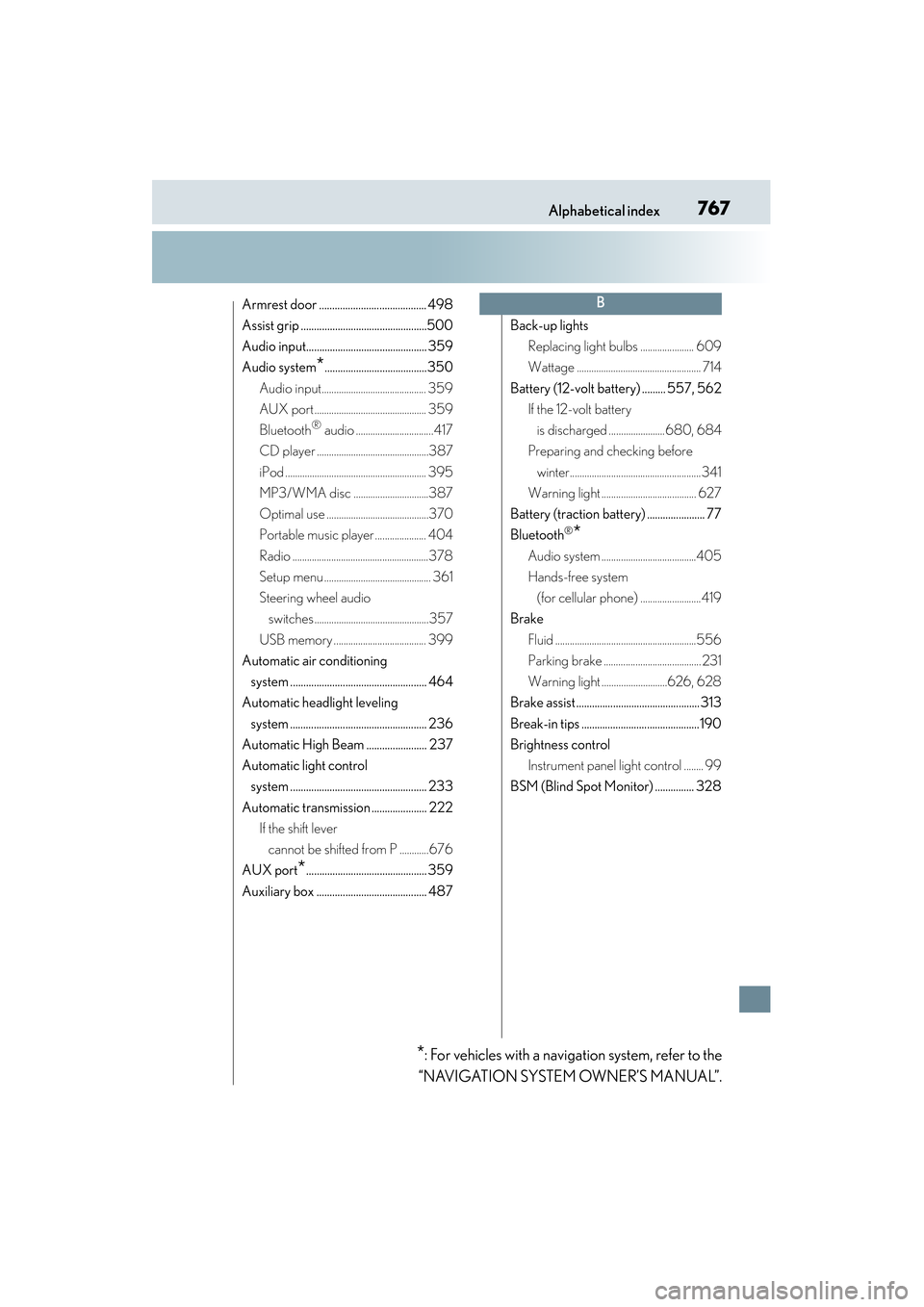

767Alphabetical index
ES350_300h_OM_OM33B36U_(U)
Armrest door ......................................... 498
Assist grip ................................................500
Audio input.............................................. 359
Audio system
*.......................................350
Audio input........................................... 359
AUX port .............................................. 359
Bluetooth
® audio ................................417
CD player ..............................................387
iPod .......................................................... 395
MP3/WMA disc ...............................387
Optimal use ..........................................370
Portable music player ..................... 404
Radio ........................................................378
Setup menu ............................................ 361
Steering wheel audio switches ...............................................357
USB memory ...................................... 399
Automatic air conditioning
system .................................................... 464
Automatic headlight leveling
system .................................................... 236
Automatic High Beam ....................... 237
Automatic light control system .................................................... 233
Automatic transmission ..................... 222 If the shift lever
cannot be shifted from P ............676
AUX port
*.............................................. 359
Auxiliary box .......................................... 487 Back-up lights
Replacing light bulbs ...................... 609
Wattage ................................................... 714
Battery (12-volt battery) ......... 557, 562 If the 12-volt battery
is discharged .......................680, 684
Preparing and checking before
winter...................................................... 341
Warning light ....................................... 627
Battery (traction battery) ...................... 77
Bluetooth
®*
Audio system .......................................405
Hands-free system (for cellular phone) .........................419
Brake
Fluid ..........................................................556
Parking brake ........................................ 231
Warning light ...........................626, 628
Brake assist ............................................... 313
Break-in tips .............................................190
Brightness control
Instrument panel light control ........ 99
BSM (Blind Spot Monitor) ............... 328
B
*: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

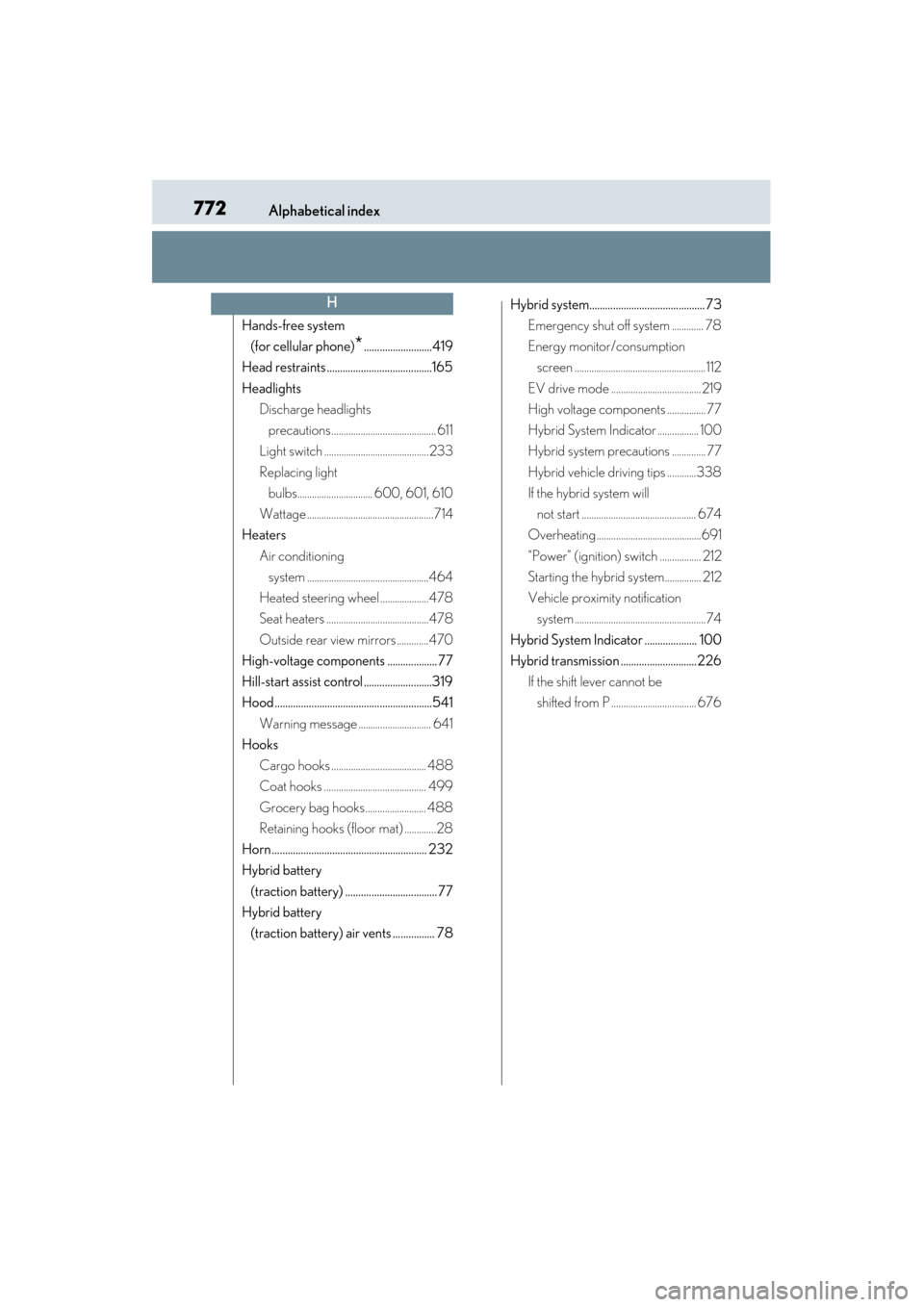

772Alphabetical index
ES350_300h_OM_OM33B36U_(U)
Hands-free system (for cellular phone)
*..........................419
Head restraints ........................................165
Headlights Discharge headlights
precautions........................................... 611
Light switch ........................................... 233
Replacing light bulbs............................... 600, 601, 610
Wattage ....................................................714
Heaters
Air conditioning system ..................................................464
Heated steering wheel ....................478
Seat heaters ..........................................478
Outside rear view mirrors .............470
High-voltage components ................... 77
Hill-start assist control ..........................319
Hood ............................................................541
Warning message .............................. 641
Hooks
Cargo hooks ....................................... 488
Coat hooks .......................................... 499
Grocery bag hooks......................... 488
Retaining hooks (floor mat) .............28
Horn ........................................................... 232
Hybrid battery (traction battery) ................................... 77
Hybrid battery
(traction battery) air vents ................ 78 Hybrid system............................................ 73
Emergency shut off system ............. 78
Energy monitor/consumption screen ...................................................... 112
EV drive mode ..................................... 219
High voltage components ................ 77
Hybrid System Indicator ................. 100
Hybrid system precautions .............. 77
Hybrid vehicle driving tips ............338
If the hybrid system will not start ............................................... 674
Overheating...........................................691
“Power” (ignition) switch ................. 212
Starting the hybrid system............... 212
Vehicle proximity notification system ......................................................74
Hybrid System Indicator .................... 100
Hybrid transmission .............................226 If the shift lever cannot be shifted from P ................................... 676
H

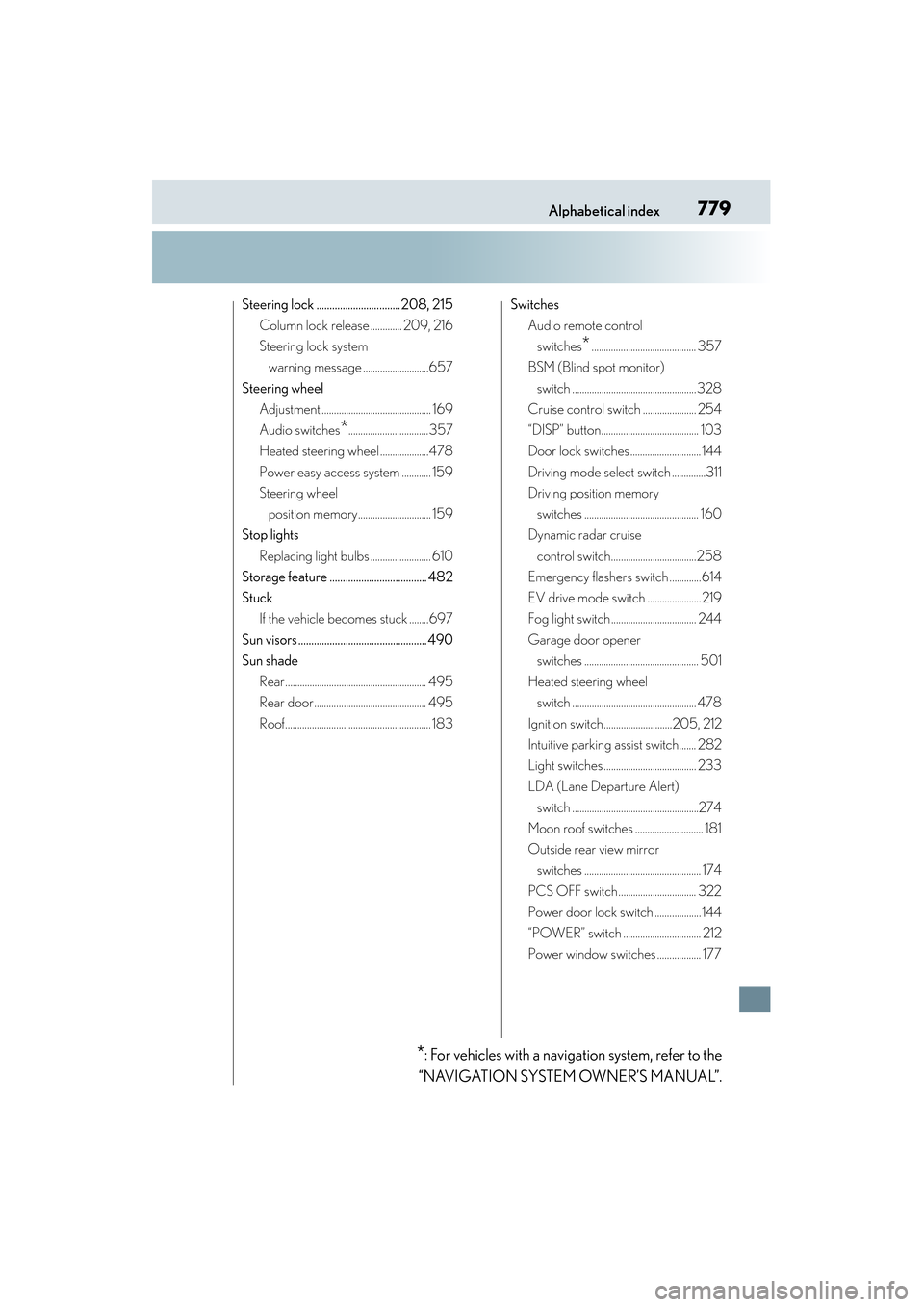

779Alphabetical index
ES350_300h_OM_OM33B36U_(U)
Steering lock ................................208, 215Column lock release ............. 209, 216
Steering lock system warning message ...........................657
Steering wheel Adjustment ............................................. 169
Audio switches
*................................. 357
Heated steering wheel ....................478
Power easy access system ............ 159
Steering wheel
position memory.............................. 159
Stop lights
Replacing light bulbs ......................... 610
Storage feature ..................................... 482
Stuck If the vehicle becomes stuck ........697
Sun visors ................................................. 490
Sun shade Rear.......................................................... 495
Rear door .............................................. 495
Roof............................................................ 183 Switches
Audio remote control
switches
*........................................... 357
BSM (Blind spot monitor)
switch ................................................... 328
Cruise control switch ...................... 254
“DISP” button........................................ 103
Door lock switches ............................. 144
Driving mode select switch ..............311
Driving position memory
switches ............................................... 160
Dynamic radar cruise
control switch...................................258
Emergency flashers switch .............614
EV drive mode switch ...................... 219
Fog light switch ................................... 244
Garage door opener switches ............................................... 501
Heated steering wheel switch ................................................... 478
Ignition switch............................205, 212
Intuitive parking assist switch....... 282
Light switches ...................................... 233
LDA (Lane Departure Alert) switch ....................................................274
Moon roof switches ............................ 181
Outside rear view mirror switches ................................................ 174
PCS OFF switch ................................ 322
Power door lock switch ................... 144
“POWER” switch ................................ 212
Power window switches .................. 177
*: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
