turn signal Lexus ES300h 2015 Owner's Manual

3
ES350_300h_OM_OM33B36U_(U)
1
9 8
7
6 4 3
2
10
5
4-1. Before drivingDriving the vehicle ..................... 188
Cargo and luggage.................... 199
Vehicle load limits ...................... 202
Trailer towing ............................... 203
Dinghy towing ............................. 204
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles).................. 205
Power (ignition) switch (hybrid vehicles) ........................212
EV drive mode (hybrid vehicles) ........................219
Automatic transmission (gasoline vehicles).................. 222
Hybrid transmission (hybrid vehicles) ...................... 226
Turn signal lever .......................... 230
Parking brake ................................231
Horn ................................................ 232
4-3. Operating the lights and wipers
Headlight switch ........................ 233
Automatic High Beam..............237
Fog light switch ............................244
Windshield wipers and washer .................................245
4-4. Refueling Opening the fuel tank cap ......249 4-5. Using the driving support
systems
Cruise control ............................. 254
Dynamic radar cruise control............................ 258
LDA (Lane Departure Alert).........273
Intuitive parking assist ................281
Lexus parking assist monitor........................................ 294
Driving mode select switch .............................................. 311
Driving assist systems ................313
Hill-start assist control (hybrid vehicles) ........................319
PCS (Pre-Collision System) ...........321
BSM (Blind Spot Monitor)..... 328 • Blind Spot Monitor function .................................... 332
• Rear Cross Traffic Alert function .................................... 335
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) ..................... 338
Winter driving tips .......................341
4Driving

17Pictorial index
ES350_300h_OM_OM33B36U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . . . P. 471
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 524
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 4 9
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 712
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 566
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 541
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 4 1
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 0 5
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 688, 691
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 641
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 233
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop/tail lights
Hill-start assist control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222, 226
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 598, Watts: P. 714)
*1: If equipped
*2: Hybrid vehicles
8
9
10
11
12
13
14
15

19Pictorial index
ES350_300h_OM_OM33B36U_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. .P. 102
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . P. 636
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 231
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 626, 643
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . P. 233
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 561
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 649
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 251
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
Trunk opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 4 9
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 541
Tilt and telescopic steering control switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Tilt and telescopic steering lock release lever
*1 . . . . . . . . . . . . . . . . . . . . P. 169
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 464
Rear window and outside rear view mirror defoggers . . . . . . . . . . . . . . . P. 470
Audio system
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 419
*1: If equipped
*2: For vehicles with a navigation system, refer to
“NAVIGATION SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14
15

ES350_300h_OM_OM33B36U_(U)

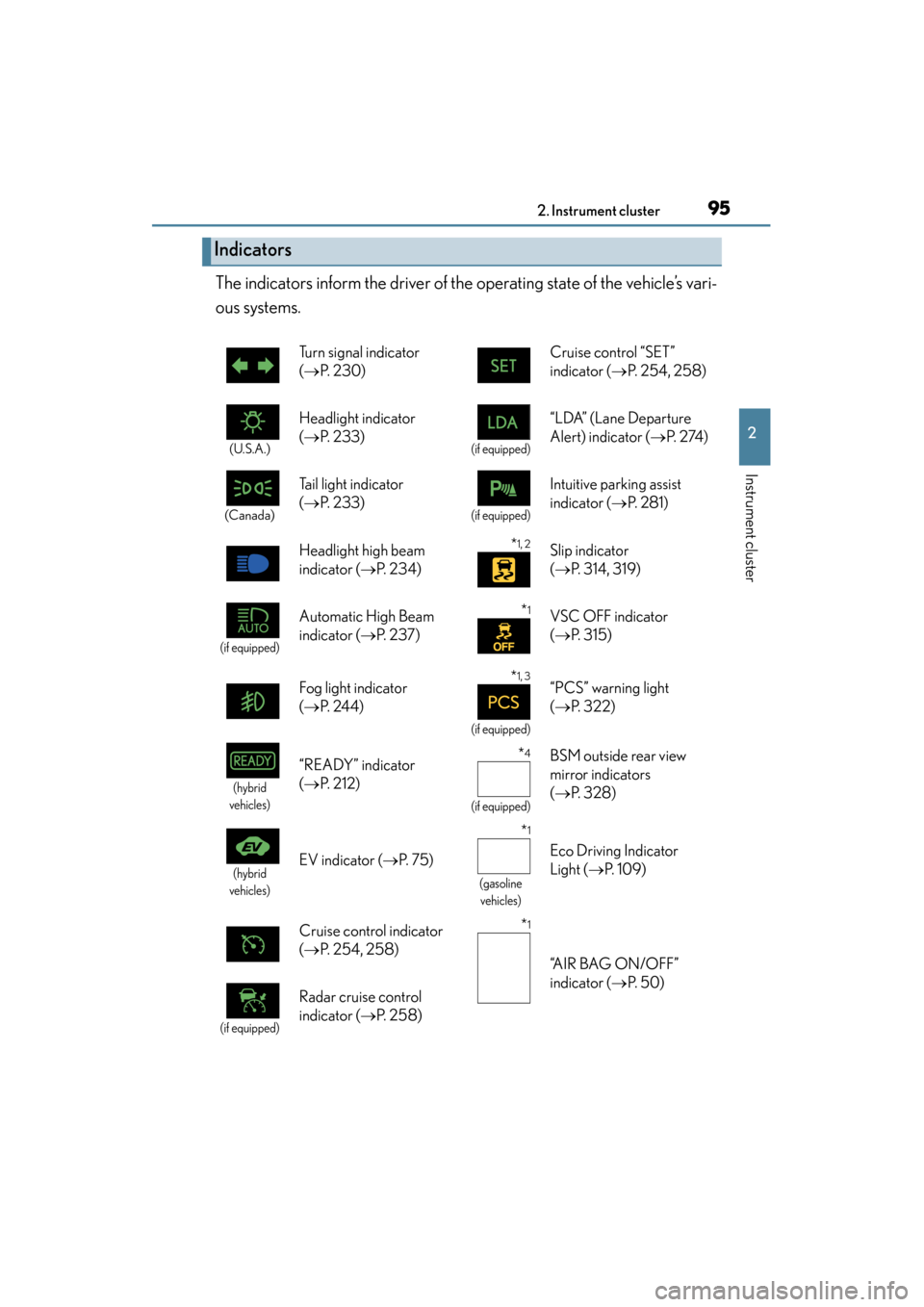

952. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 2 3 0 ) Cruise control “SET”
indicator (
→P. 254, 258)
(U.S.A.)
Headlight indicator
(→ P. 2 3 3 )
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( →P. 2 74 )
(Canada)
Tail light indicator
(→ P. 2 3 3 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 8 1 )
Headlight high beam
indicator ( →P. 2 3 4 )
*1, 2Slip indicator
(→ P. 314, 319)
(if equipped)
Automatic High Beam
indicator ( →P. 2 3 7 ) *1VSC OFF indicator
(→ P. 3 1 5 )
Fog light indicator
( → P. 2 4 4 )
*1, 3
(if equipped)
“PCS” warning light
(→ P. 322)
(hybrid
vehicles)
“READY” indicator
( → P. 2 1 2 )*4
(if equipped)
BSM outside rear view
mirror indicators
(→ P. 3 2 8 )
(hybrid
vehicles)EV indicator ( →P. 7 5 )
*1
(gasoline
vehicles)
Eco Driving Indicator
Light ( →P. 1 0 9 )
Cruise control indicator
( → P. 254, 258)
*1
“A I R B A G O N / O F F ”
indicator ( →P. 5 0 )
(if equipped)
Radar cruise control
indicator ( →P. 2 5 8 )

127
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket. (The driver should
always carry the electronic key.)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The side marker, parking, tail and license plate lights automatically turn on at night
when the doors are unlocked using the entry function or wireless remote control if
the light switch is in the “AUTO” position.
Function summary
Hybrid vehiclesGasoline vehicles
Locks and unlocks the doors (→P. 1 2 8 )
Opens the trunk ( →P. 1 2 8 )
Starts the engine ( →P. 205)
Starts the hybrid system ( →P. 212)1
2
3

187
ES350_300h_OM_OM33B36U_(U)

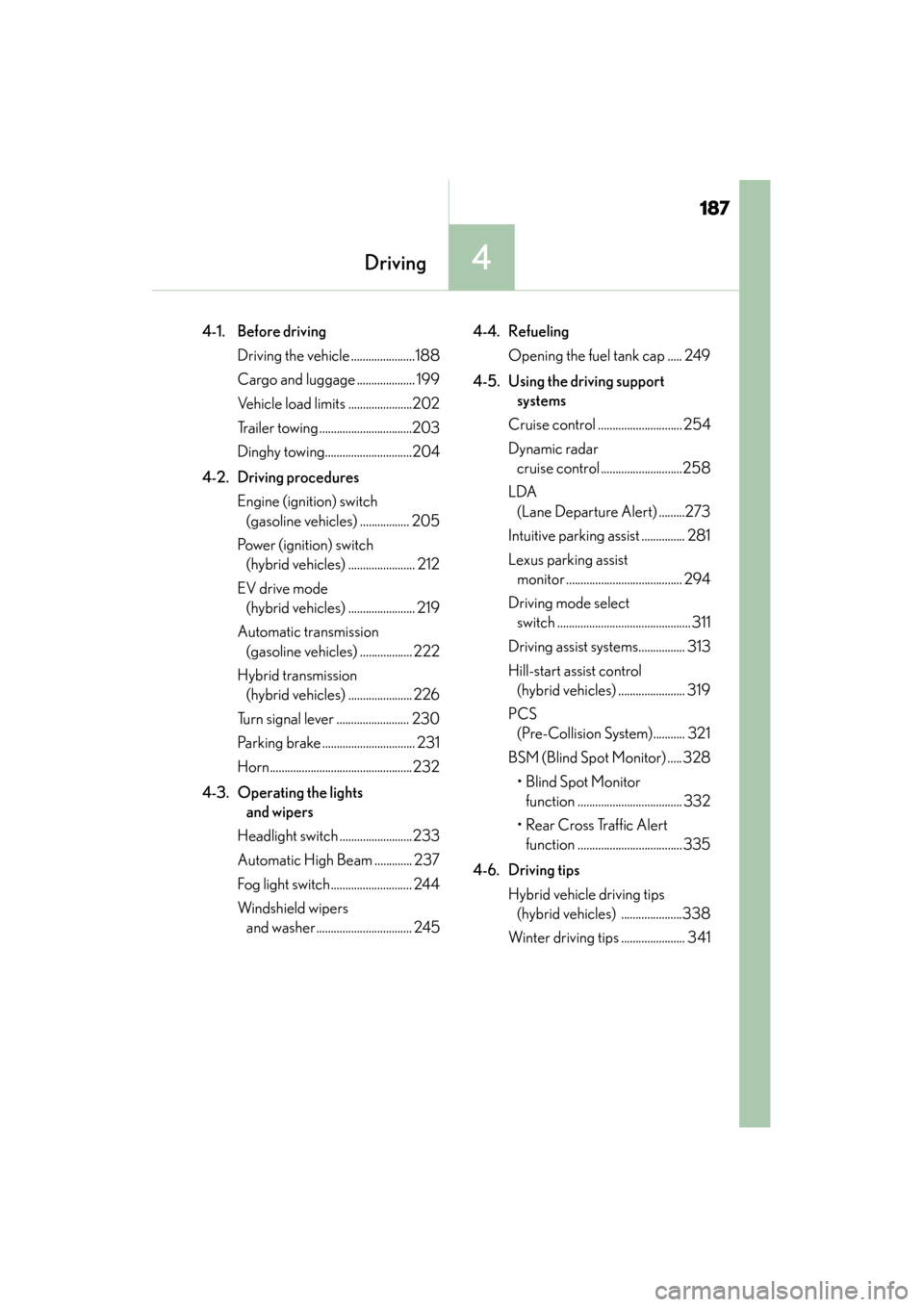

4Driving
4-1. Before drivingDriving the vehicle ......................188
Cargo and luggage .................... 199
Vehicle load limits ......................202
Trailer towing ................................203
Dinghy towing..............................204
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles) ................. 205
Power (ignition) switch (hybrid vehicles) ....................... 212
EV drive mode (hybrid vehicles) ....................... 219
Automatic transmission (gasoline vehicles) .................. 222
Hybrid transmission (hybrid vehicles) ...................... 226
Turn signal lever ......................... 230
Parking brake ................................ 231
Horn.................................................232
4-3. Operating the lights and wipers
Headlight switch .........................233
Automatic High Beam ............. 237
Fog light switch............................ 244
Windshield wipers and washer................................. 245 4-4. Refueling
Opening the fuel tank cap ..... 249
4-5. Using the driving support systems
Cruise control ............................. 254
Dynamic radar cruise control ............................258
LDA (Lane Departure Alert) .........273
Intuitive parking assist ............... 281
Lexus parking assist monitor ........................................ 294
Driving mode select switch .............................................. 311
Driving assist systems................ 313
Hill-start assist control (hybrid vehicles) ....................... 319
PCS (Pre-Collision System)........... 321
BSM (Blind Spot Monitor) ..... 328 •Blind Spot Monitor function .................................... 332
• Rear Cross Traffic Alert function .................................... 335
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) .....................338
Winter driving tips ...................... 341

230
ES350_300h_OM_OM33B36U_(U)
4-2. Driving procedures
Tu r n s i g n a l l e v e r
Right turn
Lane change to the right (move
the lever partway and then
release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
( → P. 7 3 0 )
Operating instructions
1
2
3
4

240
ES350_300h_OM_OM33B36U_(U)
4-3. Operating the lights and wipers
■The Automatic High Beam can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to repeatedcurves, road dividers or roadside trees
• When oncoming vehicles appear from the faraway lane on wide road
• When oncoming or preceding vehicles have no lights
●High beam may be turned off if an oncoming vehicle that is using fog lights without
using the headlights is detected.
●House lights, street lights, red traffic signals, and illuminated billboards or signs may
cause the high beam to turn off.
●The following factors may affect the amount of time taken to turn high beam on or
off:
• The brightness of headlights, fog lights, and tail lights of oncoming and preced- ing vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●High beam may be turned on or off when unexpected by the driver.

276
ES350_300h_OM_OM33B36U_(U)
4-5. Using the driving support systems
■Temporary cancelation of the LDA system
If any of the following occurs, the LDA system will be temporarily canceled.
The function will resume after the necessary operating conditions have returned.
●The vehicle speed deviates from the operating range of the LDA system.
●The turn signal lever is operated.
●When the lane lines cannot be recognized while driving.
●When the lane departure warning sounds.
The lane departure warning function will not operate again for a several seconds
after it has been activated, even if the vehicle leaves the lane again.
■The lane departure warning
Depending on the audio system sound level or air conditioning fan noise while the
audio system or air conditioning system is in use, it may be difficult to hear the warn-
ing sound.
■After the vehicle has been parked in the sun
The LDA system may not be available and a warning message (→P. 646) will be dis-
played for a while after driving has started. When the temperature in the cabin
decreases and the temperature around the camera sensor ( →P. 2 7 3 ) b e c o m e s s u i t -
able for its operation, the functions will begin to operate.
■If there are lane markers on only one side of the vehicle
The lane departure warning will not operate for the side on which lane markers
could not be recognized.

308
ES350_300h_OM_OM33B36U_(U)
4-5. Using the driving support systems
‰The guide lines are very far out of alignment
The camera position is out of alignment.Have the vehicle inspected by your
Lexus dealer.
• The vehicle is tilted (there is a heavy
load on the vehicle, tire pressure is
low due to a tire puncture, etc.)
• The vehicle is used on an incline.If this happens due to these causes, it
does not indicate a malfunction.
Back up while visually checking the
vehicle’s surroundings.
‰ The estimated course lines move even though the steering wheel is straight
There is a malfunction in the signals
being output by the steering sensor.Have the vehicle inspected by your
Lexus dealer.
‰Guide lines are not displayed
The trunk is open.
Close the trunk.
If this does not resolve the symptom,
have the vehicle inspected by your
Lexus dealer.
‰The estimated course lines are not displayed
• 12-volt battery power is low.
• The steering sensor has been rein-
stalled.
• There is a malfunction in the signals being output by the steering sensor.Stop the vehicle, and turn the steering
wheel as far as it will go to the left and
right.
If this does not resolve the symptom,
have the vehicle inspected by your
Lexus dealer.
Likely causeSolution
