engine oil Lexus ES300h 2015 Playing an audio CD and MP3/WMA/AAC discs / Owner's Manual (OM33B99U)

17Pictorial index
ES350_300h_OM_OM33B99U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . . . P. 471
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 524
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 4 9
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 712
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 566
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 541
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 4 1
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 0 5
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 688, 691
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 641
Headlights/parking lights/daytime running ligh ts . . . . . . . . . . . . . . . . . . P. 233
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop/tail lights
Hill-start assist control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222, 226
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
4
5
6
7
Light bulbs of the exterior lights for driving
( R e p l a c i n g m e t h o d : P. 5 9 8 , Wa t t s : P. 7 1 4 )
*1: If equipped
*2: Hybrid vehicles
8
9
10
11
12
13
14
15

134
ES350_300h_OM_OM33B99U_(U)
3-2. Opening, closing and locking the doors and trunk
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the follow-
ing situations, the communication between the electronic key and the vehicle may be
affected, preventing the smar t access system with push-button start, wireless remote
control and engine immobilizer system from operating prop-
erly. (Ways of coping: P. 6 7 7 )
●When the electronic ke y battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key togeth er with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or person al digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window

198
ES350_300h_OM_OM33B99U_(U)
4-1. Before driving
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause
the following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following:
●Brake function
●Changes in quantity and quality of engine oil, fluid used for automatic transaxle
, etc.
●Lubricant condition for the bearings and su spension joints (where possible), and
the function of all joints, bearings, etc.

341
ES350_300h_OM_OM33B99U_(U)
4-6. Driving tips
4
Driving
Winter driving tips
●Use fluids that are appropriate to the prevailing outside temperatures. • Engine oil
• Engine coolant
• Power control unit coolant (hybrid vehicles)
• Washer fluid
●Have a service technician inspect th e condition of the 12-volt battery.
●Have the vehicle fitted with four sno w tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the specified size and brand, and that chains match the
size of the tires.
Carry out the necessary preparati ons and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Preparation for winter

ES350_300h_OM_OM33B99U_(U)
5317-2. Maintenance
7
Maintenance and care
CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible
death or serious injury.
■Handling of the 12-volt battery
●Engine exhaust, some of its constituents , and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other repr oductive harm. Avoid exposure and wash
any affected area immediately.
●12-volt battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause br ain damage. Wash your hands after
handling. ( P. 5 5 7 , 5 6 2 )

532
ES350_300h_OM_OM33B99U_(U)
7-2. Maintenance

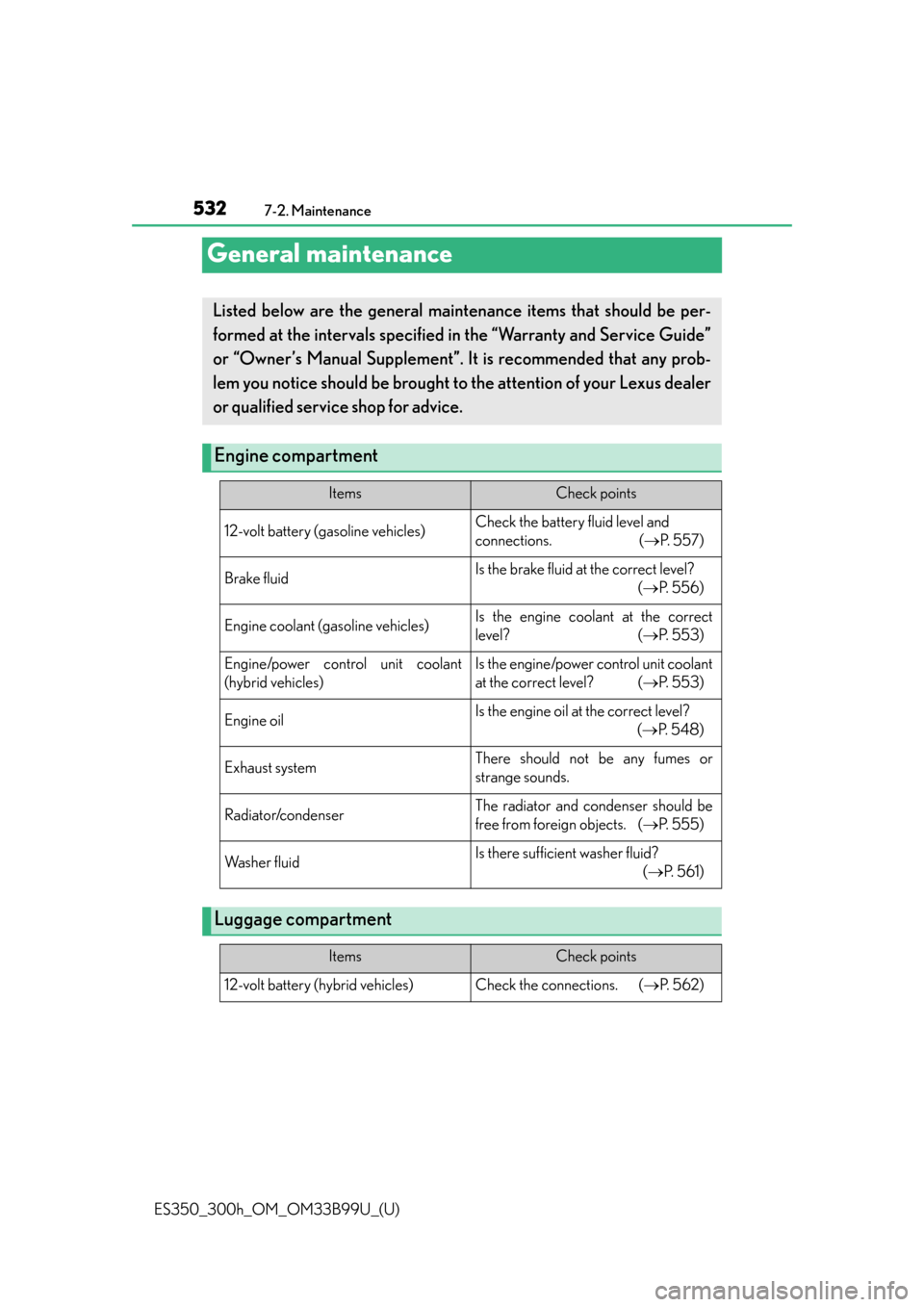

General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Service Guide”
or “Owner’s Manual Supplement”. It is recommended that any prob-
lem you notice should be brought to the attention of your Lexus dealer
or qualified service shop for advice.
Engine compartment
ItemsCheck points
12-volt battery (gasoline vehicles)Check the battery fluid level and
connections. ( P. 5 5 7 )
Brake fluidIs the brake fluid at the correct level?
( P. 5 5 6 )
Engine coolant (gasoline vehicles)Is the engine coolant at the correct
level? ( P. 5 5 3 )
Engine/power control unit coolant
(hybrid vehicles)Is the engine/power control unit coolant
at the correct level? ( P. 5 5 3 )
Engine oilIs the engine oil at the correct level?
( P. 5 4 8 )
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenserThe radiator and condenser should be
free from foreign objects. ( P. 555)
Wa s h e r f l u i dIs there sufficient washer fluid?
( P. 5 6 1 )
Luggage compartment
ItemsCheck points
12-volt battery (hybrid vehicles)Check the connections. ( P. 5 6 2 )

538
ES350_300h_OM_OM33B99U_(U)

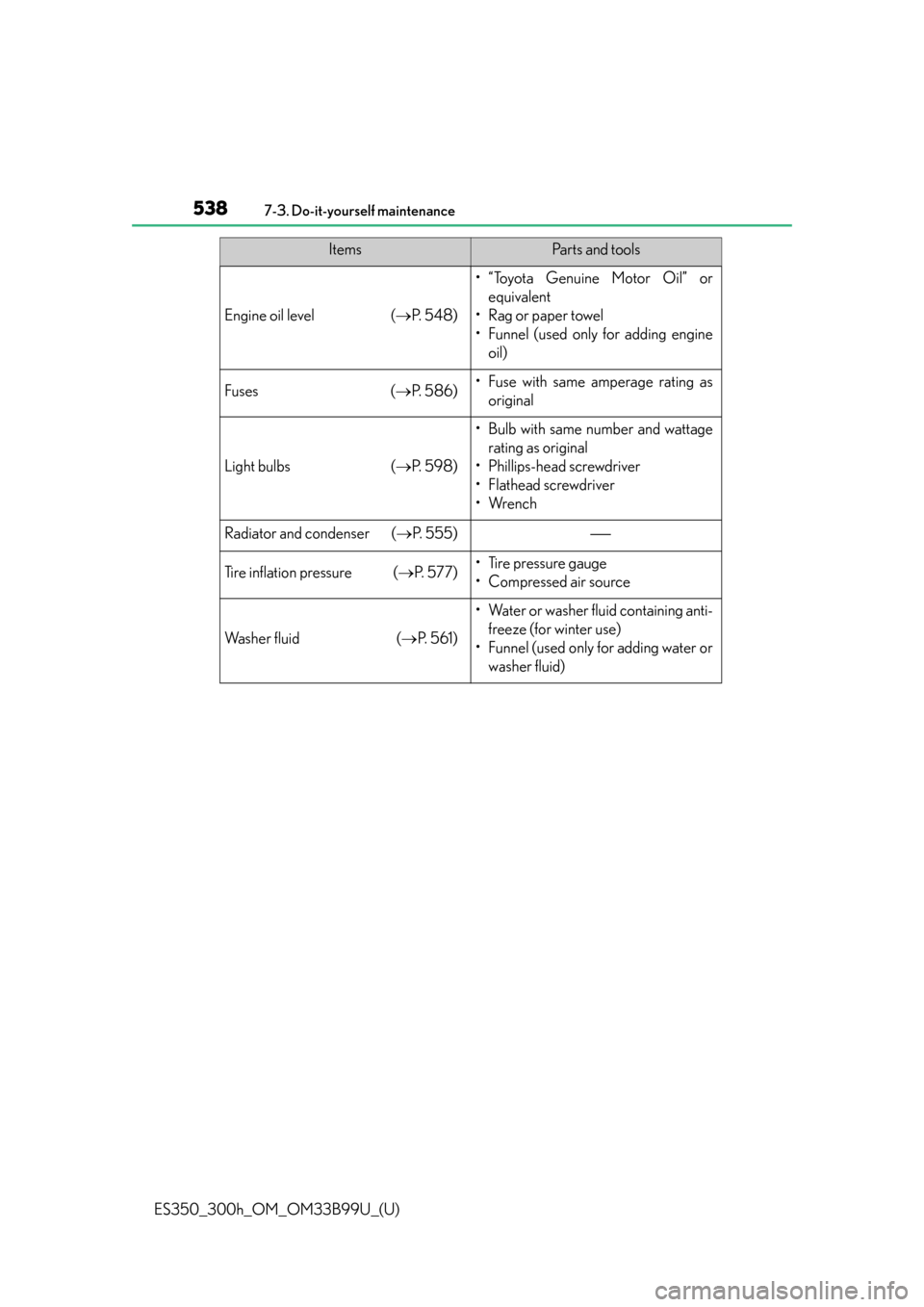

7-3. Do-it-yourself maintenance
Engine oil level (P. 5 4 8 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 5 8 6 )• Fuse with same amperage rating as
original
Light bulbs ( P. 5 9 8 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser ( P. 555)
Tire inflation pressure ( P. 5 7 7 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 5 6 1 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s

ES350_300h_OM_OM33B99U_(U)
5397-3. Do-it-yourself maintenance
7
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Hybrid vehicles: Make sure that the “POWER ON” on the multi-information dis-
play and the “READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Gasoline vehicles: Be careful not to touc h the engine, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and ot her fluids may also be hot.
●Hybrid vehicles: Be careful not to touch the engine, power control unit, radiator,
exhaust manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Gasoline vehicles: Do not smoke, cause sparks or expose an open flame to fuel
or the 12-volt battery. Fuel and 12-volt battery fumes are flammable.
●Hybrid vehicles: Do not smoke, cause sparks or expose an open flame to fuel.
Fuel fumes are flammable.
●Gasoline vehicles: Be extremely cautious when working on the 12-volt battery. It
contains poisonous and corrosive sulfuric acid.

545
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Engine compartment
Gasoline vehicles (2GR-FE engine)
Washer fluid tank (P. 561)
Engine oil filler cap (P. 550)
Engine oil level dipstick (P. 548)
Engine coolant reservoir (P. 553) Brake fluid reservoir
(P. 5 5 6 )
Fuse box ( P. 586)
12-volt battery ( P. 5 5 7 )
Electric cooling fans
Condenser ( P. 555)
Radiator ( P. 555)1
2
3
4
5
6
7
8
9
10

546
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
Hybrid vehicles (2AR-FXE engine)
■12-volt battery (hybrid vehicles)
P. 5 6 2
Washer fluid tank ( P. 561)
Fuse boxes ( P. 586)
Power control unit coolant
reservoir ( P. 553)
Engine oil level dipstick (P. 548)
Engine oil filler cap (P. 550) Engine coolant reservoir
(P. 553)
Brake fluid reservoir (P. 5 5 6 )
Power control unit coolant
radiator ( P. 555)
Electric cooling fans
Condenser ( P. 555)
Engine coolant radiator (P. 555)1
2
3
4
5
6
7
8
9
10
11
