display Lexus ES300h 2015 Specifications / (OM33B99U) Owners Manual

321
ES350_300h_OM_OM33B99U_(U)
4-5. Using the driving support systems
4
Driving
PCS (Pre-Collision System)
◆Pre-collision seat belts (front seats only)
If the pre-collision sensor detects that a collision is unavoidable, the
pre-collision system will retract the seat belt before the collision occurs.
The same will happen if the dr iver makes an emergency braking or
loses control of the vehicle. ( P. 3 4 )
However, when the VSC system is disa bled, the system will not operate
in the event of skidding.
◆Pre-collision brake assist
When there is a high possibility of a frontal collision, the system applies
greater braking force in relation to how strongly the brake pedal is
depressed.
◆Pre-collision braking
When there is a high poss ibility of a frontal collision, the system warns
the driver using a warning light, war ning display and buzzer. If the sys-
tem determines that a collision is unavoidable, the brakes are automati-
cally applied to reduce the collision speed.

: If equipped
When the radar sensor detects possibility of a frontal collision, the pre-
collision system such as the brakes and seat belts are automatically
engaged to lessen impact as well as vehicle damage.
The pre-collision system ca n be turned on and off as necessary by oper-
ating the switch. ( P. 322)

ES350_300h_OM_OM33B99U_(U)
3254-5. Using the driving support systems
4
Driving
■Automatic cancelation of the pre-collision system
When a malfunction occurs due to sensor contamination, etc. that results in the sen-
sors being unable to detect obstacles, the pre-collision system will be automatically
disabled. In this case, the system will not activate even if there is a collision possibility.
■When there is a malfunction in the system, or if the system is temporarily unusable
“PCS” warning light will flash and warning messages will be displayed.
(  P. 6 2 8 , 6 3 8 )
■Certification
For vehicles sold in the U.S.A.
FCC ID: HYQDNMWR004
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING
Changes or modifications not expressly ap proved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment.
This equipment should be in stalled and operated with minimum distance of 20 cm
between the radiator (a ntenna) and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
For vehicles sold in Canada
This device complies with Industry Cana da licence-exempt RSS standard(s). Oper-
ation is subject to the following two conditio ns: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.

330
ES350_300h_OM_OM33B99U_(U)
4-5. Using the driving support systems
■The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be difficult to
see.
■Rear Cross Traffic Alert buzzer hearing
Rear Cross Traffic Alert function may be difficult to hear over loud noises such as
high audio volume.
■When there is a malfunction in the Blind Spot Monitor system
If a system malfunction is detected due to any of the following reasons, warning mes-
sages will be displayed: ( P. 6 4 0 )
●There is a malfunction with the sensors
●The sensors have become dirty
●The outside temperature is extremely high or low
●The sensor voltage has become abnormal
■Certification for the Blind Spot Monitor system
For vehicles sold in the U.S.A.
FCC ID: OAYSRR2A
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interferen ce received, including interference that
may cause undesired operation.
FCC WARNING
Changes or modifications not expressly ap proved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
Applicable law: Canada 310
This device complies with Industry Cana da licence-exempt RSS standard(s). Oper-
ation is subject to the following two conditio ns: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Frequency bands: 24.05-24.25 GHz
Output power: less than 20 milliwatts

348
ES350_300h_OM_OM33B99U_(U)
5-1. Basic OperationsLexus Display Audio System .........................................350
Steering wheel audio switches....................................... 357
USB/AUX ports ......................... 359
5-2. Setup Setup menu ....................................361
General settings ......................... 362
Voice settings .............................. 366
Display settings ........................... 367
5-3. Using the audio system Selecting the audio source .......................................... 369
Optimal use of the audio system .......................................... 370
Audio settings...............................372
Audio menu screen operation .................................... 375
Lexus Display Audio
system
5

349
ES350_300h_OM_OM33B99U_(U)
Lexus Display Audiosystem
5
5-4. Using the radio
Radio operation .......................... 378
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation.................387
5-6. Using an external device Listening to an iPod ...................395
Using USB memory device ...........................................399
Using the AUX port................. 404
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices ........................................ 405
Registering a Bluetooth
®
device .......................................... 408
Selecting a Bluetooth
®
device ............................................ 410
Connecting a Bluetooth
®
audio player ..................................411
Connecting a Bluetooth
®
phone ............................................ 412
Displaying a Bluetooth
®
device details ............................. 414
Detailed Bluetooth
®
settings.......................................... 415 5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ............................................. 417
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone ............................................ 419
Making a call ..................................421
Receiving a call ........................... 424
Speaking on the phone............ 425
Using a Bluetooth
®
phone message........................ 428
Using the steering wheel switches........................................ 431
Bluetooth
® phone
settings ........................................ 432
5-10. Phonebook Contact settings ......................... 434
Messaging setting......................438
5-11. Bluetooth
®
What to do if... (Troubleshooting).................... 439
Bluetooth
®................................... 443
5-12. Other function “Information” screen ................. 449
USB photo ......................................451
Weather information ................ 453
Voice command system .......... 455
Mobile Assistant......................... 459
LEXUS Enform Remote ...........461

350
ES350_300h_OM_OM33B99U_(U)
5-1. Basic Operations
Lexus Display Audio System
Eject a disc.
Disc slot
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Selects a preset radio station, or to access a desired track or file.
Display the radio top screen.
Display the media top screen.
“PWR•VOL” knob
Press to turn the audio system on/off, and turn to adjust the volume.

: If equipped
Use the following buttons to start listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

ES350_300h_OM_OM33B99U_(U)
3515-1. Basic Operations
5
Lexus Display Audio system

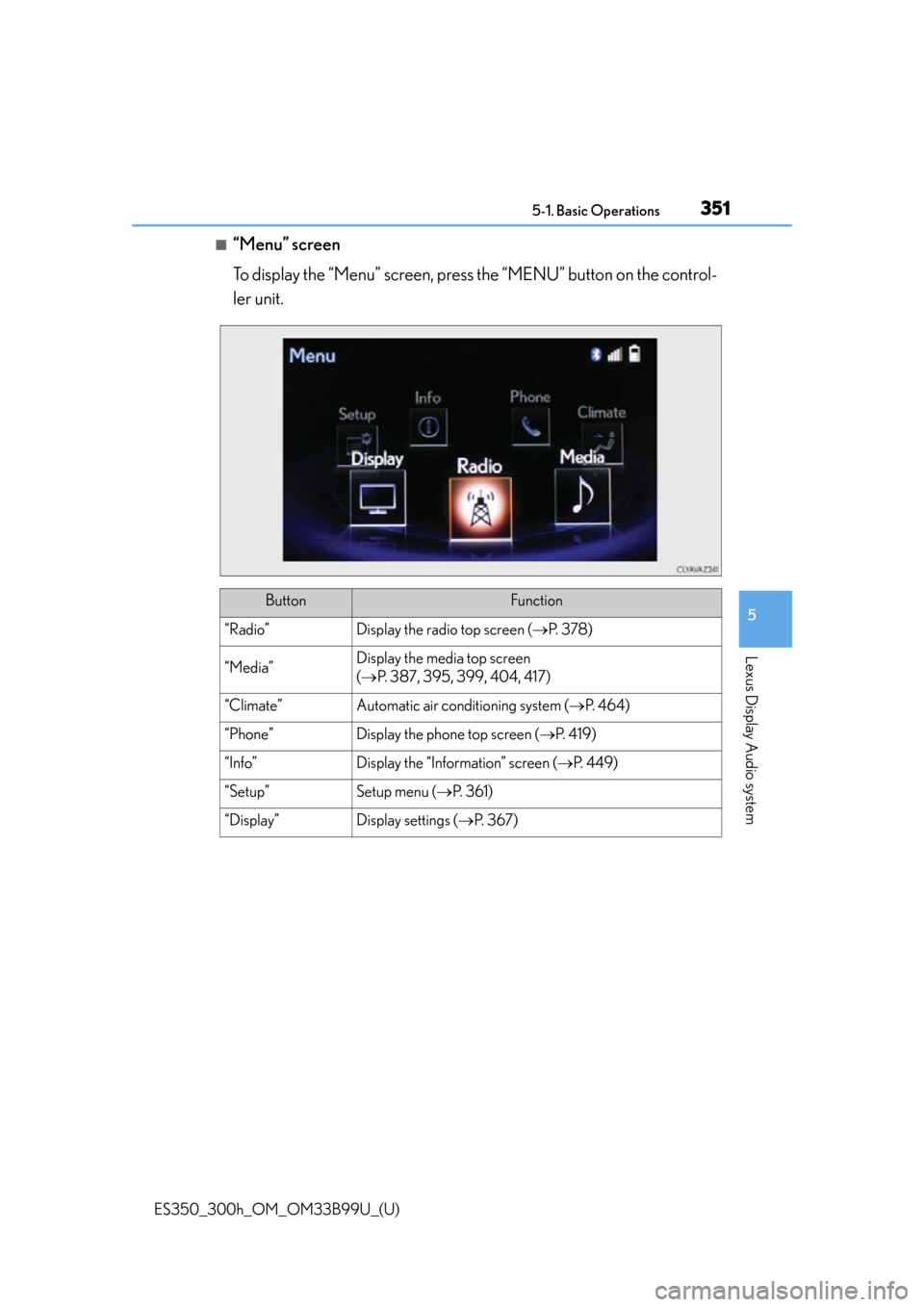

■“Menu” screen
To display the “Menu” screen, press the “MENU” button on the control-
ler unit.
ButtonFunction
“Radio”Display the radio top screen (P. 3 7 8 )
“Media”Display the media top screen
( P. 387, 395, 399, 404, 417)
“Climate”Automatic air conditioning system ( P. 464)
“Phone”Display the phone top screen (P. 4 1 9 )
“Info”Display the “Infor mation” screen (P. 4 4 9 )
“Setup”Setup menu ( P. 3 6 1 )
“Display”Display settings ( P. 3 6 7 )

3525-1. Basic Operations
ES350_300h_OM_OM33B99U_(U)
By using the Lexus Display Audio controller, you can control the audio
system, hands-free system, etc.
Display the “Source” screen or audio top screen ( P. 3 6 9 )
Display the “Menu” screen ( P. 3 5 1 )
Back button
Display the previous screen
Turn or move the controller to select a function and number.
Move the controller to display the left or right side of the screen.
Push the controller to enter the selected function and number.
Lexus Display Audio controller
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
3535-1. Basic Operations
5
Lexus Display Audio system
■Using the Lexus Display Audio controllerSelect: Turn or move the con-
troller.
Enter: Push the controller.
■Basic screen operation
When a list is displayed, use the ap propriate button to scroll through
the list.
Indicator turns on when you
can select the list by turning
the controller.
Indicator turns on when you
can return to the previous
screen by pressing the back
button.
Indicator turns on when you can move the controller left to view
additional screen text.
Indicator turns on when you can move the controller right to view
additional screen text.
1
2
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
3555-1. Basic Operations
5
Lexus Display Audio system
■Input field mode
When in the input field you can move the cursor to the desired position.
Turn the controller to move the
cursor left or right.
When this indicator is shown,
you can move the cursor to the
right input field by moving the
controller to the right.
When this indicator is shown,
you can move the cursor to the
left input field by moving the
controller to the left.
When this indicator is shown, you can change to input mode by mov-
ing the controller backward.
■When using the screen
●Under extremely cold conditions, the Lexus Display Audio controller may react
slowly.
●If the screen is cold, the display may be da rk, or the system may seem to be operat-
ing slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses.
Change your angle of viewing, adjust the display on the “Display” screen (P. 3 6 7 )
or remove your sunglasses.
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
1
2
3
4
