display Lexus ES300h 2015 Specifications / Owner's Manual (OM33B99U)

459
ES350_300h_OM_OM33B99U_(U)
5-12. Other function
5
Lexus Display Audio system
Mobile Assistant
Press and hold the off hook
switch until you hear the beeps
that indicate the system is listen-
ing.
The Mobile Assistant can be used
only when the “Mobile Assistant”
screen is displayed.
To cancel the Mobile Assistant, select
“Cancel”, or press and hold the off
hook switch.
To restart the Mobile Assistant for
additional commands, press the off
hook switch. Mobile Assistant can
only be restarted after the system
responds to a voice command. After
some phone and music commands,
the Mobile Assistant feature will auto-
matically end to complete the
requested action.
■Adjusting the volume
The volume of the Mobile Assistant can be adjusted using the “PWR•VOL” knob or
steering wheel volume switches. The Mobi le Assistant and phone call volumes are
synchronized.
The Mobile Assistant feature on this system allows the activation of
Apple’s Siri
® Eyes Free mode via the steering wheel switches. To oper-
ate the Mobile Assistant, a compa tible cellular phone must be regis-
tered and connected to this system via Bluetooth
®. (  P. 405)
1
2

4605-12. Other function
ES350_300h_OM_OM33B99U_(U)
■Microphone
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while th e Mobile Assistant is being used.
• When the air conditioning system’s fan speed is set high.
• When the air conditioning vents are turned toward the microphone.
■Mobile Assistant precautions
●The available features and functions may vary based on the iOS version installed on
the connected device.
●Some Siri features are limited in Eyes Free mode. If you attempt to use an unavail-
able function, Siri will inform you that the function is not available.
●If Siri is not enabled on the cellular phone connected via Bluetooth®, an error mes-
sage will be displayed on the screen.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellular phone, ensure the active audio source
is Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
It is not necessary to
speak directly into the
microphone when using the Mobile Assistant.

461
ES350_300h_OM_OM33B99U_(U)
5-12. Other function
5
Lexus Display Audio system
LEXUS Enform Remote
After you sign the Telematics Subscription Service Agreement, download
the Lexus Enform Remote app from your cellular phone’s app store, and
register within the app (o r enroll and complete registration at the dealer),
you can begin using these services. ( P. 513)
A variety of subscription terms are av ailable. Contact your Lexus dealer,
or call 1-800-25-LEXUS (1-800-25 5-3987) for further subscription
details.

: If equipped
Lexus Enform Remote is a cellular phone application that lets you view
and remotely control certain aspects of your vehicle.
For details about the functions and services of this application, refer to
http://www.lexus.com/enform/
.
Function of the Lexus Enform Remote is achieved by using an
embedded cellular device in the ve hicle (DCM: Data Communication
Module).
Subscription

464
ES350_300h_OM_OM33B99U_(U)
6-1. Using the air conditioning system and defogger
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Vehicles with a Lexus Display Au dio system: Press the “MENU” button
on the Lexus Display Audio controller, then select “Climate” to display
the air conditioning operation screen.
For details on the Lexus Display Audio controller, refer to “Lexus
Display Audio controller” on P. 352.
Vehicles with a navigation system: Press the “MENU” button on the
Remote Touch, then select “Climate” to display the air conditioning
control screen.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.

4666-1. Using the air conditioning system and defogger
ES350_300h_OM_OM33B99U_(U)
Vehicles with a Lexus Display Audio System
Adjust the left-hand side temper-
ature setting
Adjust the fan speed setting
“AUTO”: Select to set automatic
mode on/off
“OFF”: Turn the fan off: Display the option control
screen ( P. 468)
Select the air flow mode : Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Adjust the right-hand side temperature setting
Move the Lexus Display Audio controll er left/right to select the desired
item ( to ).
When , or is selected:
Move the controller forward/backward or turn it left/right for adjusting.
When or is selected:
Move the controller forward/backward or turn it left/right to select a
screen button, then press the controller.
Control screen
1
2
3
4
5
1
15
2125
34

ES350_300h_OM_OM33B99U_(U)
4676-1. Using the air conditioning system and defogger
6
Interior features
Vehicles with a navigation system
Adjust the left-hand side temper-
ature setting
Adjust the fan speed setting
Select the air flow mode
: Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Adjust the right-hand side temperature setting
Display the option control screen ( P. 4 6 8 )
Turn the fan off
Select to set automatic mode on/off
To adjust or select settings, move the Remote Touch knob to select the
screen button, and then press th e Remote Touch knob to enter the
selected function.
1
2
3
4
5
6
7

4686-1. Using the air conditioning system and defogger
ES350_300h_OM_OM33B99U_(U)
■Option control screen
Select on the climate screen to display the option control screen.
The functions can be switched on and off.
Select to set cooling and de humidification function on/off
Adjusting the temperature for driv er and passenger seats separately
(“DUAL” mode) ( P. 469)
Prevent ice from building up on the windshield and wiper blades (if
equipped) ( P. 4 7 1 )
Remove pollen from the air (Micro dust and pollen filter) ( P. 471)
Vehicles with a Lexus Display
Audio systemVehicles with a navigation sys-
tem
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
4716-1. Using the air conditioning system and defogger
6
Interior features
■Micro dust and pollen filter
Pollen is removed from the air and the air flows to the upper part of the
body.
Select on the option control screen.
When the micro dust and pollen filter is on, is displayed on the air condi-
tioning control screen.
In order to prevent the windshield from fogging up when the outside air is cold,
the dehumidification function may operate.
The pollens are filtered out even if the mi cro dust and pollen filter is turned off.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the windshield
and wiper blades.
Select on the option control screen.
When the windshield wiper de-icer is on, is displayed on the air condi-
tioning control screen.
The windshield wiper de-icer will automati cally turn off after a period of time.
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
Air outlets

508
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

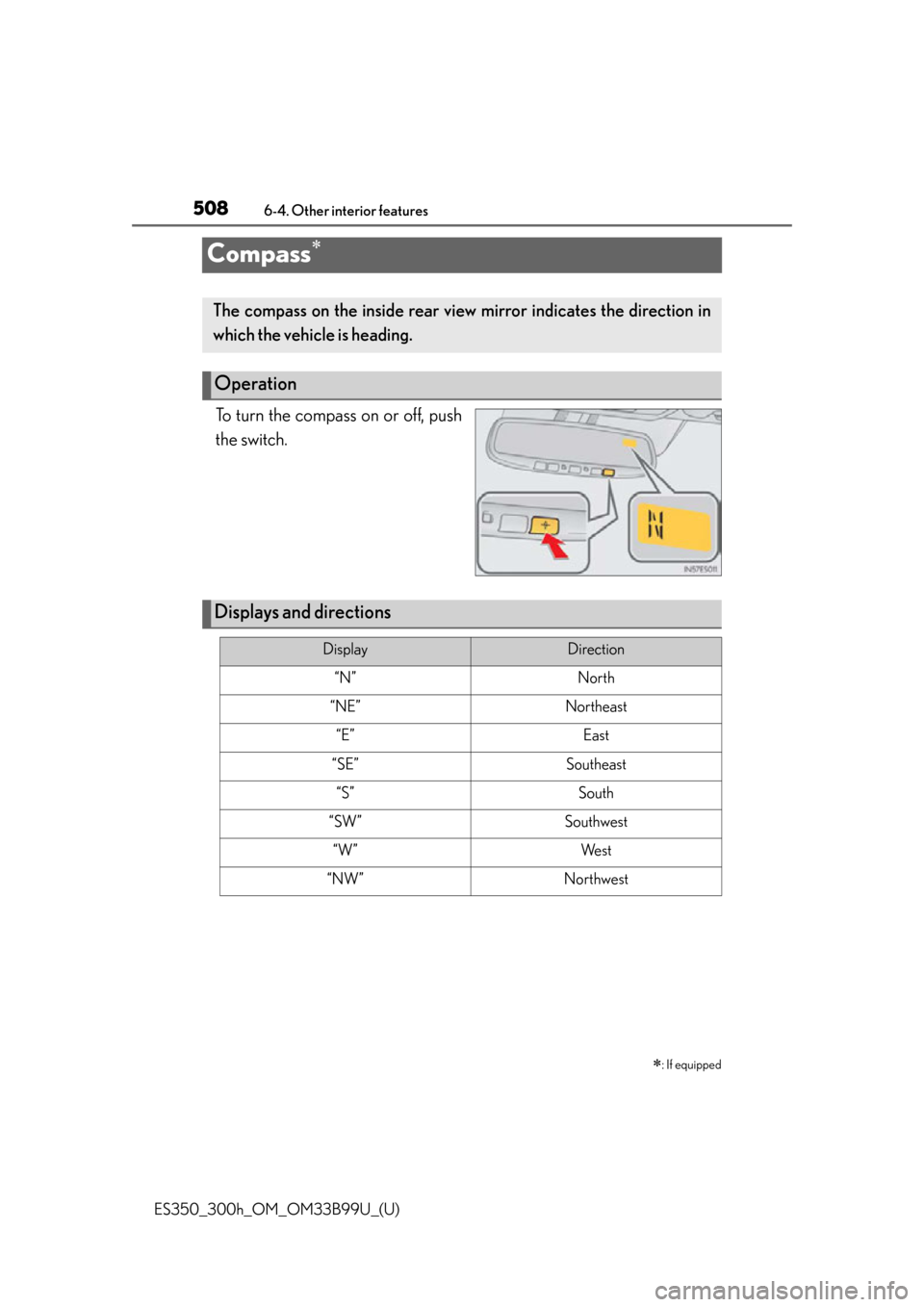

Compass
To turn the compass on or off, push
the switch.
: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”We s t
“NW”Northwest

ES350_300h_OM_OM33B99U_(U)
5096-4. Other interior features
6
Interior features
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.

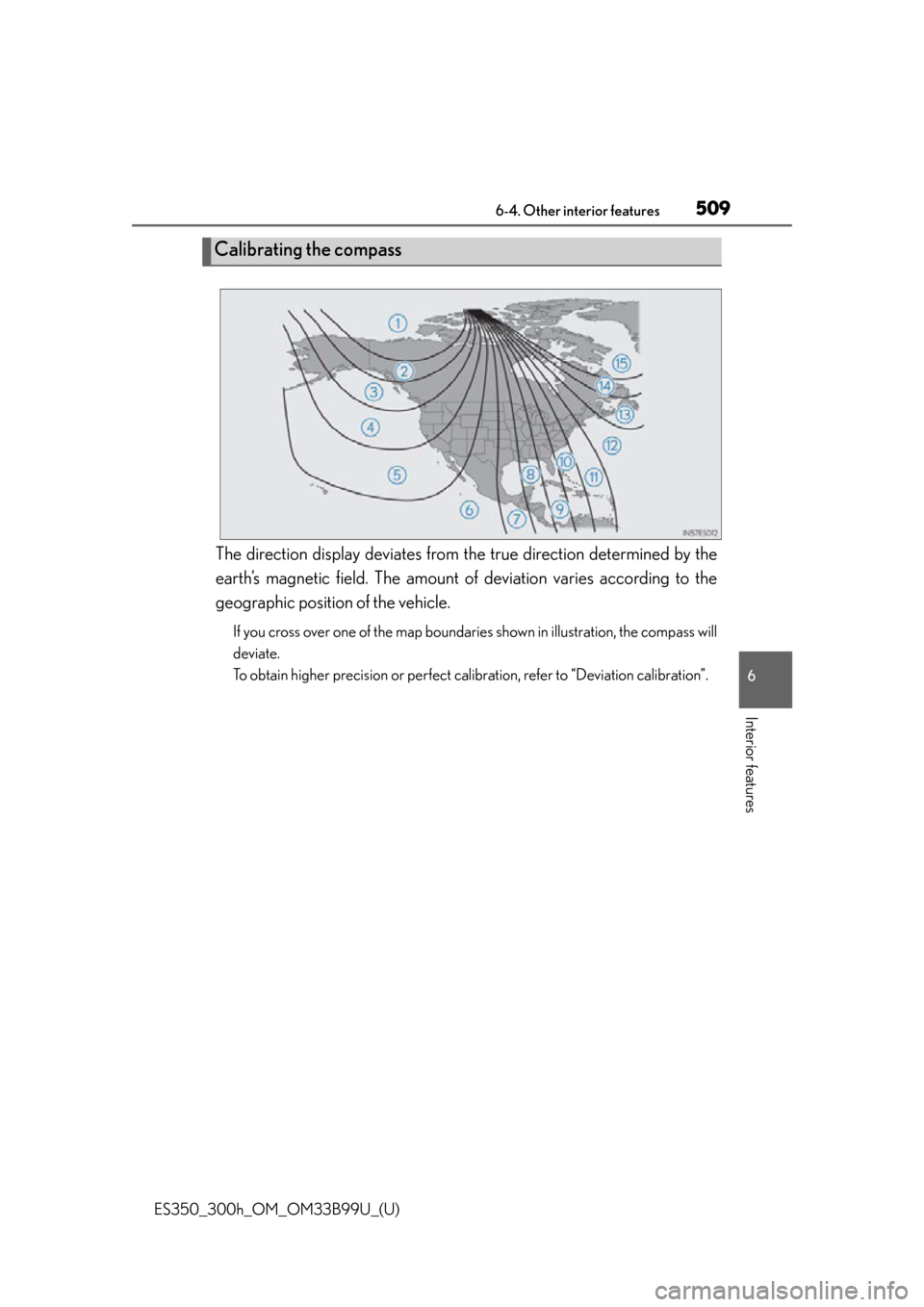

If you cross over one of the map boundaries shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibration”.
Calibrating the compass
