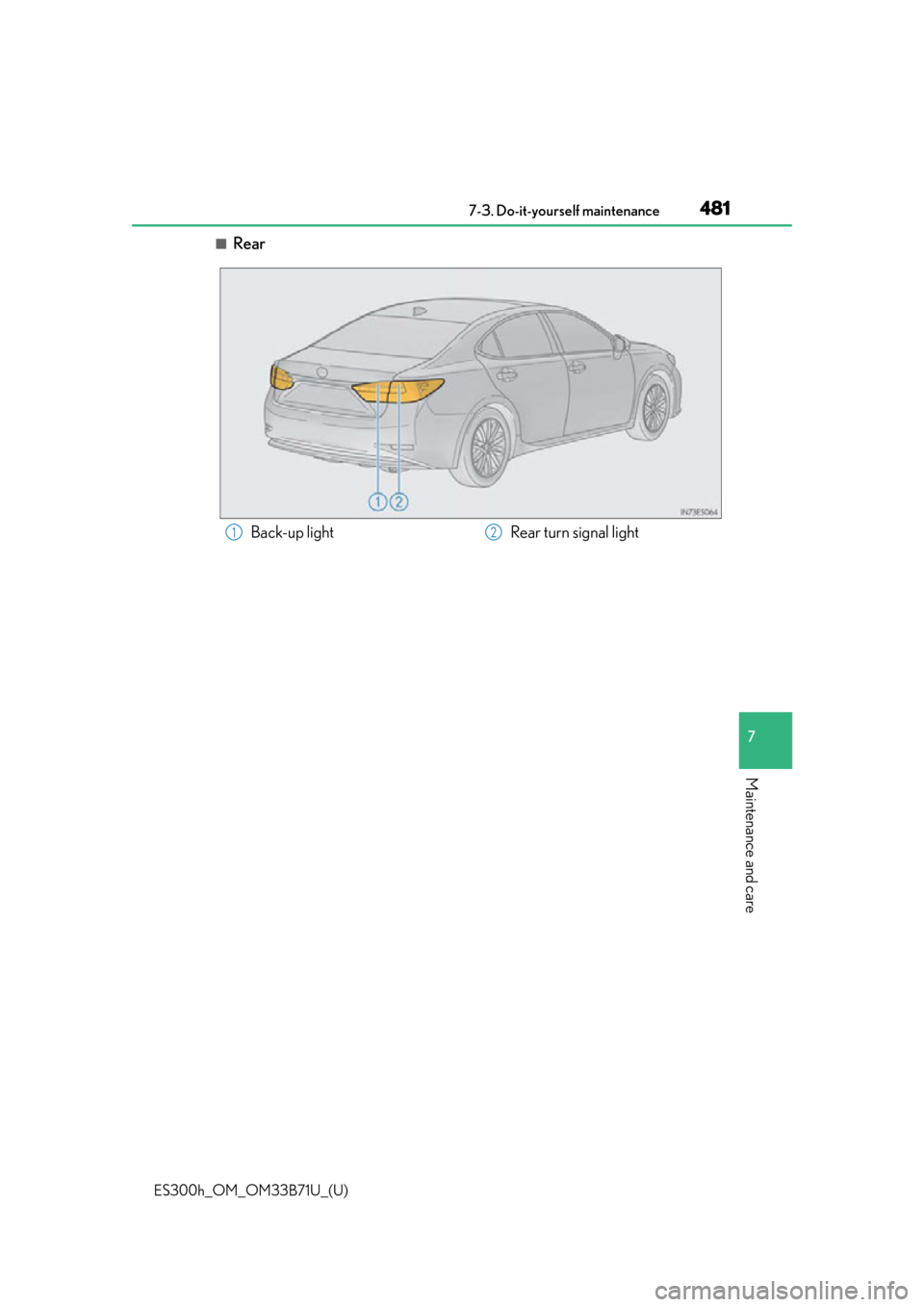

■Rear
Back-up lightRear turn signal light12

482
ES300h_OM_OM33B71U_(U)7-3. Do-it-yourself maintenance

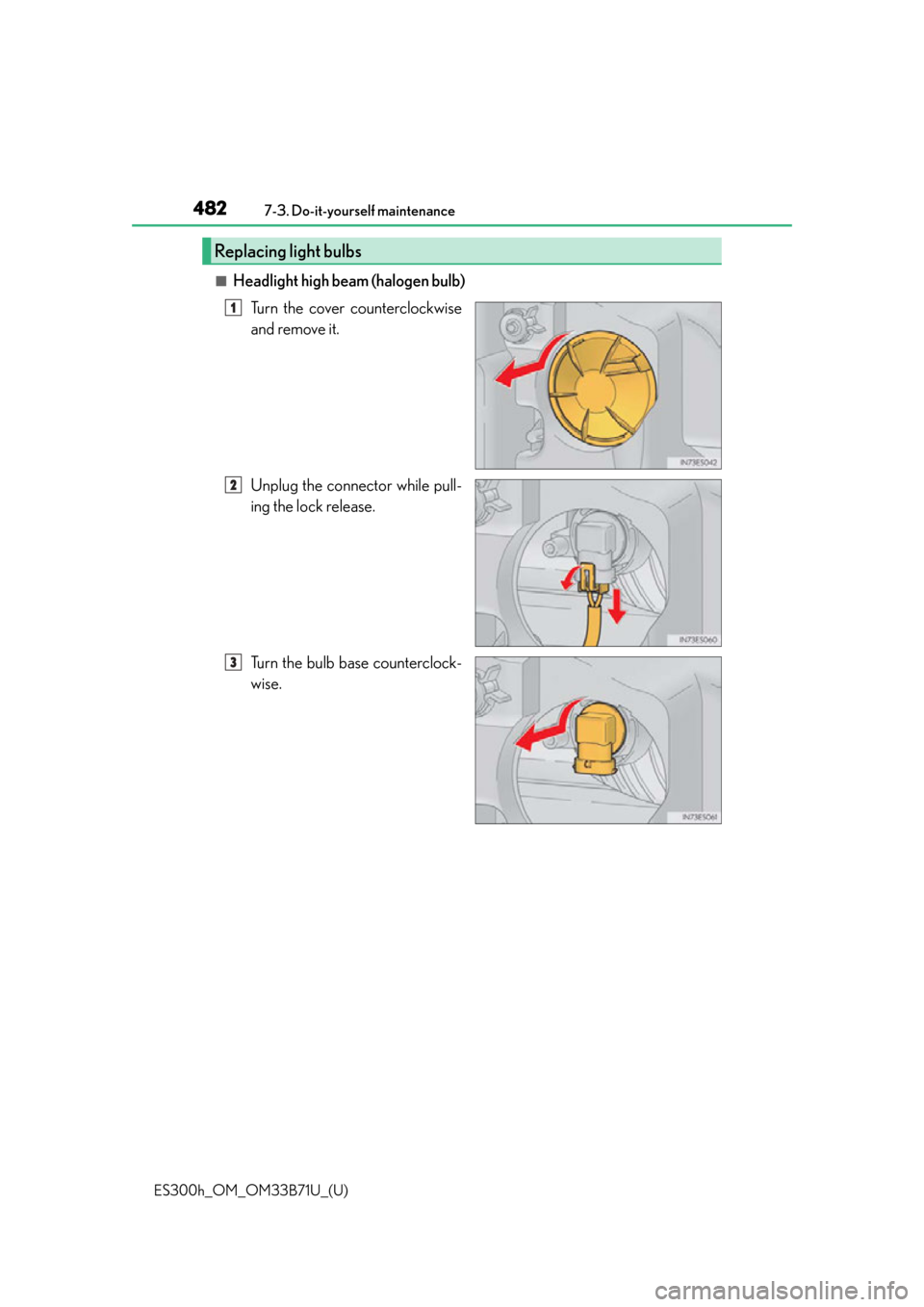

■Headlight high beam (halogen bulb)
Turn the cover counterclockwise
and remove it.
Unplug the connector while pull-
ing the lock release.
Turn the bulb base counterclock-
wise.
Replacing light bulbs
1
2
3

ES300h_OM_OM33B71U_(U)
4837-3. Do-it-yourself maintenance
7
Maintenance and care

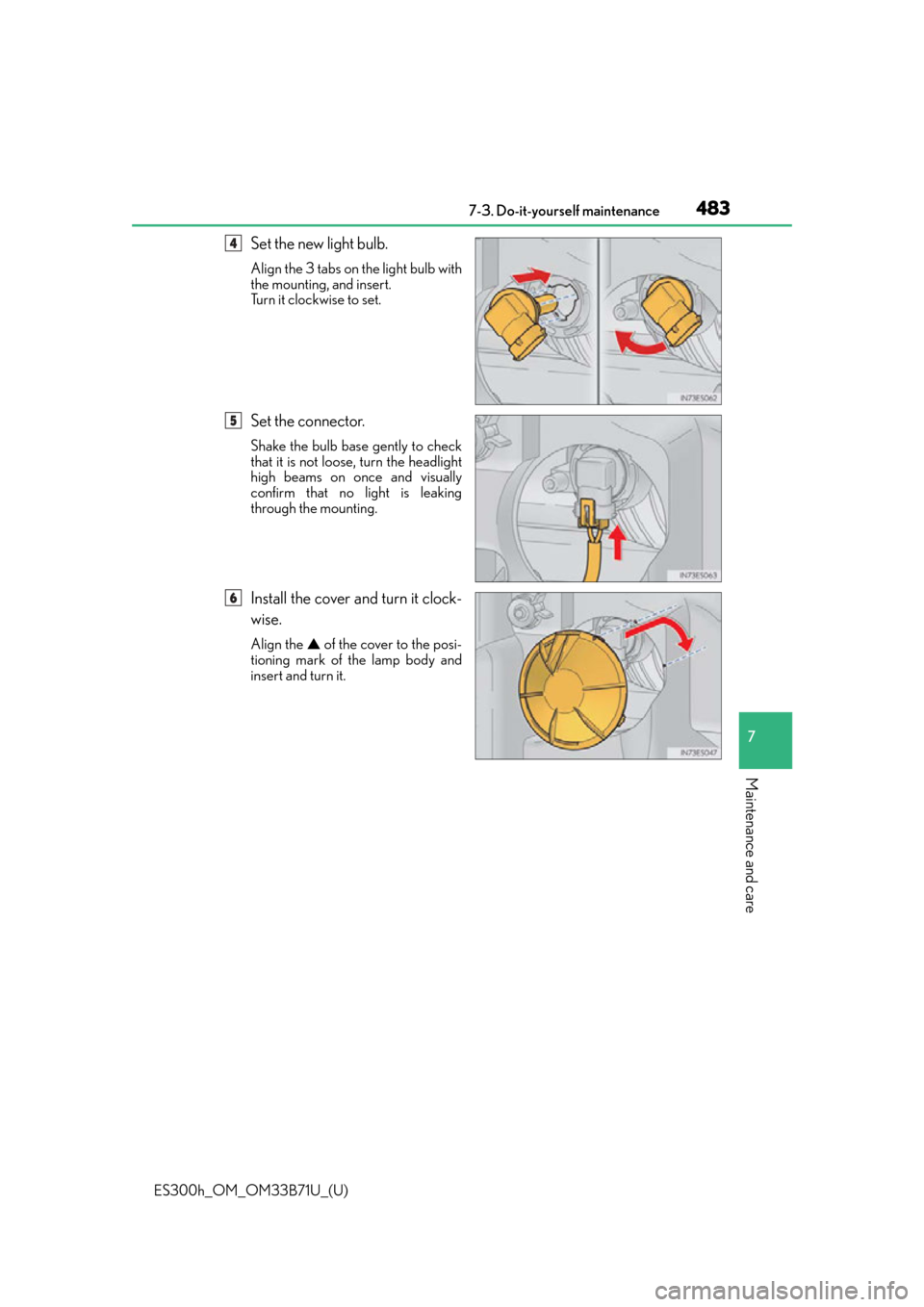

Set the new light bulb.
Align the 3 tabs on the light bulb with
the mounting, and insert.
Turn it clockwise to set.
Set the connector.
Shake the bulb base gently to check
that it is not loose, turn the headlight
high beams on once and visually
confirm that no light is leaking
through the mounting.
Install the cover and turn it clock-
wise.
Align the ▲ of the cover to the posi-
tioning mark of the lamp body and
insert and turn it.
4
5
6

484
ES300h_OM_OM33B71U_(U)7-3. Do-it-yourself maintenance

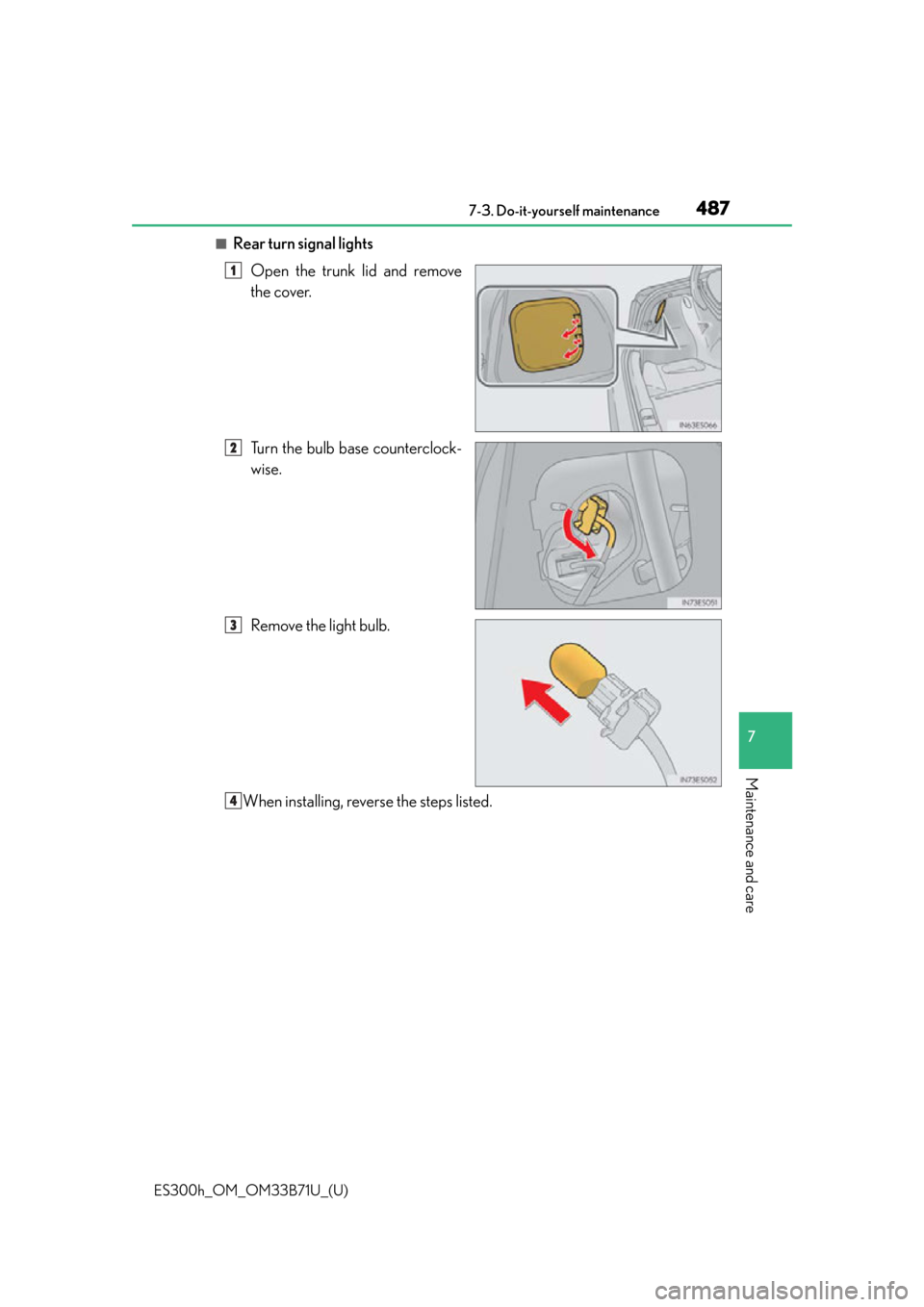

■Front turn signal lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the 3 fender liner clips
and 1 screw.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel
to the right when replacing the
left side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
1
2

ES300h_OM_OM33B71U_(U)
4857-3. Do-it-yourself maintenance
7
Maintenance and care
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps
listed.
After installing the bulb base, reinstall
the fender liner and install the clips
and screw.
3
4
5

486
ES300h_OM_OM33B71U_(U)7-3. Do-it-yourself maintenance

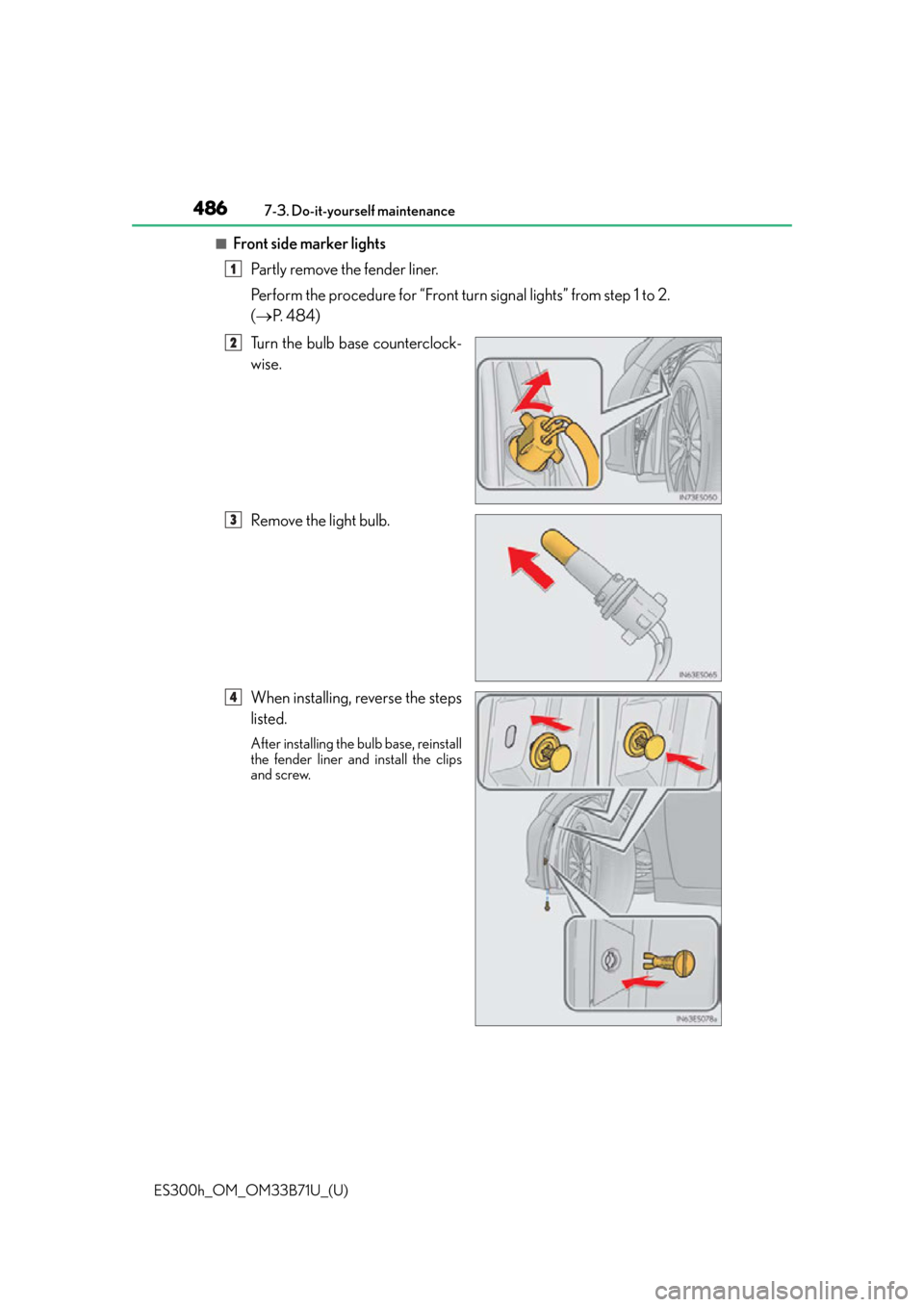

■Front side marker lights
Partly remove the fender liner.
Perform the procedure for “Front turn signal lights” from step 1 to 2.
( P. 484)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps
listed.
After installing the bulb base, reinstall
the fender liner an d install the clips
and screw.
1
2
3
4

ES300h_OM_OM33B71U_(U)
4877-3. Do-it-yourself maintenance
7
Maintenance and care

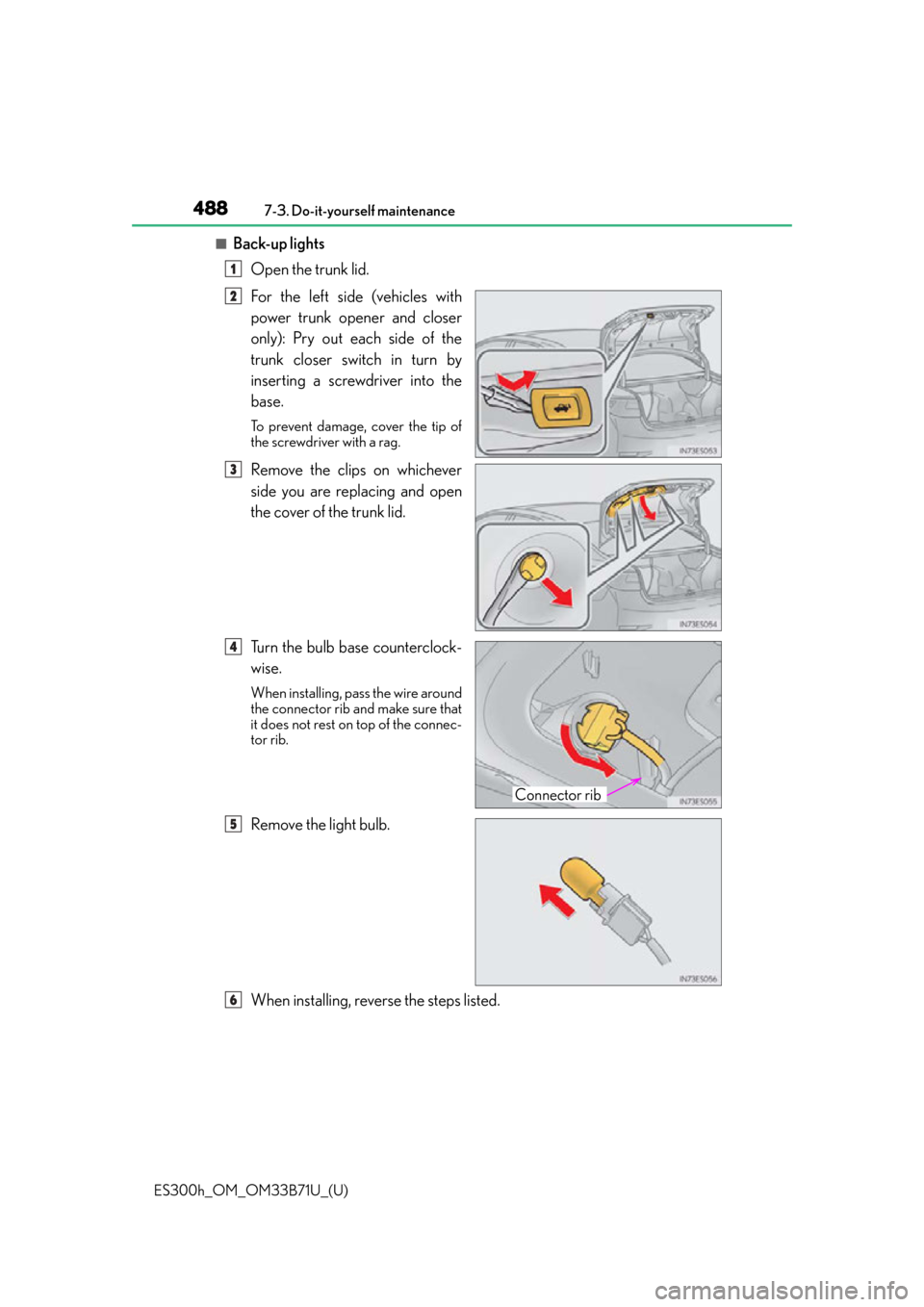

■Rear turn signal lightsOpen the trunk lid and remove
the cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

488
ES300h_OM_OM33B71U_(U)7-3. Do-it-yourself maintenance
■Back-up lights
Open the trunk lid.
For the left side (vehicles with
power trunk opener and closer
only): Pry out each side of the
trunk closer switch in turn by
inserting a screwdriver into the
base.
To prevent damage, cover the tip of
the screwdriver with a rag.
Remove the clips on whichever
side you are replacing and open
the cover of the trunk lid.
Turn the bulb base counterclock-
wise.
When installing, pass the wire around
the connector rib and make sure that
it does not rest on top of the connec-
tor rib.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
Connector rib
4
5
6

ES300h_OM_OM33B71U_(U)
4897-3. Do-it-yourself maintenance
7
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlight low beams
●Headlight high beams (LED type)
●Parking lights/daytime running lights
●Side turn signal lights
●Fog lights
●Stop/tail lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■LED lights
The headlight low beams, headlight high beams (LED type), parking lights/daytime run-
ning lights, fog lights, side turn signal lights, stop/tail lights, rear side marker lights, high
mounted stoplight and license plate lights cons ist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Le xus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Wa t e r h a s b u i l t u p i nside the headlight.
■When replacing light bulbs
P. 4 7 9

490
ES300h_OM_OM33B71U_(U)7-3. Do-it-yourself maintenance
WA R N I N G
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and ho
ld with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering the headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installin g to prevent heat damage.
