The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
Air Conditioning System .................................................................................................................82
Audio System (with Lexus Display Audio System) Lexus Display Audio operation buttons ............................................................................... 78
Using the steering switches to change audio sources ................................................... 78
Audio menu screen.............................................................................................................. ......... 79
Operating the audio system using the steering wheel switches ................................. 81
Audio System (with navigation system)
*
Audio control screen........................................................................................................... ......... 67
Remote control (steering wheel switches).......................................................................... 67
Basic operation ................................................................................................................ ...............68
Radio ................................................................................................................................................... 69
DVD player/CD player ........................................................................................................... .... 70
Operating an iPod .............................................................................................................. ........... 72
Automatic High Beam ......................................................................................................................36
BSM (Blind Spot Monitor) .............................................................................................................. 49
Cruise Control ...................................................................................................................................... 41
Door Locks ............................................................................................................................................ 101
Driving Mode Select Switch ......................................................................................................... 50
Driving Position Memory ................................................................................................................ 23
Dynamic Radar Cruise Control ................................................................................................... 43
Energy Monitor/Consumption Screen ..................................................................................... 14
EV Drive Mode .................................................................................................................................... 29
Floor mat installation ............................................................................................................................ 11
Front Seats .............................................................................................................................................. 21
Fuel Tank Cap ............................................................................................................................... ...... 104
Garage Door Opener ...................................................................................................................... 93
Contents
*: These features may be operated by Voice Command (See P.86)

6
ES300h_QG_OM33B89U_(U)
: If equipped
*: Refer to “OWNER’S MANUAL”.
Remote Touch screen
Navigation system
Lexus Display Audio system

P.52
P.56
P.73
Clock*
Trunk opener main switch
P.105
Audio system P.67, 78
Air conditioning system P.82
Emergency flasher switch*
See P.9 Power (ignition) switch
P.26
Parking brake*
Tilt and telescopic st
eering control switch*

8
ES300h_QG_OM33B89U_(U)
: If equipped
*: Refer to “OWNER’S MANUAL”.

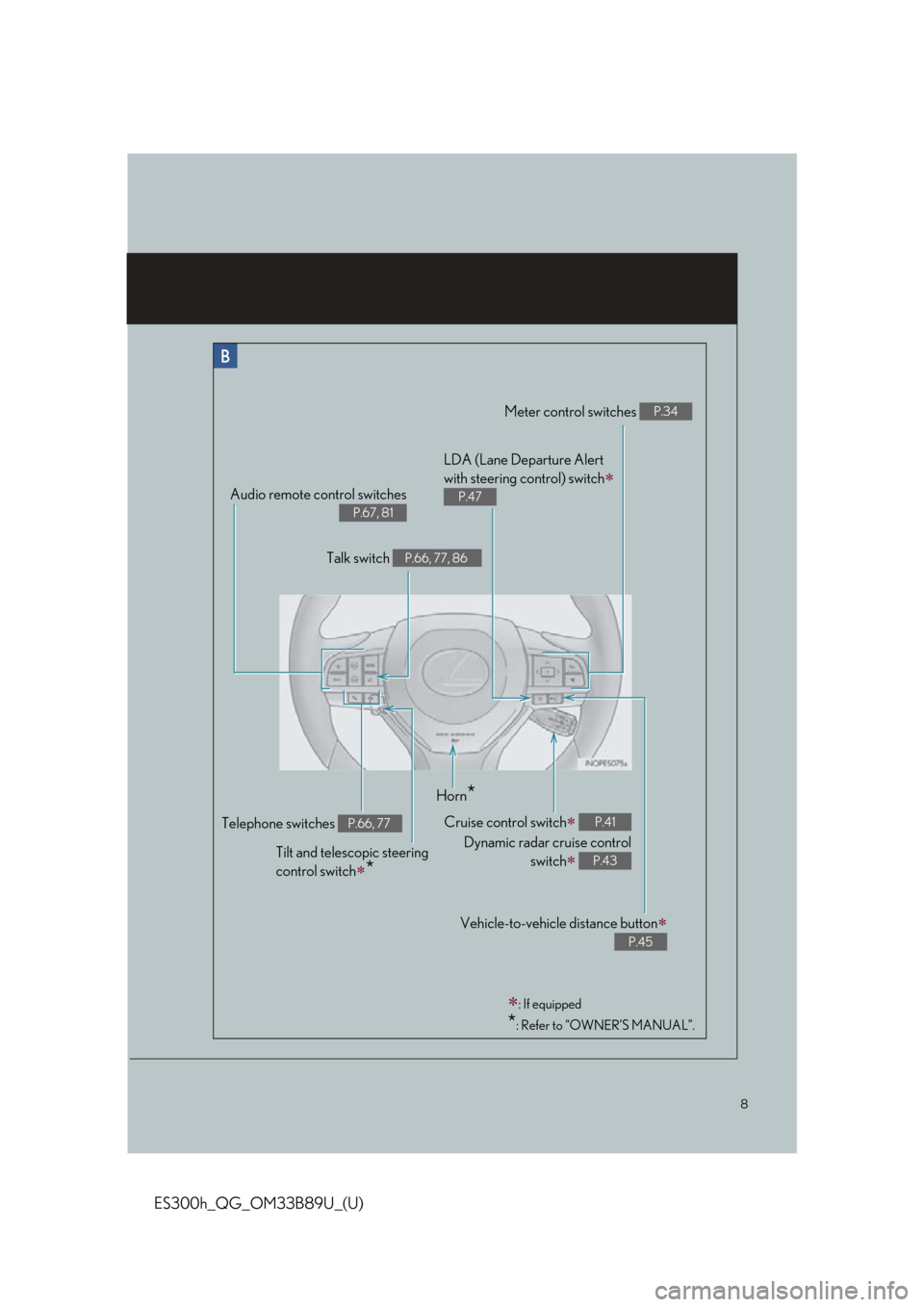

Meter control switches P.34
Telephone switches P.66, 77
Vehicle-to-vehicle distance button
P.45
Audio remote control switches
P.67, 81
LDA (Lane Departure Alert
with steering control) switch

P.47
Cruise control switch
Dynamic radar cruise control switch

P.41
P.43
Horn*
Tilt and telescopic steering
control switch
*
Talk switch P.66, 77, 86

9
ES300h_QG_OM33B89U_(U)
OverviewInstrument Panel
Remote Touch P.52
Heated steering wheel switch*
VSC OFF switch*
Seat heater and ventilator switches P.91
Driving mode select switch P.50
Shift lever P.30
Rear sunshade switch P.92
Lexus Display Audio controller P.73
EV drive mode switch P.29

14
ES300h_QG_OM33B89U_(U)
Energy Monitor/Consumption Screen
■Energy monitor
● How to display on the navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displaye d, select “Energy”.
● How to display on the Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Au dio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Energy Monitor” screen does not appear, move the controller to the right and
select “Energy”.
You can view the status of your hybrid syst em on the multi-information display and the
navigation system screen or Lexus Display Audio system screen.
The flow of energy is displayed on the navigation system
screen.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative braking
occurs.
The flow of energy is displayed on the Lexus Display Audio
system screen.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recoveryA light blue arrow appears when regenerative braking
occurs.

15
ES300h_QG_OM33B89U_(U)
●How to display on the multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.
■Fuel Consumption
● Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the hybrid
system was started
Elapsed time since the hybrid system
was started
Cruising range
The flow of energy is indicated by the movement of the
arrows on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recoveryA light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. wi ll change in response to the current driving
conditions.
1
2
3
4
5
6
7

17
ES300h_QG_OM33B89U_(U)
●Pa s t re c o rd
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Past Record” screen does not appear, select “Past Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel consump-
tion data
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Past Record” screen does not appear, mo ve the controller to the right and select “Past
Record”.
Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption
■Hybrid warning message
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
1
2
3
4
5
1
2
3

18
ES300h_QG_OM33B89U_(U)
Keys
■Electronic key
Smart access system with push-button start
( P.1 9 , 2 6 )
Wireless remote control ( P.1 8 )
■Mechanical key
To take out the mechanical key, push the
release button and take the key out.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If
the electronic key battery is depleted or
the entry function does not operate
properly, you will need the mechanical
key.
■Wireless remote control
Locks the doors
Unlocks the doors
Opens the windows and moon roof
*
Opens the trunk
Sounds the alarm
*: This setting must be customized at your
Lexus dealer.
1
2
3
4
5

67
ES300h_QG_OM33B89U_(U)
Audio System (with navigation system)
■Audio control screen
Follow the procedure below to display the audio control screen.
Press the “MENU” button on the
Remote Touch.
Please refer to P.52 for the
Remote Touch operation.
The “Menu” screen will be displayed.
Using the Remote Touch, select
“Radio” or “Media” and select each tab.
■Remote control (steering wheel switches)
Some audio features can be controlled usin g the switches on the steering wheel.
Increases/decreases volume
Radio mode: Selects a radio station/
channel
Audio CD mode: Selects a track
MP3/WMA/AAC disc mode: Selects
a file
DVD mode: Selects a chapter
iPod mode: Selects a track/file
Press: Change audio modes
Press and hold: Mute/unmute or
pause/resume the current operation
1
2
1
2
3

93
ES300h_QG_OM33B89U_(U)
Garage door opener

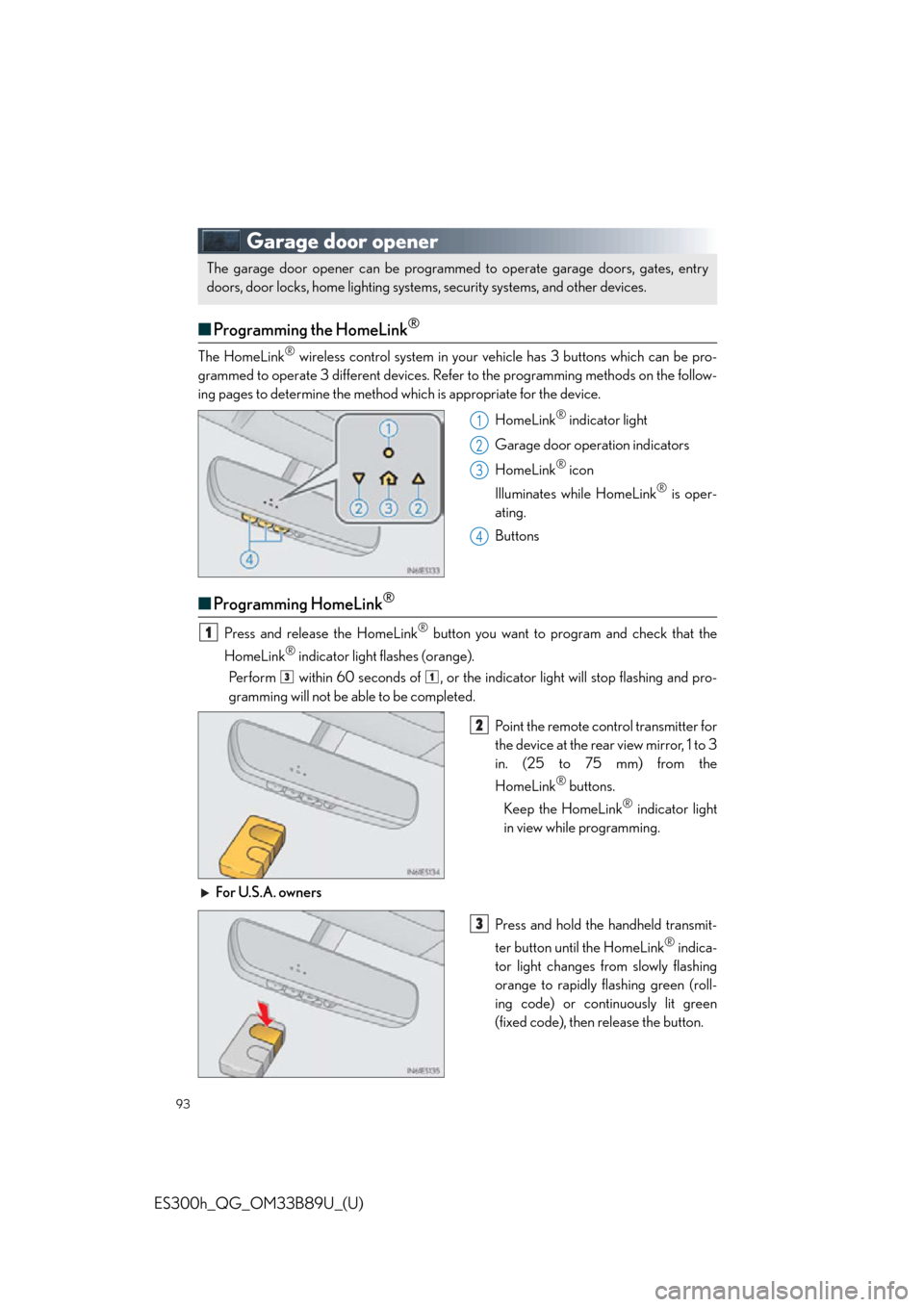

■Programming the HomeLink®
The HomeLink® wireless control system in your ve hicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refer to the programming methods on the follow-
ing pages to determine the method wh ich is appropriate for the device.
HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink
® is oper-
ating.
Buttons
■ Programming HomeLink®
Press and release the HomeLink® button you want to program and check that the
HomeLink
® indicator light flashes (orange).
Perform within 60 seconds of , or the in dicator light will stop flashing and pro-
gramming will not be able to be completed.
Point the remote control transmitter for
the device at the rear view mirror, 1 to 3
in. (25 to 75 mm) from the
HomeLink
® buttons.
Keep the HomeLink
® indicator light
in view while programming.
For U.S.A. owners Press and hold the handheld transmit-
ter button until the HomeLink
® indica-
tor light changes from slowly flashing
orange to rapidly flashing green (roll-
ing code) or continuously lit green
(fixed code), then release the button.
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting system s, security systems, and other devices.
1
2
3
4
1
31
2
3
