Page 521 of 612

Lexus ES300h 2017  Owners Manual 5198-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)
8
When trouble arises

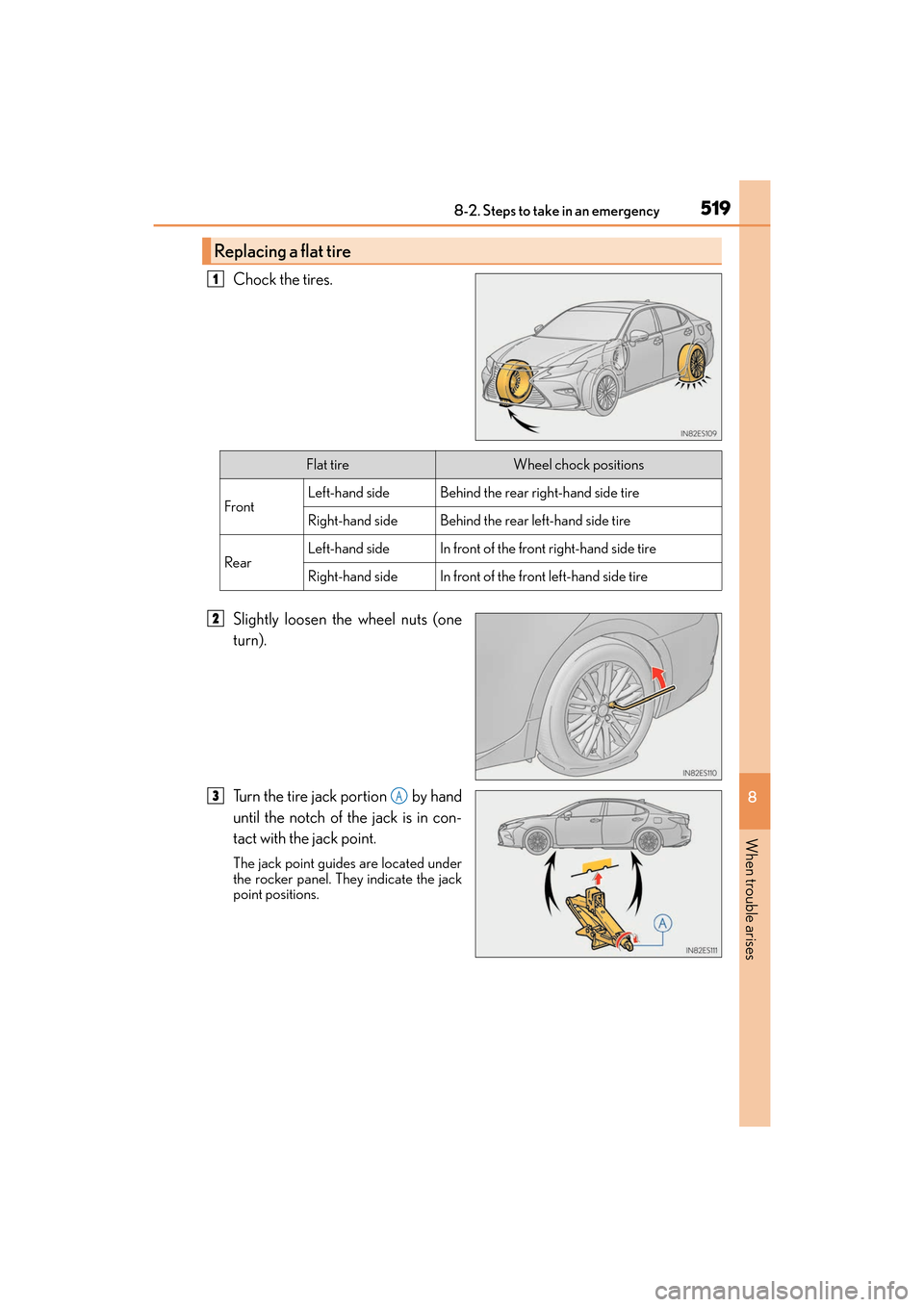

Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion   by hand
until the notch of t

Page 522 of 612

Lexus ES300h 2017  Owners Manual 5208-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)

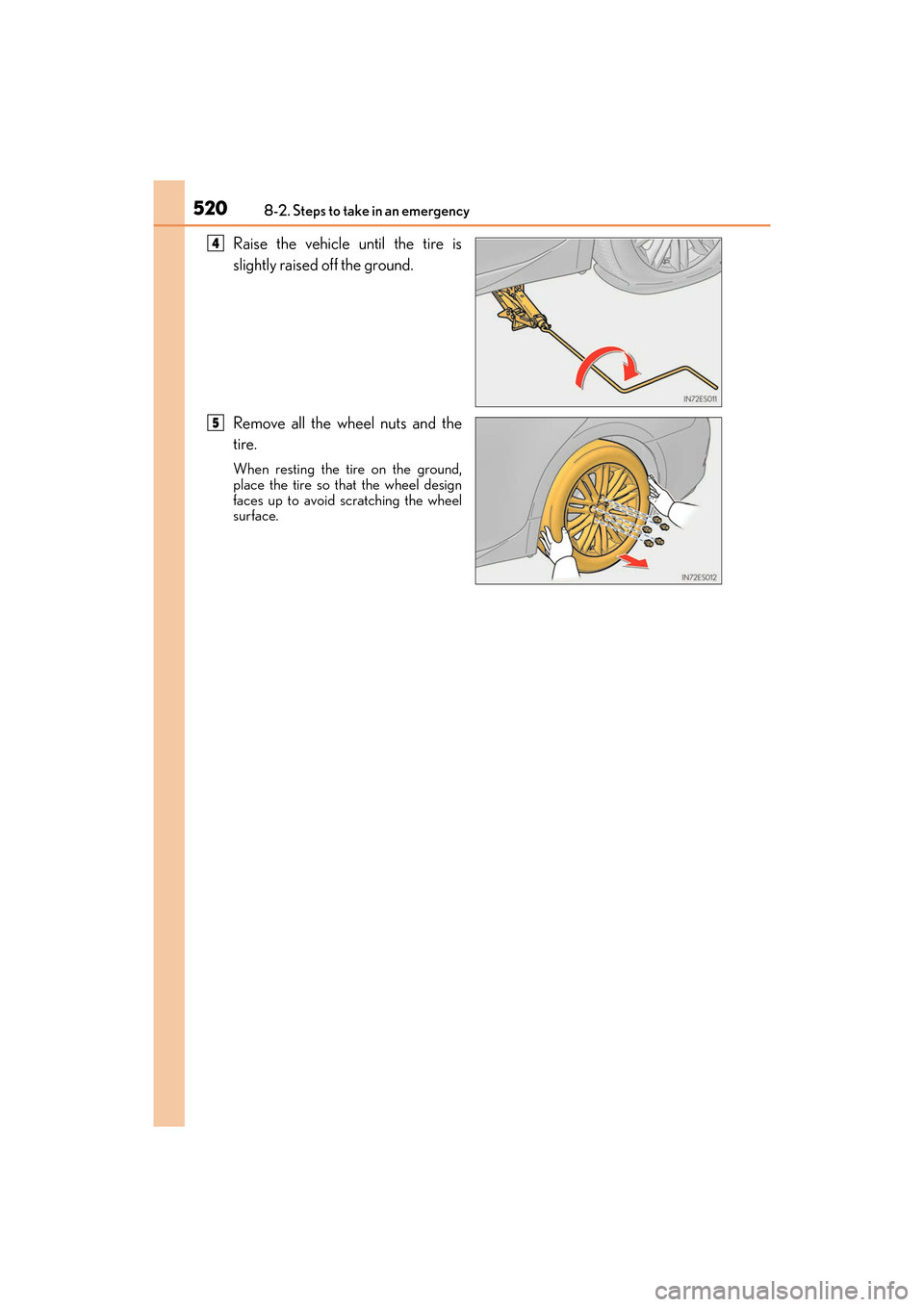

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the gr

Page 523 of 612

Lexus ES300h 2017  Owners Manual 5218-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)
8
When trouble arises

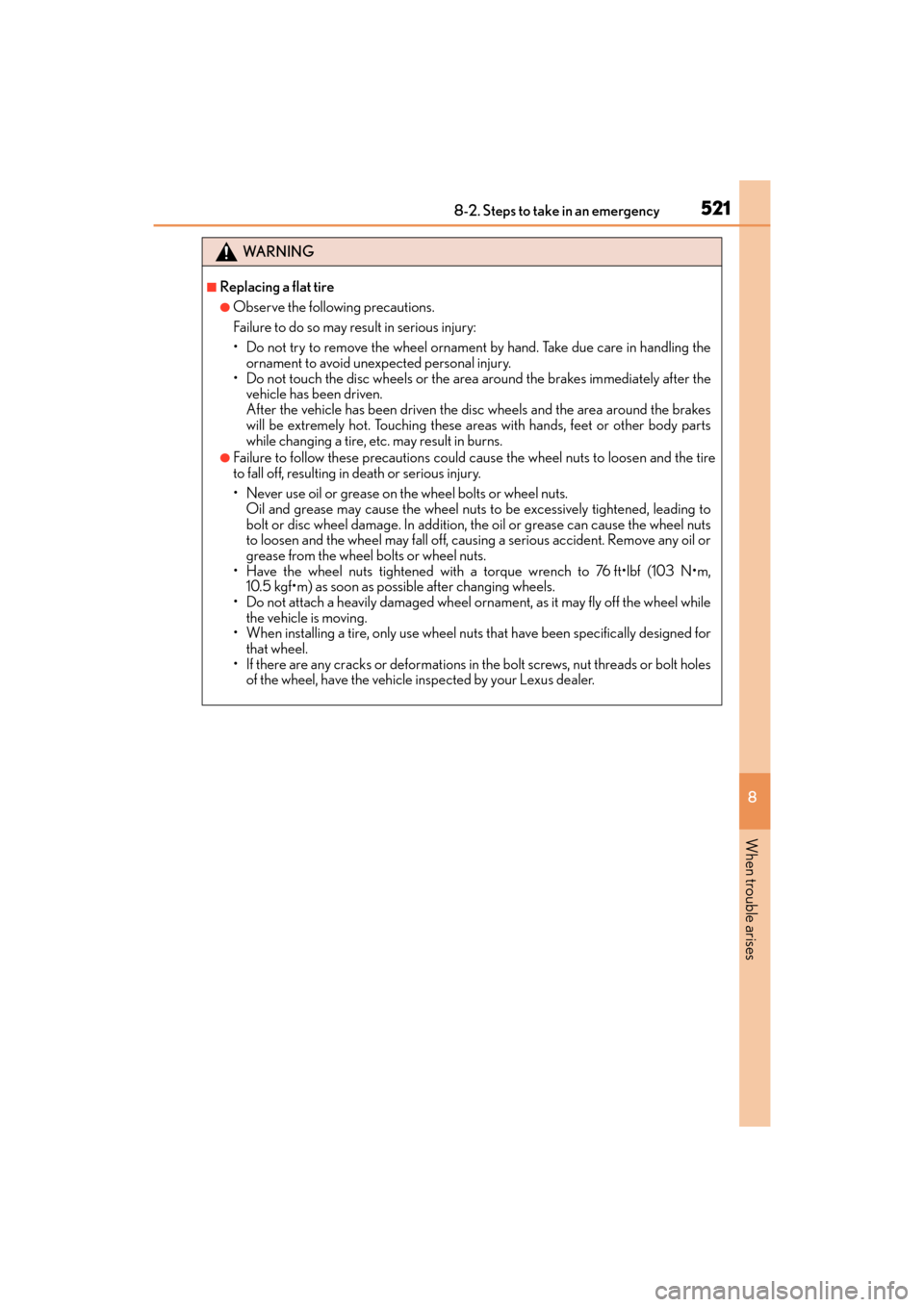

WA R N I N G
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious in

Page 524 of 612

Lexus ES300h 2017  Owners Manual 5228-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)

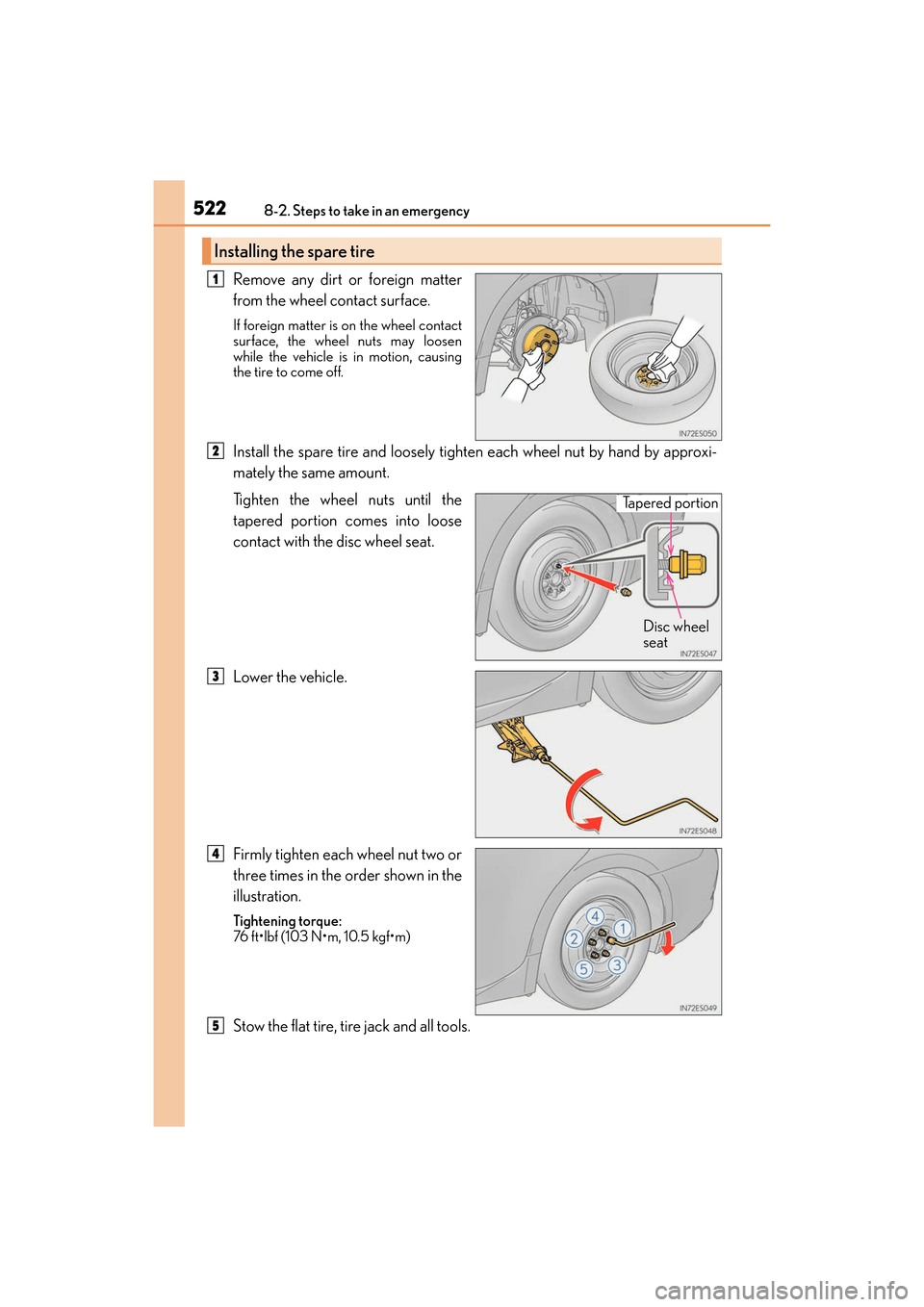

Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loo

Page 525 of 612

Lexus ES300h 2017  Owners Manual 5238-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)
8
When trouble arises
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire s

Page 526 of 612

Lexus ES300h 2017  Owners Manual 5248-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)

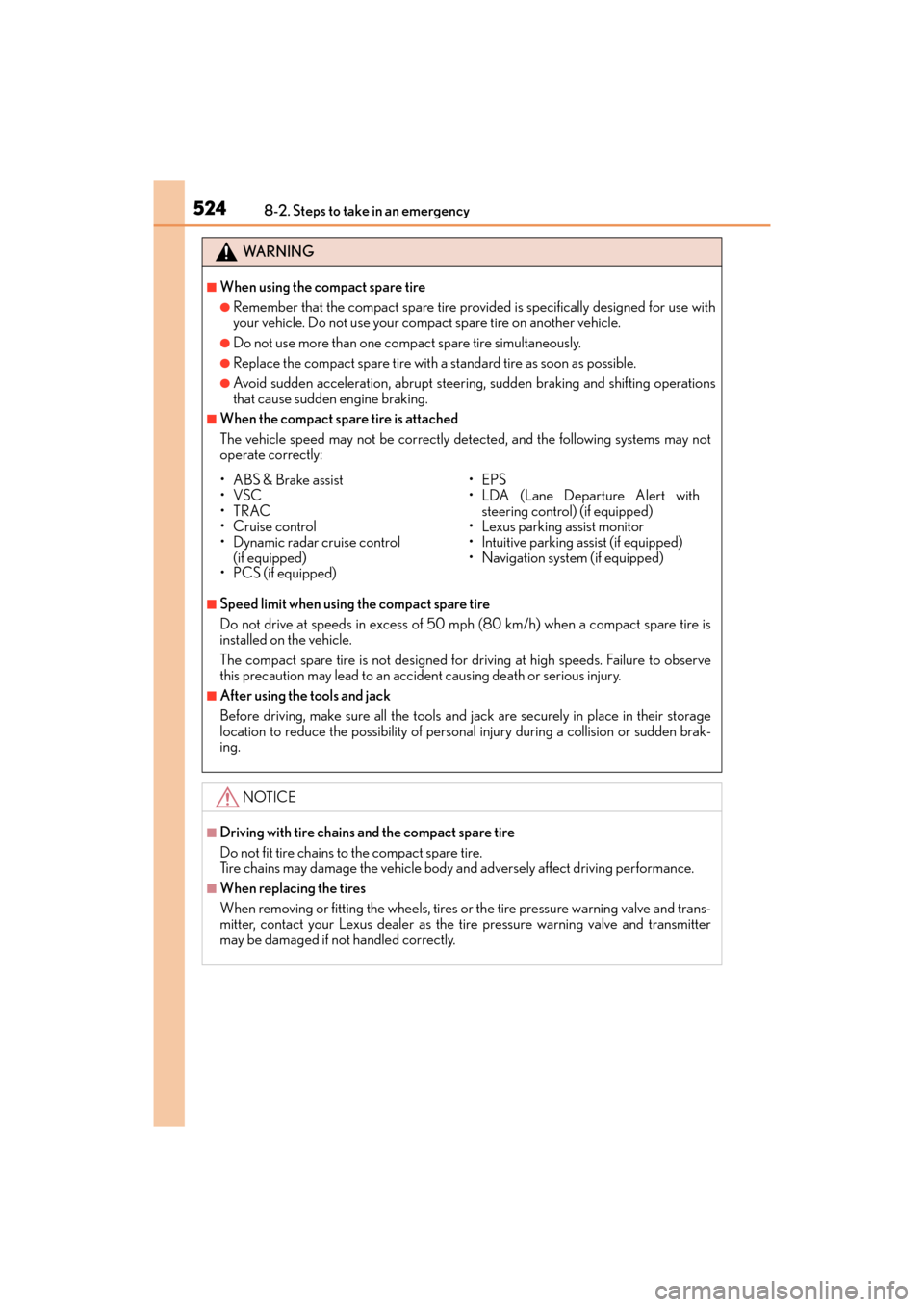

WA R N I N G
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with
yo

Page 527 of 612

Lexus ES300h 2017  Owners Manual 525
ES300h_OM_OM33C75U_(U)8-2. Steps to take in an emergency
8
When trouble arises

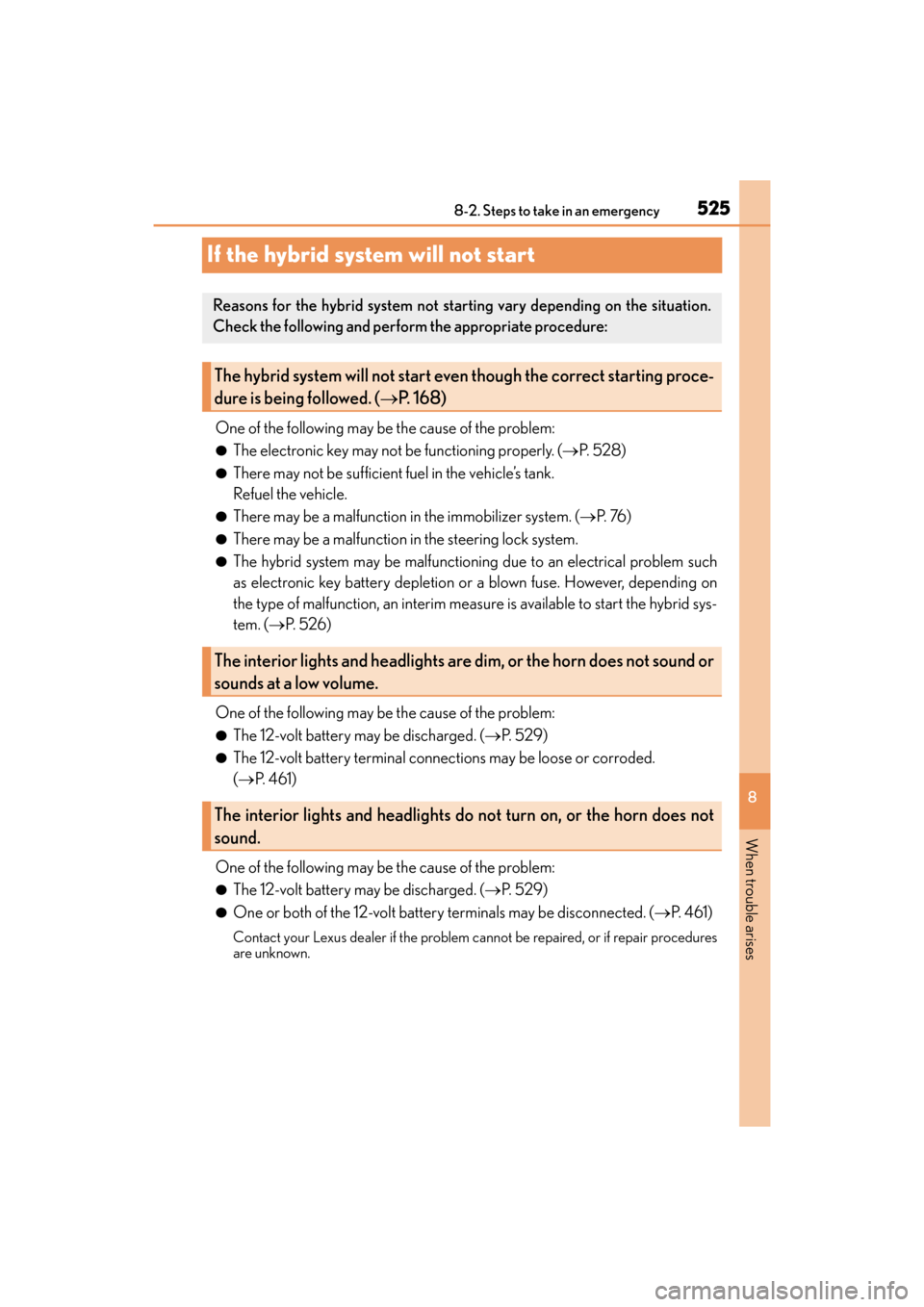

If the hybrid system will not start
One of the following may be the cause of the problem:
●The electronic key may n

Page 528 of 612

Lexus ES300h 2017  Owners Manual 5268-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)

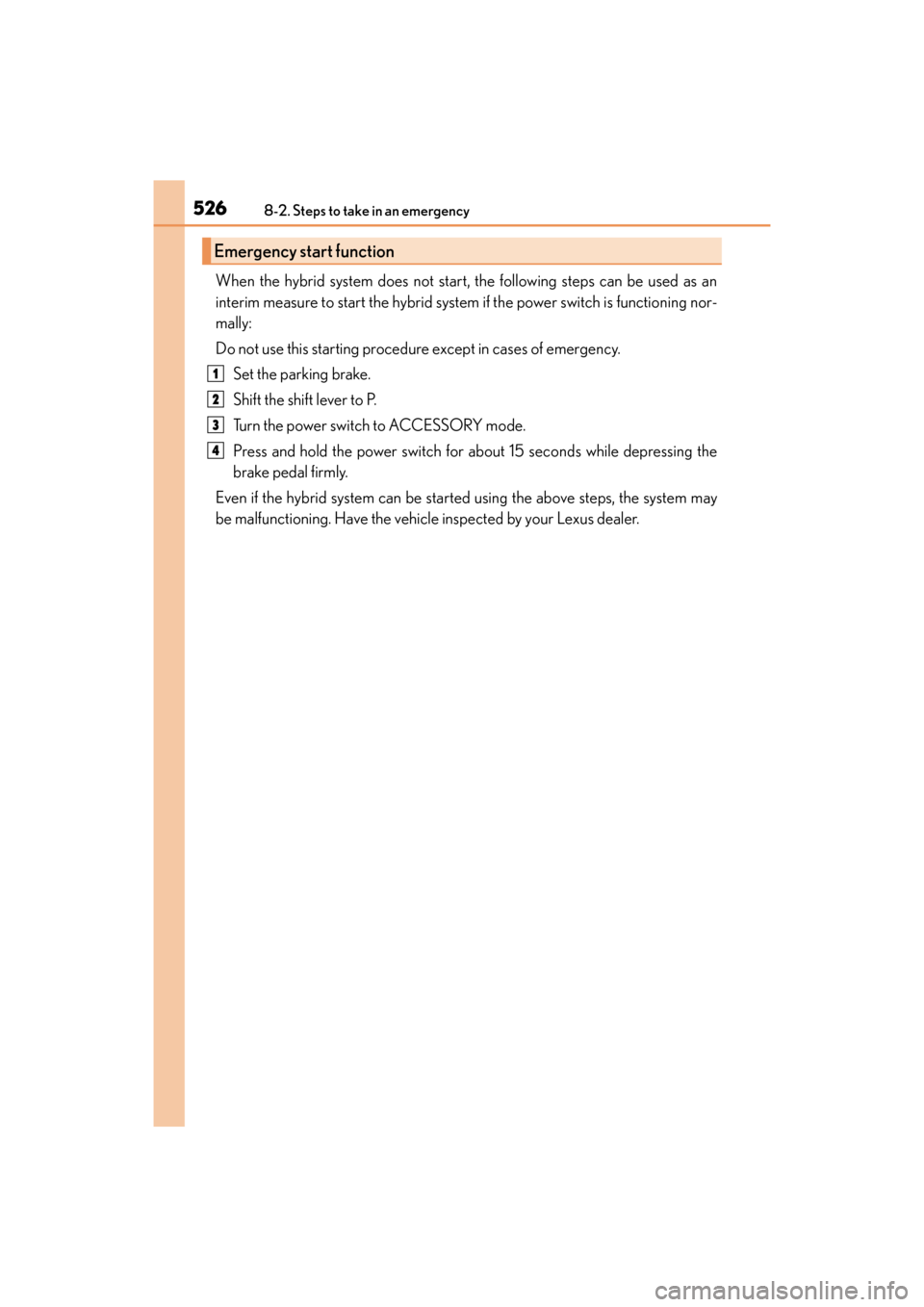

When the hybrid system does not start, the following steps can be used as an
interim measure to start the hybrid system if the power switch

Page 529 of 612

Lexus ES300h 2017  Owners Manual 527
ES300h_OM_OM33C75U_(U)8-2. Steps to take in an emergency
8
When trouble arises
If the electronic key does not operate properly
■Doors
Use the mechanical key (
→P.  1 0 5 )
in order to perform

Page 530 of 612

Lexus ES300h 2017  Owners Manual 5288-2. Steps to take in an emergency
ES300h_OM_OM33C75U_(U)

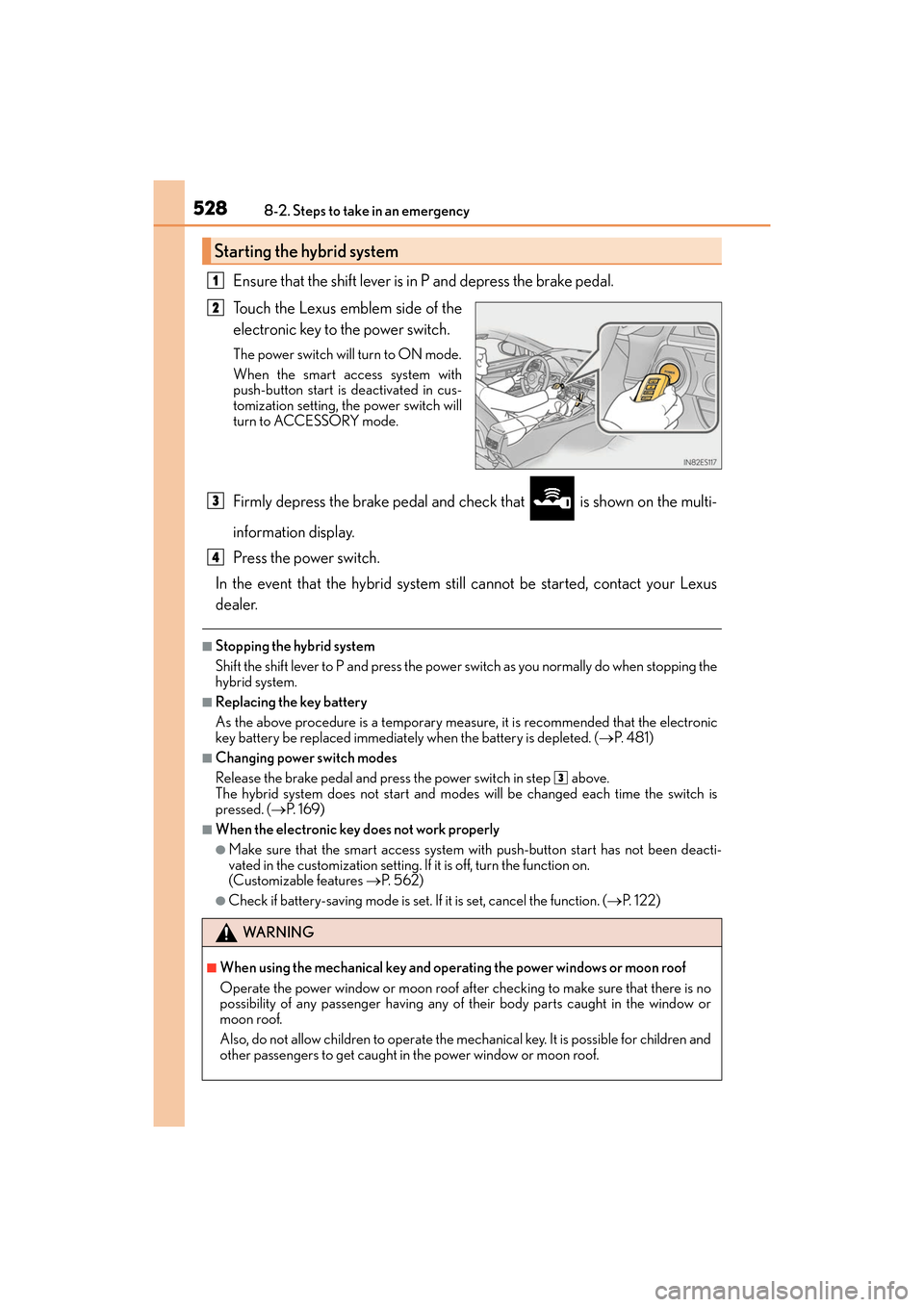

Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
The
