language Lexus ES300h 2017 Owner's Manual

94
ES300h_OM_OM33C75U_(U)2. Instrument cluster
The settings of the following items can be changed, refer to P. 562
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
●(Lane Departure Alert with steering control) (if
equipped) (
→P. 2 1 7 )
●(Pre-Collision System) (if equipped) ( →P. 2 0 5 )
●AFS (Adaptive Front-lighting System) (if equipped) ( →P. 1 8 3 )
●Clock
Adjusts the hour and minute of the clock on the multi-information display.
●Ambient illumin.
Select to turn the ornament lights on and off.
●Ve h i c l e S e t t i n g s
• Scheduled Maintenance ( →P. 441)
• Oil Maintenance ( →P. 4 5 5 )
●Meter Settings
•Language
Select to change the language on the display.
•Units
Select to change the unit of measure.
• EV indicator
Select to activate/deactivate the EV indicator.
• switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut , which can be displayed by pressing .
• Drive information 1 /2 /3
Select to select up to 2 items that will be displayed on a Drive information
screen, up to 3 Drive information screens can be set.
•Pop-up display
Select to set the pop-up displays, which may appear in some situations, on/off.
• Accent color
Select to change the accent colors on the screen, such as the cursor color.
• Tachometer
Select to set the tachometer display.
• Default settings
Registered or changed meter settings will be deleted or returned to their
default setting.
Settings display

303
ES300h_OM_OM33C75U_(U)5-2. Setup
5
Lexus Display Audio system
General settings
Go to “General Settings”: “MENU” button
→ “Setup” → “General”
Settings are available for adjusting the operation sounds, screen animation,
etc.
Screen for general settings
ButtonFunction
“Language”Change language. The selectable languages may differ
depending on the model or region.
“Units of Measurement”Change the distance unit.
“Beep”Set the beep sound on/off.
“Button Color”Change the button color.
“Customize Images”Change the startup image and screen off image.
(→ P. 3 0 4 )
“A n i m a t i o n ”Set the animation effect on/off.
“Delete Personal Data”Delete personal data ( →P. 3 0 5 )
“Software Update”Update program versions. For details, contact your Lexus
dealer.
“Gracenote® Database
Update”Update gracenote database versions. For details, contact
your Lexus dealer
“Software Information”Display the open source license.
“A u t o D e t e c t i P h o n e
App”Select to set a pop-up message displayed on an iPhone
connected via Bluetooth® on/off when an application on
the iPhone needs to be activated.

3205-4. Using the radio
ES300h_OM_OM33C75U_(U)
■XM Radio Services — Descriptions
●Radio and Entertainment
XM offers more than 170 satellite radio channels of commercial-free music and pre-
mier sports, news, talk, and entertainment. XM is broadcast via satellites to millions of
listeners across the continental United States . XM subscribers listen to XM on satellite
radio receivers for the car, home, and portable use. More information about XM is
available online at www.siriusxm.com
(U.S.A.) or www.siriusxm.ca (Canada).
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying Text
Information of XM
® Satellite Radio.
■XM Radio Services — Subscription Instructions
For XM Services requiring a subscription (s uch as XM Radio), the following paragraph
shall be included.
Required XM Radio monthly subscriptions sold separately after trial period. Subscrip-
tion fee is consumer only. A ll fees and programming subject to change. Subscriptions are
subject to the Customer Agreement available at www.siriusxm.com
(U.S.A.) or
www.siriusxm.ca (Canada) XM service only availa ble in the 48 contiguous United
States and 10 Canadian provinces. © 2011 Sirius XM Radio Inc. Sirius, XM and all
related marks and logos are trademarks of Sirius XM Radio Inc. All other marks, channel
names and logos are the property of their respective owners.
For more information, program schedules, and to subscribe or extend subscription after
complimentary trial period; more information is available at:
XU.S.A. Customers:
Visit www.siriusxm.com or call 1-877-447-0011
XCanadian Customers:
Visit www.siriusxm.ca or call 1-877-438-9677
●Radio ID
You will need the radio ID when activatin g XM service or reporting a problem. If
“Ch000” is selected using the “TUNE•SCRO LL” knob, the ID code, which is 8 alpha-
numeric characters, will be displayed. If anot her channel is selected, the ID code will no
longer be displayed. The channel (000) alternates between displaying the radio ID and
the specific radio code.
■XM Radio Services — Legal Disclaimers and Warnings
●Fees and Taxes — Subscription fee, taxes, one time activation fee, and other fees may
apply. Subscription fee is consumer only. All fees and programming subject to change.
Subscriptions subject to Customer Agreement available at www.siriusxm.com
(U.S.A.)
or www.siriusxm.ca
(Canada) XM service only available in the 48 contiguous United
States and Canada
*.
*: Canada — some deterioration of service may occur in extreme northern latitudes.
This is beyond the control of XM Satellite Radio.
Explicit Language Notice — Channels with frequent explicit language are indicated
with an “XL” preceding the channel name. Ch annel blocking is available for XM Satel-
lite Radio receivers by notifying XM at;
XU.S.A. Customers :
Visit ww w.s ir iusxm .com or calling 1-877-447-0011
XCanadian Customers:
Visit ww w.s ir iusxm .ca
or calling 1-877-438-9677

3825-12. Other function
ES300h_OM_OM33C75U_(U)
■Microphone
→ P. 3 5 0
■When using the microphone
●It is unnecessary to speak directly into the microphone when giving a command.
●Wait for the confirmation beep before speaking a command.
●Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following conditions, the system ma y not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or speech
patterns may be diffi cult for the system to recognize.
• There is excessive background noise, such as wind noise.
■When searching for a track
●A USB memory or iPod must be connected to enable track searching and playback.
( → P. 2 9 9 )
●When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands.
●Recognition data is updated under the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (→ P. 303)
●While the recognition data is being created or being updated, a track search cannot be
performed using a voice command.
■The Gracenote® media database
→ P. 3 2 6
Due to natural language speech recognition technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.
Casual speech recognition

ES300h_OM_OM33C75U_(U)
4276-4. Using the other interior features
6
Interior features
Subscribers have the following Safety Connect services available:
●Automatic Collision Notification*
Helps drivers receive necessary response from emergency service providers.
(→ P. 4 2 8 )
*: U.S. Patent No. 7,508,298 B2
●Stolen Vehicle Location
Helps drivers in the event of vehicle theft. ( →P. 4 2 8 )
●Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. ( →P. 4 2 8 )
●Enhanced Roadside Assistance
Provides drivers various on-road assistance. ( →P. 4 2 9 )
After you have signed the Telematics Subscription Service Agreement and are
enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus
dealer, call 1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in
your vehicle for further subscription details.
■Safety Connect Services Information
●Phone calls using the vehicles Bluetooth® technology will not be possible during Safety
Connect.
●Safety Connect is available beginning Fall 2009 on select Lexus models. Contact with
the Safety Connect response center is dependent upon the telematics device being in
operative condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emergency service
support. Enrollment and Telematics Subscrip tion Service Agreement required. A vari-
ety of subscription terms is available; ch arges vary by subscription term selected.
●Automatic Collision Notification, Emergency Assistance and Stolen Vehicle Location
will function in the United States, includ ing Hawaii and Alaska, and in Canada, and
Enhanced Roadside Assistance will function in the United States (except Hawaii) and in
Canada. No Safety Connect services will functi on outside of the United States in coun-
tries other than Canada.
●Safety Connect services are not subject to section 255 of the Telecommunications Act
and the device is not TTY compatible.
■Languages
The Safety Connect response center will offe r support in multiple languages. The Safety
Connect system will offer voice prompts in English and Spanish. Please indicate your lan-
guage of choice when enrolling.
■When contacting the response center
You may be unable to contact the resp onse center if the network is busy.
Services
Subscription

564
ES300h_OM_OM33C75U_(U)9-2. Customization
■Multi-information display (
→P. 9 1 )
FunctionDefault
settingCustomized setting
Language EnglishFrench
–O–
Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
OO–km (L/100 km)
km (km/L)
EV indicator On Off
–O–
switch settingsDrive
information 1Desired status screen
*2–O–
Drive information screen dis-
played on the first screen of

(Drive information 1)Current fuel
consumption
*3–O–Average fuel economy
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2)Distance (range)
*3–O–Average speed
(after reset)
Drive information screen dis-
played on the third screen of

(Drive information 3)Average fuel economy
(after refuel)
*3–O–
Elapsed time
(after start)
Pop-up displayOnOff–O–
Accent colorColor 1Color 2OO–
Changeover to tachometer
when sport mode is selected AutoHybrid system
indicator (always) –O–
Tachometer (always)
123

598Alphabetical index
ES300h_OM_OM33C75U_(U)
Language (multi-information display) ............ 563
LATCH anchors ...................................... 58
LDA (Lane Departure Alert with steering control) .................................. 217
Lever Auxiliary catch lever .........................449
Hood lock release lever .................449
Internal trunk release lever ............... 116
Shift lever ................................................. 175
Turn signal lever .................................. 180
Wiper lever ............................................ 190
Lexus Display Audio system............ 290
Display settings ...................................307
Setup menu .......................................... 302
Lexus Enform
*
Lexus Enform Remote*......................431
Lexus Enform Safety Connect........ 426
Lexus Safety System+.......................... 198
License plate lights Light switch ............................................ 182
Replacing light bulbs ....................... 495
Light bulbs
Replacing .............................................. 486
Wattage ................................................. 548 Lights
Automatic High Beam system .... 185
Fog light switch .................................... 189
Headlight switch ..................................182
Illuminated entry system................. 402
Interior light.............................................401
Interior lights list................................. 400
Personal lights .......................................401
Replacing light bulbs .......................486
Trunk light................................................. 116
Turn signal lever .................................. 180
Vanity lights ..........................................409
Wattage .................................................548
Lock steering column........................... 170
Luggage security system ..................... 115
Maintenance
Do-it-yourself maintenance ......... 447
General maintenance ..................... 443
Maintenance data..............................540
Maintenance requirements .......... 440
Malfunction indicator lamp .............. 505
Master warning light ........................... 506
Meter............................................................ 86 Indicators .................................................. 84
Instrument panel light control ........ 87
Multi-information display.................... 91
Warning lights........................................ 83
Micro dust and pollen filter .............. 393
L
M

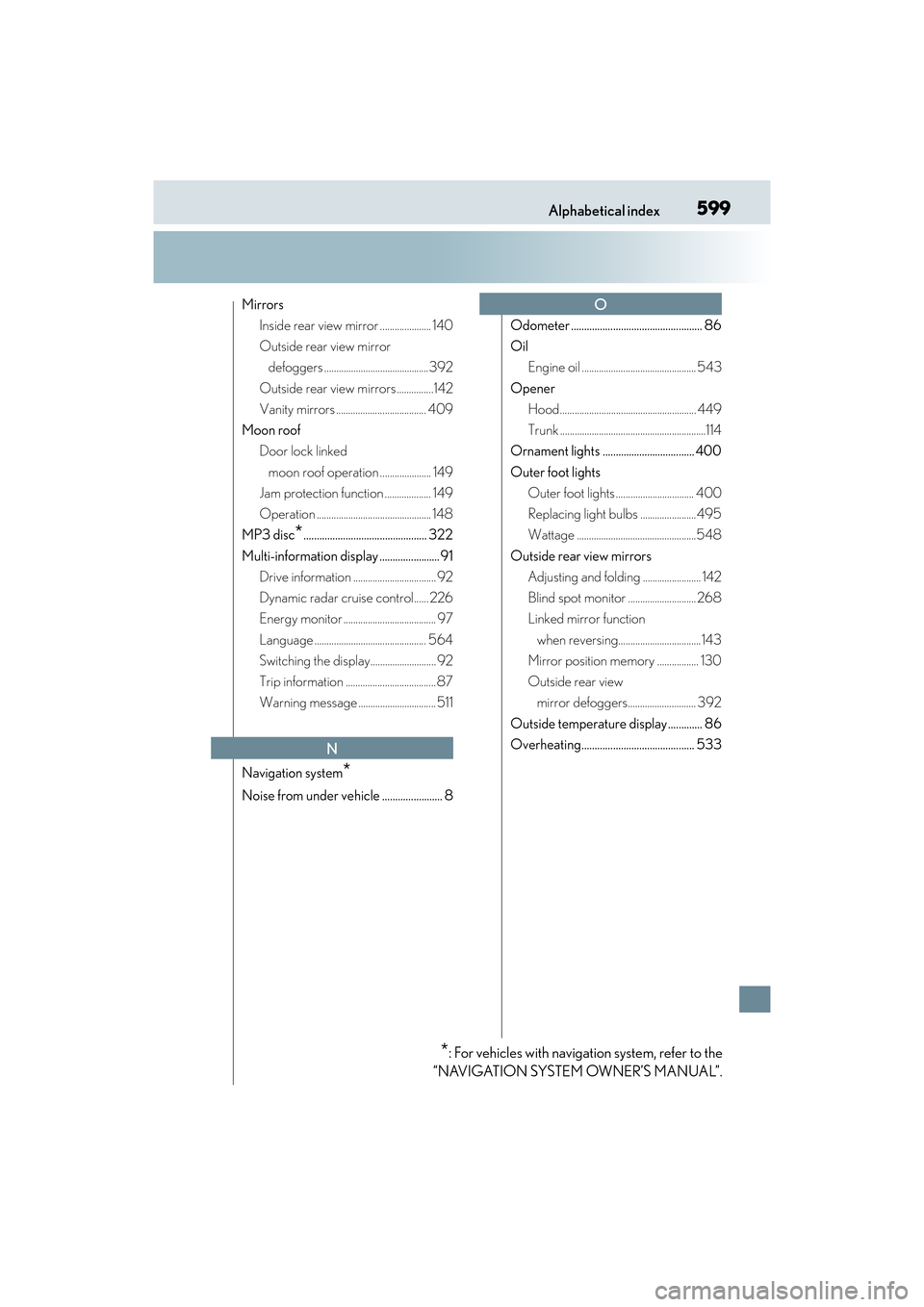

599Alphabetical index
ES300h_OM_OM33C75U_(U)
MirrorsInside rear view mirror ..................... 140
Outside rear view mirror defoggers ...........................................392
Outside rear view mirrors ...............142
Vanity mirrors ..................................... 409
Moon roof Door lock linked
moon roof operation ..................... 149
Jam protection function ................... 149
Operation ............................................... 148
MP3 disc
*............................................... 322
Multi-information display ....................... 91 Drive information .................................. 92
Dynamic radar cruise control...... 226
Energy monitor ...................................... 97
Language .............................................. 564
Switching the display........................... 92
Trip information ..................................... 87
Warning message ................................ 511
Navigation system
*
Noise from under vehicle ....................... 8 Odometer .................................................. 86
Oil
Engine oil ............................................... 543
Opener Hood........................................................ 449
Trunk ............................................................114
Ornament lights ................................... 400
Outer foot lights Outer foot lights ................................ 400
Replacing light bulbs ....................... 495
Wattage .................................................548
Outside rear view mirrors Adjusting and folding ........................ 142
Blind spot monitor ............................ 268
Linked mirror function
when reversing.................................. 143
Mirror position memory ................. 130
Outside rear view mirror defoggers............................ 392
Outside temperature display ............. 86
Overheating........................................... 533
N
O
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
