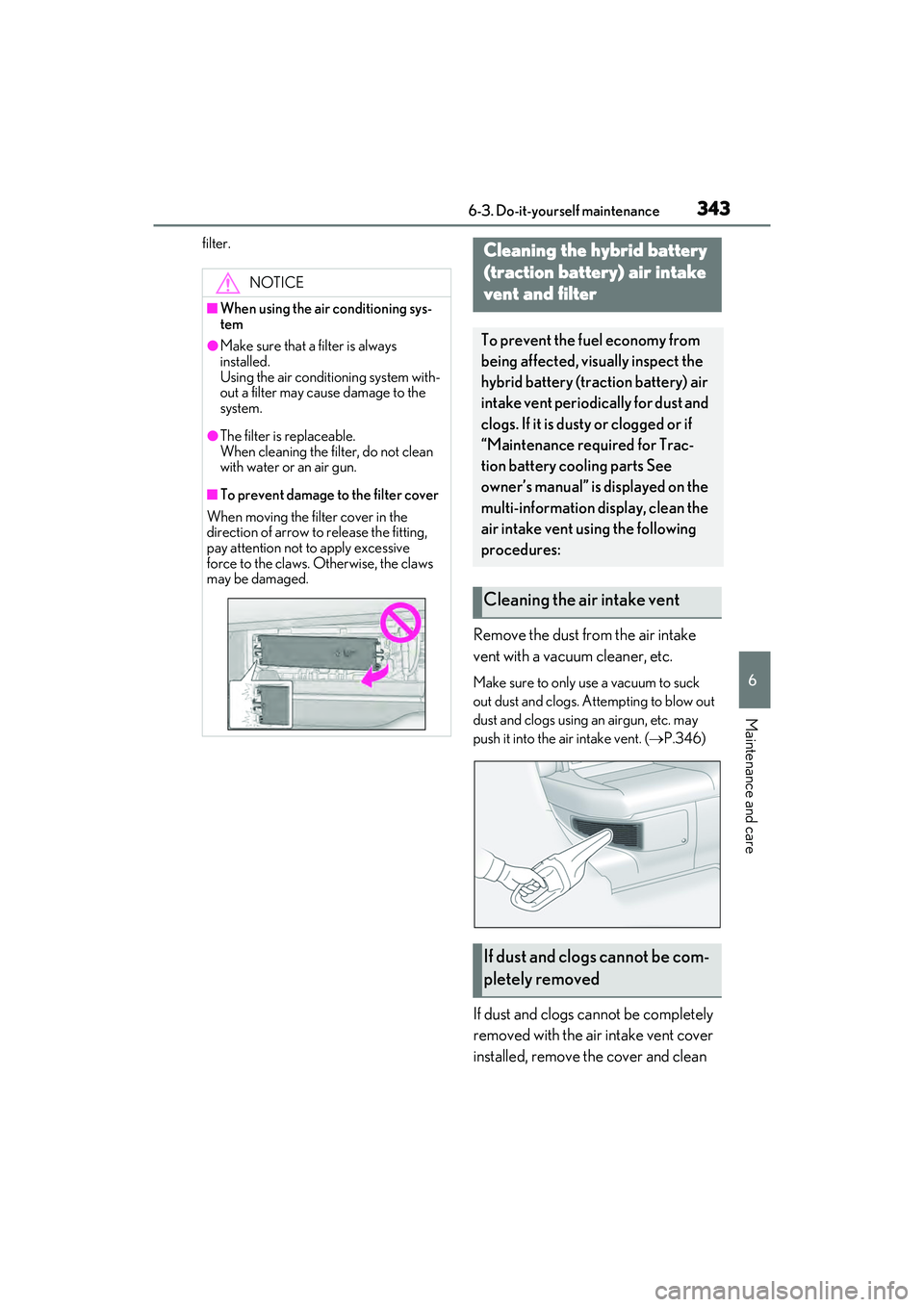

3436-3. Do-it-yourself maintenance
6
Maintenance and care
filter.
Remove the dust from the air intake
vent with a vacuum cleaner, etc.
Make sure to only use a vacuum to suck
out dust and clogs. Attempting to blow out
dust and clogs using an airgun, etc. may
push it into the air intake vent. (P.346)
If dust and clogs cannot be completely
removed with the air intake vent cover
installed, remove the cover and clean
NOTICE
QWhen using the air conditioning sys-
tem
OMake sure that a filter is always
installed.
Using the air conditioning system with-
out a filter may cause damage to the
system.
OThe filter is replaceable.
When cleaning the filter, do not clean
with water or an air gun.
QTo prevent damage to the filter cover
When moving the filter cover in the
direction of arrow to release the fitting,
pay attention not to apply excessive
force to the claws. Otherwise, the claws
may be damaged.
Cleaning the hybrid battery
(traction battery) air intake
vent and filter
To prevent the fuel economy from
being affected, visually inspect the
hybrid battery (traction battery) air
intake vent periodically for dust and
clogs. If it is dusty or clogged or if
“Maintenance required for Trac-
tion battery cooling parts See
owner’s manual” is displayed on the
multi-information display, clean the
air intake vent using the following
procedures:
Cleaning the air intake vent
If dust and clogs cannot be com-
pletely removed

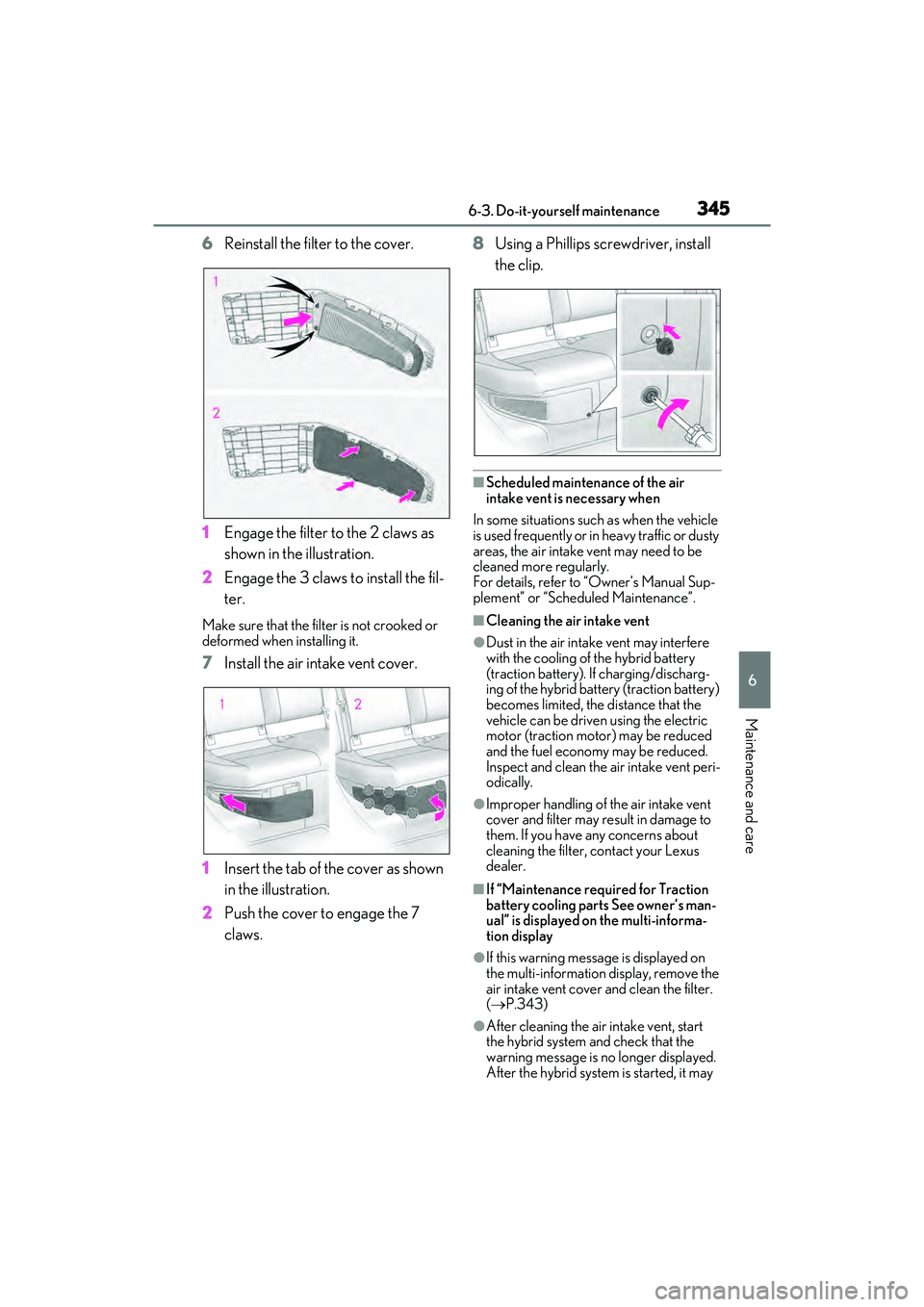

3456-3. Do-it-yourself maintenance
6
Maintenance and care
6Reinstall the filter to the cover.
1 Engage the filter to the 2 claws as
shown in the illustration.
2 Engage the 3 claws to install the fil-
ter.
Make sure that the filter is not crooked or
deformed when installing it.
7Install the air intake vent cover.
1 Insert the tab of the cover as shown
in the illustration.
2 Push the cover to engage the 7
claws. 8
Using a Phillips screwdriver, install
the clip.
QScheduled maintenance of the air
intake vent is necessary when
In some situations such as when the vehicle
is used frequently or in heavy traffic or dusty
areas, the air intake vent may need to be
cleaned more regularly.
For details, refer to “Owner’s Manual Sup-
plement” or “Scheduled Maintenance”.
QCleaning the air intake vent
ODust in the air intake vent may interfere
with the cooling of the hybrid battery
(traction battery). If charging/discharg-
ing of the hybrid battery (traction battery)
becomes limited, the distance that the
vehicle can be driven using the electric
motor (traction motor) may be reduced
and the fuel economy may be reduced.
Inspect and clean the air intake vent peri-
odically.
OImproper handling of the air intake vent
cover and filter may re sult in damage to
them. If you have any concerns about
cleaning the filter, contact your Lexus
dealer.
QIf “Maintenance required for Traction
battery cooling parts See owner’s man-
ual” is displayed on the multi-informa-
tion display
OIf this warning message is displayed on
the multi-information display, remove the
air intake vent cover and clean the filter.
(  P.343)
OAfter cleaning the air intake vent, start
the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may

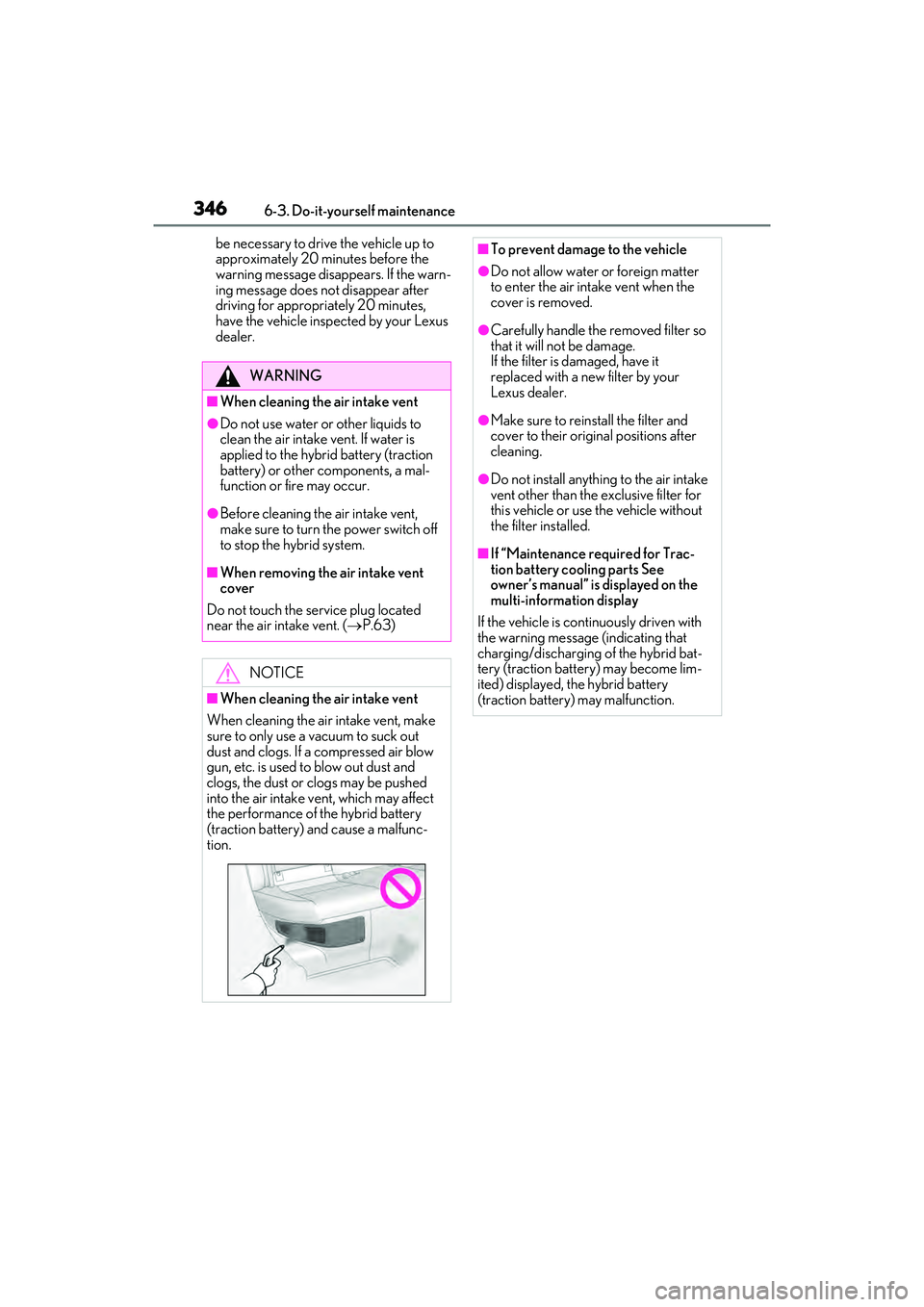

3466-3. Do-it-yourself maintenance
be necessary to drive the vehicle up to
approximately 20 minutes before the
warning message disappears. If the warn-
ing message does not disappear after
driving for appropriately 20 minutes,
have the vehicle inspected by your Lexus
dealer.
WARNING
QWhen cleaning the air intake vent
ODo not use water or other liquids to
clean the air intake vent. If water is
applied to the hybrid battery (traction
battery) or other components, a mal-
function or fire may occur.
OBefore cleaning the air intake vent,
make sure to turn the power switch off
to stop the hybrid system.
QWhen removing the air intake vent
cover
Do not touch the service plug located
near the air intake vent. ( P.63)
NOTICE
QWhen cleaning the air intake vent
When cleaning the air intake vent, make
sure to only use a vacuum to suck out
dust and clogs. If a compressed air blow
gun, etc. is used to blow out dust and
clogs, the dust or clogs may be pushed
into the air intake vent, which may affect
the performance of the hybrid battery
(traction battery) and cause a malfunc-
tion.
QTo prevent damage to the vehicle
ODo not allow water or foreign matter
to enter the air intake vent when the
cover is removed.
OCarefully handle the removed filter so
that it will not be damage.
If the filter is damaged, have it
replaced with a new filter by your
Lexus dealer.
OMake sure to reinstall the filter and
cover to their original positions after
cleaning.
ODo not install anything to the air intake
vent other than the exclusive filter for
this vehicle or use the vehicle without
the filter installed.
QIf “Maintenance required for Trac-
tion battery cooling parts See
owner’s manual” is displayed on the
multi-information display
If the vehicle is continuously driven with
the warning message (indicating that
charging/discharging of the hybrid bat-
tery (traction battery) may become lim-
ited) displayed, the hybrid battery
(traction battery) may malfunction.

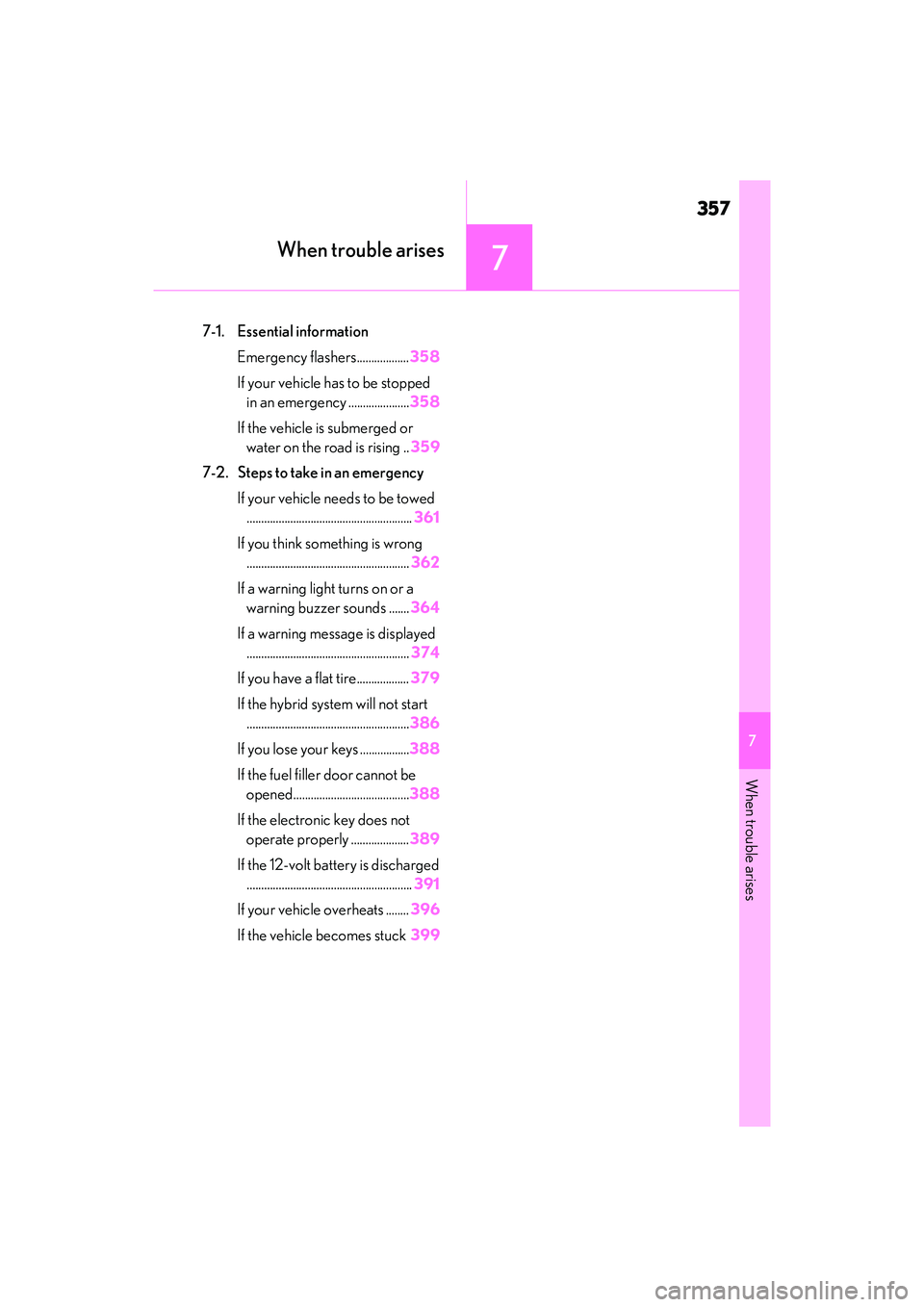

357
7
7
When trouble arises
When trouble arises
7-1. Essential informationEmergency flashers.................. 358
If your vehicle has to be stopped in an emergency ..................... 358
If the vehicle is submerged or water on the road is rising .. 359
7-2. Steps to take in an emergency
If your vehicle needs to be towed......................................................... 361
If you think something is wrong ........................................................ 362
If a warning light turns on or a warning buzzer sounds ....... 364
If a warning message is displayed ........................................................ 374
If you have a flat tire.................. 379
If the hybrid system will not start ........................................................ 386
If you lose your keys ................. 388
If the fuel filler door cannot be opened........................................ 388
If the electronic key does not operate properly .................... 389
If the 12-volt battery is discharged ......................................................... 391
If your vehicle overheats ........ 396
If the vehicle becomes stuck 399

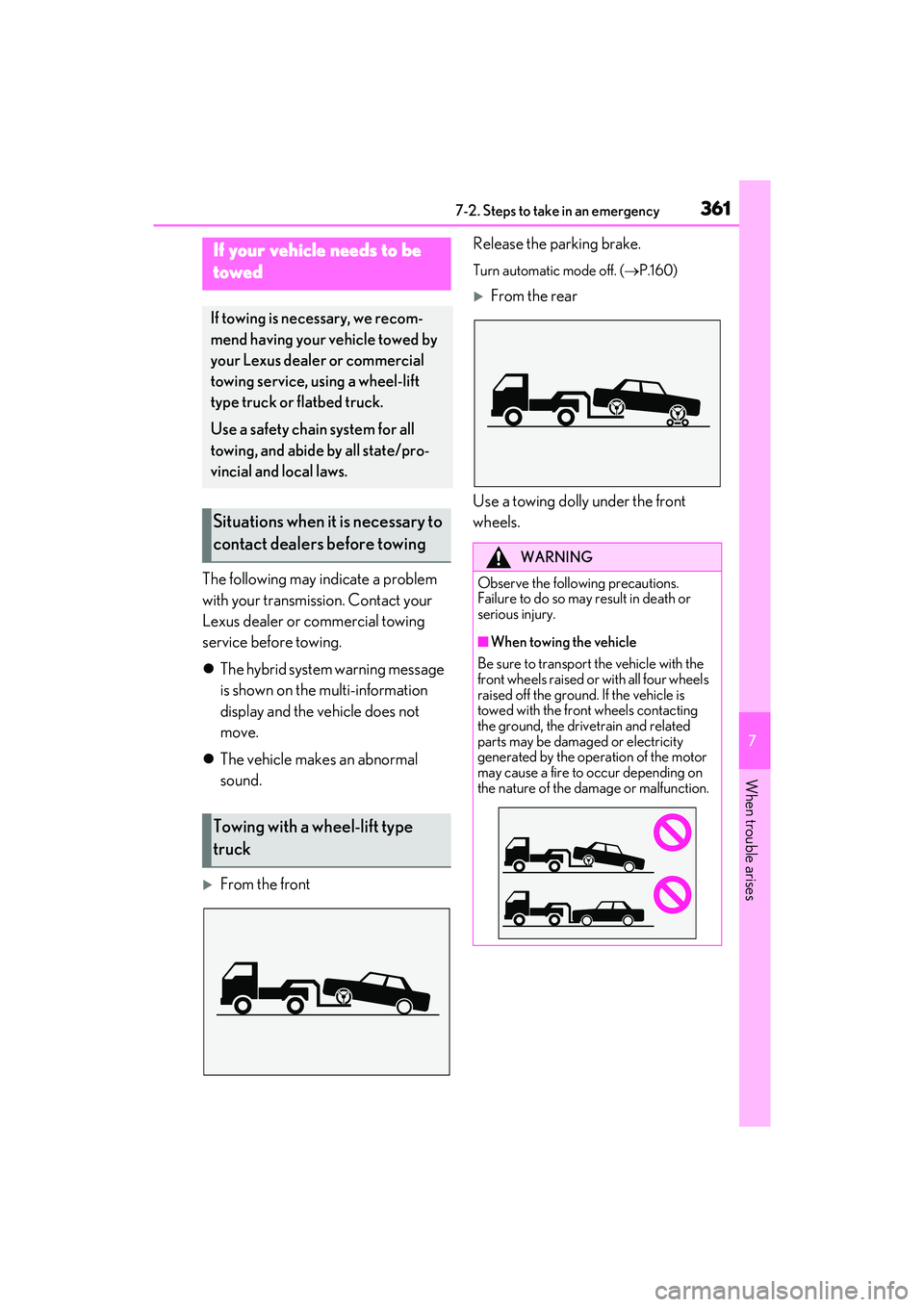

3617-2. Steps to take in an emergency
7
When trouble arises
7-2.Steps to take in an emergency
The following may indicate a problem
with your transmission. Contact your
Lexus dealer or commercial towing
service before towing.
The hybrid system warning message
is shown on the multi-information
display and the vehicle does not
move.
 The vehicle makes an abnormal
sound.
From the front Release the parking brake.
Turn automatic mode off. (
P.160)
From the rear
Use a towing dolly under the front
wheels.
If your vehicl e needs to be
towed
If towing is necessary, we recom-
mend having your vehicle towed by
your Lexus dealer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.
Situations when it is necessary to
contact dealers before towing
Towing with a wheel-lift type
truck
WARNING
Observe the following precautions.
Failure to do so may result in death or
serious injury.
QWhen towing the vehicle
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity
generated by the operation of the motor
may cause a fire to occur depending on
the nature of the damage or malfunction.

3647-2. Steps to take in an emergency
QBrake system warning light (warning buzzer)
QBrake system warning light (warning buzzer)
QHigh coolant temperature warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers
Warning lightDetails/Actions
(U.S.A.)
or
(red)
(Canada)
Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
Warning lightDetails/Actions
(yellow)
Indicates a malfunction in:
The regenerative braking system;
 The electronically controlled brake system; or
 The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightDetails/Actions
Indicates that the engine coolant temperature is too high
Immediately stop the vehicle in a safe place.
Handling method ( P.396)

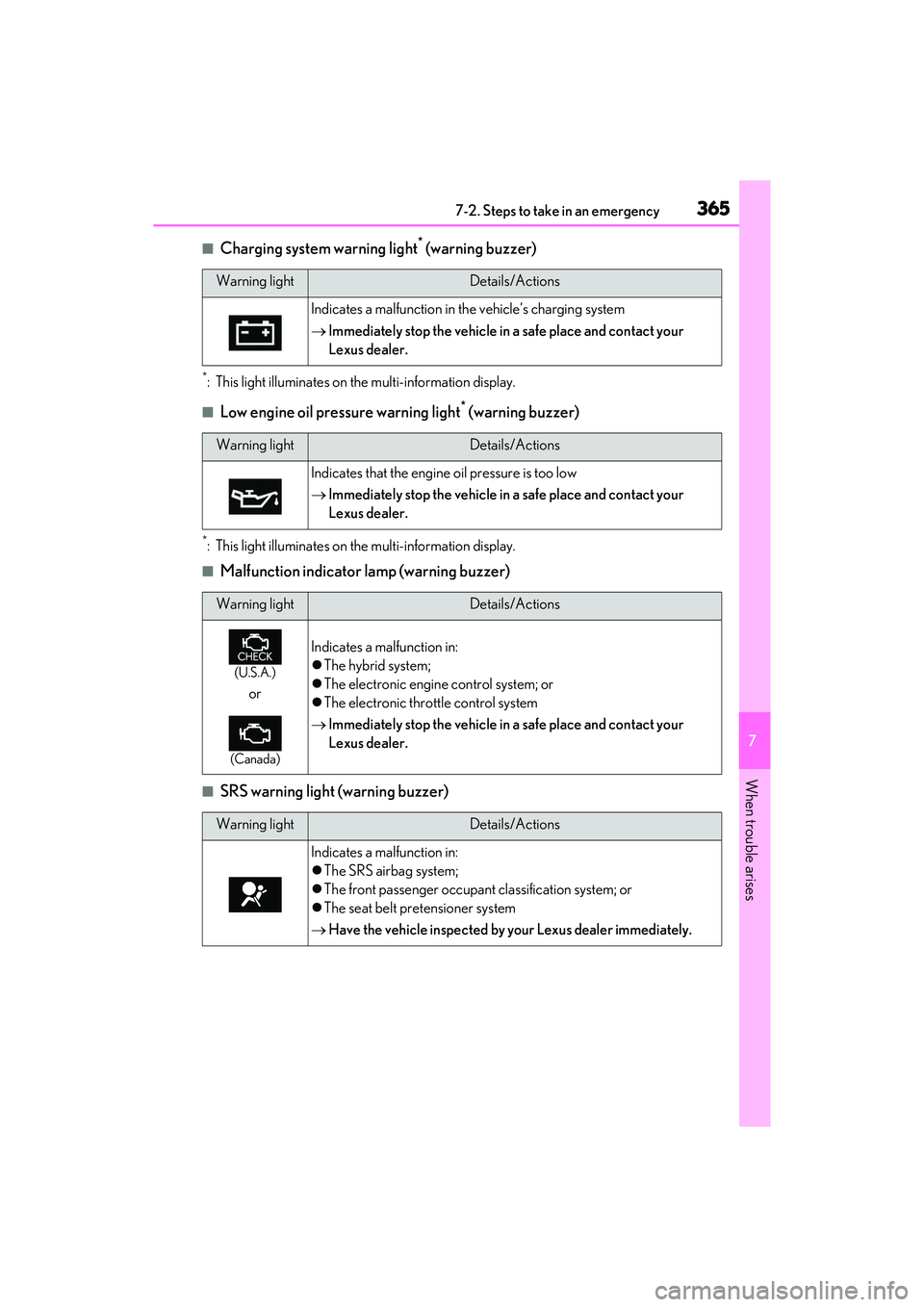

3657-2. Steps to take in an emergency
7
When trouble arises
QCharging system warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
QLow engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
QMalfunction indicator lamp (warning buzzer)
QSRS warning light (warning buzzer)
Warning lightDetails/Actions
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
Warning lightDetails/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
Warning lightDetails/Actions
(U.S.A.)
or
(Canada)
Indicates a malfunction in:
The hybrid system;
 The electronic engine control system; or
 The electronic throttle control system
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
Warning lightDetails/Actions
Indicates a malfunction in:
The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

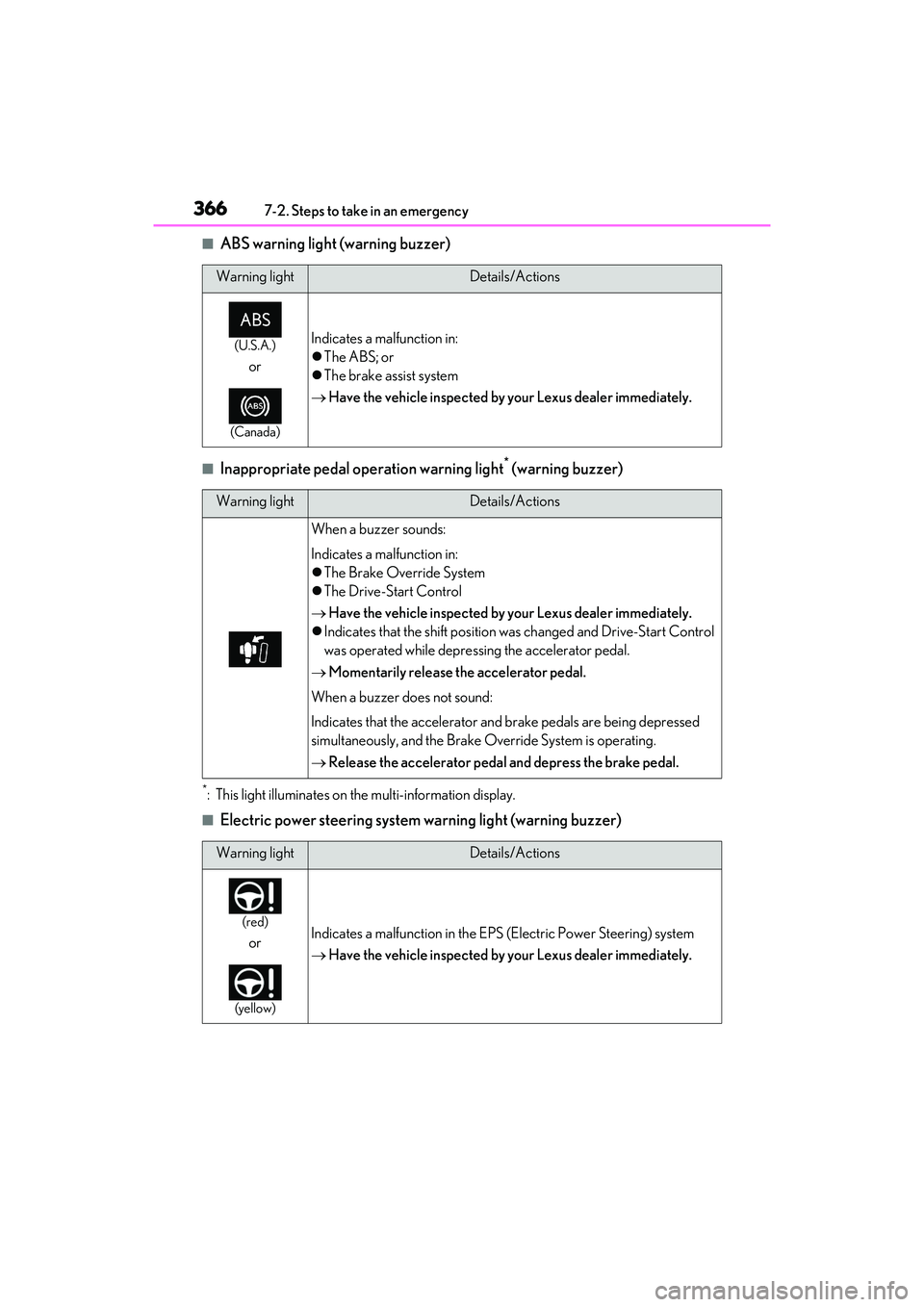

3667-2. Steps to take in an emergency
QABS warning light (warning buzzer)
QInappropriate pedal operation warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
QElectric power steering system warning light (warning buzzer)
Warning lightDetails/Actions
(U.S.A.)
or
(Canada)
Indicates a malfunction in:
The ABS; or
 The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in:
The Brake Override System
 The Drive-Start Control
 Have the vehicle inspected by your Lexus dealer immediately.
 Indicates that the shift position was changed and Drive-Start Control
was operated while depressing the accelerator pedal.
 Momentarily release the accelerator pedal.
When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being depressed
simultaneously, and the Brake Override System is operating.
 Release the accelerator pedal and depress the brake pedal.
Warning lightDetails/Actions
(red)
or
(yellow)
Indicates a malfunction in the EPS (Electric Power Steering) system
Have the vehicle inspected by your Lexus dealer immediately.

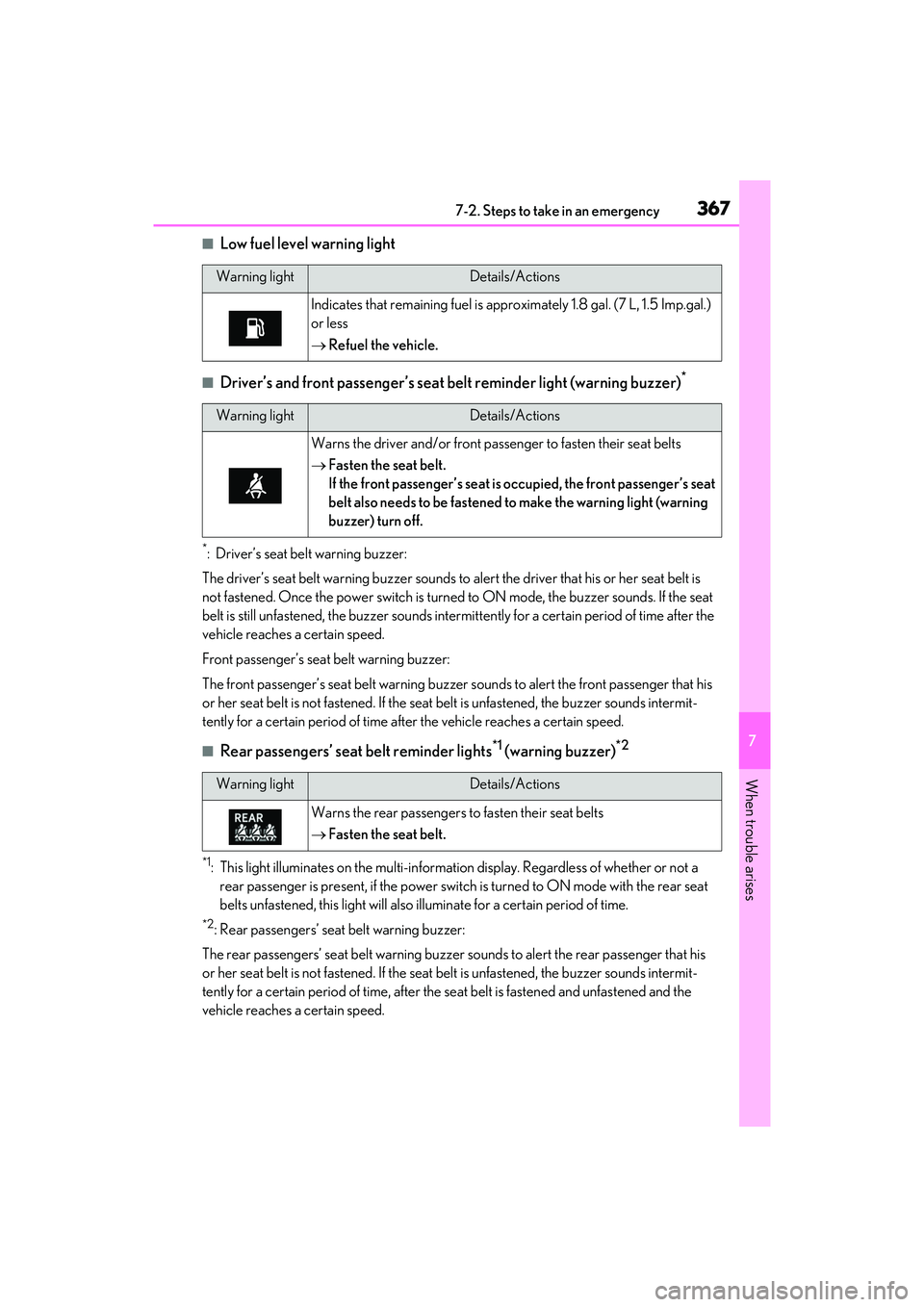

3677-2. Steps to take in an emergency
7
When trouble arises
QLow fuel level warning light
QDriver’s and front passenger’s seat belt reminder light (warning buzzer)*
*: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the driver that his or her seat belt is
not fastened. Once the power switch is turned to ON mode, the buzzer sounds. If the seat
belt is still unfastened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front passenger that his
or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds intermit-
tently for a certain period of time after the vehicle reaches a certain speed.
QRear passengers’ seat belt reminder lights*1 (warning buzzer)*2
*1: This light illuminates on the multi-informatio n display. Regardless of whether or not a
rear passenger is present, if the power switch is turned to ON mode with the rear seat
belts unfastened, this light will also illuminate for a certain period of time.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear passenger that his
or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds intermit-
tently for a certain period of time, after the seat belt is fastened and unfastened and the
vehicle reaches a certain speed.
Warning lightDetails/Actions
Indicates that remaining fuel is approximately 1.8 gal. (7 L, 1.5 Imp.gal.)
or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front passenger to fasten their seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.

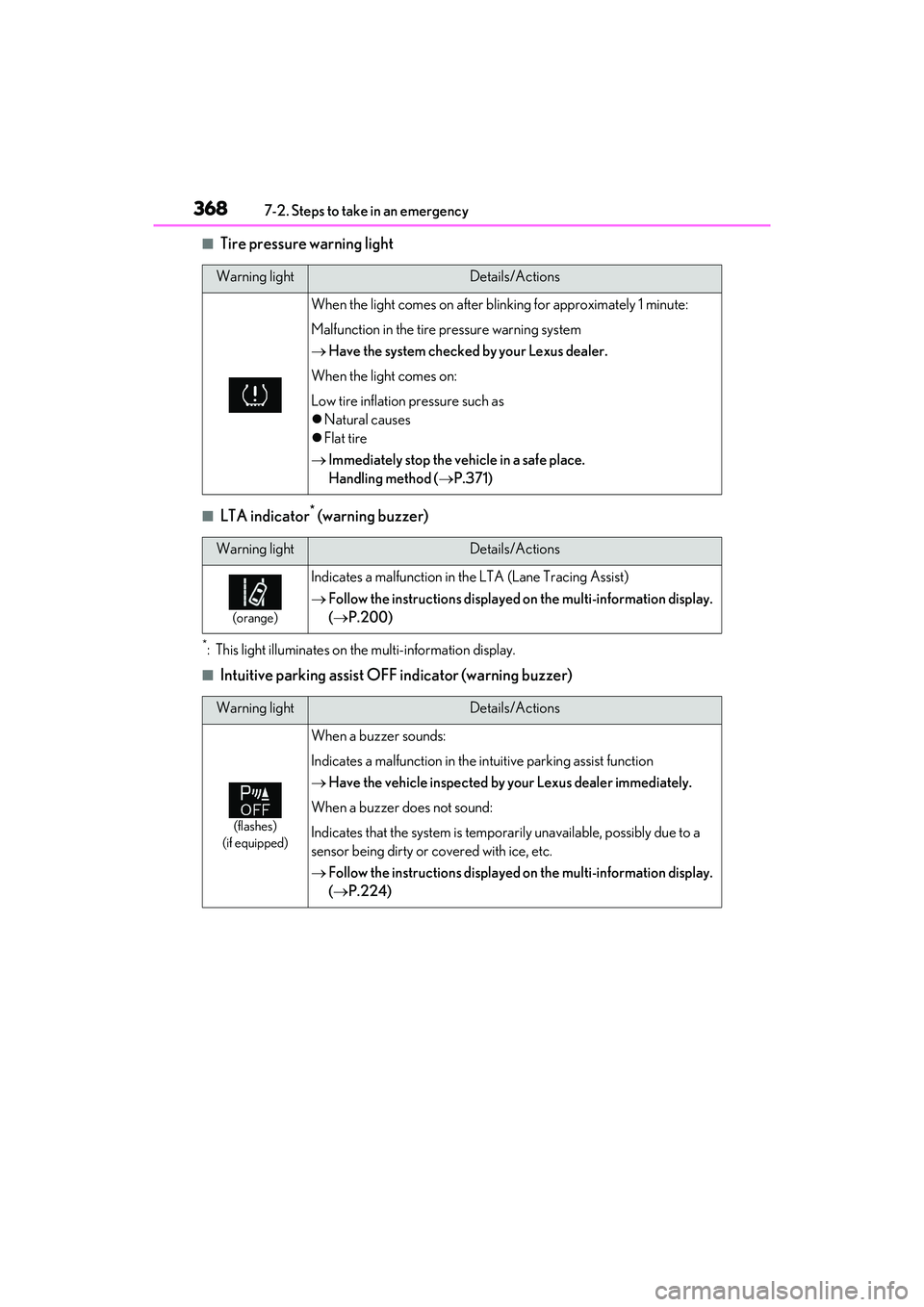

3687-2. Steps to take in an emergency
QTire pressure warning light
QLTA indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QIntuitive parking assist OFF indicator (warning buzzer)
Warning lightDetails/Actions
When the light comes on after blinking for approximately 1 minute:
Malfunction in the tire pressure warning system
Have the system checked by your Lexus dealer.
When the light comes on:
Low tire inflation pressure such as
 Natural causes
 Flat tire
 Immediately stop the vehicle in a safe place.
Handling method ( P.371)
Warning lightDetails/Actions
(orange)
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-information display.
(  P.200)
Warning lightDetails/Actions
(flashes)
(if equipped)
When a buzzer sounds:
Indicates a malfunction in the intuitive parking assist function
 Have the vehicle inspected by your Lexus dealer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due to a
sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-information display.
(  P.224)
