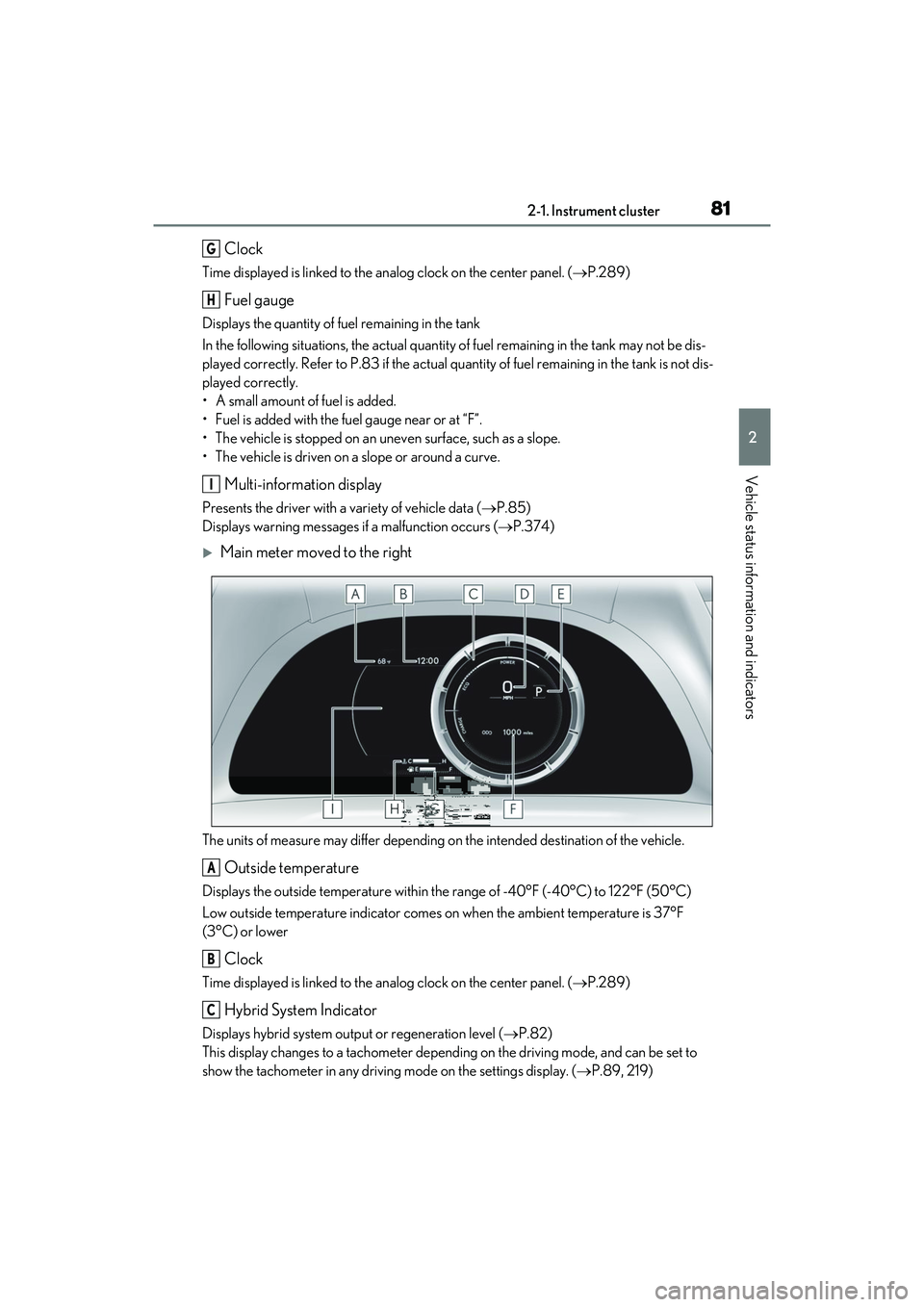

display LEXUS ES300h 2022 Owner's Manual

812-1. Instrument cluster
2
Vehicle status information and indicators
Clock
Time displayed is linked to the analog clock on the center panel. (P.289)
Fuel gauge
Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.83 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Multi-information display
Presents the driver with a variety of vehicle data ( P.85)
Displays warning messages if a malfunction occurs (P.374)
Main meter moved to the right
The units of measure may differ depending on the intended destination of the vehicle.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower
Clock
Time displayed is linked to the analog clock on the center panel. ( P.289)
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.82)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( P.89, 219)
G
H
I
A
B
C

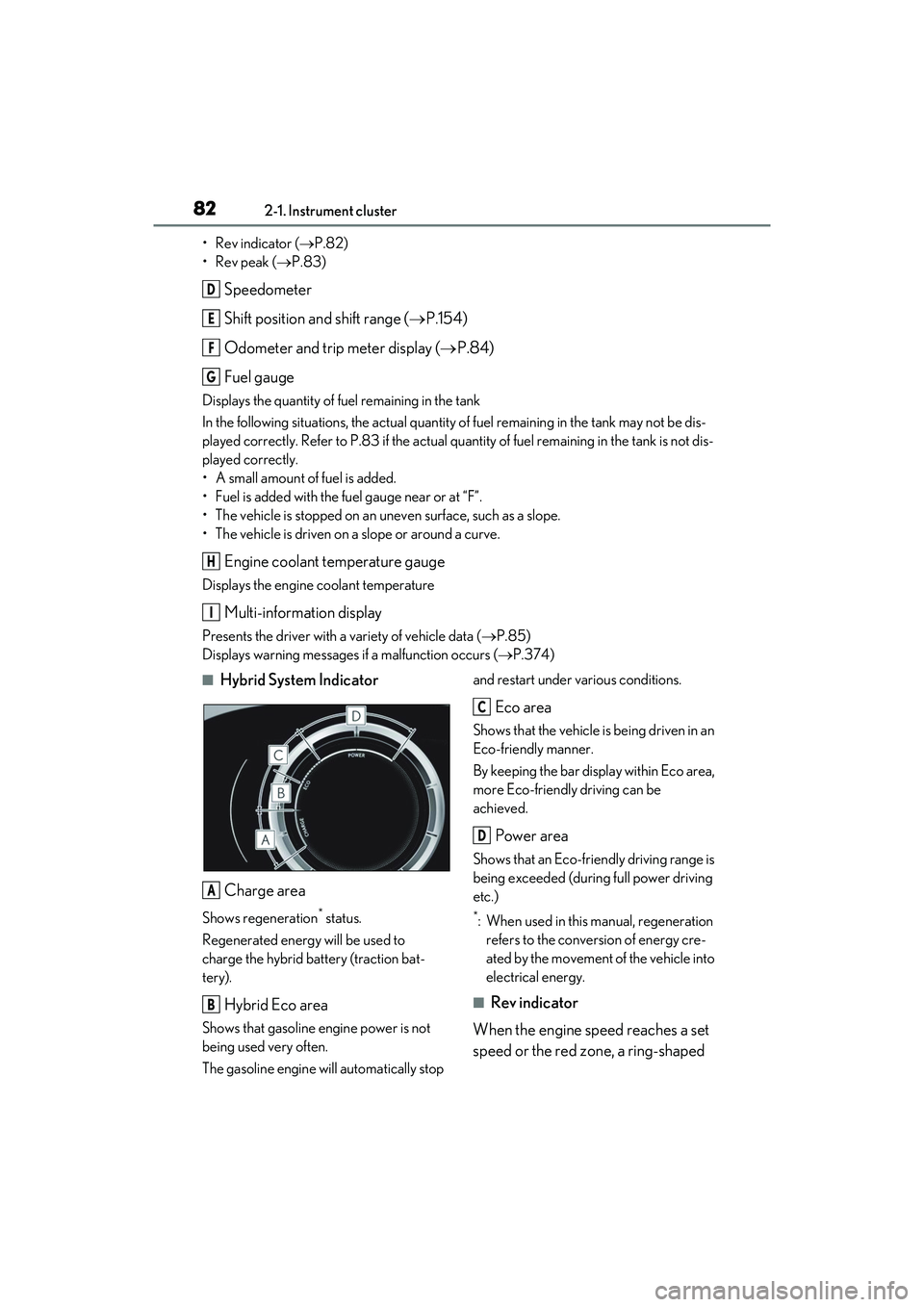

822-1. Instrument cluster
• Rev indicator (P.82)
•Rev peak ( P.83)
Speedometer
Shift position and shift range ( P.154)
Odometer and trip meter display ( P.84)
Fuel gauge
Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.83 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of vehicle data ( P.85)
Displays warning messages if a malfunction occurs (P.374)
QHybrid System Indicator
Charge area
Shows regeneration* status.
Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop and restart under various conditions.
Eco area
Shows that the vehicle is
being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.
Power area
Shows that an Eco-friendly driving range is
being exceeded (durin g full power driving
etc.)
*: When used in this manual, regeneration refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
QRev indicator
When the engine speed reaches a set
speed or the red zone, a ring-shaped
D
E
F
G
H
I
A
B
C
D

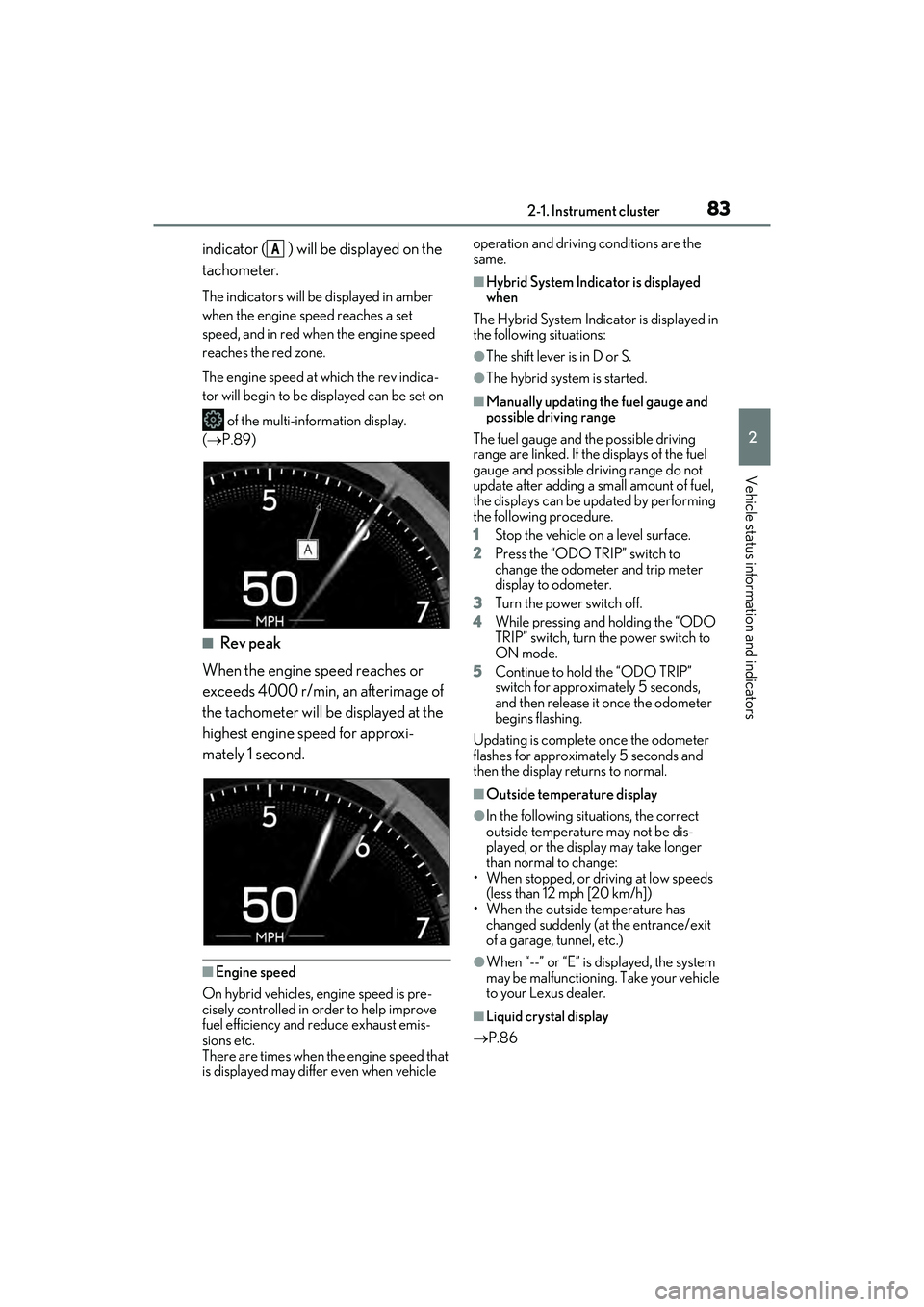

832-1. Instrument cluster
2
Vehicle status information and indicators
indicator ( ) will be displayed on the
tachometer.
The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on of the multi-information display.
(  P.89)
QRev peak
When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
QEngine speed
On hybrid vehicles, engine speed is pre-
cisely controlled in order to help improve
fuel efficiency and reduce exhaust emis-
sions etc.
There are times when the engine speed that
is displayed may differ even when vehicle operation and driving conditions are the
same.
QHybrid System Indicator is displayed
when
The Hybrid System Indicator is displayed in
the following situations:
OThe shift lever is in D or S.
OThe hybrid system is started.
QManually updating the fuel gauge and
possible driving range
The fuel gauge and the possible driving
range are linked. If the displays of the fuel
gauge and possible driving range do not
update after adding a small amount of fuel,
the displays can be updated by performing
the following procedure.
1 Stop the vehicle on a level surface.
2 Press the “ODO TRIP” switch to
change the odometer and trip meter
display to odometer.
3 Turn the power switch off.
4 While pressing and holding the “ODO
TRIP” switch, turn the power switch to
ON mode.
5 Continue to hold the “ODO TRIP”
switch for approximately 5 seconds,
and then release it once the odometer
begins flashing.
Updating is complete once the odometer
flashes for approximately 5 seconds and
then the display returns to normal.
QOutside temperature display
OIn the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
OWhen “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.
QLiquid crystal display
 P.86
A

842-1. Instrument cluster
QCustomization
The gauges and meters can be customized
on of the multi-information display.
(  P.89)
QDisplay items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
Distance until next engine oil
change
Displays the distance the vehicle can be
driven until an oil change is necessary.
QChanging the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
QPop-up display
Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.
The brightness of the instrument panel
lights can be adjusted.
WARNING
QThe information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear num-
ber appearing on the display. This lag
could cause the driver to downshift
again, causing rapid and excessive
engine braking and possibly an accident
resulting in death or injury.
NOTICE
QTo prevent damage to the engine and
its components
ODo not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
OThe engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.396)
Odometer and trip meter dis-
playChanging the instrument panel
light brightness

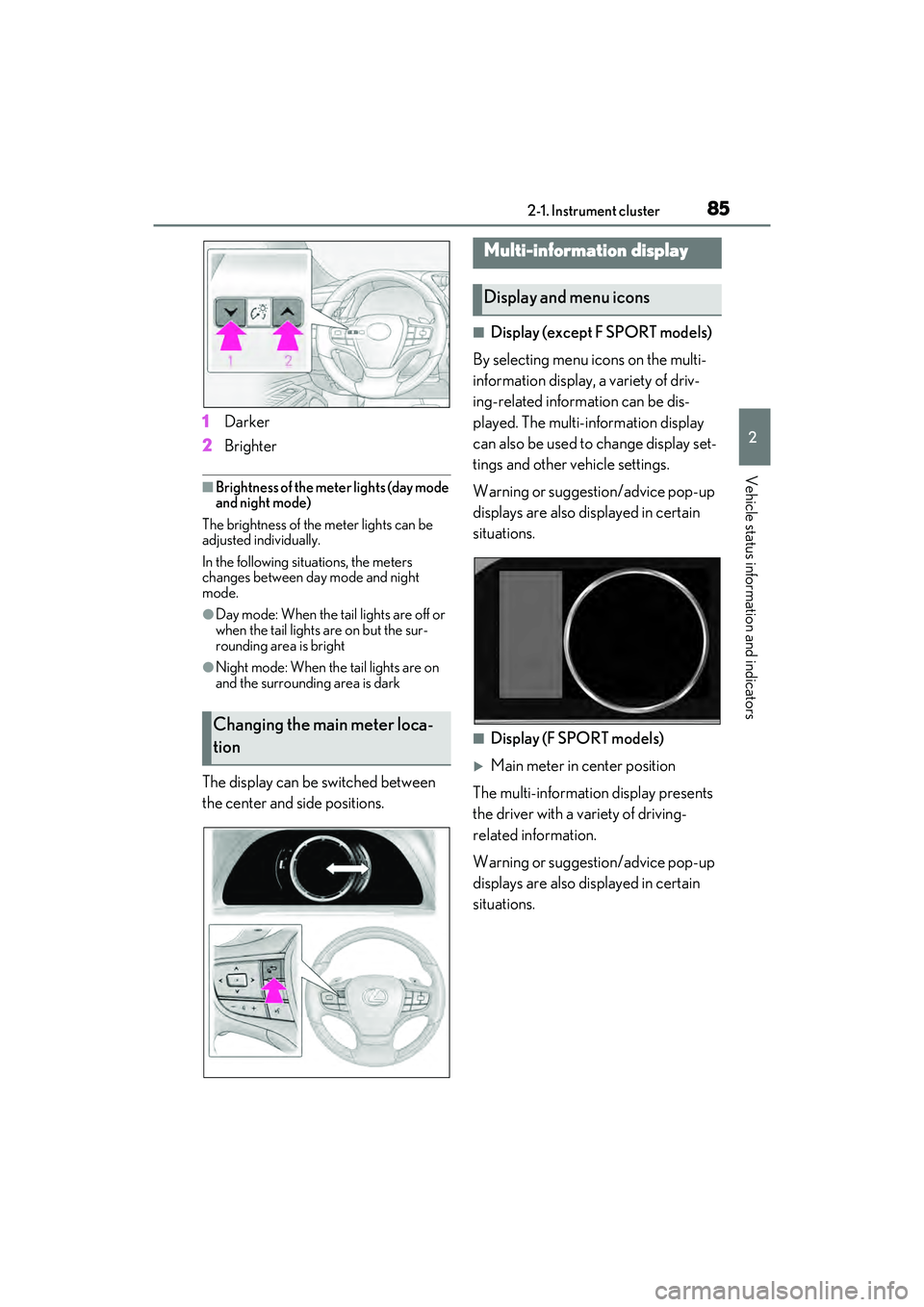

852-1. Instrument cluster
2
Vehicle status information and indicators
1Darker
2 Brighter
QBrightness of the meter lights (day mode
and night mode)
The brightness of the meter lights can be
adjusted individually.
In the following situations, the meters
changes between day mode and night
mode.
ODay mode: When the tail lights are off or
when the tail lights are on but the sur-
rounding area is bright
ONight mode: When the tail lights are on
and the surrounding area is dark
The display can be switched between
the center and side positions.
QDisplay (except F SPORT models)
By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggesti on/advice pop-up
displays are also displayed in certain
situations.
QDisplay (F SPORT models)
Main meter in center position
The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggesti on/advice pop-up
displays are also displayed in certain
situations.
Changing the main meter loca-
tion
Multi-information display
Display and menu icons

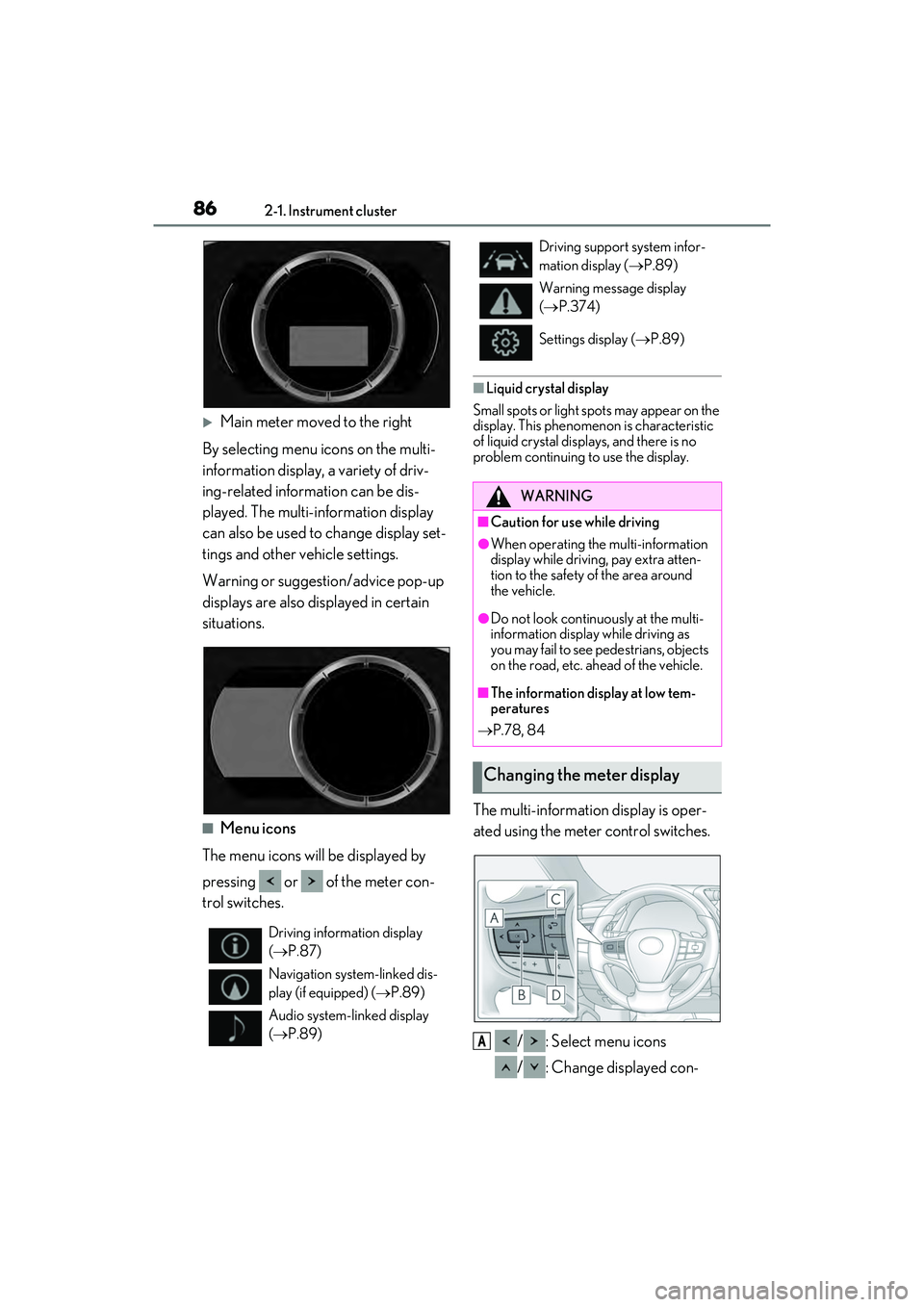

862-1. Instrument cluster
Main meter moved to the right
By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
QMenu icons
The menu icons will be displayed by
pressing or of the meter con-
trol switches.
QLiquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
The multi-information display is oper-
ated using the meter control switches.
/ : Select menu icons
/ : Change displayed con-
Driving information display
( P.87)
Navigation system-linked dis-
play (if equipped) ( P.89)
Audio system-linked display
(  P.89)
Driving support system infor-
mation display ( P.89)
Warning message display
(  P.374)
Settings display ( P.89)
WARNING
QCaution for use while driving
OWhen operating the multi-information
display while driving, pay extra atten-
tion to the safety of the area around
the vehicle.
ODo not look continuously at the multi-
information display while driving as
you may fail to see pedestrians, objects
on the road, etc. ahead of the vehicle.
QThe information display at low tem-
peratures
 P.78, 84
Changing the meter display
A

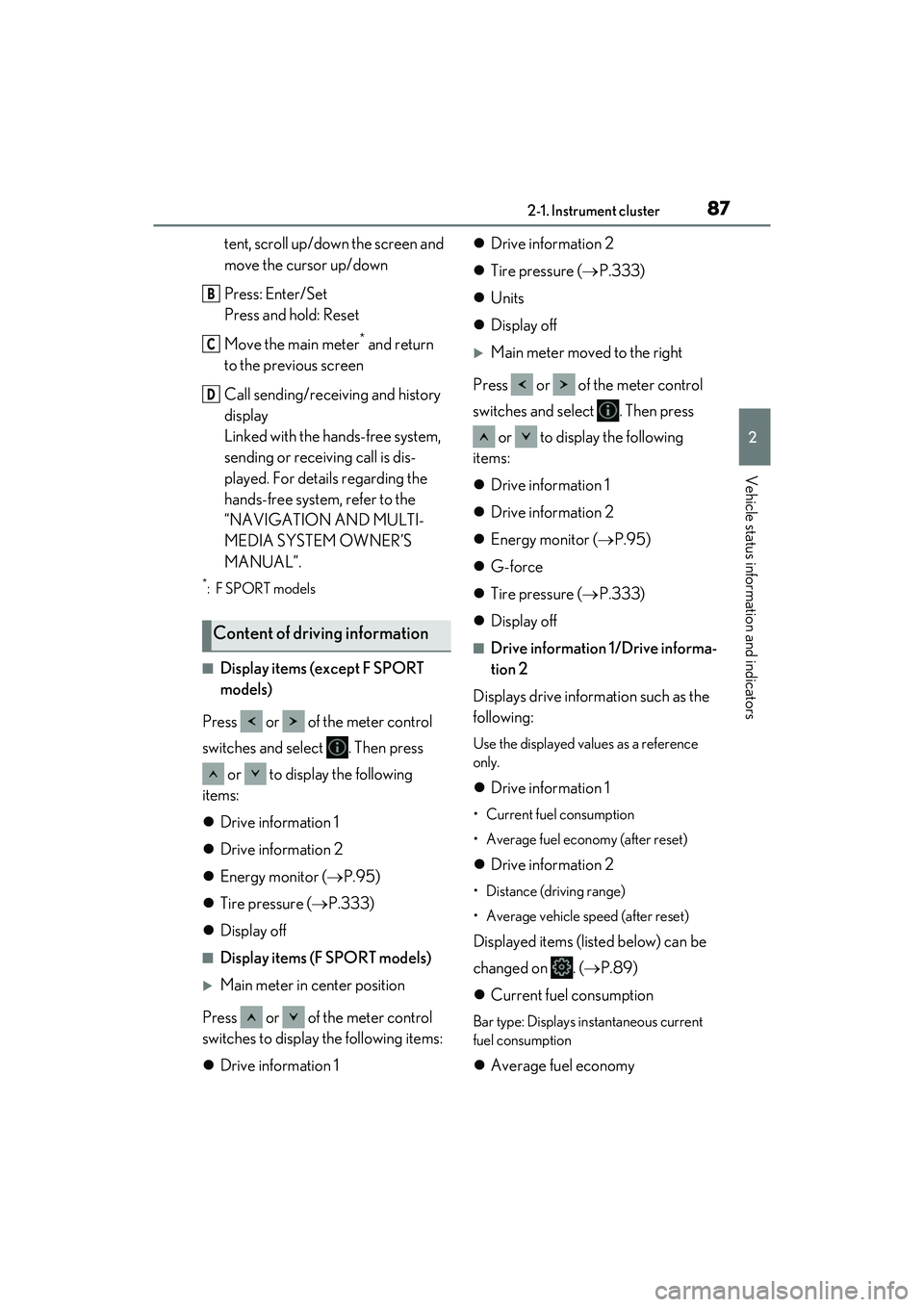

872-1. Instrument cluster
2
Vehicle status information and indicators
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Move the main meter
* and return
to the previous screen
Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S
MANUAL”.
*:F SPORT models
QDisplay items (except F SPORT
models)
Press or of the meter control
switches and select . Then press or to display the following
items:
 Drive information 1
 Drive information 2
 Energy monitor ( P.95)
 Tire pressure ( P.333)
 Display off
QDisplay items (F SPORT models)
Main meter in center position
Press or of the meter control
switches to display the following items:
 Drive information 1 
Drive information 2
 Tire pressure ( P.333)
 Units
 Display off
Main meter moved to the right
Press or of the meter control
switches and select . Then press or to display the following
items:
 Drive information 1
 Drive information 2
 Energy monitor ( P.95)
 G-force
 Tire pressure ( P.333)
 Display off
QDrive information 1/Drive informa-
tion 2
Displays drive information such as the
following:
Use the displayed values as a reference
only.
 Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Displayed items (listed below) can be
changed on . ( P.89)
 Current fuel consumption
Bar type: Displays instantaneous current
fuel consumption
Average fuel economy
Content of driving information
B
C
D

882-1. Instrument cluster

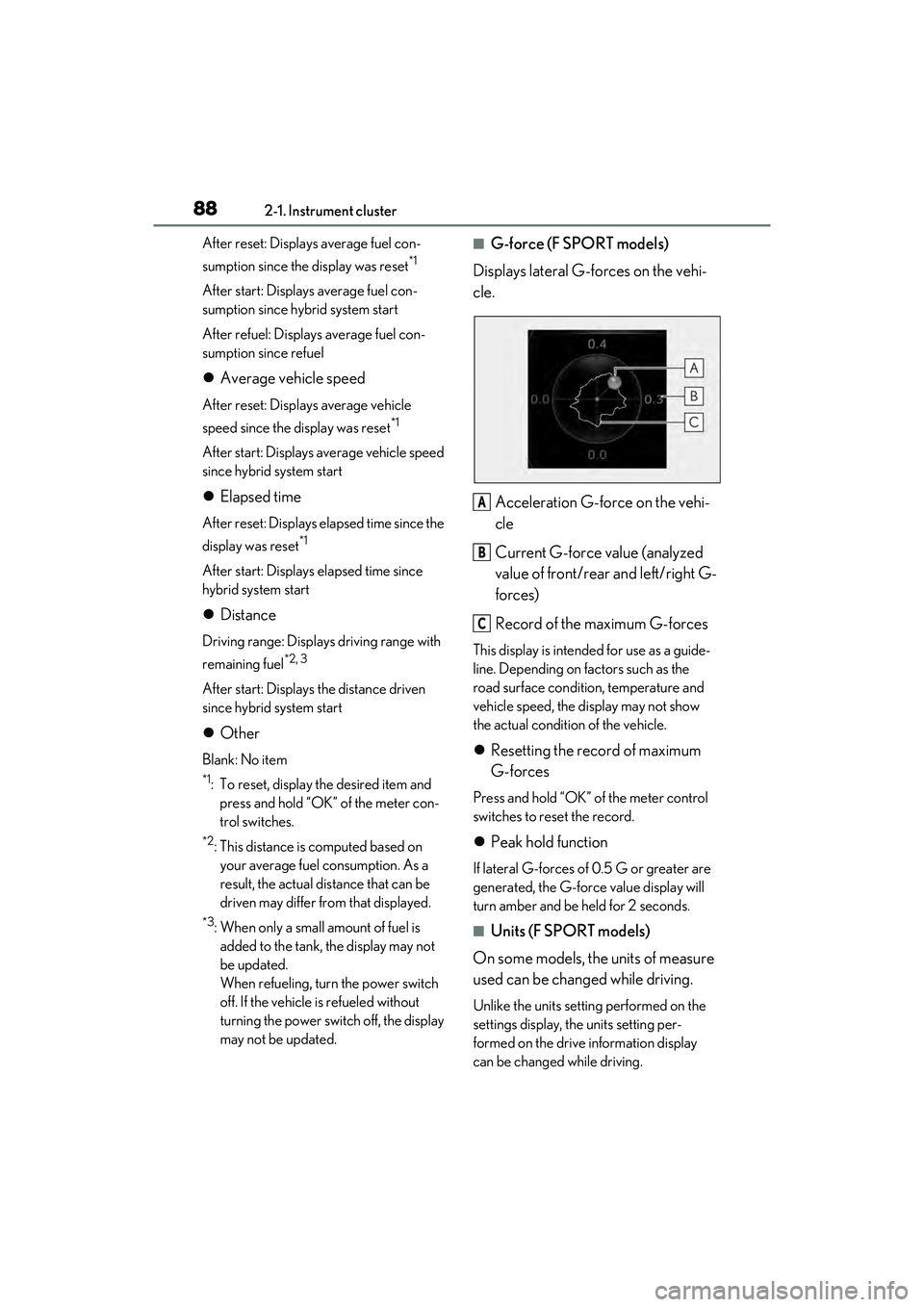

After reset: Displays average fuel con-
sumption since the display was reset
*1
After start: Displays average fuel con-
sumption since hybrid system start
After refuel: Displays average fuel con-
sumption since refuel
Average vehicle speed
After reset: Displays average vehicle
speed since the display was reset
*1
After start: Displays average vehicle speed
since hybrid system start
Elapsed time
After reset: Displays elapsed time since the
display was reset
*1
After start: Displays elapsed time since
hybrid system start
Distance
Driving range: Displays driving range with
remaining fuel
*2, 3
After start: Displays the distance driven
since hybrid system start
 Other
Blank: No item
*1: To reset, display the desired item and
press and hold “OK” of the meter con-
trol switches.
*2: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
*3: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.
QG-force (F SPORT models)
Displays lateral G-forces on the vehi-
cle.
Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right G-
forces)
Record of the maximum G-forces
This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.
Resetting the record of maximum
G-forces
Press and hold “OK” of the meter control
switches to reset the record.
Peak hold function
If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.
QUnits (F SPORT models)
On some models, the units of measure
used can be changed while driving.
Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.
A
B
C

892-1. Instrument cluster
2
Vehicle status information and indicators

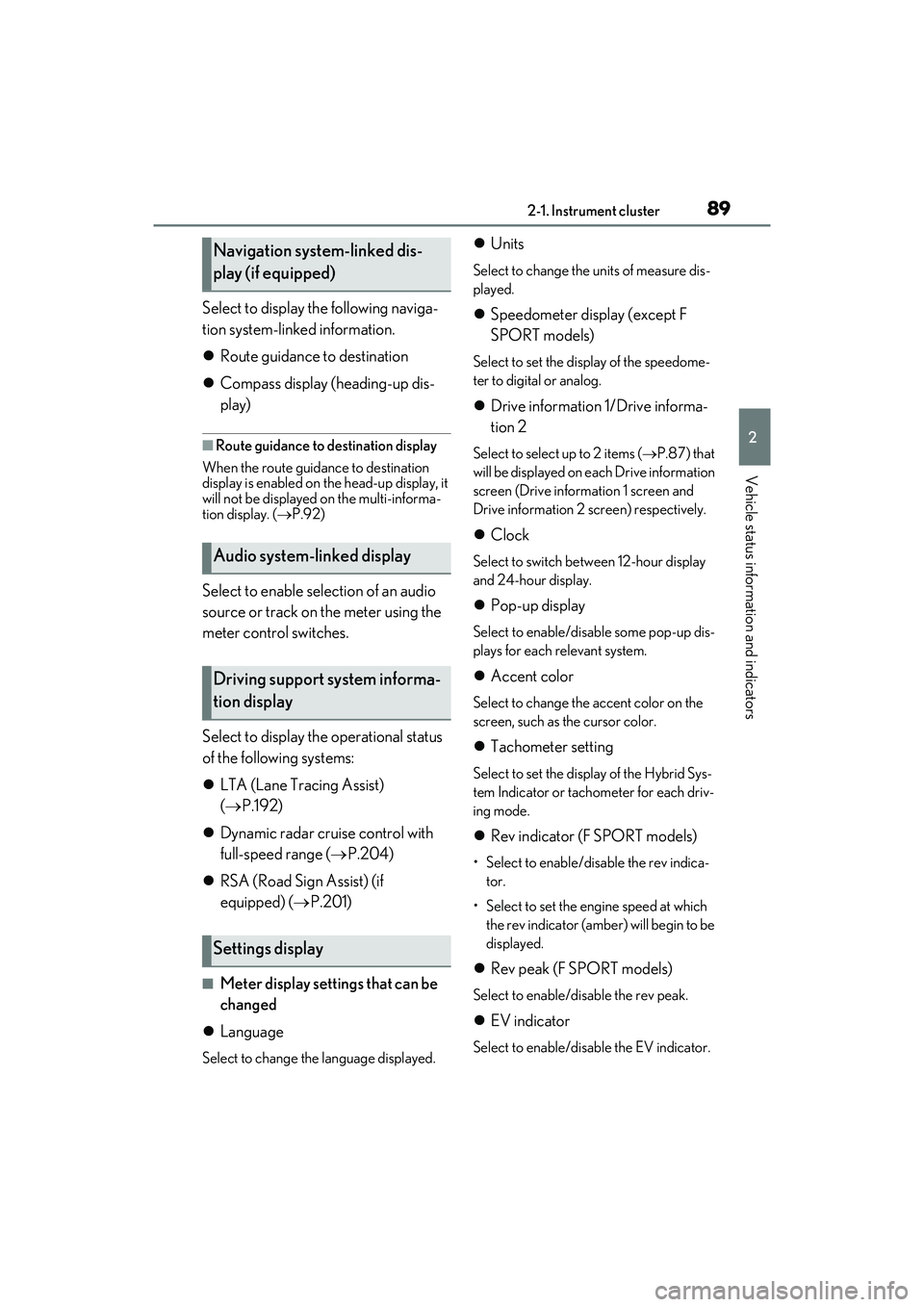

Select to display the following naviga-
tion system-linked information.
Route guidance to destination
 Compass display (heading-up dis-
play)
QRoute guidance to destination display
When the route guidance to destination
display is enabled on the head-up display, it
will not be displayed on the multi-informa-
tion display. ( P.92)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist)
( P.192)
 Dynamic radar cruise control with
full-speed range ( P.204)
 RSA (Road Sign Assist) (if
equipped) ( P.201)
QMeter display settings that can be
changed
 Language
Select to change the language displayed.
Units
Select to change the units of measure dis-
played.
Speedometer display (except F
SPORT models)
Select to set the display of the speedome-
ter to digital or analog.
Drive information 1/Drive informa-
tion 2
Select to select up to 2 items ( P.87) that
will be displayed on e ach Drive information
screen (Drive inform ation 1 screen and
Drive information 2 screen) respectively.
 Clock
Select to switch between 12-hour display
and 24-hour display.
Pop-up display
Select to enable/disable some pop-up dis-
plays for each relevant system.
Accent color
Select to change the accent color on the
screen, such as the cursor color.
Tachometer setting
Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.
Rev indicator (F SPORT models)
• Select to enable/disable the rev indica-
tor.
• Select to set the engine speed at which the rev indicator (amber) will begin to be
displayed.
 Rev peak (F SPORT models)
Select to enable/disable the rev peak.
EV indicator
Select to enable/disable the EV indicator.
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving support system informa-
tion display
Settings display

902-1. Instrument cluster

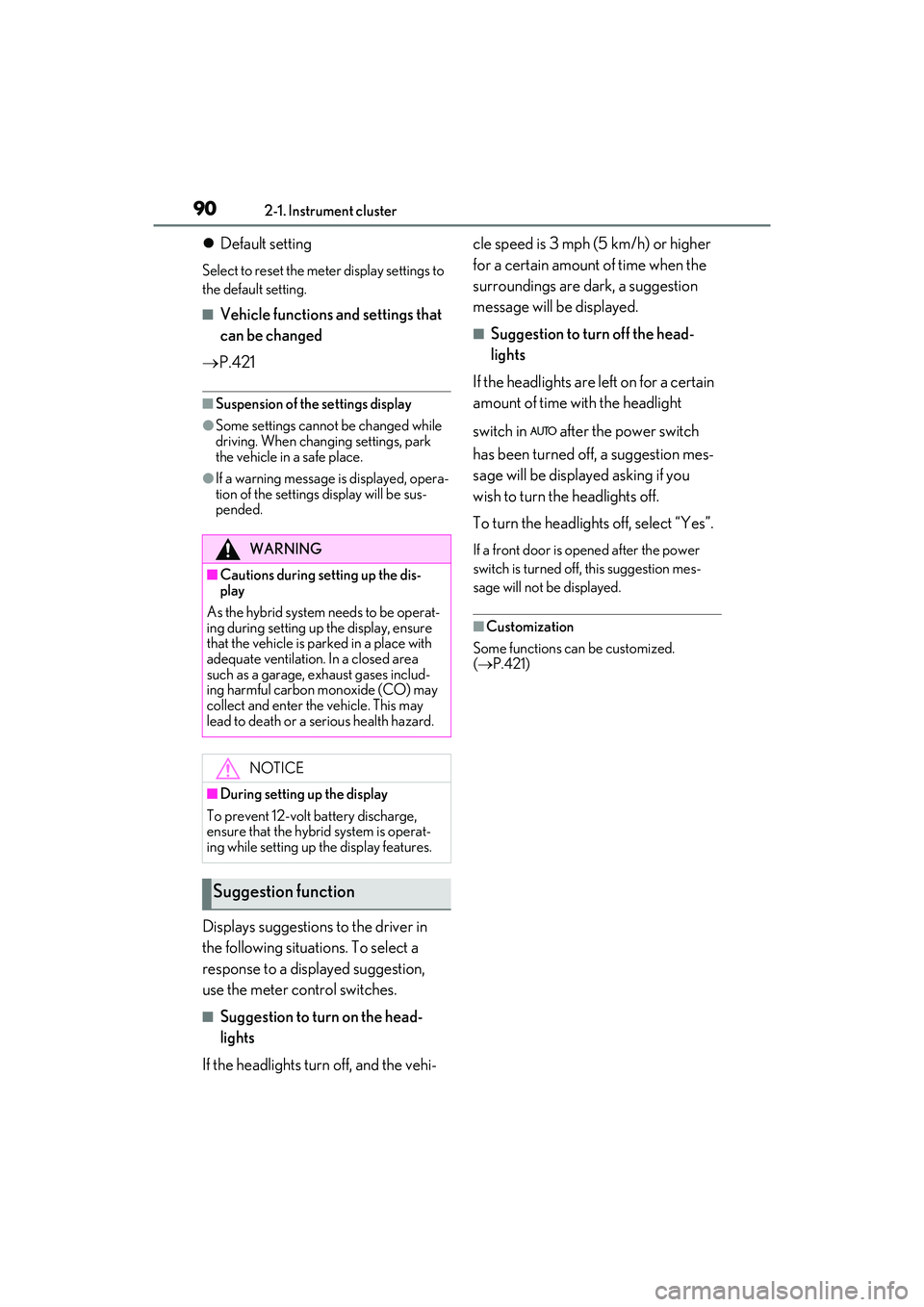

Default setting
Select to reset the meter display settings to
the default setting.
QVehicle functions and settings that
can be changed
 P.421
QSuspension of the settings display
OSome settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
OIf a warning message is displayed, opera-
tion of the settings display will be sus-
pended.
Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.
QSuggestion to turn on the head-
lights
If the headlights turn off, and the vehi- cle speed is 3 mph (5 km/h) or higher
for a certain amount of time when the
surroundings are dark, a suggestion
message will be displayed.
QSuggestion to turn off the head-
lights
If the headlights are left on for a certain
amount of time with the headlight
switch in after the power switch
has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.
If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.
QCustomization
Some functions can be customized.
(  P.421)
WARNING
QCautions during setting up the dis-
play
As the hybrid system needs to be operat-
ing during setting up the display, ensure
that the vehicle is parked in a place with
adequate ventilation. In a closed area
such as a garage, exhaust gases includ-
ing harmful carbon monoxide (CO) may
collect and enter the vehicle. This may
lead to death or a serious health hazard.
NOTICE
QDuring setting up the display
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while setting up the display features.
Suggestion function
