LEXUS ES300h 2022 Owners Manual

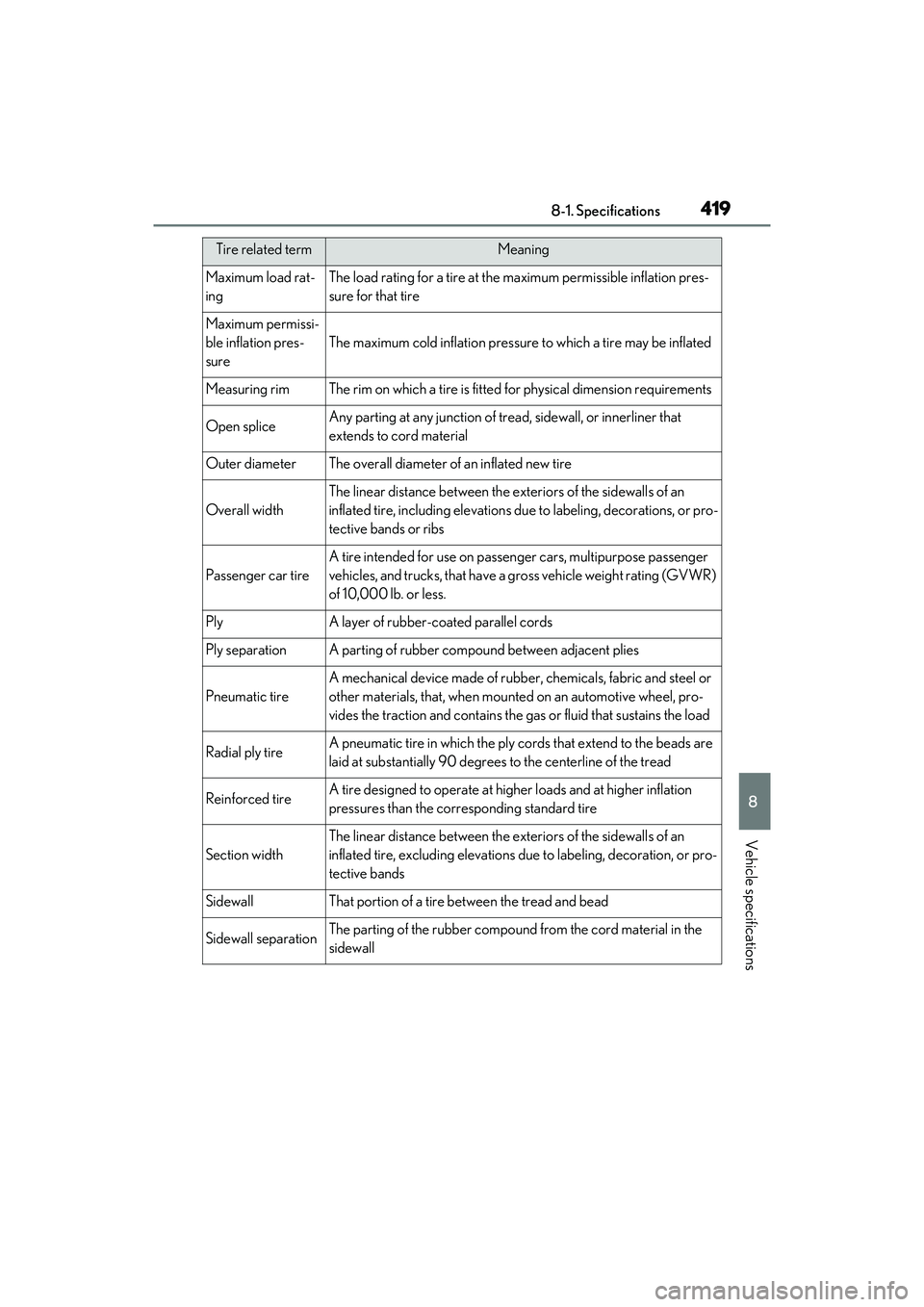

4198-1. Specifications
8
Vehicle specifications
Maximum load rat-
ingThe load rating for a tire at the maximum permissible inflation pres-
sure for that tire
Maximum permissi-
ble inflation pres-
sure
The maximum cold inflation pressure to which a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension requirements
Open spliceAny parting at any junction of trea d, sidewall, or innerliner that
extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the sidewalls of an
inflated tire, including elevations due to labeling, decorations, or pro-
tective bands or ribs
Passenger car tire
A tire intended for use on passeng er cars, multipurpose passenger
vehicles, and trucks, that have a gross vehicle weight rating (GVWR)
of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fabric and steel or
other materials, that, when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid that sustains the load
Radial ply tireA pneumatic tire in which the ply cords that extend to the beads are
laid at substantially 90 degrees to the centerline of the tread
Reinforced tireA tire designed to operate at higher loads and at higher inflation
pressures than the corresponding standard tire
Section width
The linear distance between the exteriors of the sidewalls of an
inflated tire, excluding elevations due to labeling, decoration, or pro-
tective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord material in the
sidewall
Tire related termMeaning

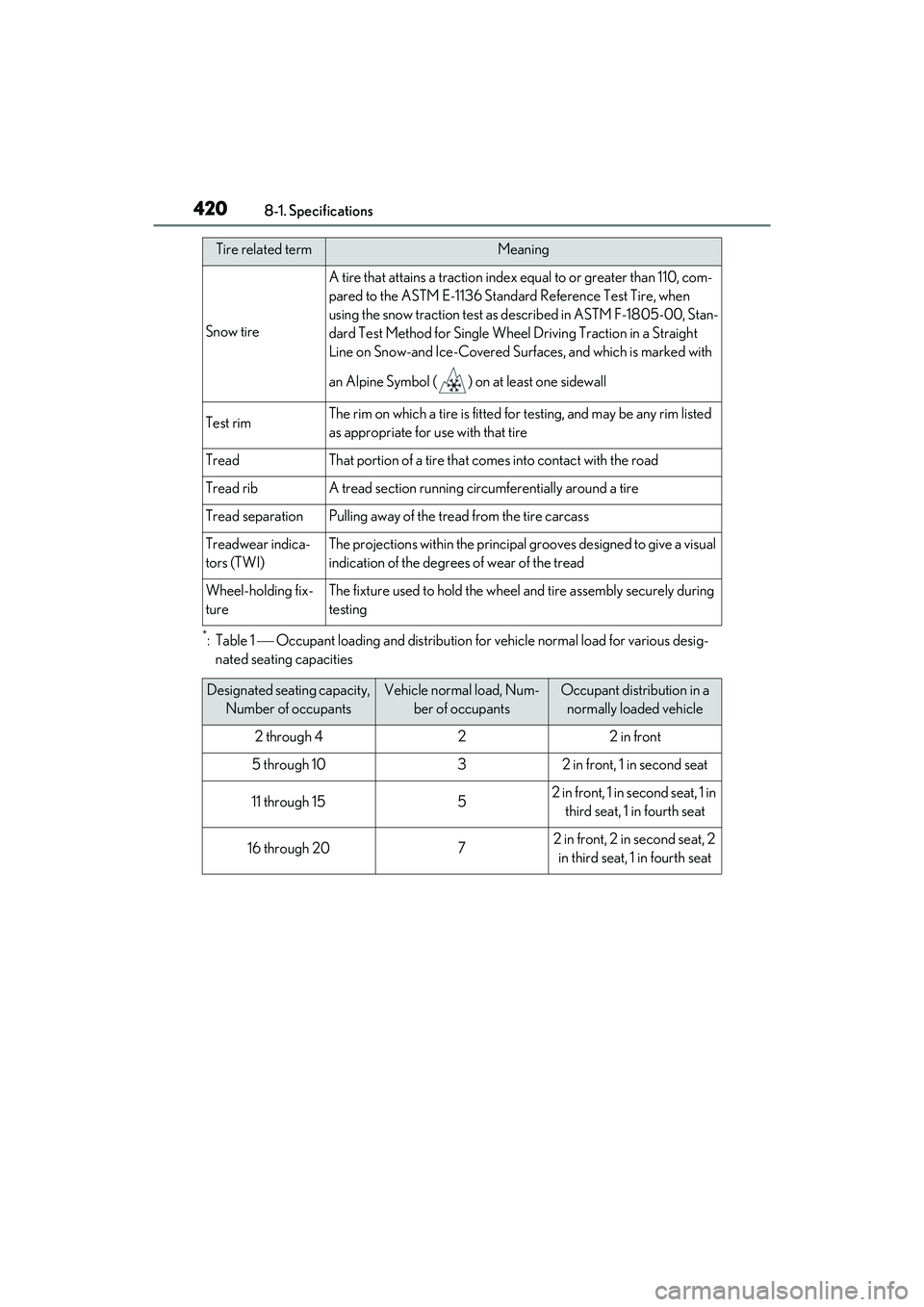

4208-1. Specifications
*:Table 1  Occupant loading and distribution for vehicle normal load for various desig-nated seating capacities
Snow tire
A tire that attains a traction index equal to or greater than 110, com-
pared to the ASTM E-1136 Standard Reference Test Tire, when
using the snow traction test as described in ASTM F-1805-00, Stan-
dard Test Method for Single Whee l Driving Traction in a Straight
Line on Snow-and Ice-Covered Surf aces, and which is marked with
an Alpine Symbol ( ) on at least one sidewall
Test rimThe rim on which a tire is fitted for testing, and may be any rim listed
as appropriate for use with that tire
TreadThat portion of a tire that comes into contact with the road
Tread ribA tread section running circumferentially around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indica-
tors (TWI)The projections within the principal grooves designed to give a visual
indication of the degree s of wear of the tread
Wheel-holding fix-
tureThe fixture used to hold the wheel and tire assembly securely during
testing
Designated seating capacity,
Number of occupantsVehicle normal load, Num- ber of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 1552 in front, 1 in second seat, 1 in
third seat, 1 in fourth seat
16 through 2072 in front, 2 in second seat, 2
in third seat, 1 in fourth seat
Tire related termMeaning

4218-2. Customization
8
Vehicle specifications
8-2.Customization
QChanging by using the meter con-
trol switches
1 Press or to select .
2 Operate the meter control
switches to select the desired item
to be customized.
3 According to the display, select the
desired setting.
To go back to the previous screen or exit
the customize mode, press .
QChanging by using the Remote
Touch ( P.264)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup” on the menu screen
and select “Vehicle”. 3
Select “Vehicle Customization” or
“Drive Mode Customization”.
Various setting can be changed. Refer to
the list of settings that can be changed for
details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN-
UAL”.
QDuring customization
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift lever to P.
Also, to prevent 12-volt battery discharge,
leave the hybrid syst em operating while
customizing the features.
Some function settings are changed simult aneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch or at
your Lexus dealer.
Customizing vehicle features
WARNING
QDuring customization
As the hybrid system needs to be operat-
ing during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
QDuring customization
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while customizing features.
Customizable features
A
B
C

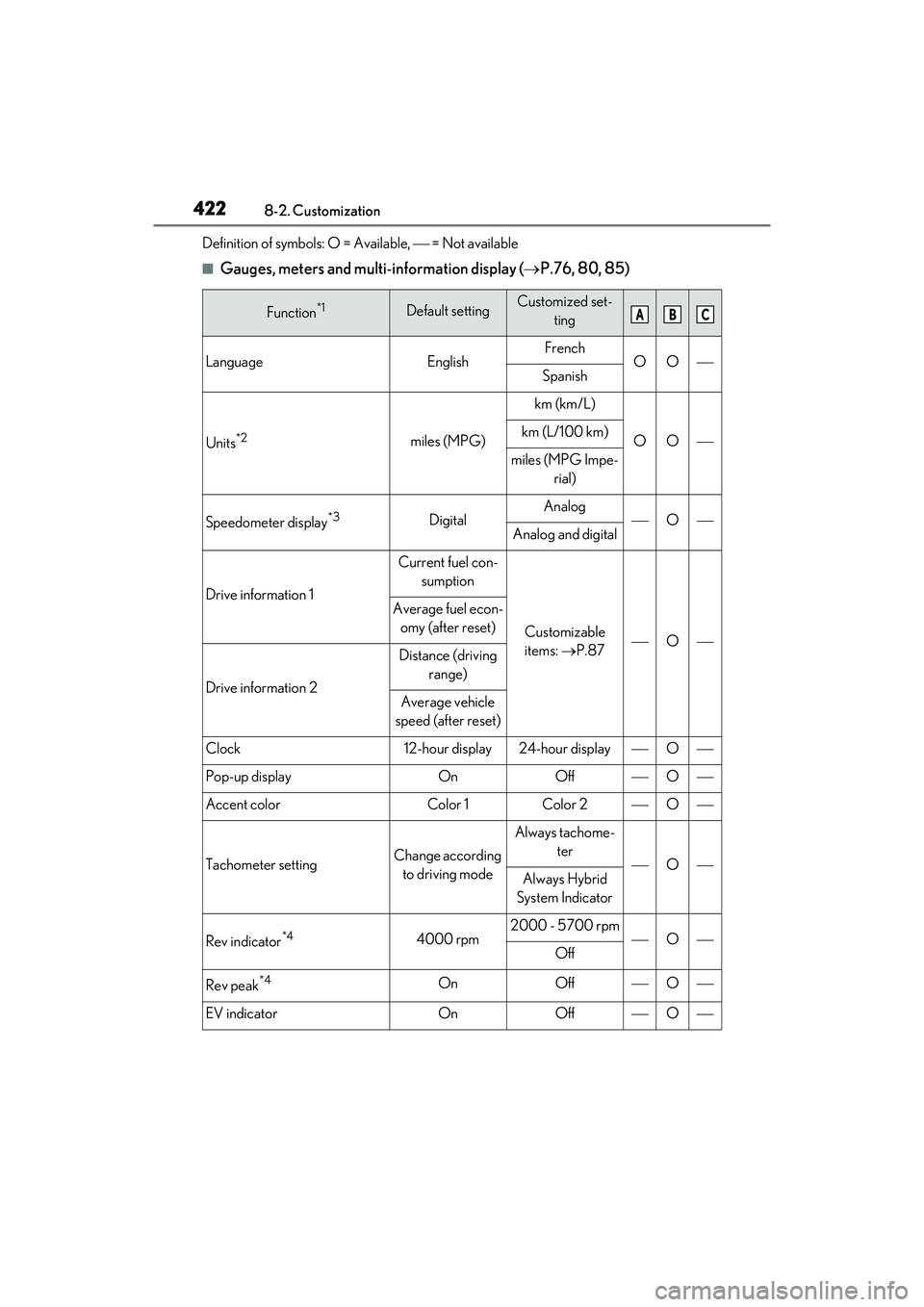

4228-2. Customization
Definition of symbols: O = Available,  = Not available
QGauges, meters and multi-information display ( P.76, 80, 85)
Function*1Default settingCustomized set-
ting
LanguageEnglishFrenchOOSpanish
Units*2miles (MPG)
km (km/L)
OOkm (L/100 km)
miles (MPG Impe- rial)
Speedometer display*3DigitalAnalogOAnalog and digital
Drive information 1
Current fuel con-sumption
Customizable items:  P.87O
Average fuel econ-
omy (after reset)
Drive information 2
Distance (driving range)
Average vehicle
speed (after reset)
Clock12-hour display24-hour displayO
Pop-up displayOnOffO
Accent colorColor 1Color 2O
Tachometer settingChange according to driving mode
Always tachome- ter
OAlways Hybrid
System Indicator
Rev indicator*44000 rpm2000 - 5700 rpmOOff
Rev peak*4OnOffO
EV indicatorOnOffO
ABC

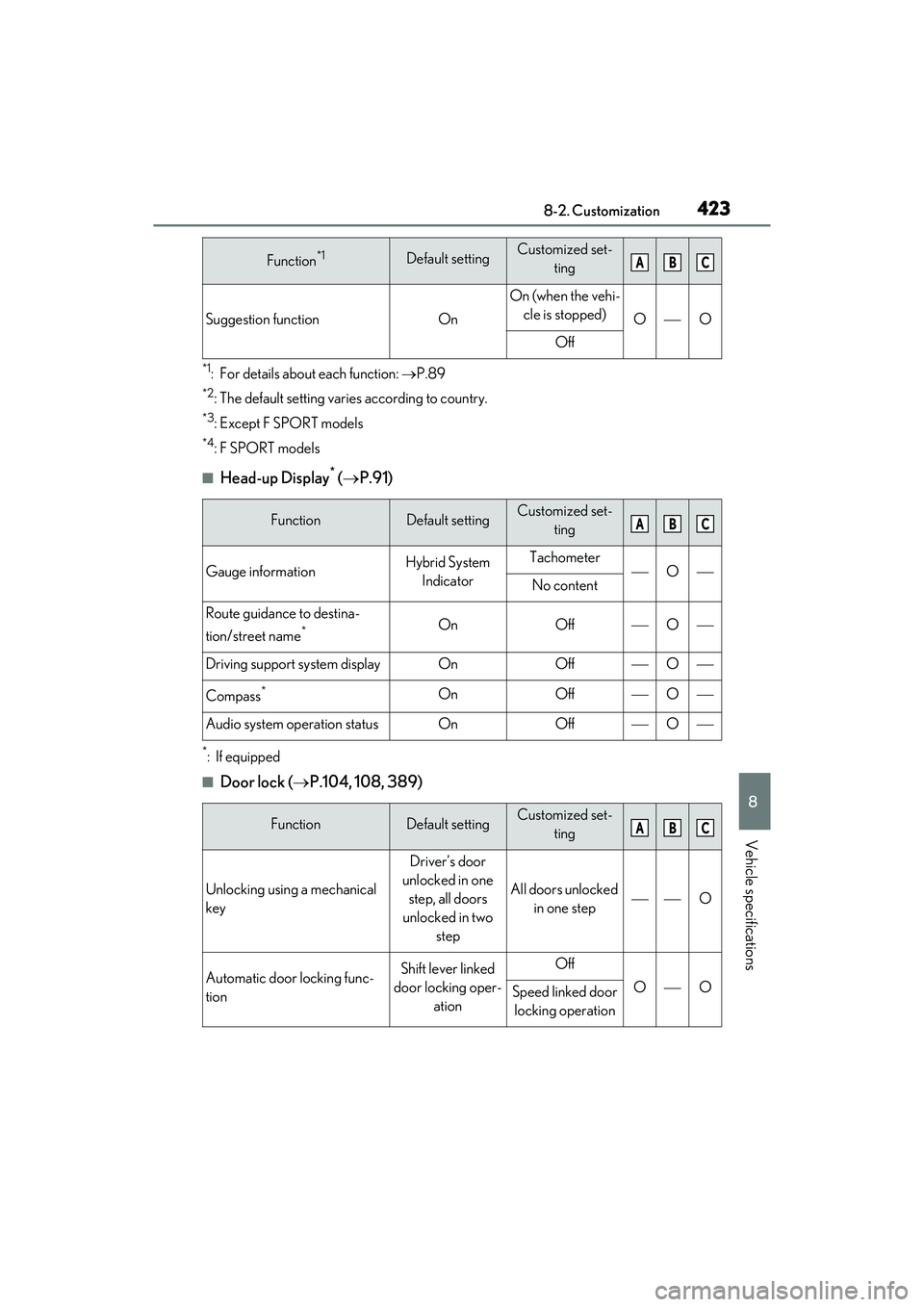

4238-2. Customization
8
Vehicle specifications
*1: For details about each function: P.89
*2: The default setting varies according to country.
*3:Except F SPORT models
*4:F SPORT models
QHead-up Display* ( P.91)
*: If equipped
QDoor lock ( P.104, 108, 389)
Suggestion functionOn
On (when the vehi-
cle is stopped)
OO
Off
FunctionDefault settingCustomized set- ting
Gauge informationHybrid System IndicatorTachometerONo content
Route guidance to destina-
tion/street name
*OnOffO
Driving support system displayOnOffO
Compass*OnOffO
Audio system operation statusOnOffO
FunctionDefault settingCustomized set- ting
Unlocking using a mechanical
key
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors unlocked in one stepO
Automatic door locking func-
tionShift lever linked
door locking oper- ationOff
OOSpeed linked door locking operation
Function*1Default settingCustomized set- tingABC
ABC
ABC

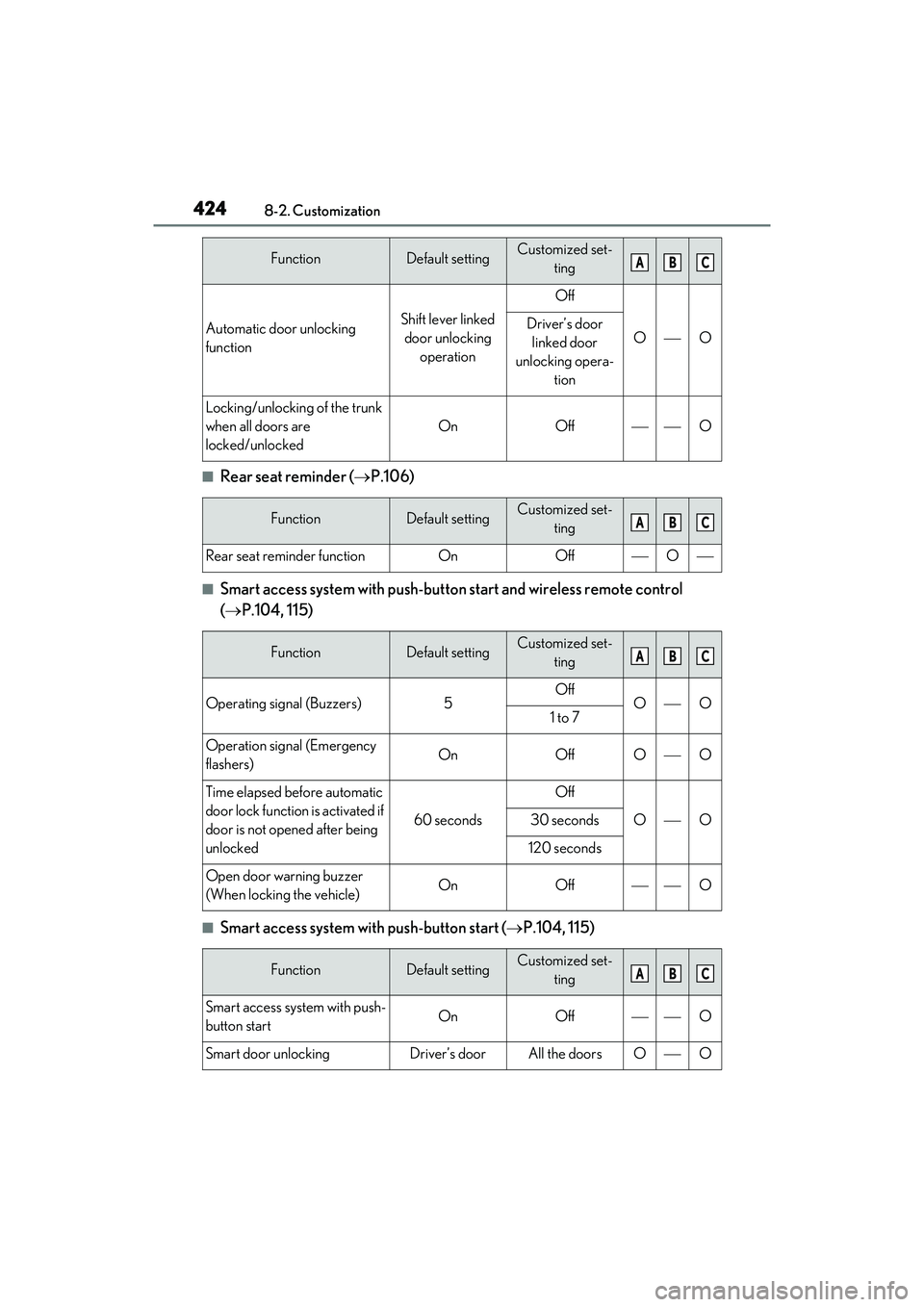

4248-2. Customization
QRear seat reminder (P.106)
QSmart access system with push-button start and wireless remote control
( P.104, 115)
QSmart access system with push-button start ( P.104, 115)
Automatic door unlocking
functionShift lever linked
door unlocking operation
Off
OODriver’s door linked door
unlocking opera- tion
Locking/unlocking of the trunk
when all doors are
locked/unlocked
OnOffO
FunctionDefault settingCustomized set-ting
Rear seat reminder functionOnOffO
FunctionDefault settingCustomized set-ting
Operating signal (Buzzers)5OffOO1 to 7
Operation signal (Emergency
flashers)OnOffOO
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
60 seconds
Off
OO30 seconds
120 seconds
Open door warning buzzer
(When locking the vehicle)OnOffO
FunctionDefault settingCustomized set-ting
Smart access system with push-
button startOnOffO
Smart door unlockingDriver’s doorAll the doorsOO
FunctionDefault settingCustomized set-tingABC
ABC
ABC
ABC

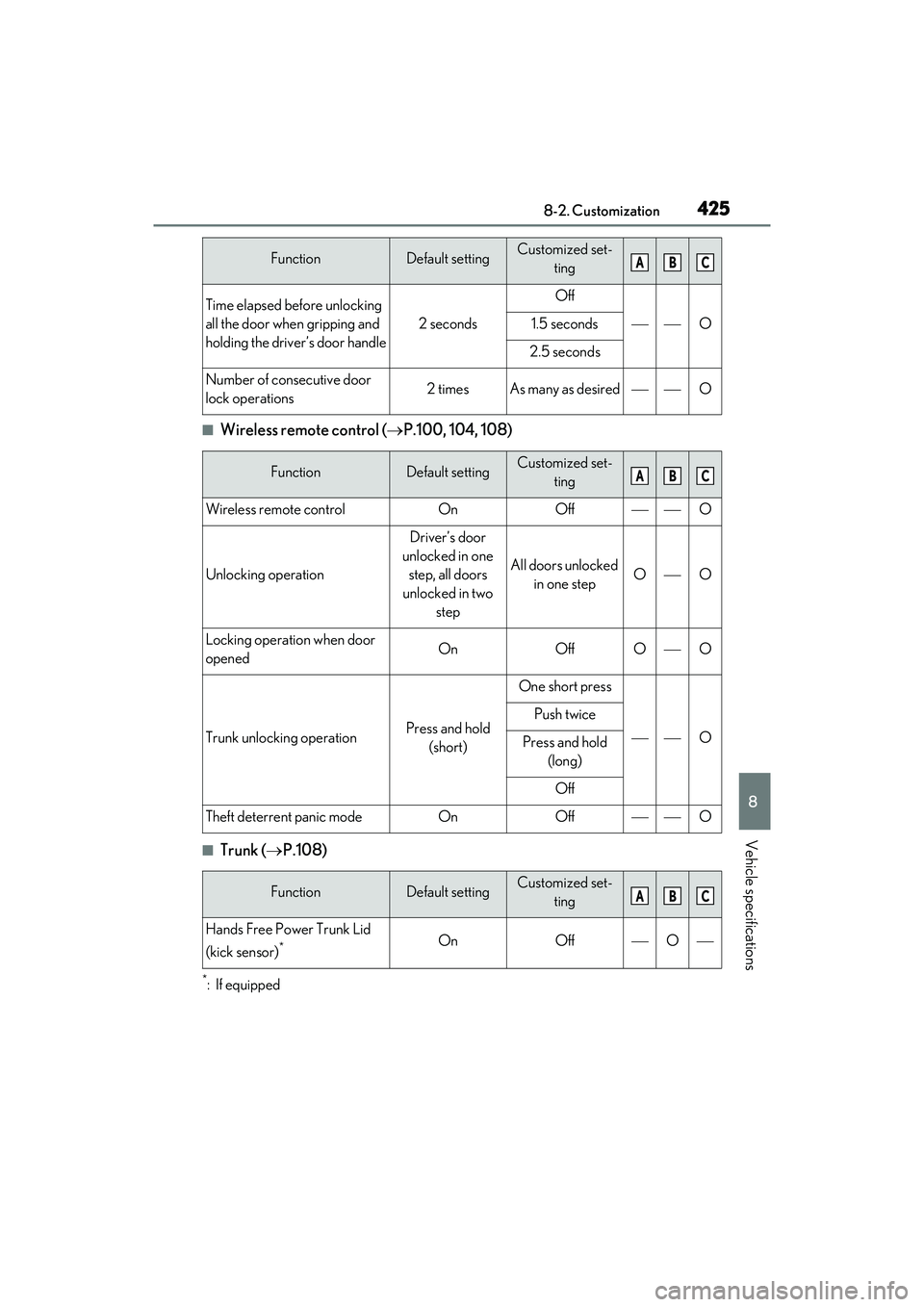

4258-2. Customization
8
Vehicle specifications
QWireless remote control (P.100, 104, 108)
QTrunk ( P.108)
*: If equipped
Time elapsed before unlocking
all the door when gripping and
holding the driver’s door handle
2 seconds
Off
O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as desiredO
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOffO
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors unlocked in one stepOO
Locking operation when door
openedOnOffOO
Trunk unlocking operationPress and hold (short)
One short press
O
Push twice
Press and hold (long)
Off
Theft deterrent panic modeOnOffO
FunctionDefault settingCustomized set- ting
Hands Free Power Trunk Lid
(kick sensor)
*OnOffO
FunctionDefault settingCustomized set-tingABC
ABC
ABC

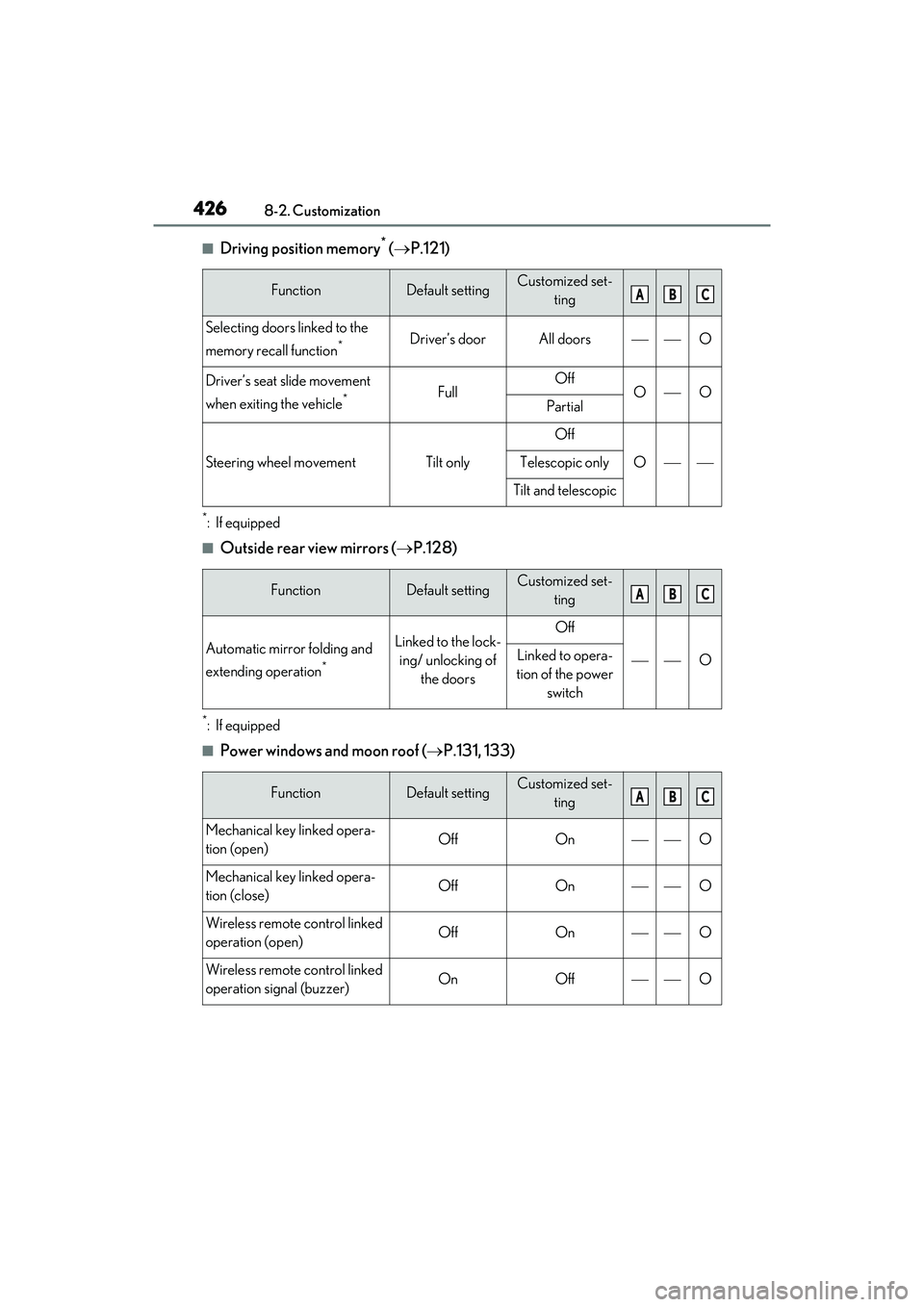

4268-2. Customization
QDriving position memory* ( P.121)
*: If equipped
QOutside rear view mirrors ( P.128)
*: If equipped
QPower windows and moon roof ( P.131, 133)
FunctionDefault settingCustomized set-
ting
Selecting doors linked to the
memory recall function
*Driver’s doorAll doorsO
Driver’s seat slide movement
when exiting the vehicle
*FullOffOOPartial
Steering wheel movementTilt only
Off
OTelescopic only
Tilt and telescopic
FunctionDefault settingCustomized set-ting
Automatic mirror folding and
extending operation
*
Linked to the lock-ing/ unlocking of the doorsOff
OLinked to opera-
tion of the power switch
FunctionDefault settingCustomized set- ting
Mechanical key linked opera-
tion (open)OffOnO
Mechanical key linked opera-
tion (close)OffOnO
Wireless remote control linked
operation (open)OffOnO
Wireless remote control linked
operation signal (buzzer)OnOffO
ABC
ABC
ABC

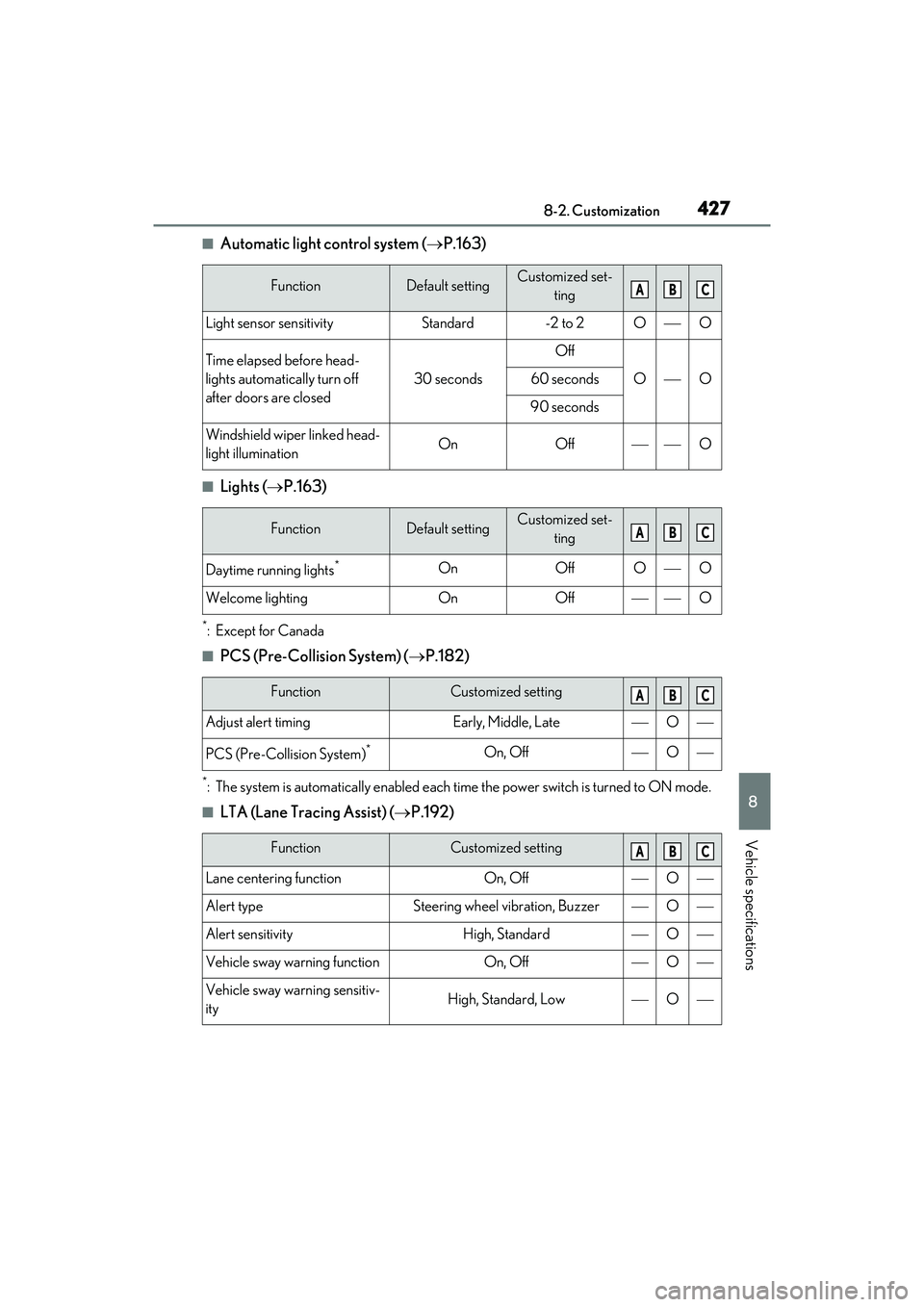

4278-2. Customization
8
Vehicle specifications
QAutomatic light control system (P.163)
QLights ( P.163)
*:Except for Canada
QPCS (Pre-Collision System) ( P.182)
*: The system is automatically enabled each ti me the power switch is turned to ON mode.
QLTA (Lane Tracing Assist) (P.192)
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
OO60 seconds
90 seconds
Windshield wiper linked head-
light illuminationOnOffO
FunctionDefault settingCustomized set-ting
Daytime running lights*OnOffOO
Welcome lightingOnOffO
FunctionCustomized setting
Adjust alert timingEarly, Middle, LateO
PCS (Pre-Collision System)*On, OffO
FunctionCustomized setting
Lane centering functionOn, OffO
Alert typeSteering wheel vibration, BuzzerO
Alert sensitivityHigh, StandardO
Vehicle sway warning functionOn, OffO
Vehicle sway warning sensitiv-
ityHigh, Standard, LowO
ABC
ABC
ABC
ABC

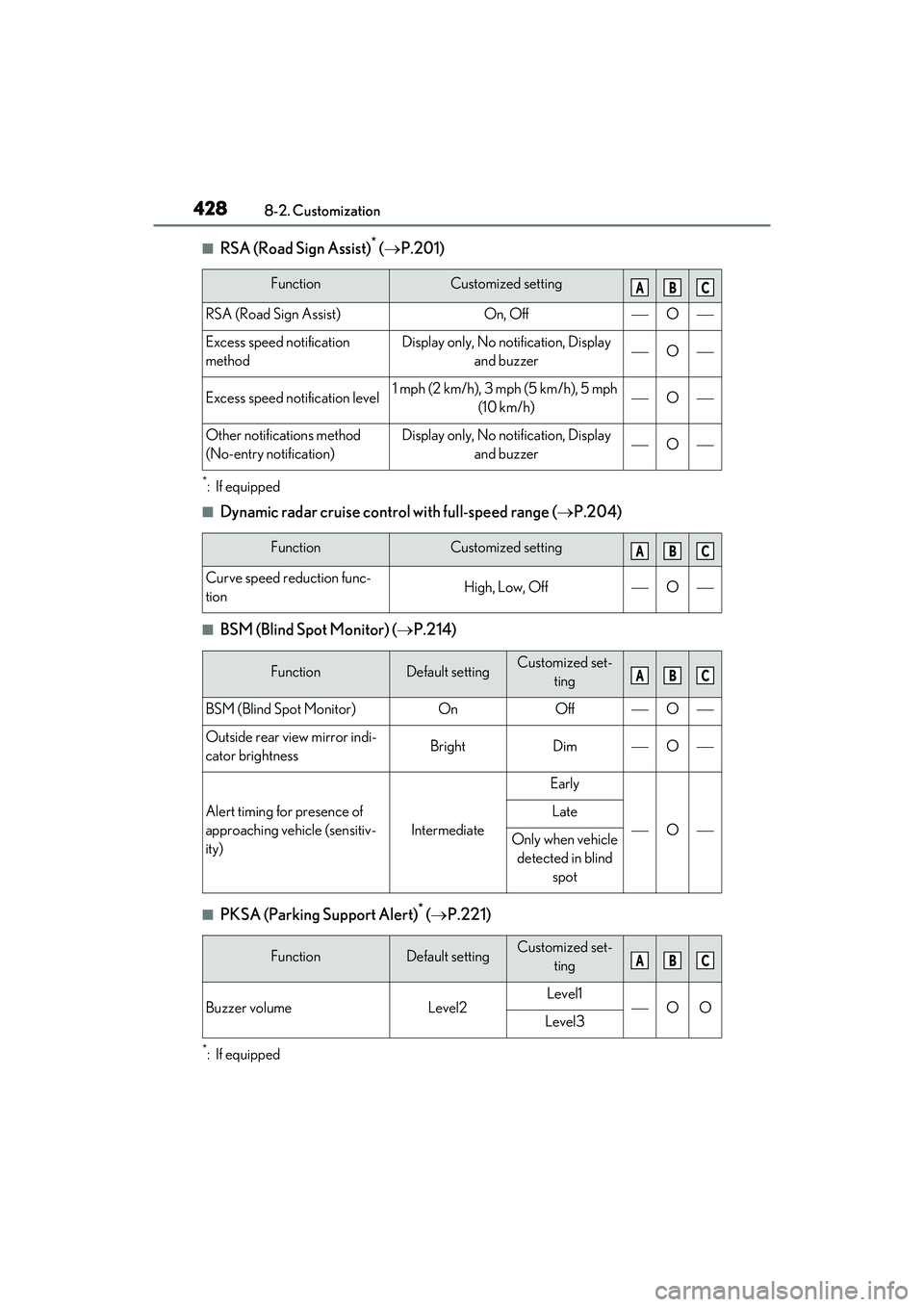

4288-2. Customization
QRSA (Road Sign Assist)* ( P.201)
*: If equipped
QDynamic radar cruise control with full-speed range ( P.204)
QBSM (Blind Spot Monitor) ( P.214)
QPKSA (Parking Support Alert)* ( P.221)
*: If equipped
FunctionCustomized setting
RSA (Road Sign Assist)On, OffO
Excess speed notification
methodDisplay only, No notification, Display
and buzzerO
Excess speed notification level1 mph (2 km/h), 3 mph (5 km/h), 5 mph (10 km/h)O
Other notifications method
(No-entry notification)Display only, No notification, Display and buzzerO
FunctionCustomized setting
Curve speed reduction func-
tionHigh, Low, OffO
FunctionDefault settingCustomized set-ting
BSM (Blind Spot Monitor)OnOffO
Outside rear view mirror indi-
cator brightnessBrightDimO
Alert timing for presence of
approaching vehicle (sensitiv-
ity)
Intermediate
Early
O
Late
Only when vehicle detected in blind spot
FunctionDefault settingCustomized set- ting
Buzzer volumeLevel2Level1OOLevel3
ABC
ABC
ABC
ABC
