STARTING AND DRIVING
284The slip indicator light comes on for a few seconds when the
ignition key is turned to ONº. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
Traction control off mode
If your wheels get stuck in a ditch when you are driving on
a severe off road and sand, turn off the traction control
system. This system that controls engine performance
interferes with the process of freeing your wheels.
To turn off: Push TRAC OFFº switch.
The TRAC OFFº indicator light will come on.
The vehicle stability control system is always activated, even
if the traction control system is turned off.To turn on: Push TRAC OFFº switch once again.
The TRAC OFFº indicator light will go off.
TRAC OFFº indicator light comes on for a few seconds when
the ignition key is turned to ONº. It will come on again when
you push the TRAC OFFº switch to turn off the system.
In the following cases, contact your Lexus dealer:
The indicator light does not come on when the ignition key
is turned to ONº.
The indicator light remains on after the ignition is turned on.
The indicator light comes on with the normal driving mode
while driving.

STARTING AND DRIVING
286
VEHICLE STABILITY CONTROL
SYSTEM
The vehicle stability control system helps provide
integrated control of the systems such as anti-lock brake
system, traction control, engine control, etc. This system
automatically controls the brakes and engine to help
prevent the vehicle from skidding when cornering on a
slippery road surface or operating steering wheel
abruptly.
The system will activate when your vehicle speed reaches or
exceeds 15 km/h (9 mph), and will deactivate when the vehicle
speed reduced to below 15 km/h (9 mph).
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle
begins to move. This means that the system is in the
self-check mode but does not indicate a malfunction.
CAUTION
Do not rely excessively on the vehicle stability
control system. Even if the vehicle skid control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an unexpected accident. If the
slip indicator light blinks, sounding an alarm, special
care should be taken while driving.
Only use tires of specified size. The size,
manufacture, brand and tread pattern for all 4 tires
should be the same. If you use the tires other than
specified, or different type or size, the vehicle
stability control system may not function correctly.
When replacing the tires or wheels, contact your
Lexus dealer.
In situations where the road surface is covered with
ice or snow, your vehicle should be fitted with snow
tires or tire chains.

Slip indicator light
If the vehicle is going to skid during driving, the slip indicator
light blinks and an alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few seconds when the
ignition key is turned to ONº. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.

STARTING AND DRIVING
288
BRAKE SYSTEM
The tandem master cylinder brake system is a hydraulic
system with two separate sub-systems. If either sub-system
should fail, the other will still work. However, the pedal will be
harder to press, and your stopping distance will increase. Also,
the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses engine vacuum to power-assist the
brakes. If the engine should quit while you are driving, you can
bring the vehicle to a stop with normal pedal pressure. There
is enough reserved vacuum for one or two stops but no more!
CAUTION
Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved
vacuum.
Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will increase.
Anti-lock brake system
The anti-lock brake system is designed to help prevent
lock-up of the wheels during a sudden braking or braking
on slippery road surfaces. This assists in providing
directional stability and steering performance of the
vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti-lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti-lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti-lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on a manhole cover, a steel plate at a construction site, joints
in a bridge, etc. on a rainy day tends to activate the anti-lock
brake system.

STARTING AND DRIVING
289 You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle begins to move. This means that the
anti-lock brake system is in the self-check mode, and does not
indicate a malfunction.
When the anti-lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
You may hear the anti-lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
At the end of the anti-lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the anti-lock brake system:
Although the anti-lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti-lock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti-lock brake system does not provide
vehicle control.
Anti-lock brake system is not designed to shorten the
stopping distance: Always drive at a moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti-lock
brake system, your vehicle may require a longer
stopping distance in the following cases:
Driving on rough, gravel or snow-covered roads.
Driving with tire chains installed.
Driving over the steps such as the joints on the road.
Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate inflation
pressure: The anti-lock brake system detects vehicle
speeds using the speed sensors for respective wheels'
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.

STARTING AND DRIVING
291 When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system, the brake
assist system, the traction control system and the vehicle
stability control system do not operate, but the brake system
still operates conventionally.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light. Contact your Lexus dealer as soon
as possible to service the vehicle.
The light does not come on when the ignition key is turned
to the ONº position, or remains on.
The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the ABSº warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti-lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system.
This type of brake system needs bedding-down of the brake
shoes periodically or whenever the parking brake shoes and/or
drums are replaced.
Have your Lexus dealer perform the bedding-down.
Brake assist system (vehicles with vehicle
stability control system)
When you slam the brakes on, the brake assist system
judges as an emergency stop and provides more powerful
braking for a driver who cannot hold down the brake pedal
firmly.
When you slam the brakes on, more powerful braking will be
applied. At this time, you may hear a sound in the engine
compartment and feel the vibrations of the brake pedal. This
does not indicate a malfunction.
The brake assist system becomes operative after the vehicle
has accelerated to a speed in excess of approximately 10 km/h
(6 mph). It stops operating when the vehicle decelerates to a
speed below approximately 5 km/h (3 mph).
For an explanation of this system's warning light, see ABS
warning lightº on page 62.

DRIVING TIPS
294
BREAK-IN PERIOD
Drive gently and avoid high speeds.
You need not follow a break-in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:
Avoid full throttle acceleration when starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first 300 km (200 miles).
Do not drive for a long time at any single speed, either fast
or slow.
Do not tow a trailer during the first 800 km (500 miles).
OPERATION IN FOREIGN
COUNTRIES
If you plan to drive your Lexus in another country...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel (unleaded
and minimum octane rating).

DRIVING TIPS
295
TIPS FOR DRIVING IN VARIOUS
CONDITIONS
Always slow down in gusty crosswinds. This will allow you
much better control.
Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp-edged objects and other
road hazards. Failure to do so can lead to severe tire
damage such as a tire burst.
Drive slowly when passing over bumps or travelling on a
bumpy road. Otherwise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the transmission in Pº. If necessary, block
the wheels.
Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the
road and call a Lexus dealer for assistance.

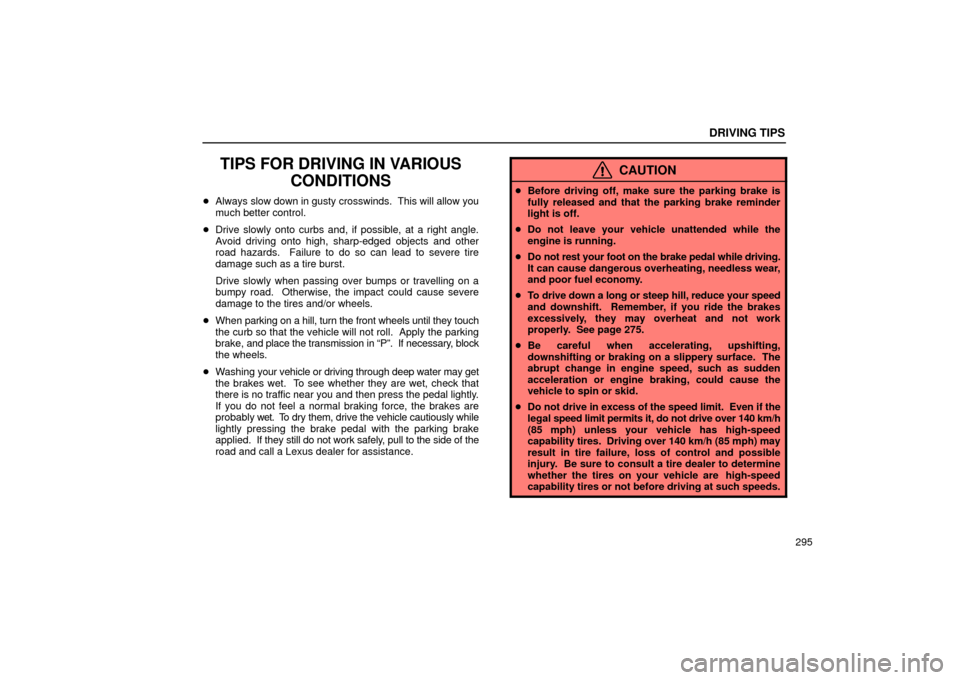

CAUTION
Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
Do not leave your vehicle unattended while the
engine is running.
Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 275.
Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.
Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high-speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high-speed
capability tires or not before driving at such speeds.

DRIVING TIPS
297
WINTER DRIVING TIPS
Make sure your coolant is properly protected against
freezing.
Only use Toyota Super Long Life Coolantº or similar high
quality ethylene glycol based non- silicate, non- amine,
non- nitrite, and non- borate coolant with long- life hybrid
organic acid technology.
See Checking the engine coolant levelº on page 375 for
details of coolant type selection.
Toyota Super Long Life Coolantº is pre- mixed with 50%
coolant and 50% deionized water. This coolant provides
protection down to about -35C (-31F).
NOTICE
Do not use plain water alone.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so it
must be in top shape to provide enough power for winter
starting. Page 421 tells you how to visually inspect the battery.
Your Lexus dealer and most service stations will be pleased to
check the battery charge level.Make sure the engine oil viscosity is suitable for the cold
weather.
See page 374 for recommended viscosity. Leaving a heavy
summer oil in your vehicle during winter months may cause
harder starting. If you are not sure about which oil to use, call
your Lexus dealer Ð they will be pleased to help.
Check the electronic ignition system for loose
connections or obvious damage.
Keep the door locks from freezing.
Squirt lock de-icer or glycerine into the locks to keep them from
freezing.

DRIVING TIPS
298Use a washer fluid containing an antifreeze solution.
This product is available at your Lexus dealer and most auto
parts stores. Follow the manufacturer's directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle's paint.
Do not use your parking brake when there is a possibility
it could freeze.
When parking, put the transmission into Pº and block the rear
wheels. Do not use the parking brake, or snow or water
accumulated in and around the parking brake mechanism may
freeze the parking brake, making it hard to release.Keep ice and snow from accumulating under the fenders.
Ice and snow built up under your fenders can make steering
difficult. During bad winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving, we recommend you
carry some emergency equipment.
Some of the things you might put in the vehicle are tire chains,
window scraper, bag of sand or salt, flares, small shovel,
jumper cables, etc.

DRIVING TIPS
304
Brakes and safety chains
Lexus recommends trailers with brakes that conform to
any applicable federal and state/provincial regulations.
A safety chain must always be used between the towing
vehicle and the trailer. Leave sufficient slack in the
chain for turns. The chain should cross under the
trailer tongue to prevent the tongue from dropping to
the ground in case it becomes damaged or separated.
For correct safety chain procedures, follow the hitch or
trailer manufacturer's recommendations.
CAUTION
If the total trailer weight exceeds 500 kg (1102 lb.),
trailer brakes are required.
Never tap into your vehicle's hydraulic system as it
will lower its braking effectiveness.
Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If damage occurs to the coupling unit or hitch ball,
there is possible danger of the trailer wandering over
into another lane.
Tires
Ensure that your vehicle's tires are properly inflated. Adjust
the tire inflation pressure to the recommended cold tire
inflation pressure indicated below:
Tire inflation pressure, kPa (kgf/cm
2 or bar, psi)
Front 200 (2.0, 29)
Rear 200 (2.0, 29)
The trailer tires should be inflated to the pressure
recommended by the trailer manufacturer in respect to the
total trailer weight.
Trailer lights
Trailer lights must comply with federal, state/provincial and
local regulations. See your local recreational vehicle dealer
or rental agency for the correct type of wiring and relays for
your trailer. Check for correct operation of the turn signals
and stop lights each time you hitch up. Direct splicing may
damage your vehicle's electrical system and cause a
malfunction of your lights.
Break-in schedule
Lexus recommends that you do not tow a trailer with a new
vehicle or a vehicle with any new power train component
(engine, transmission, differential, wheel bearing, etc.) for
the first 800 km (500 miles) of driving.
