OCCUPANT RESTRAINT SYSTEM
122
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the front seat belt
pretensioners in some cases.
Installation of electronic devices such as a mobile
two-way radio, cassette tape player or compact disc
player
Repairs on or near the front seat belt retractor
assemblies
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end
Repair made on or near the front fenders, front end
structure or console

OCCUPANT RESTRAINT SYSTEM
133
Do not modify or remove any wiring. Do not modify,
remove, strike or open any components, such as the
steering wheel pad, steering wheel, column cover,
front passenger airbag cover, front passenger airbag
or airbag sensor assembly. Doing so may prevent the
front airbag system from activating correctly, cause
sudden activation of the system or disable the
system, which could result in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS front airbag
system in some cases.
Installation of electronic devices such as a mobile
two-way radio, cassette tape player or compact disc
player
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end
Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel
or dashboard near the front passenger airbag

OCCUPANT RESTRAINT SYSTEM
148
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS side airbag
and curtain shield airbag system in some cases.
Installation of electronic devices such as a mobile
two-way radio, cassette tape player or compact disc
player
Modification of the suspension system
Modification of the structure of the passenger
compartment
Repairs made on or near the console or front seat

AUDIO
215
Push the AMº, FMº, TAPEº or DISCº button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off each player by ejecting the cassette tape or
compact disc. If the audio system was previously off, then the
entire audio system will be turned off when you eject the
cassette tape or compact disc. If the another function was
previously playing, it will come on again.In the TAPEº or CDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid-range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid-range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.

AUDIO
218(e) Your cassette player
When you insert a cassette, the exposed tape should face to
the right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.
(f) Your compact disc player
When you insert a disc, gently push it in with the label face up.
(The player will automatically eject a disc if the label face is
down.) The compact disc player will play from track 1 through
the end of the disc. Then it will play from track 1 again. On
models with the compact disc auto changer, next disc will be
played from track 1.
NOTICE
Never try to disassemble or oil any part of the
compact disc player. Do not insert anything other
than compact discs into the slot.
Do not insert a disc upon another one.
The player is intended for use with 12 cm (4.7 in.) discs only.

AUDIO
221
To scan all the frequencies: Push the SCANº button briefly.
SCANº appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the SCANº button a
second time.
To scan the preset stations: Push the P.SCANº button.
P.SCANº appears on the display. The radio will tune in the
next preset station up the band, stay there for a few seconds,
and then move to the next preset station. To select a station,
push the P.SCANº button a second time.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, TAPEº appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
METALº appears on the display.
To stop or eject the cassette tape, push the EJECTº button.
Auto-reverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

AUDIO

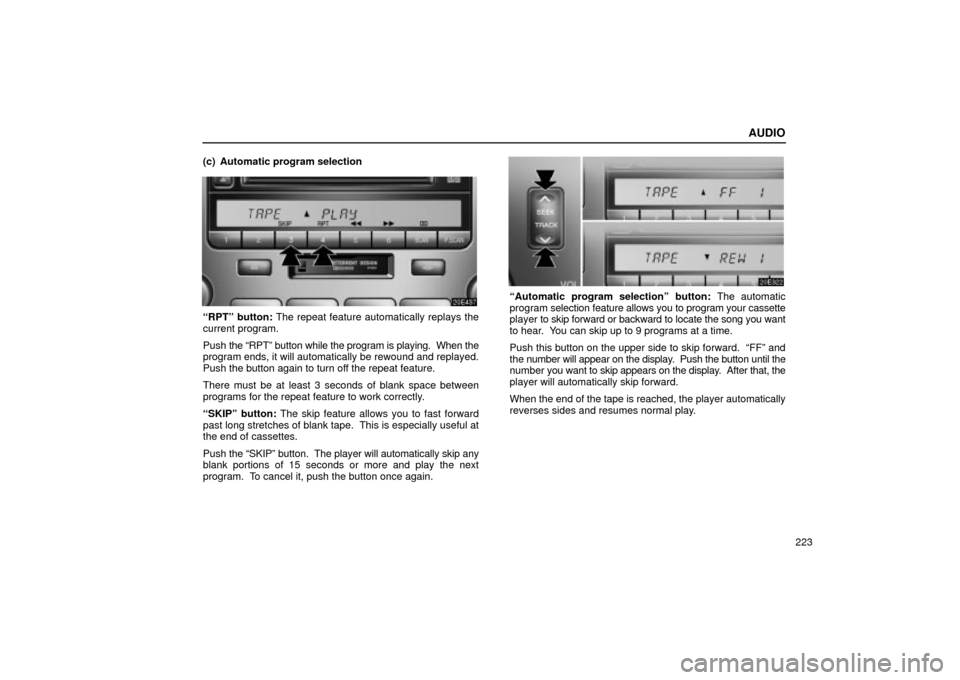

223 (c) Automatic program selection
RPTº button: The repeat feature automatically replays the
current program.
Push the RPTº button while the program is playing. When the
program ends, it will automatically be rewound and replayed.
Push the button again to turn off the repeat feature.
There must be at least 3 seconds of blank space between
programs for the repeat feature to work correctly.
SKIPº button: The skip feature allows you to fast forward
past long stretches of blank tape. This is especially useful at
the end of cassettes.
Push the SKIPº button. The player will automatically skip any
blank portions of 15 seconds or more and play the next
program. To cancel it, push the button once again.
Automatic program selectionº button: The automatic
program selection feature allows you to program your cassette
player to skip forward or backward to locate the song you want
to hear. You can skip up to 9 programs at a time.
Push this button on the upper side to skip forward. FFº and
the number will appear on the display. Push the button until the
number you want to skip appears on the display. After that, the
player will automatically skip forward.
When the end of the tape is reached, the player automatically
reverses sides and resumes normal play.

AUDIO
224Push this button on the lower side to skip backward. Push the
button until REWº and the number you want to skip appear on
the display.
If you set REW 1º, the player will rewind to the beginning
of the current program.
When counting the number of programs you want to rewind,
remember to count the current program as well. For
example, if you want to rewind to a song that is two before
the song you are listening to, push this button until REW
3º appears on the display.
When the beginning of the tape is reached, the player
automatically resumes normal play.
There must be at least 3 seconds of blank space between
programs for this feature to work correctly.
RPTº, SKIPº and Automatic program selectionº
features: These features may not work well with some spoken
word, live or classical recordings.

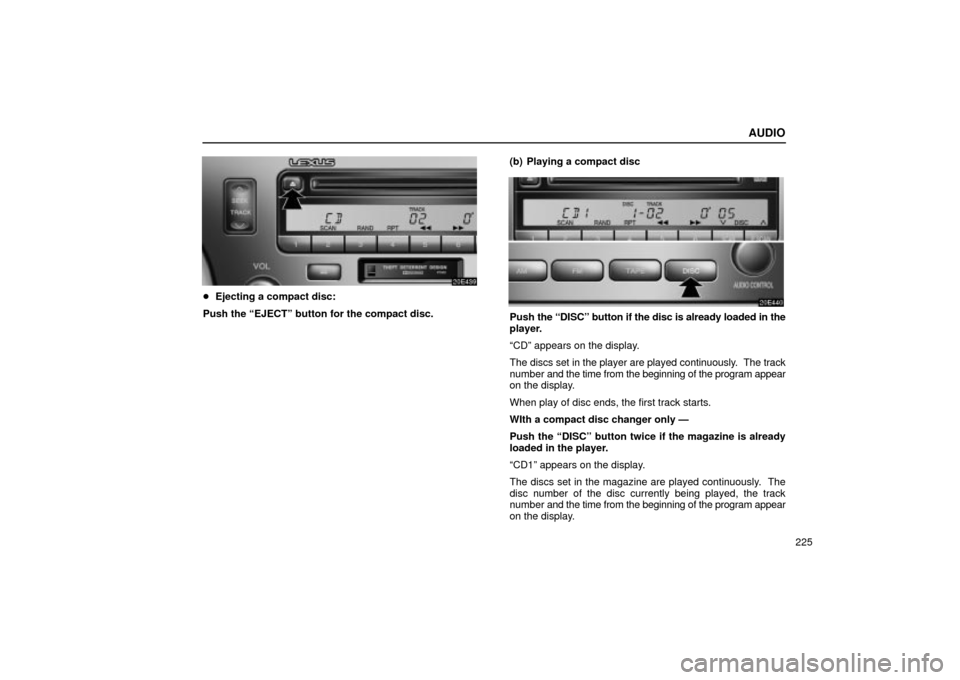

Compact disc player operation
(a) Inserting or ejecting compact discs
The ignition switch must be in the ACCº or ONº position.

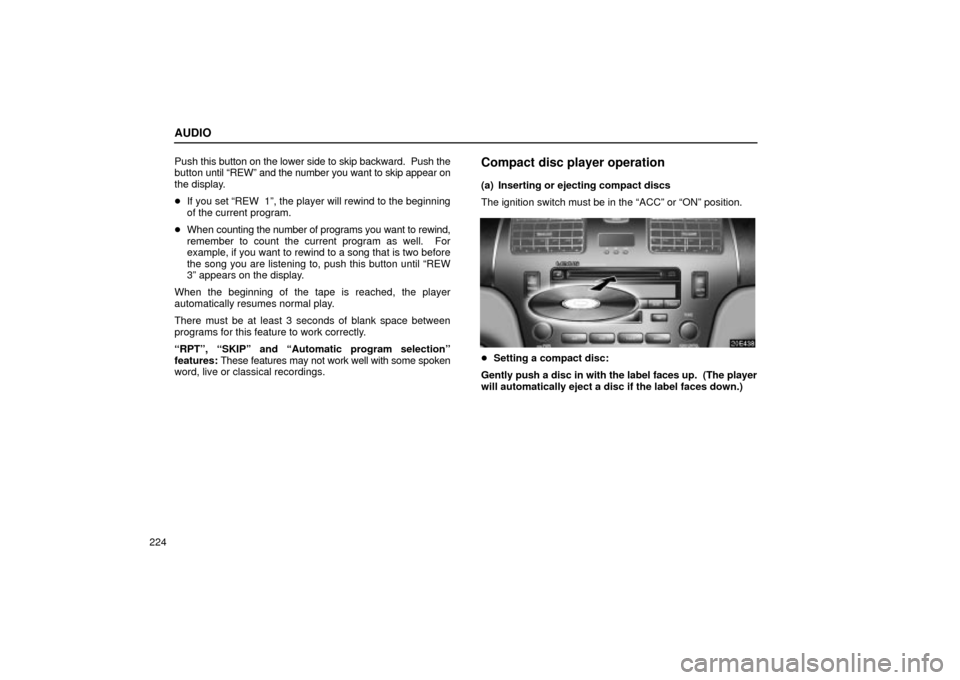

Setting a compact disc:
Gently push a disc in with the label faces up. (The player
will automatically eject a disc if the label faces down.)

AUDIO
225
Ejecting a compact disc:
Push the EJECTº button for the compact disc.(b) Playing a compact disc
Push the DISCº button if the disc is already loaded in the
player.
CDº appears on the display.
The discs set in the player are played continuously. The track
number and the time from the beginning of the program appear
on the display.
When play of disc ends, the first track starts.
WIth a compact disc changer only Ð
Push the DISCº button twice if the magazine is already
loaded in the player.
CD1º appears on the display.
The discs set in the magazine are played continuously. The
disc number of the disc currently being played, the track
number and the time from the beginning of the program appear
on the display.

AUDIO
226When play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays.
Pushing the DISCº button while playing a disc in the automatic
changer will switch from the disc in the changer to the disc in
the compact disc player.
If you push the DISCº button when the source is other than the
compact disc, a disc in the compact disc player or automatic

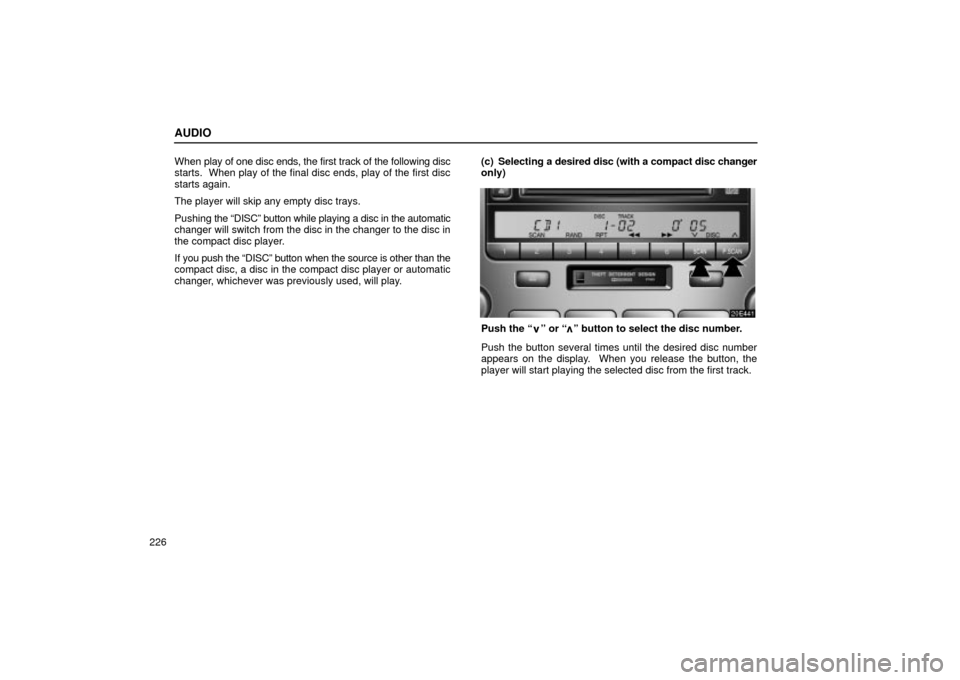

changer, whichever was previously used, will play.(c) Selecting a desired disc (with a compact disc changer
only)
Push the º or º button to select the disc number.
Push the button several times until the desired disc number
appears on the display. When you release the button, the
player will start playing the selected disc from the first track.
